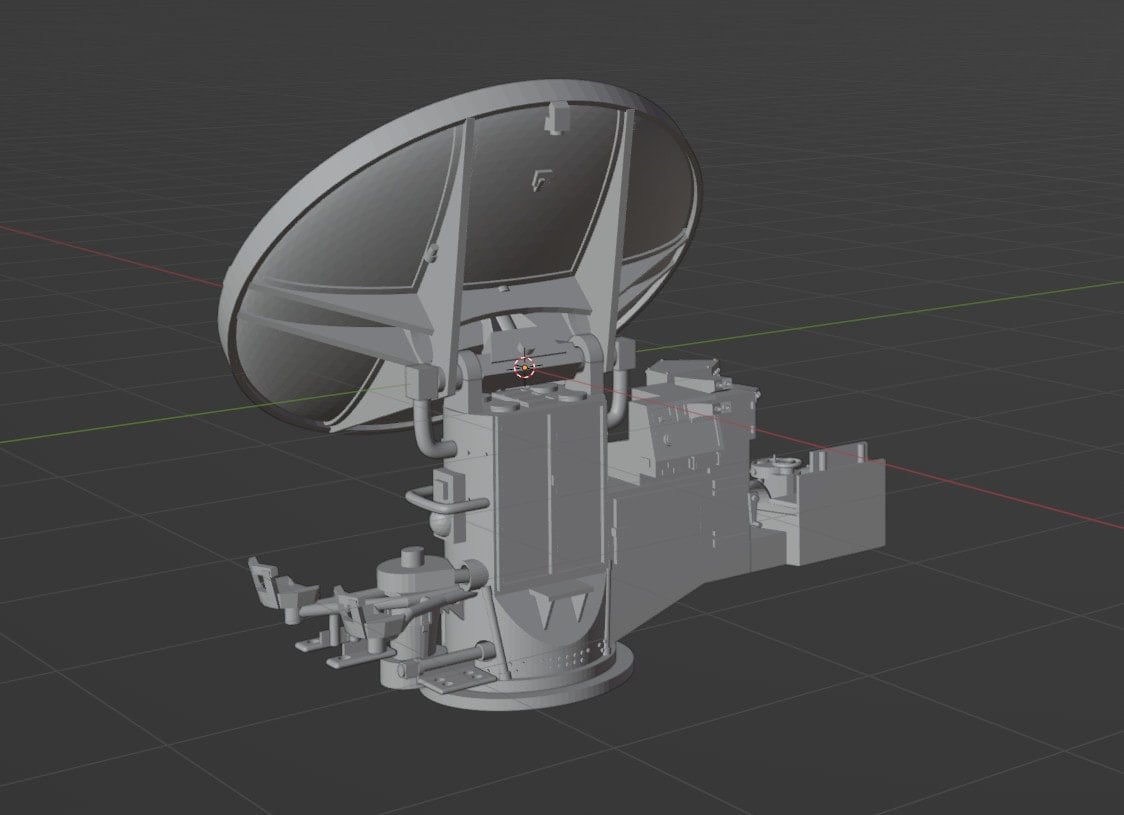

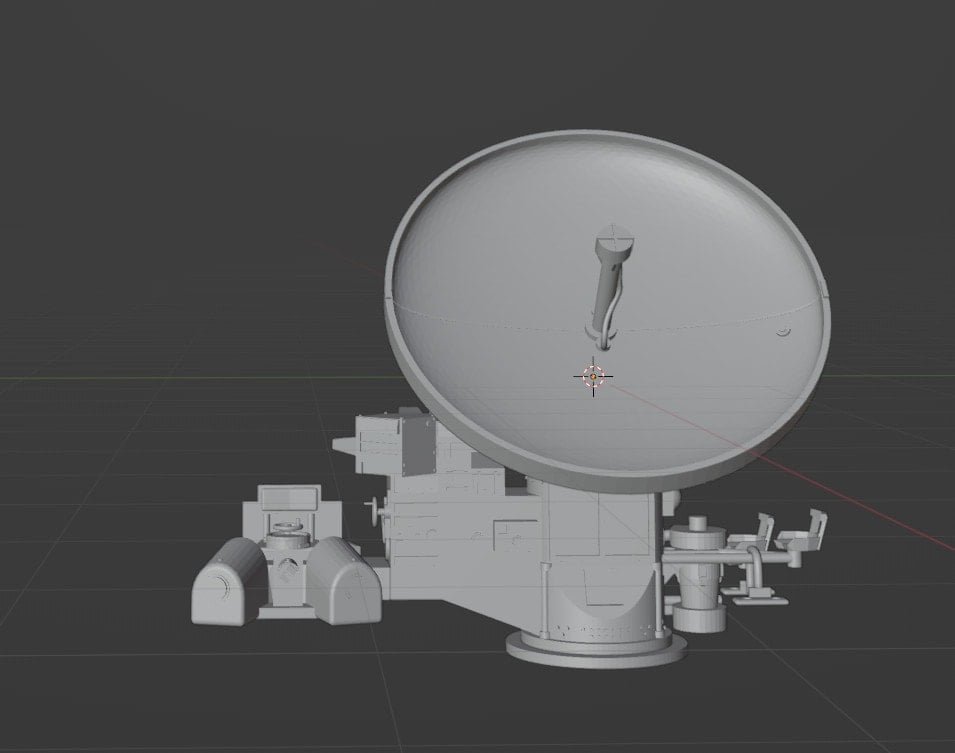

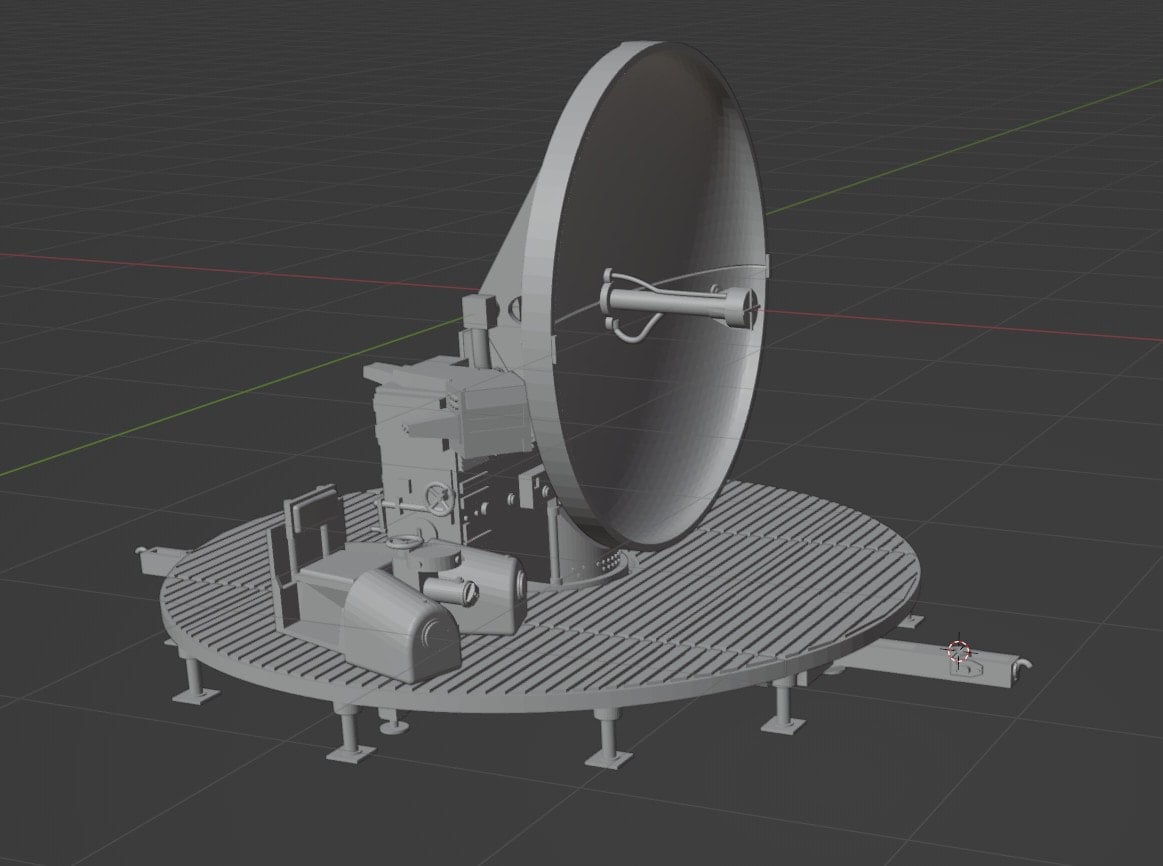

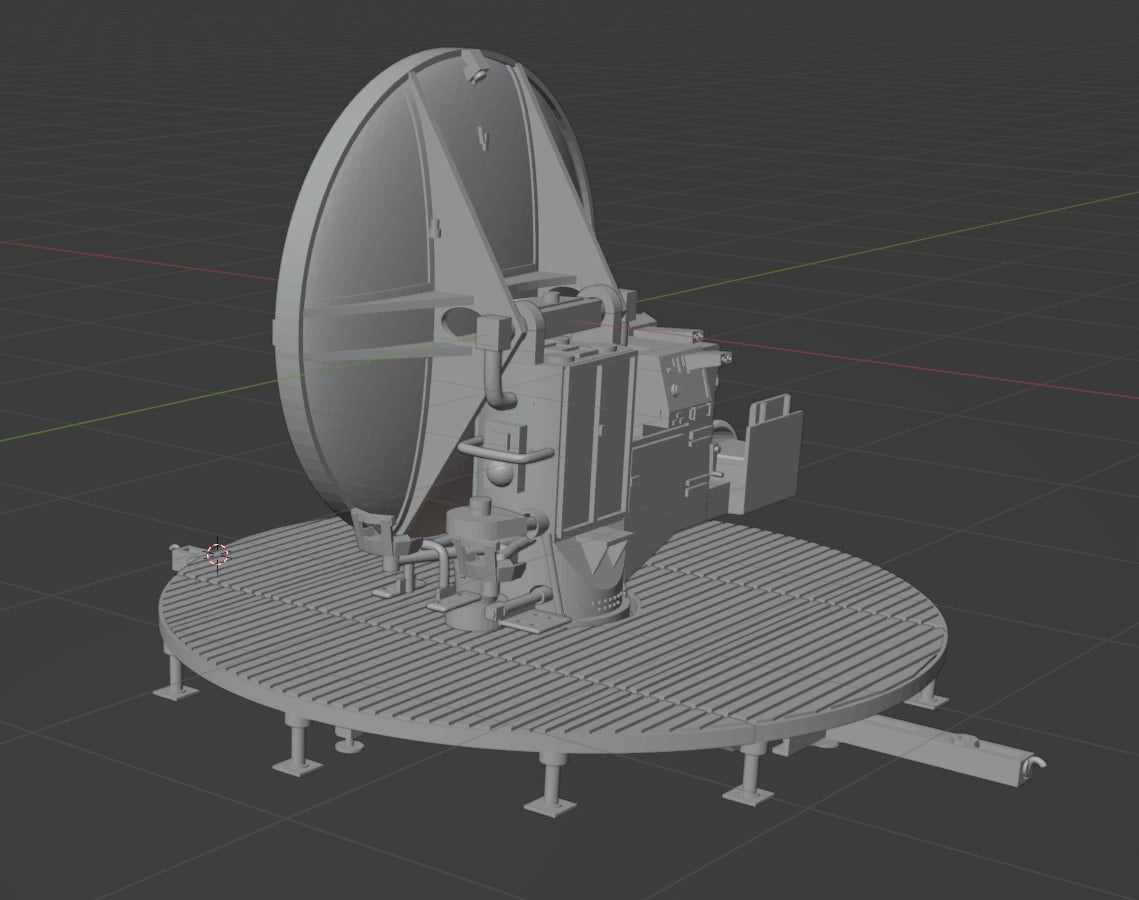

Detailed model of a German Wurzberg Radar (FMG-39-FuSE-62-D) as used by German FLAK teams in World War 2.
This model is part of a set including the 24 kW Generator and the 150cm Searchlight.
The Radar was used was used to "find" allied airplanes to make it much more easy for the searchlights to "catch" the airplanes in the searchlight bundle, so the FLAK crews could the fire on the Bombers.

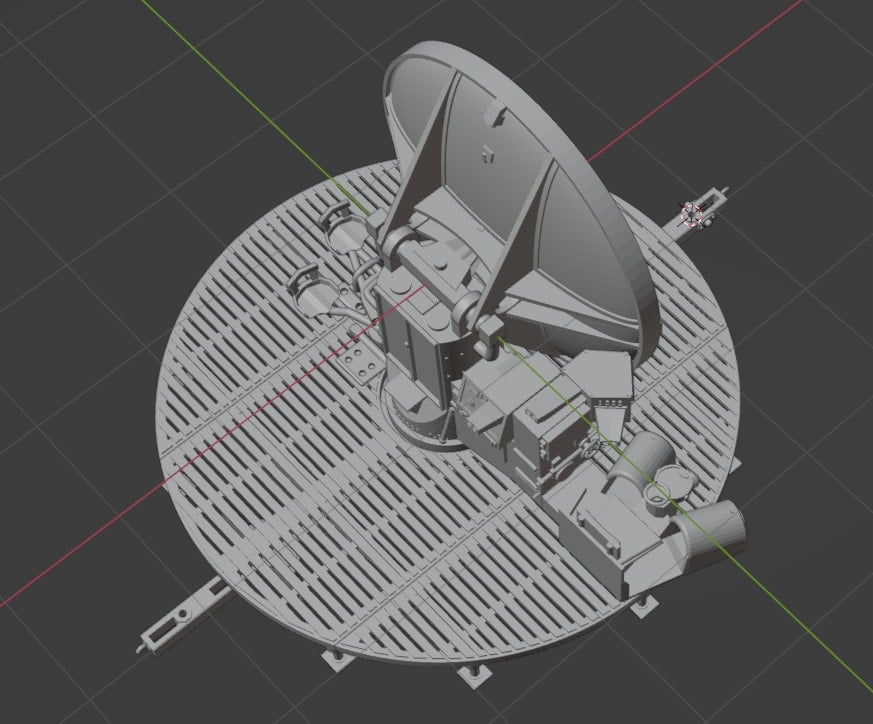

The Radar can be placed on the trailer or or in a static setup. This model only offers the static setup.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only.

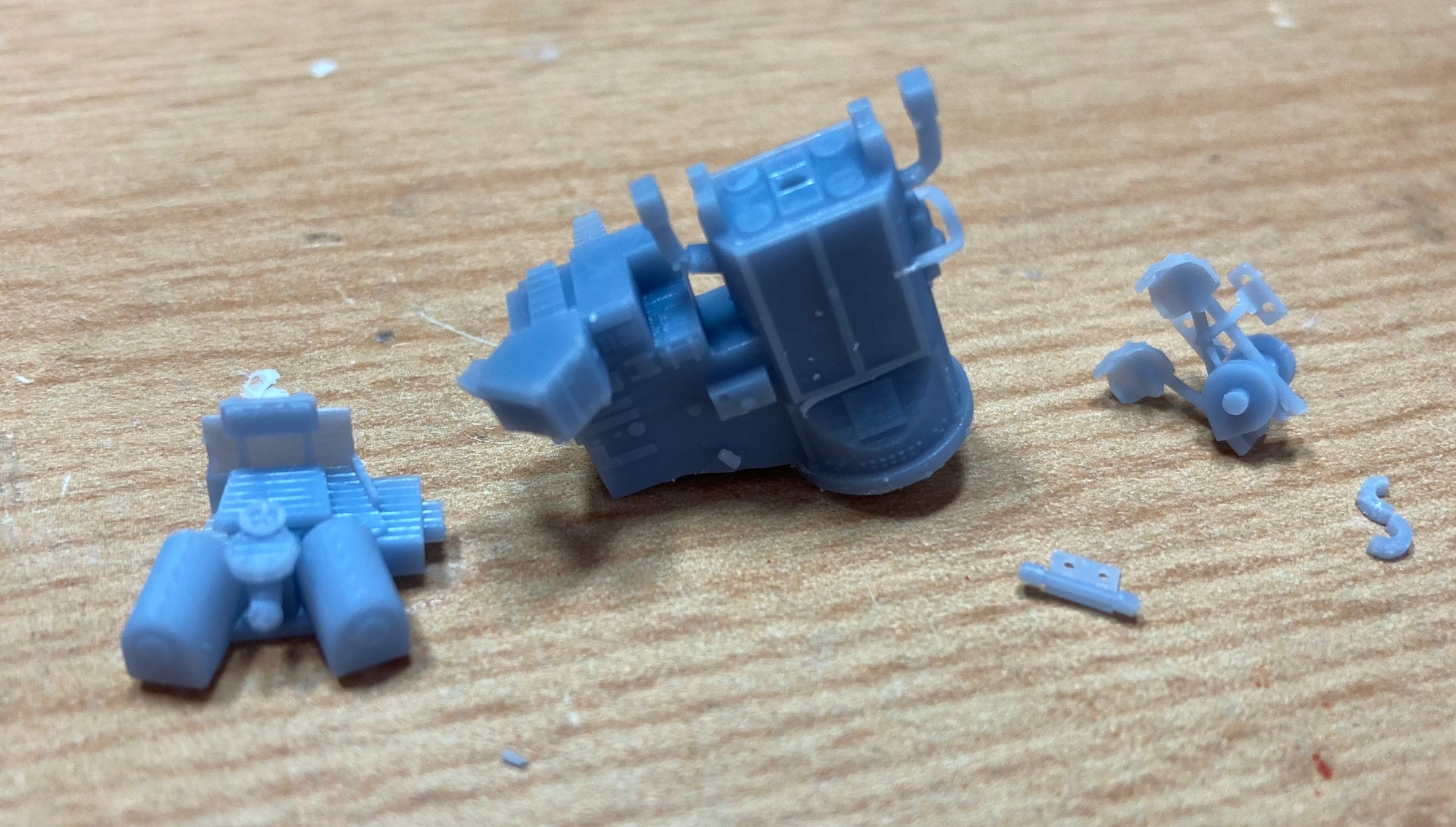

It requires some glue work. There are 3 main parts you have to glue together first;

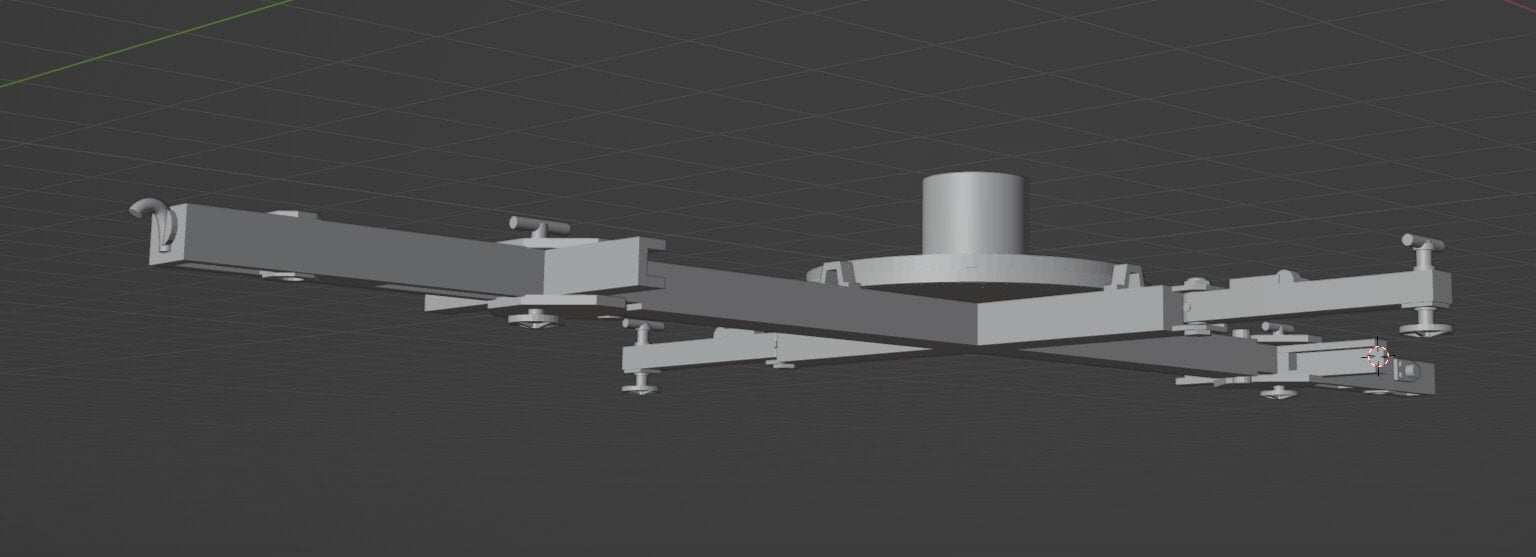

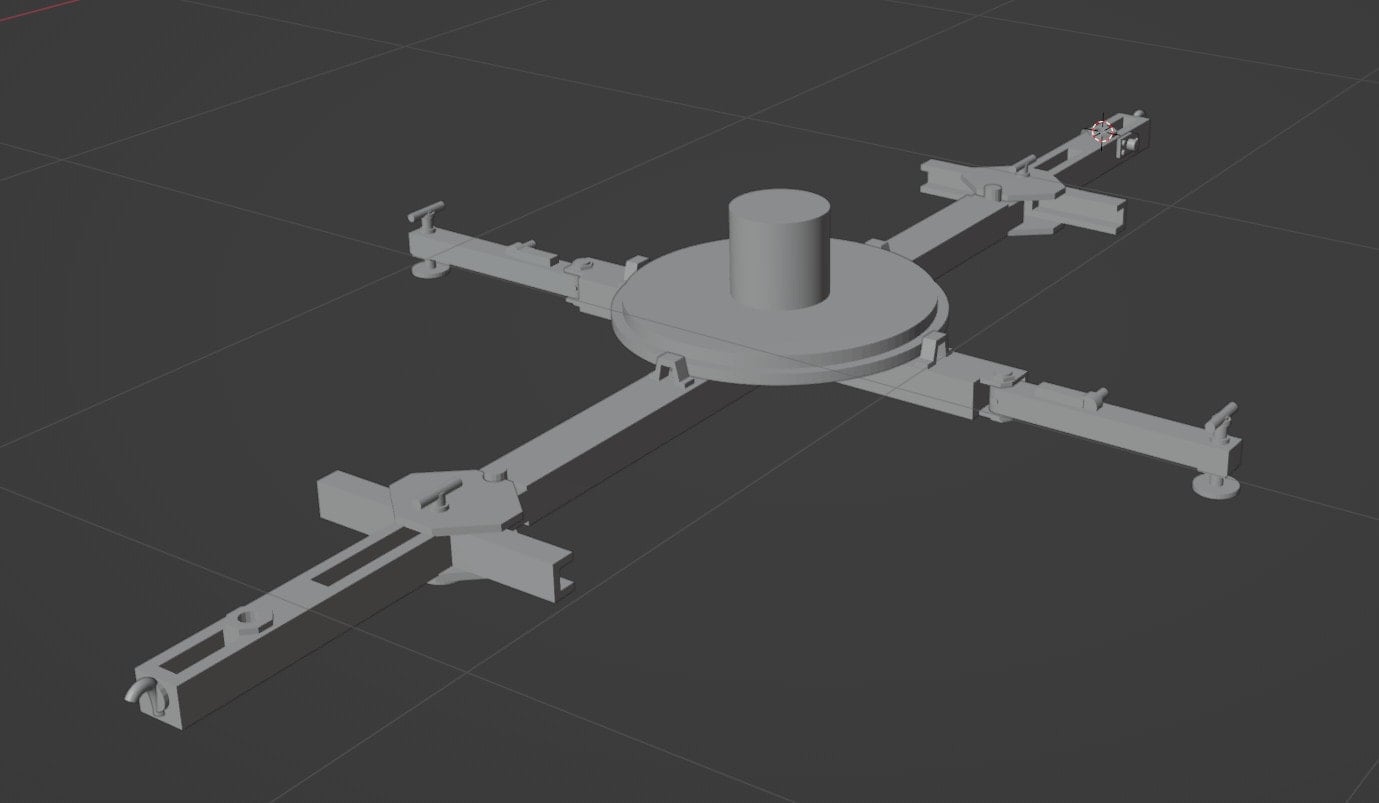

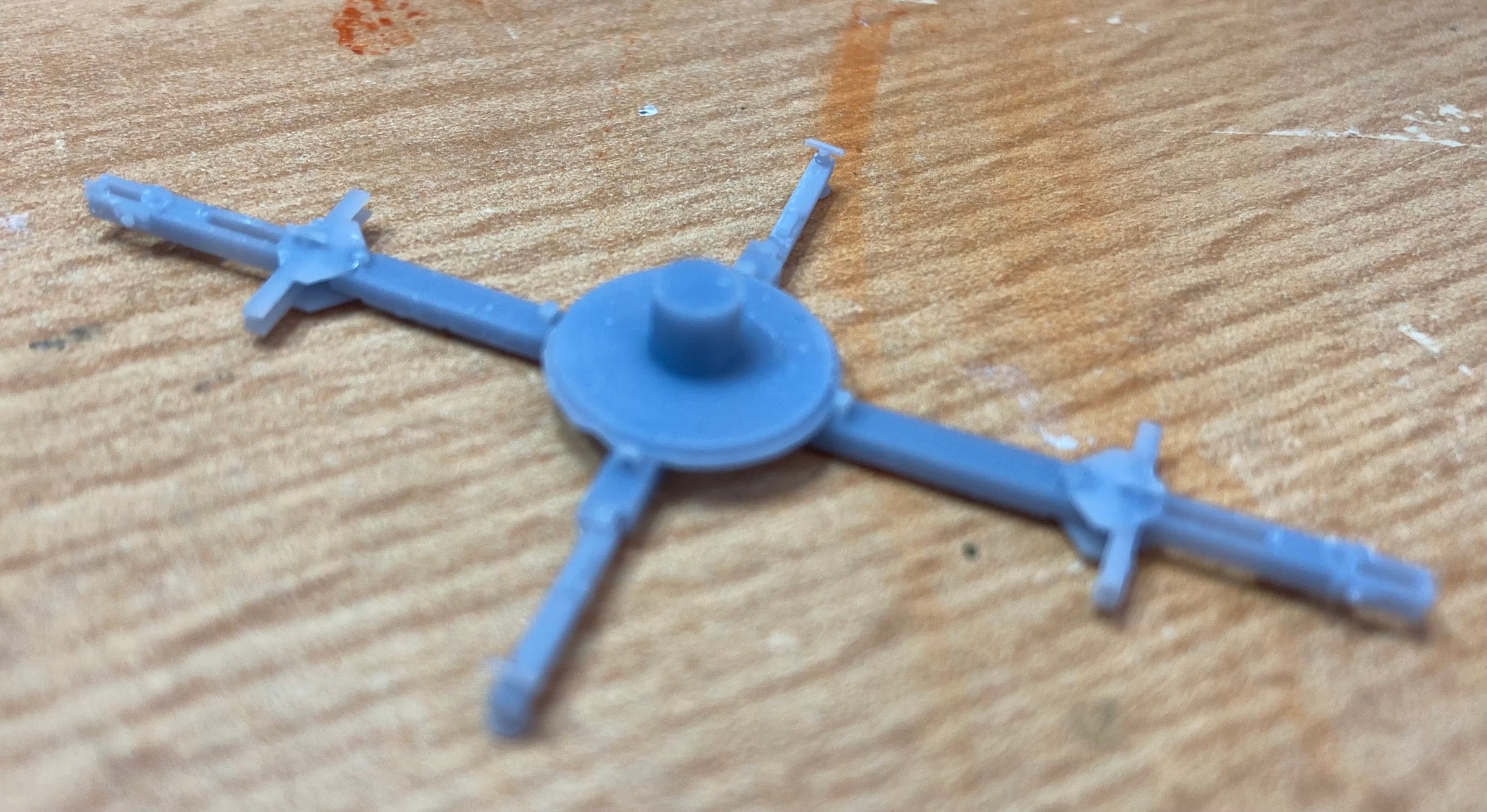

- The crucifix mount

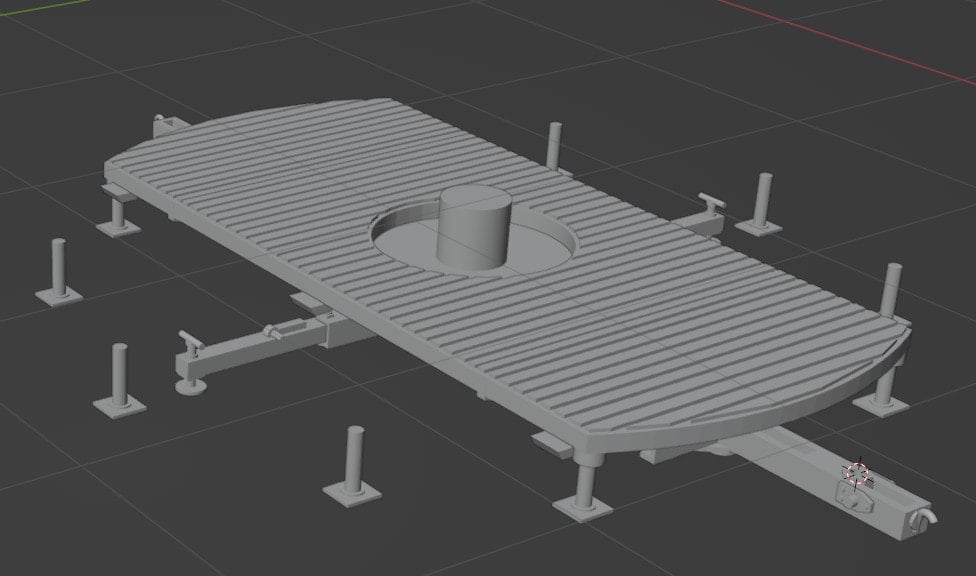

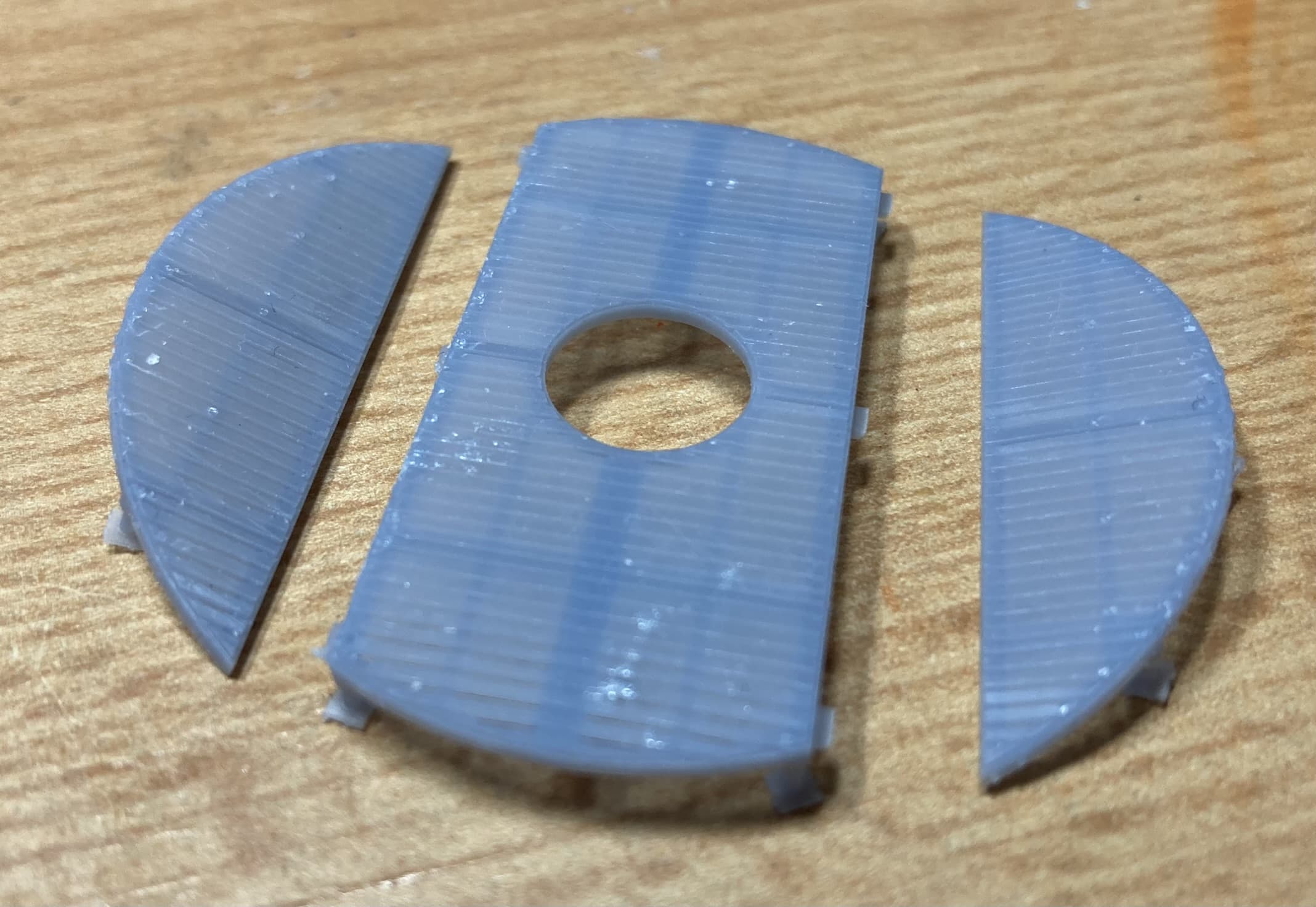

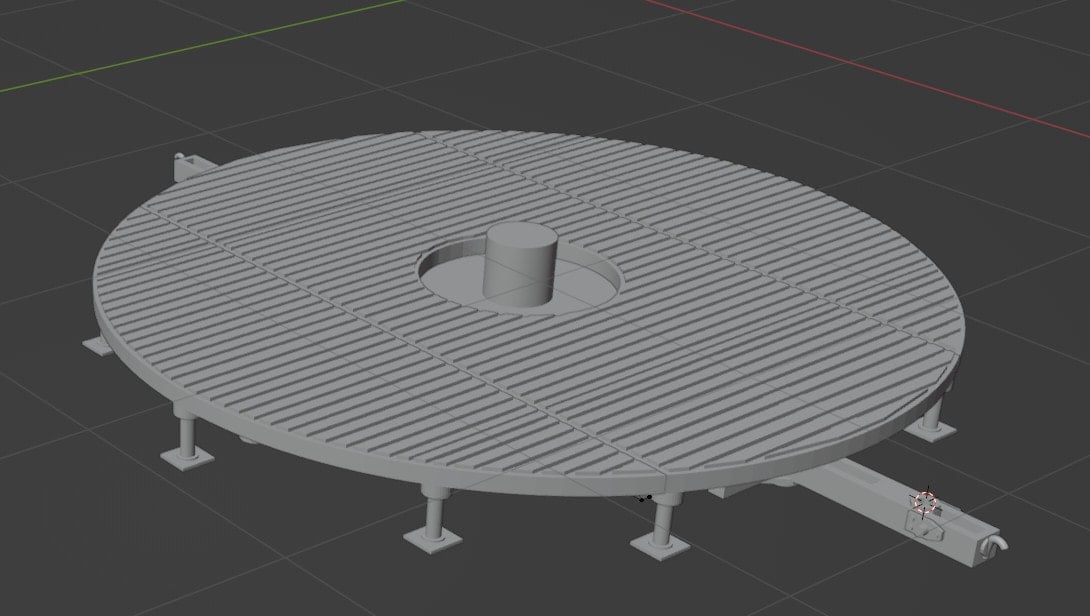

- The platform with 10 small support legs

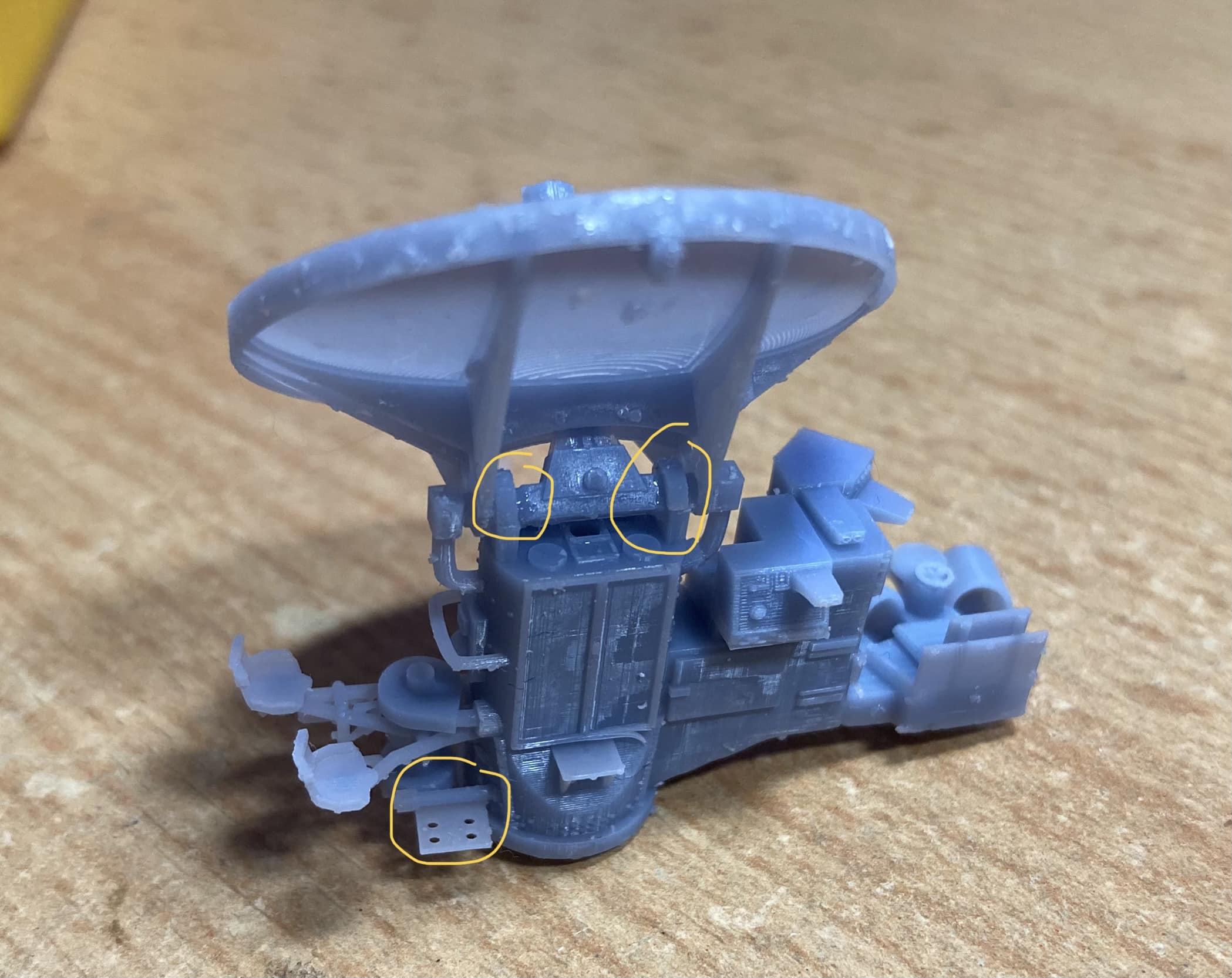

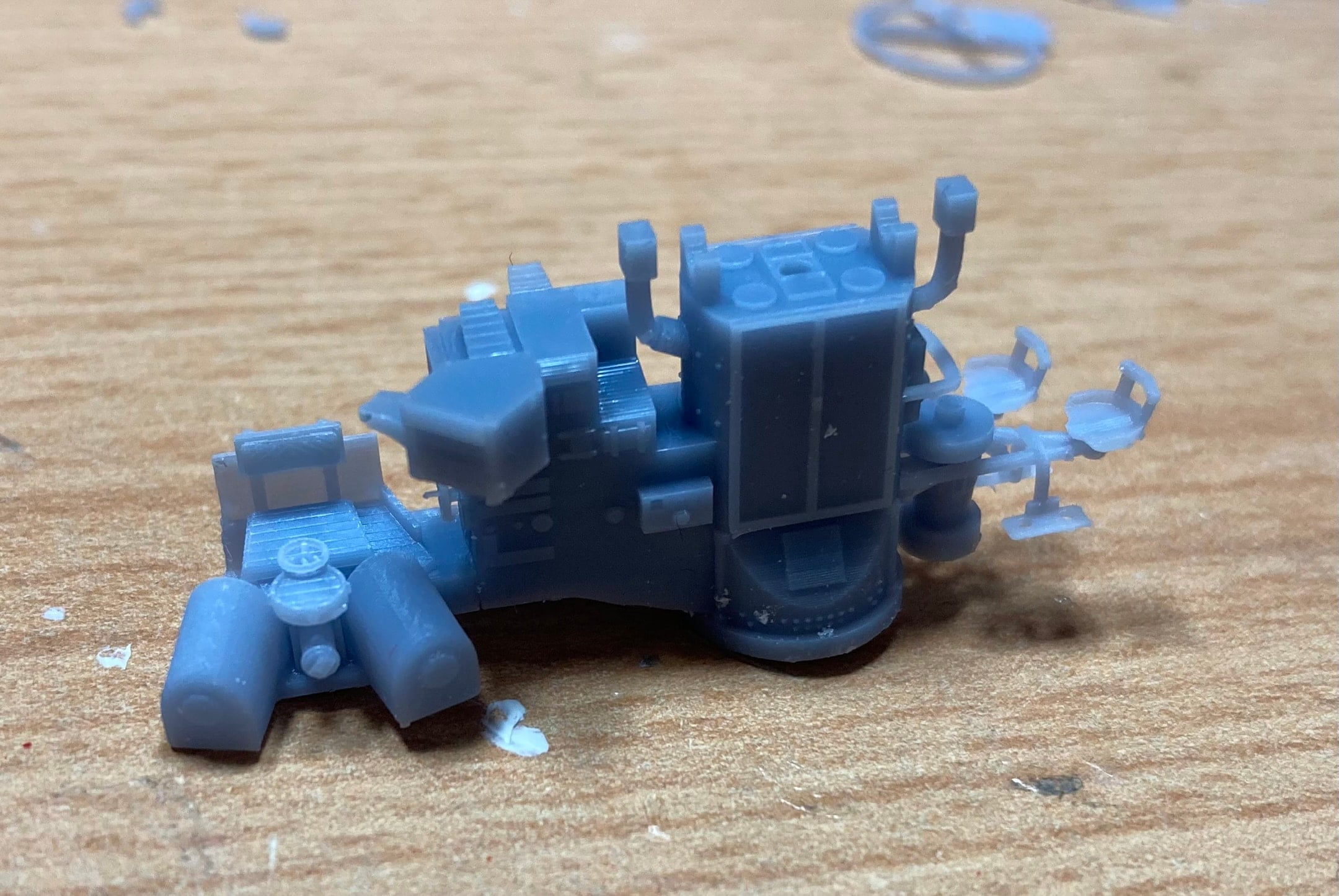

- The Radar unit with the seats and small platform attached to it, the dish you can glue in any elevation you want. Make sure you also place to 2 small parts as you can see in the picture "Details.jpg" highlighted in yellow.

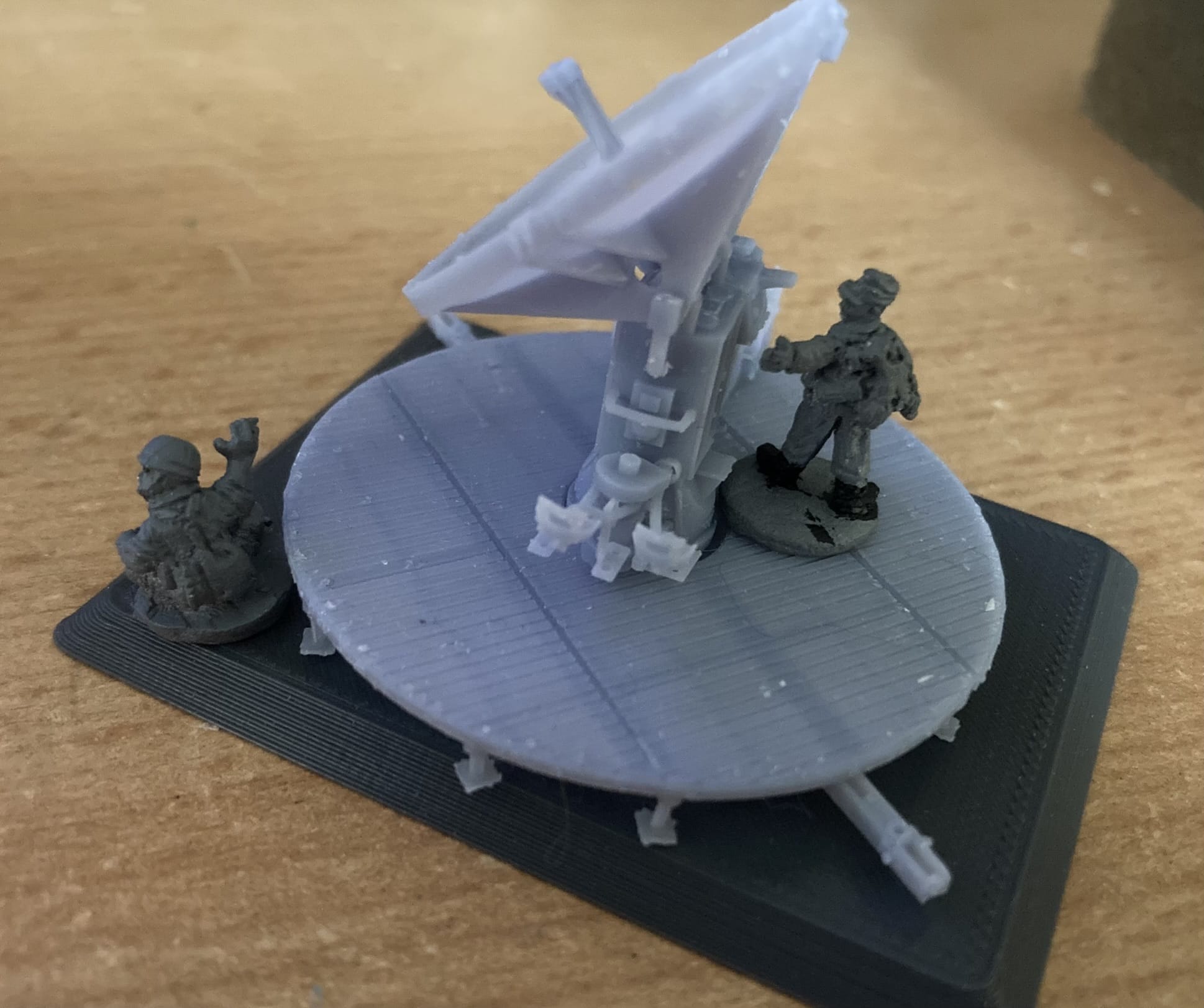

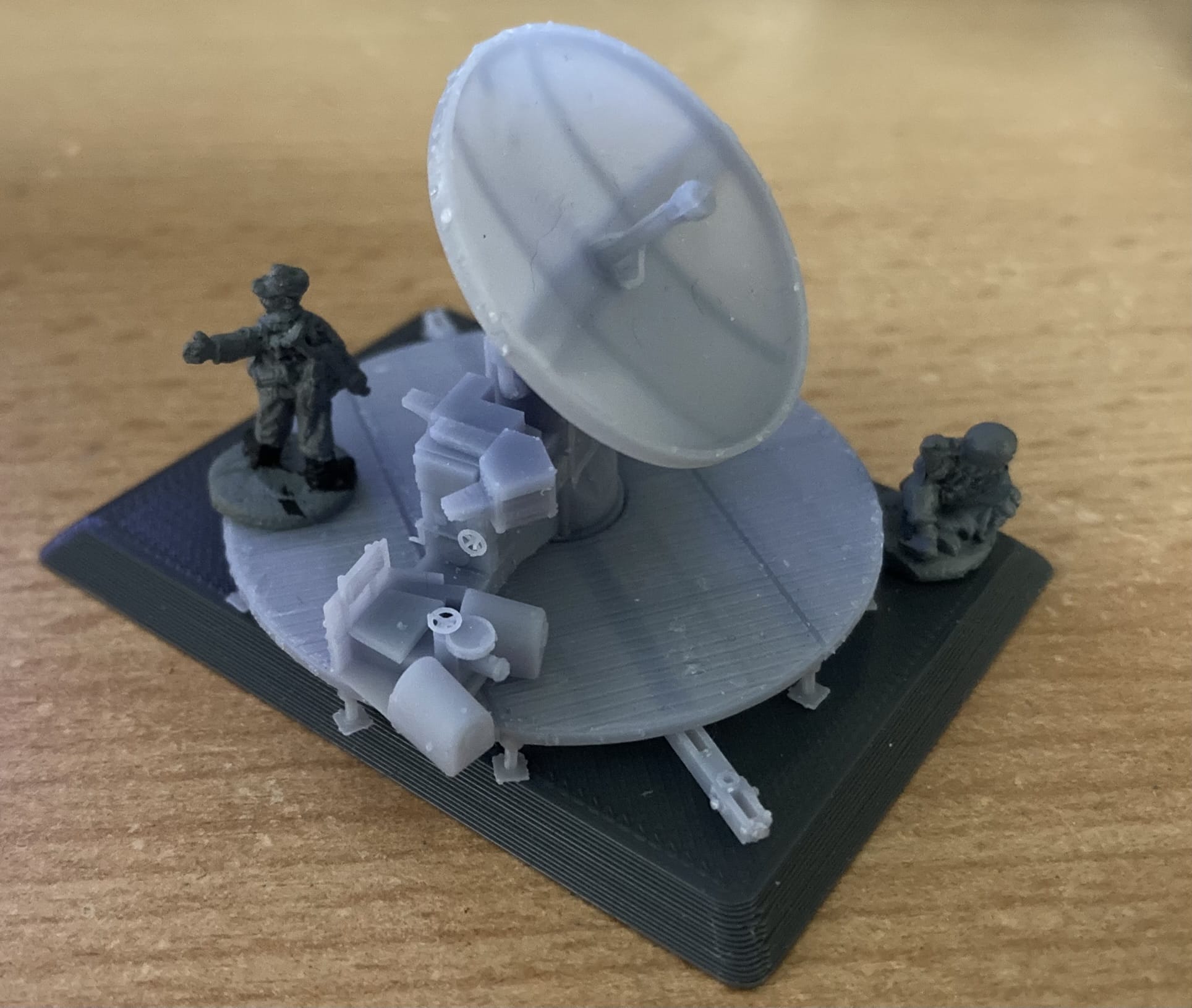

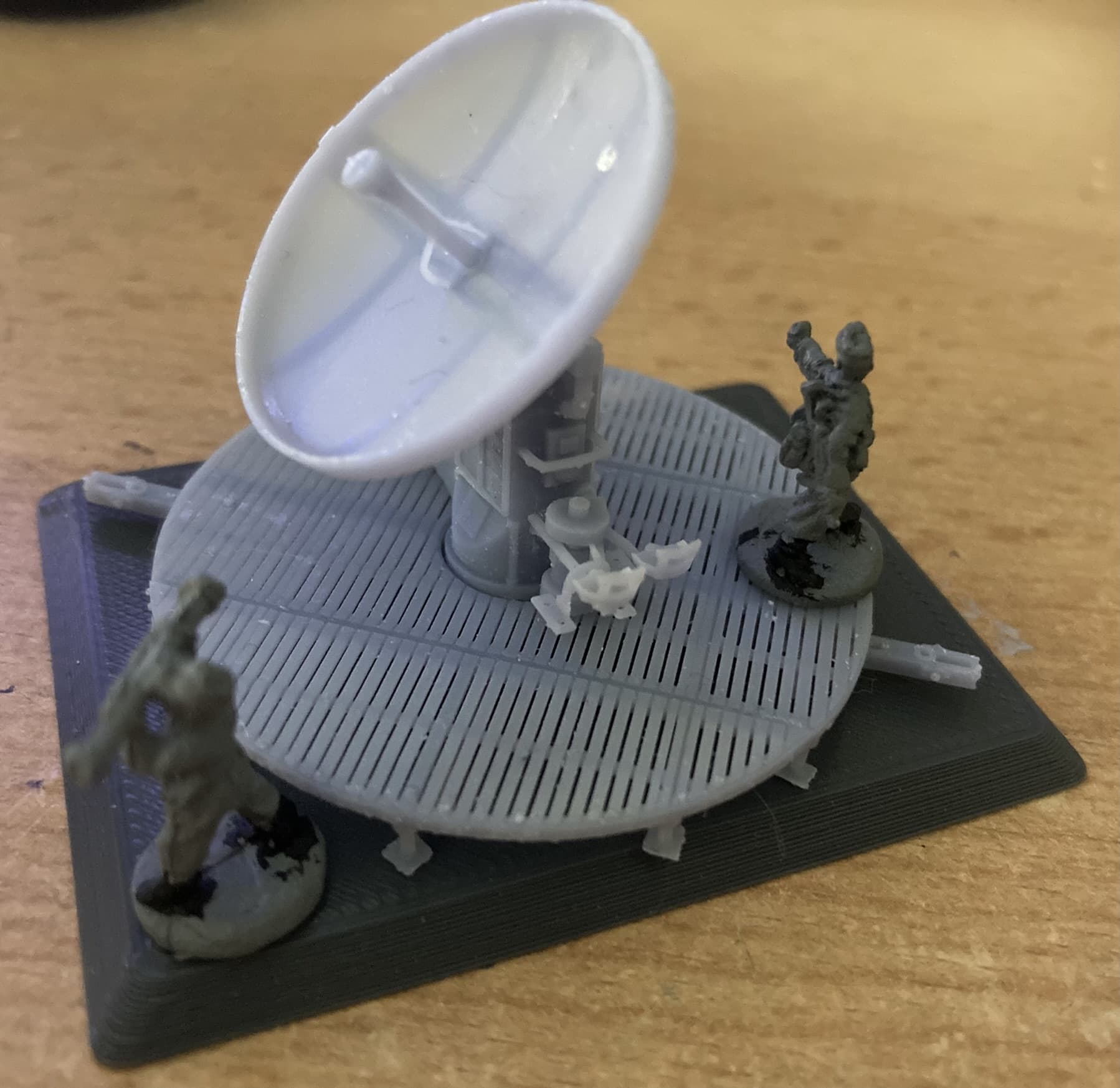

Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play.

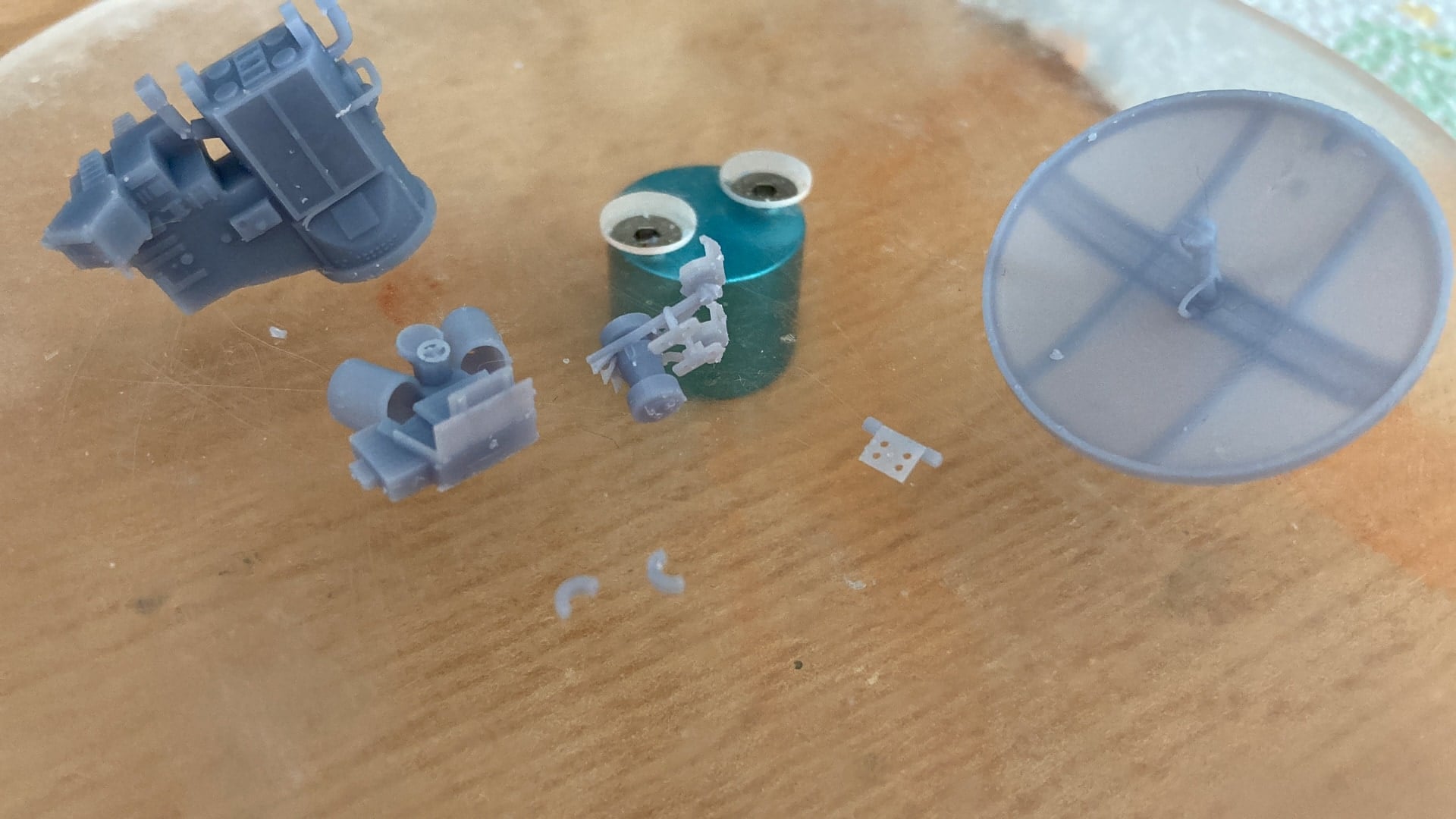

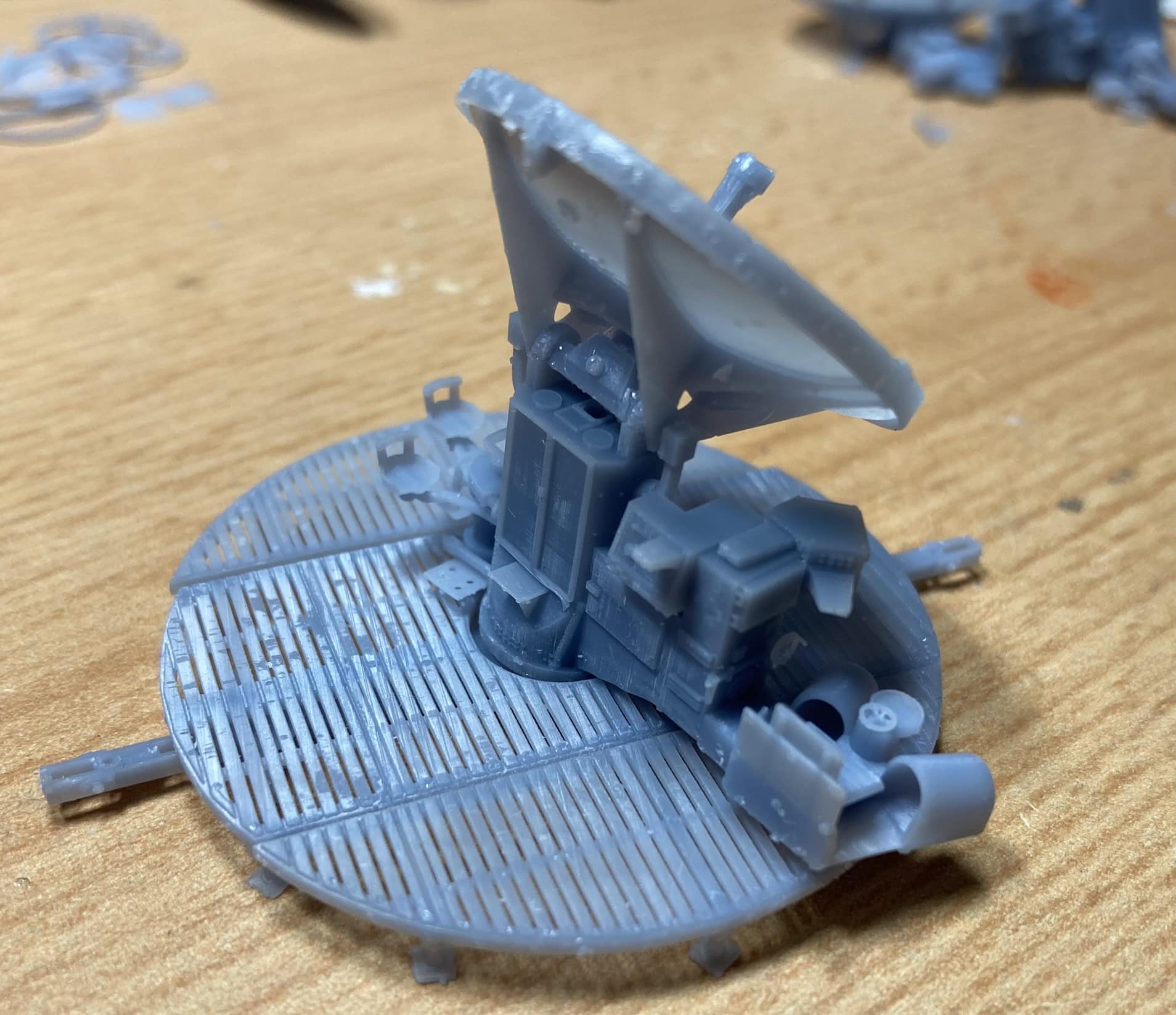

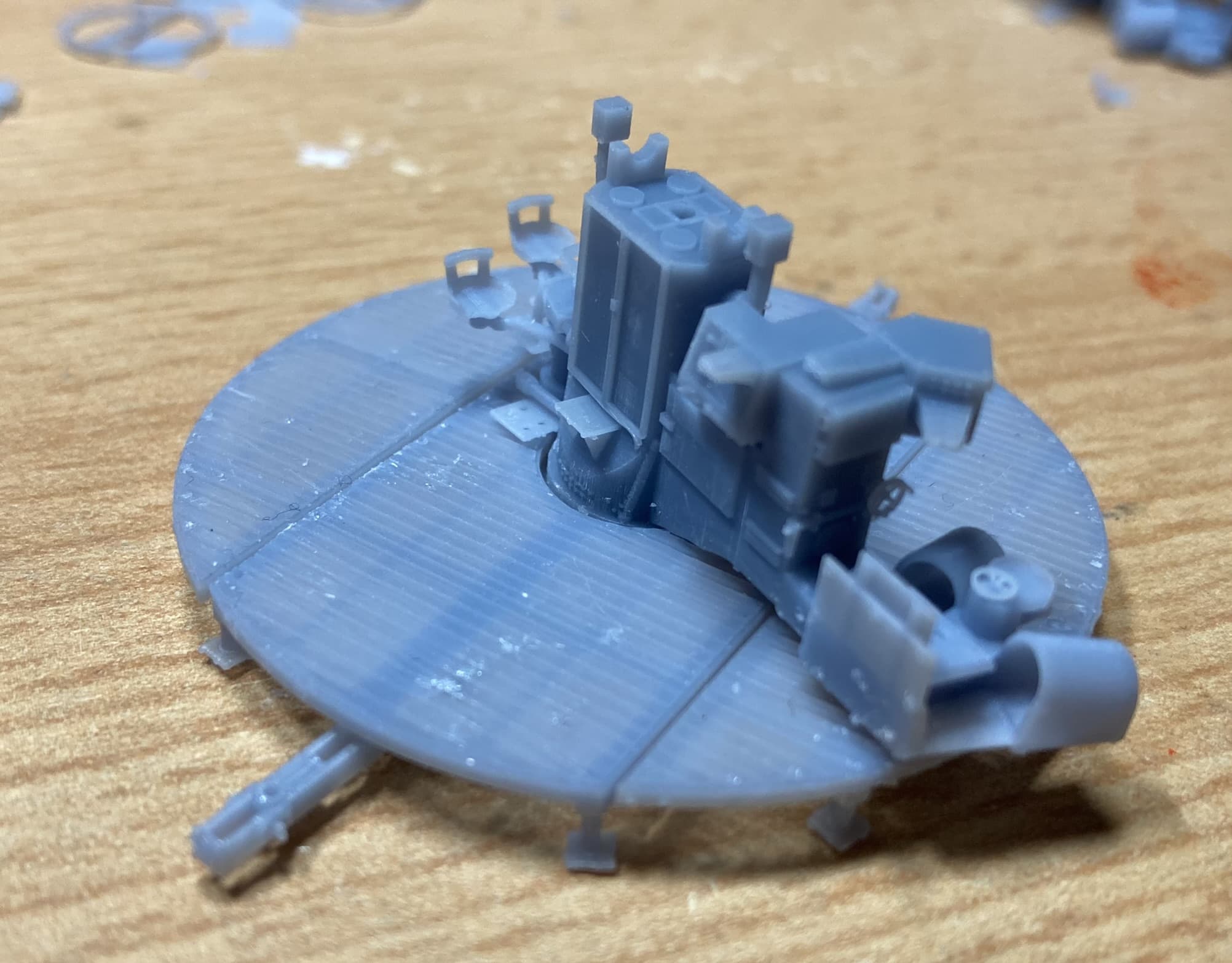

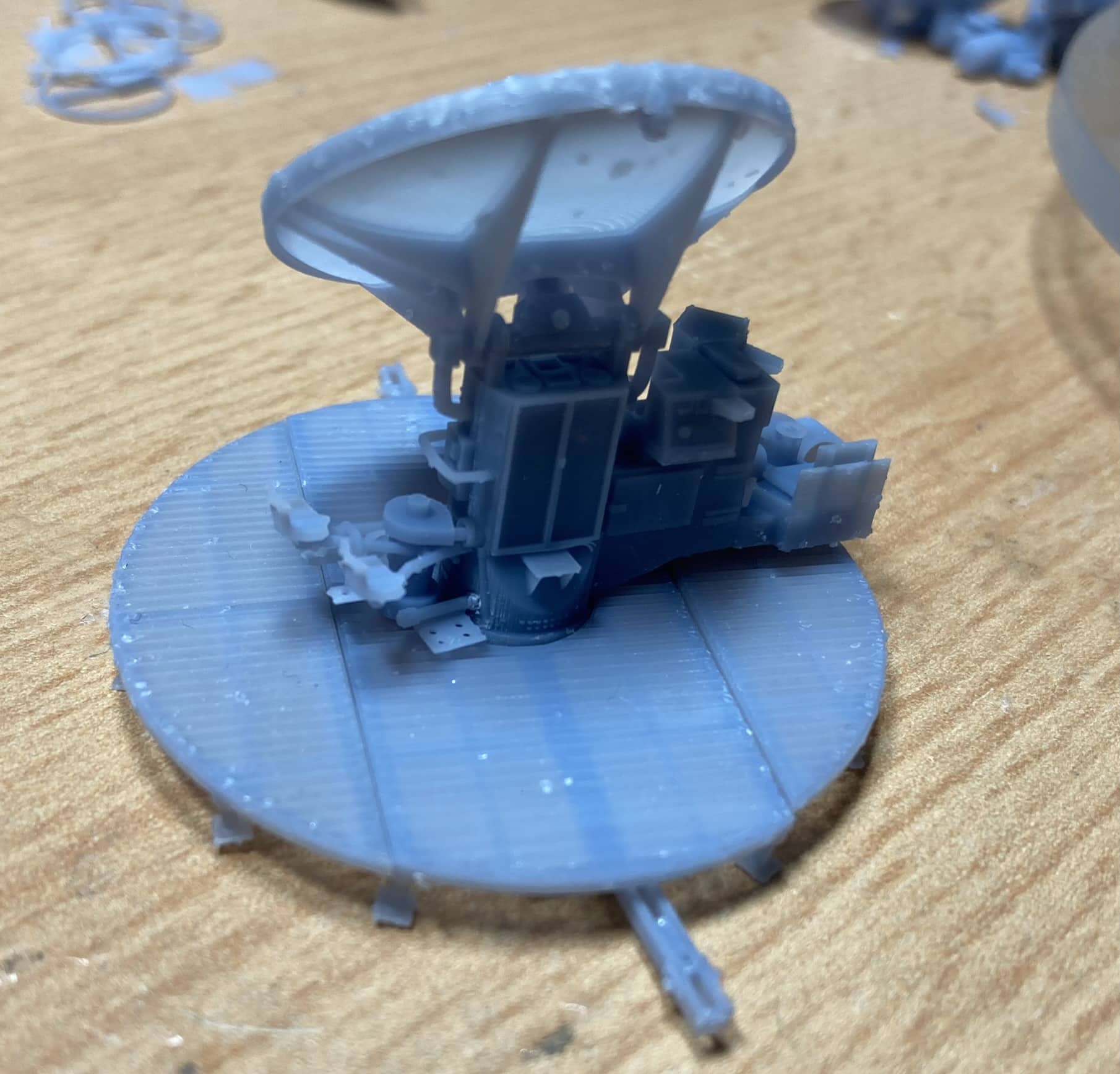

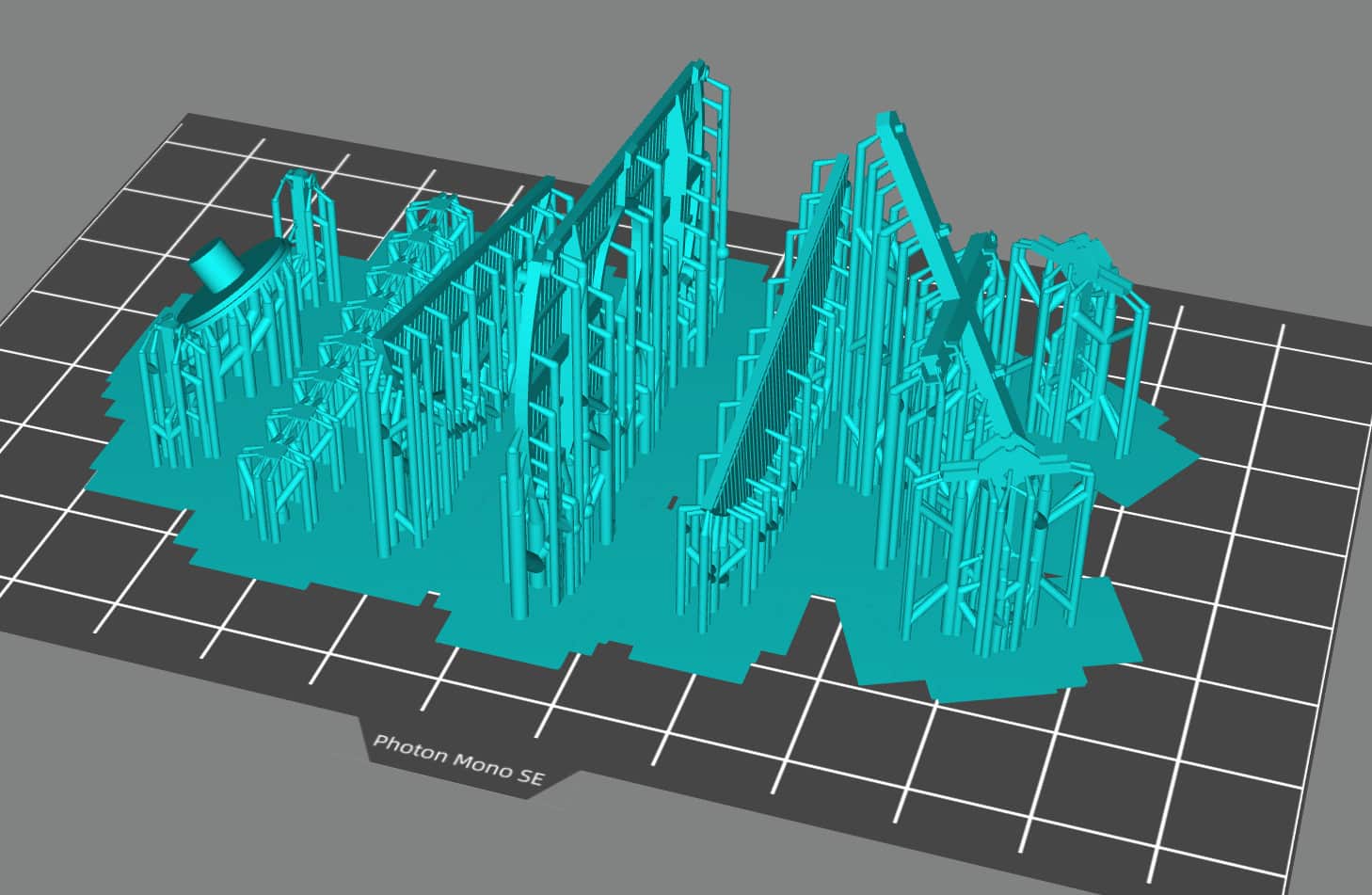

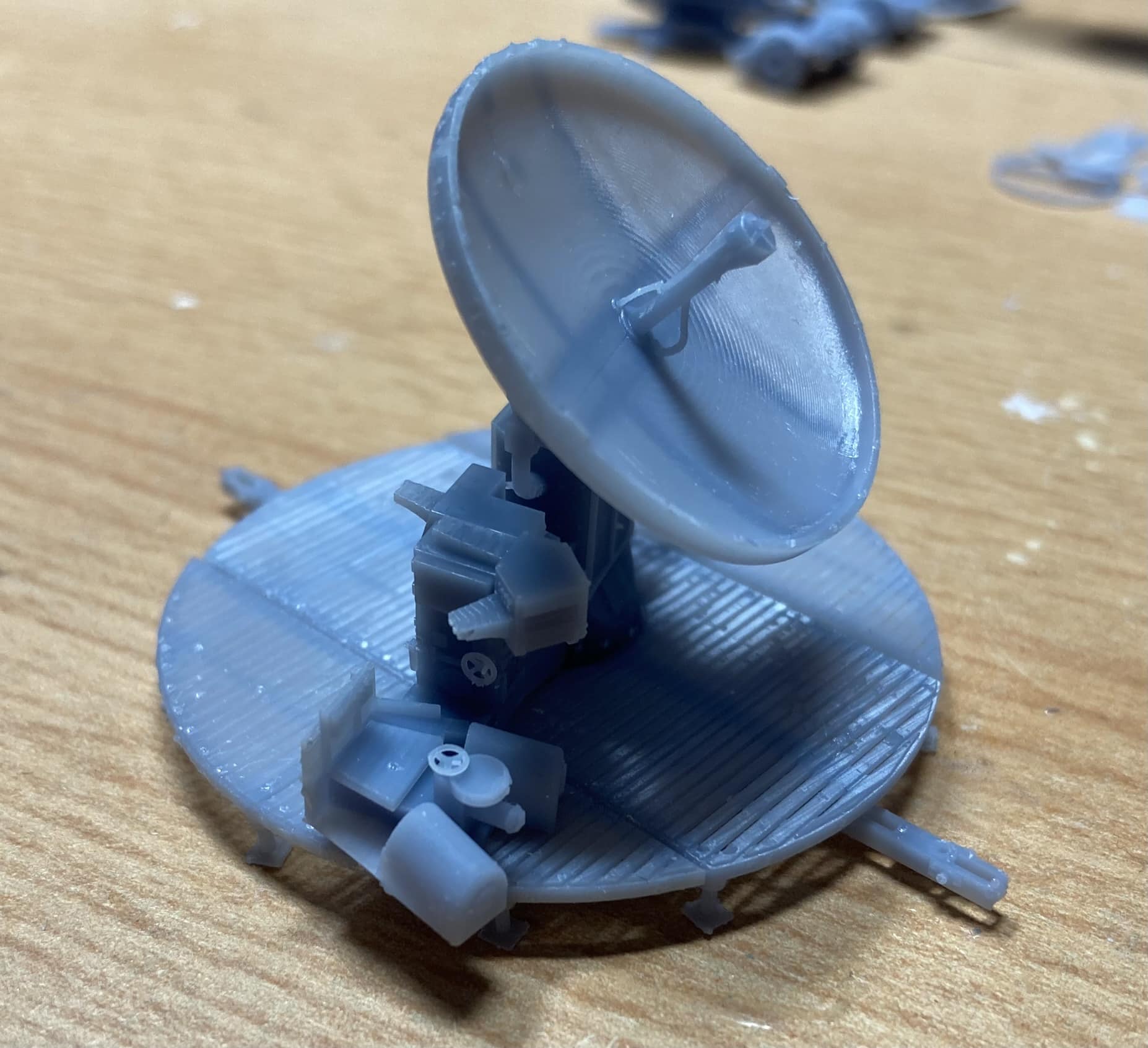

Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.

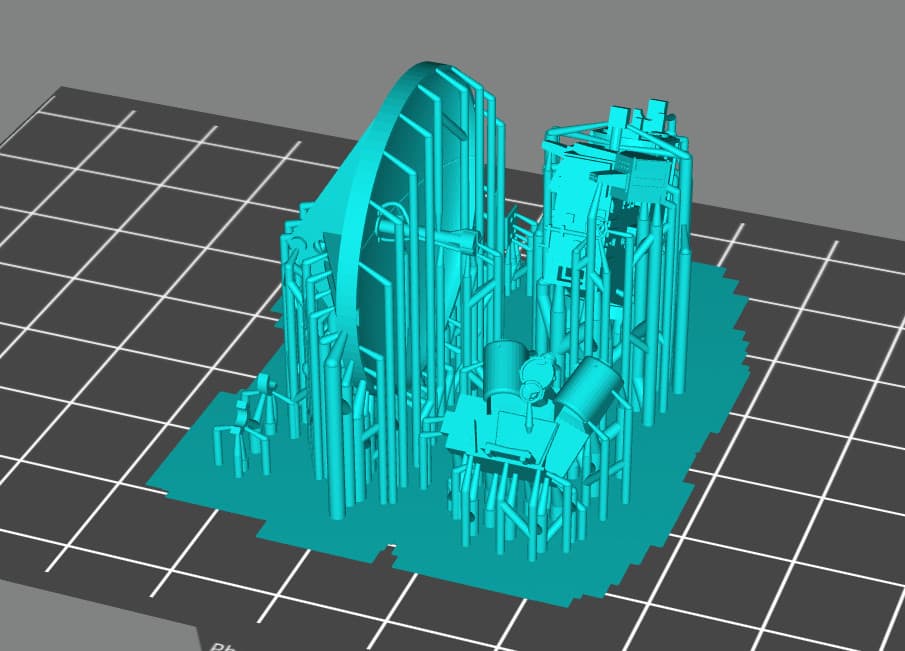

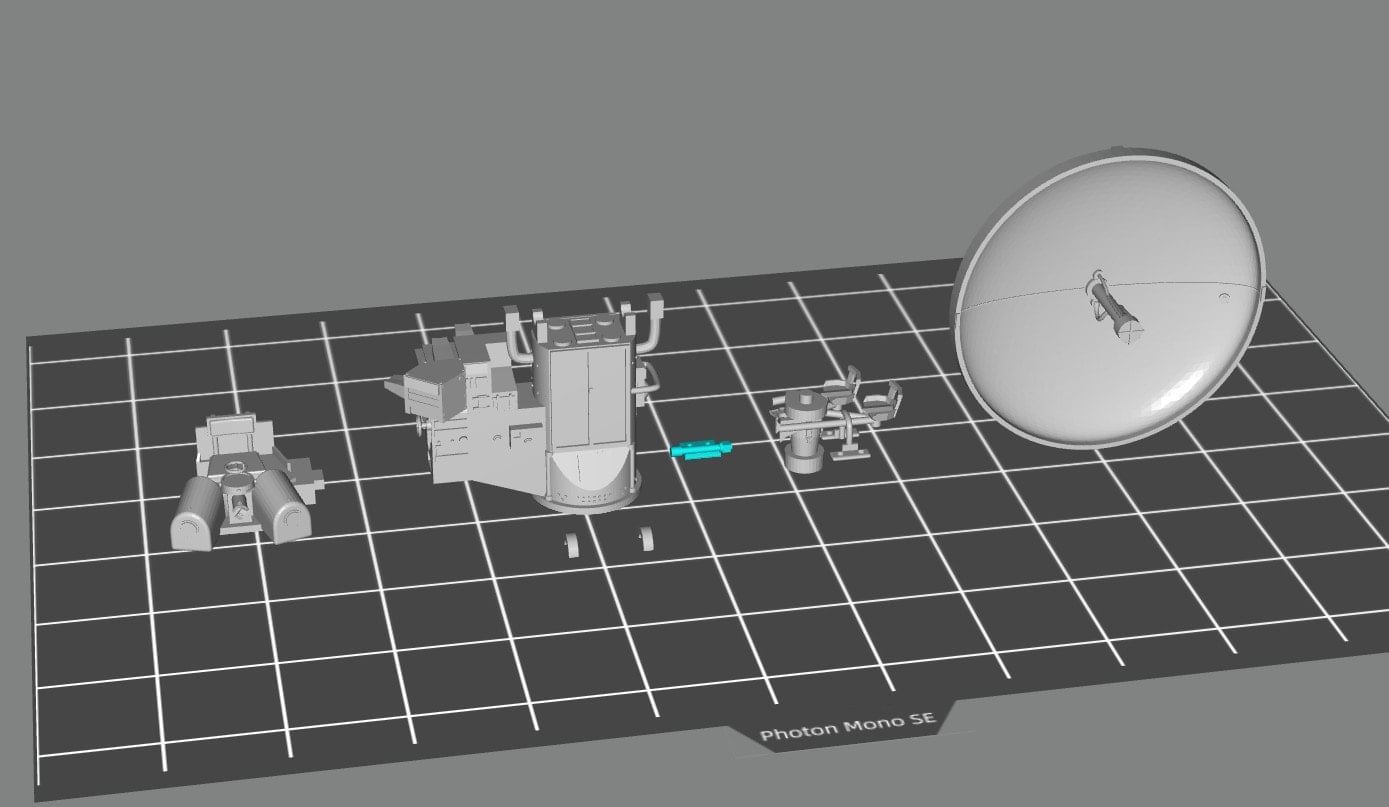

Provided are supported and none-supported files. These worked fine on my printer, no guarantees the files will print good on your own printer, I usually use a bit too much support for some people. But feel free to use the files.
This model is part of a set including the 24 kW Generator and the 150cm Searchlight.
The Radar was used was used to "find" allied airplanes to make it much more easy for the searchlights to "catch" the airplanes in the searchlight bundle, so the FLAK crews could the fire on the Bombers.
The Radar can be placed on the trailer or or in a static setup. This model only offers the static setup.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only.
It requires some glue work. There are 3 main parts you have to glue together first;
- The crucifix mount
- The platform with 10 small support legs
- The Radar unit with the seats and small platform attached to it, the dish you can glue in any elevation you want. Make sure you also place to 2 small parts as you can see in the picture "Details.jpg" highlighted in yellow.
Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play.
Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.
Provided are supported and none-supported files. These worked fine on my printer, no guarantees the files will print good on your own printer, I usually use a bit too much support for some people. But feel free to use the files.
