Model Description:

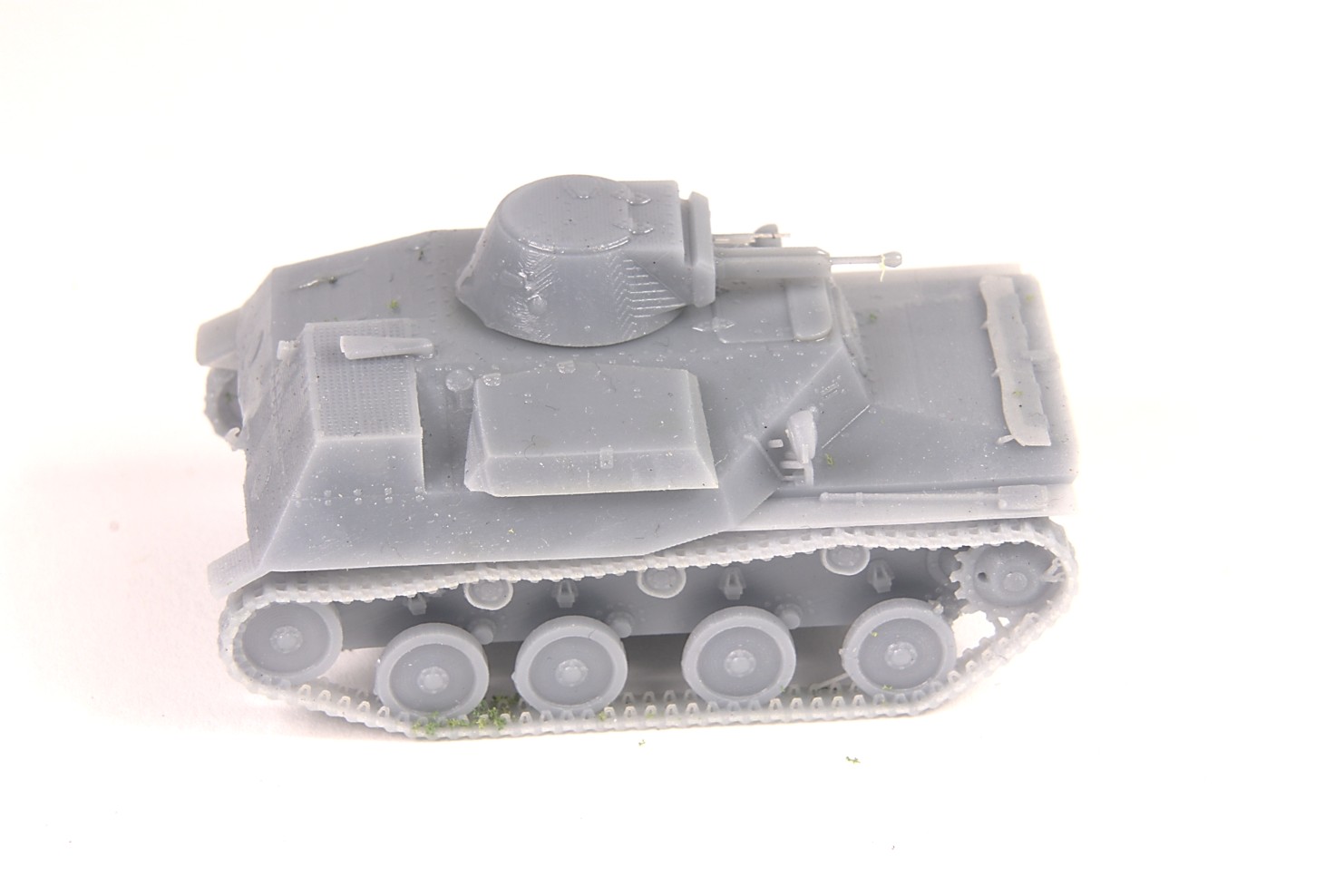

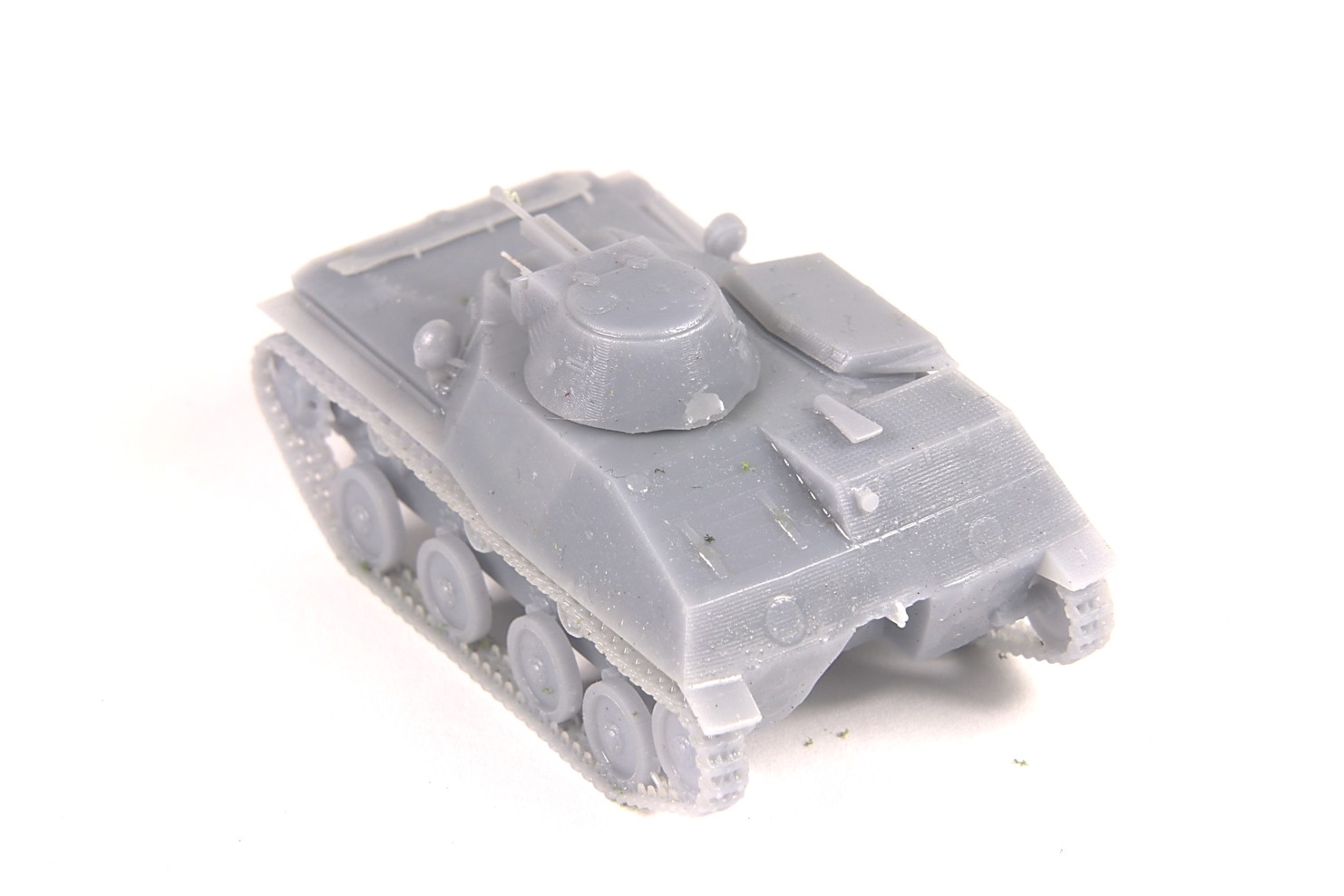

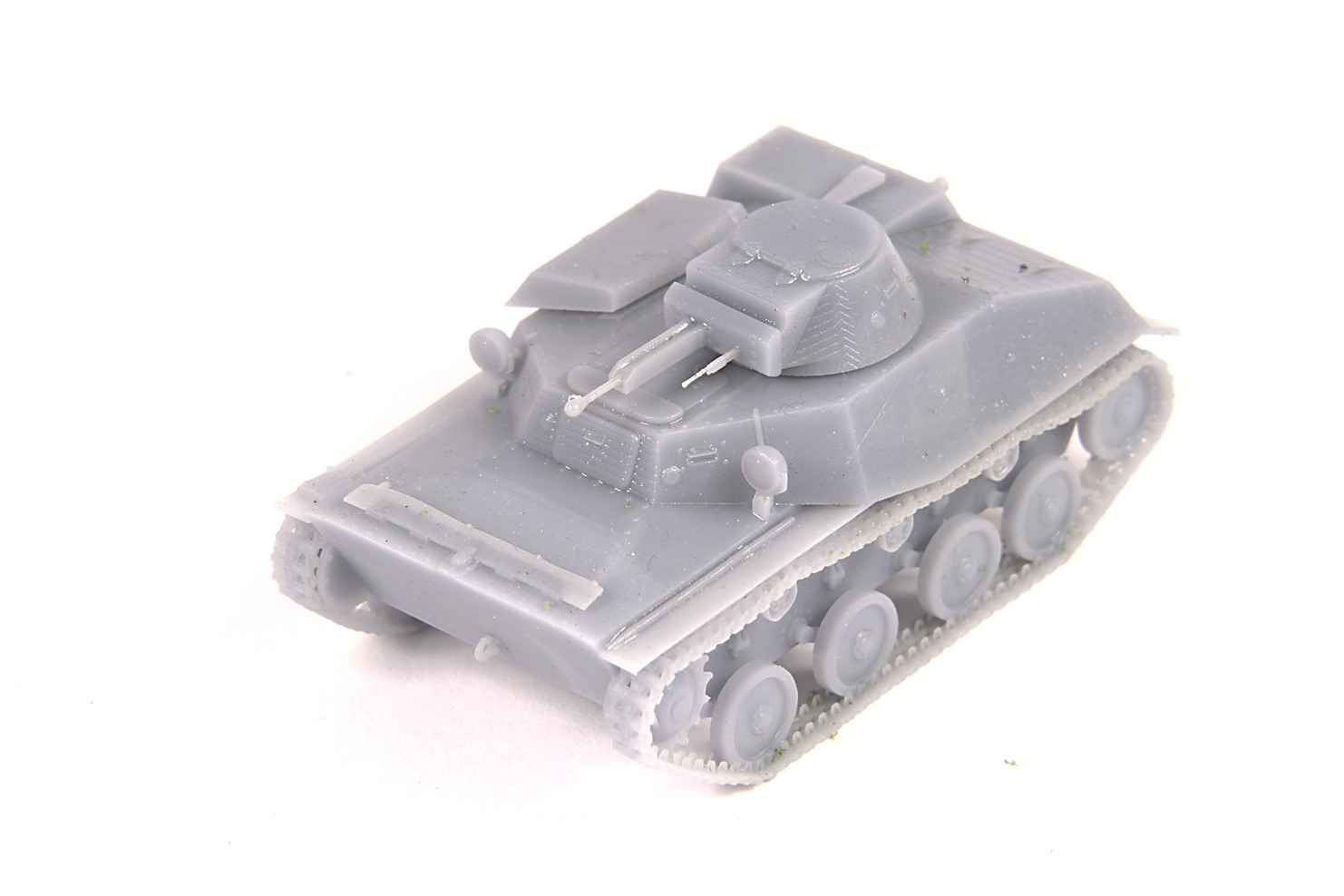

This download contains a highly detailed model of the T-40 amphibious light tank. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible, except in the cases where printability would have to be sacrificed (such as the fender thickness).
The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.
The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers.
The model at its native scale took roughly 4 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 2.22" (56mm)
Width - 0.94" (24mm)
Height - 1.07" (27mm)
Historical Description:
The T-40 was a light tank used in the early years of World War 2 before being replaced by the T-60 light tank at the end of 1941. The vehicle was armed with a 12.7mm DShK heavy machine gun, alongside a 7.62mm DT machine gun. The main novelty of the vehicle was its ability to traverse water due to being amphibious, propelled by a small propeller at the rear of the hull.
The T-40 was meant to equip reconnaissance units and only possessed light armaments. The vehicle was quickly replaced by an upgraded model known as the T-30, as well as the T-60, both featuring thicker armor and 20mm TNSh cannons. The T-40 saw service during the defense of Moscow and during the initial German invasion but was relegated to training roles from late 1941-1946. Even with its short tenure, almost 1,000 examples were produced.
In Armored Advance:
In armored advance the T-40 is a very cheap HMG platform with little other utility. The armor is insufficient to stop incoming fire, and the HMG is only useful as an anti-infantry weapon. The vehicle does possess the ability to scout for other, more heavily armed units, however.
Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
