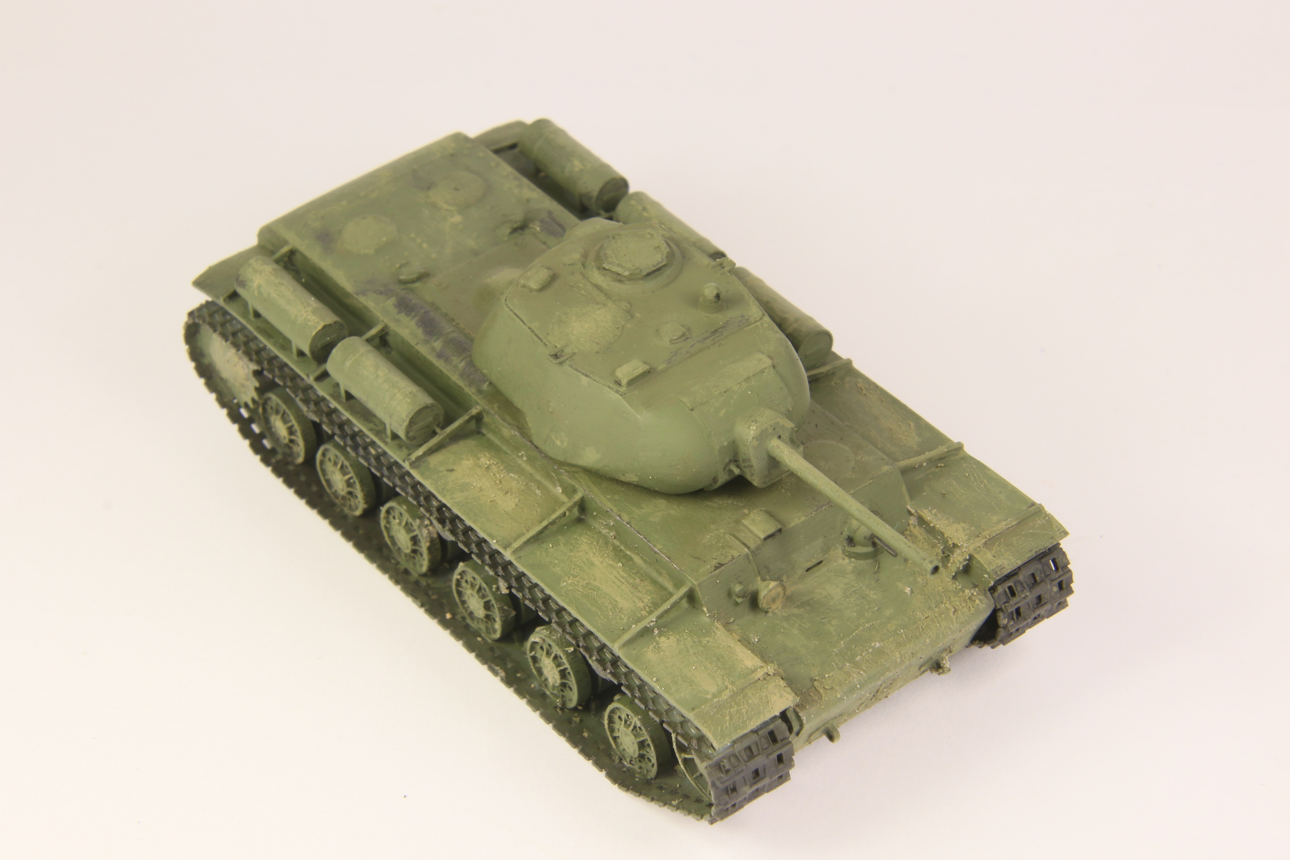

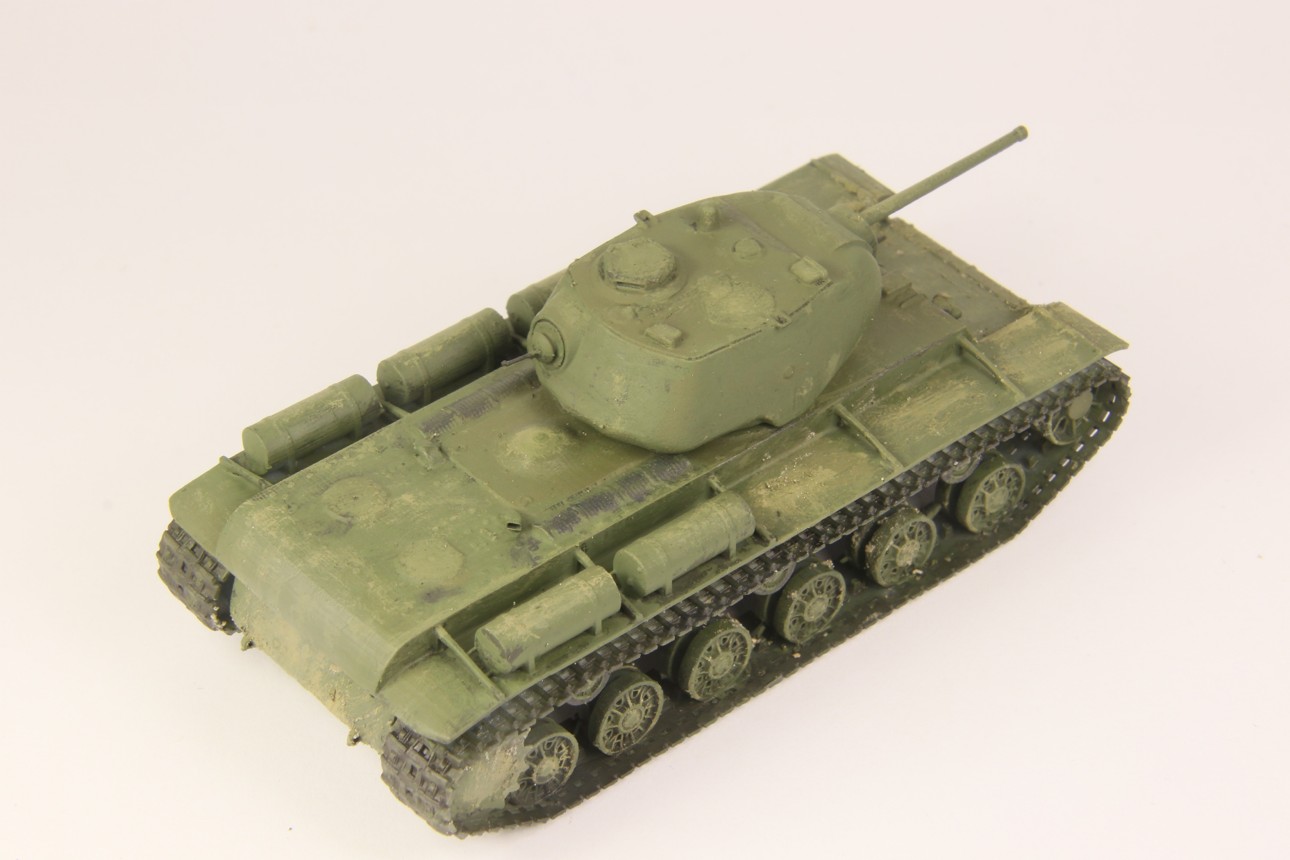

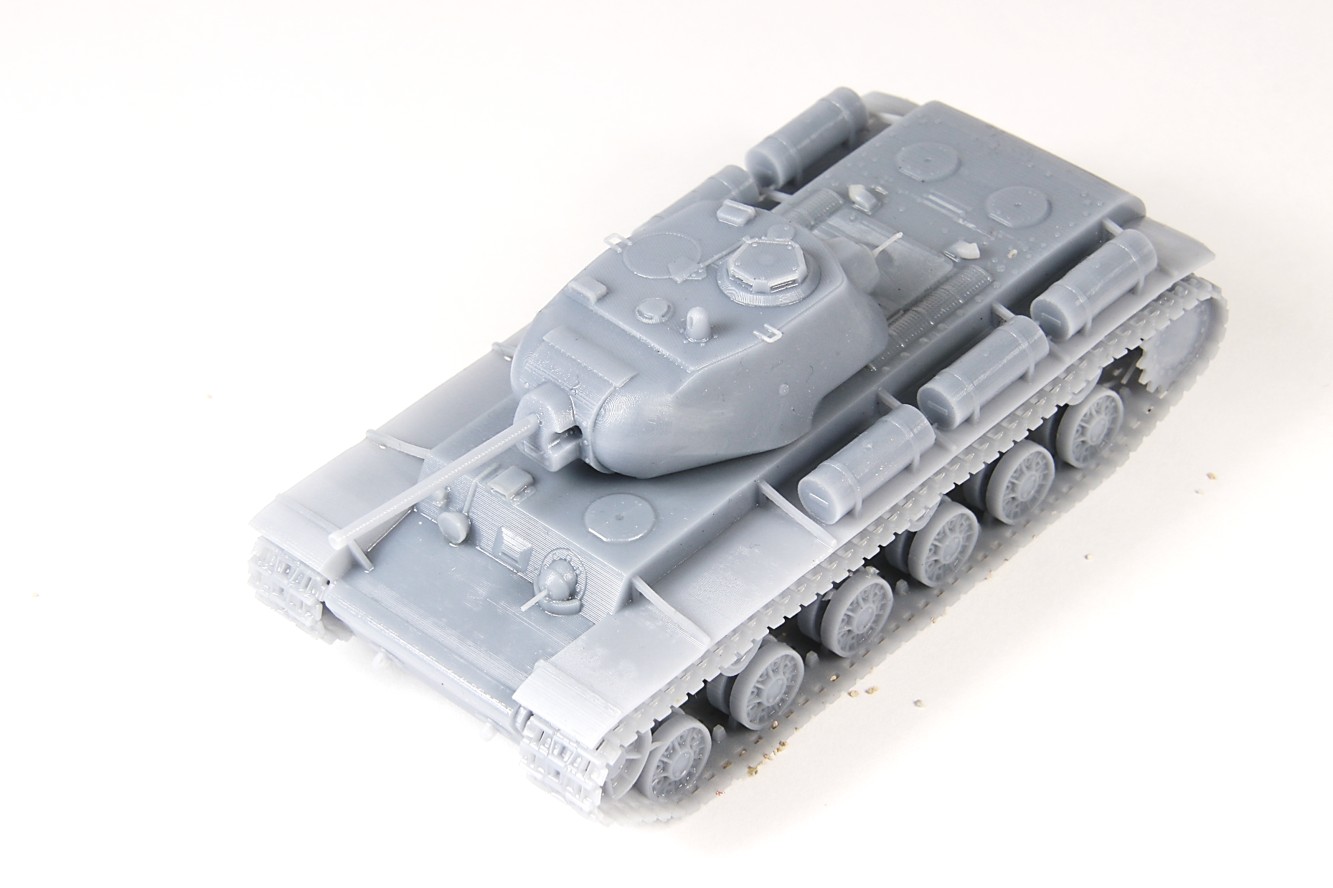

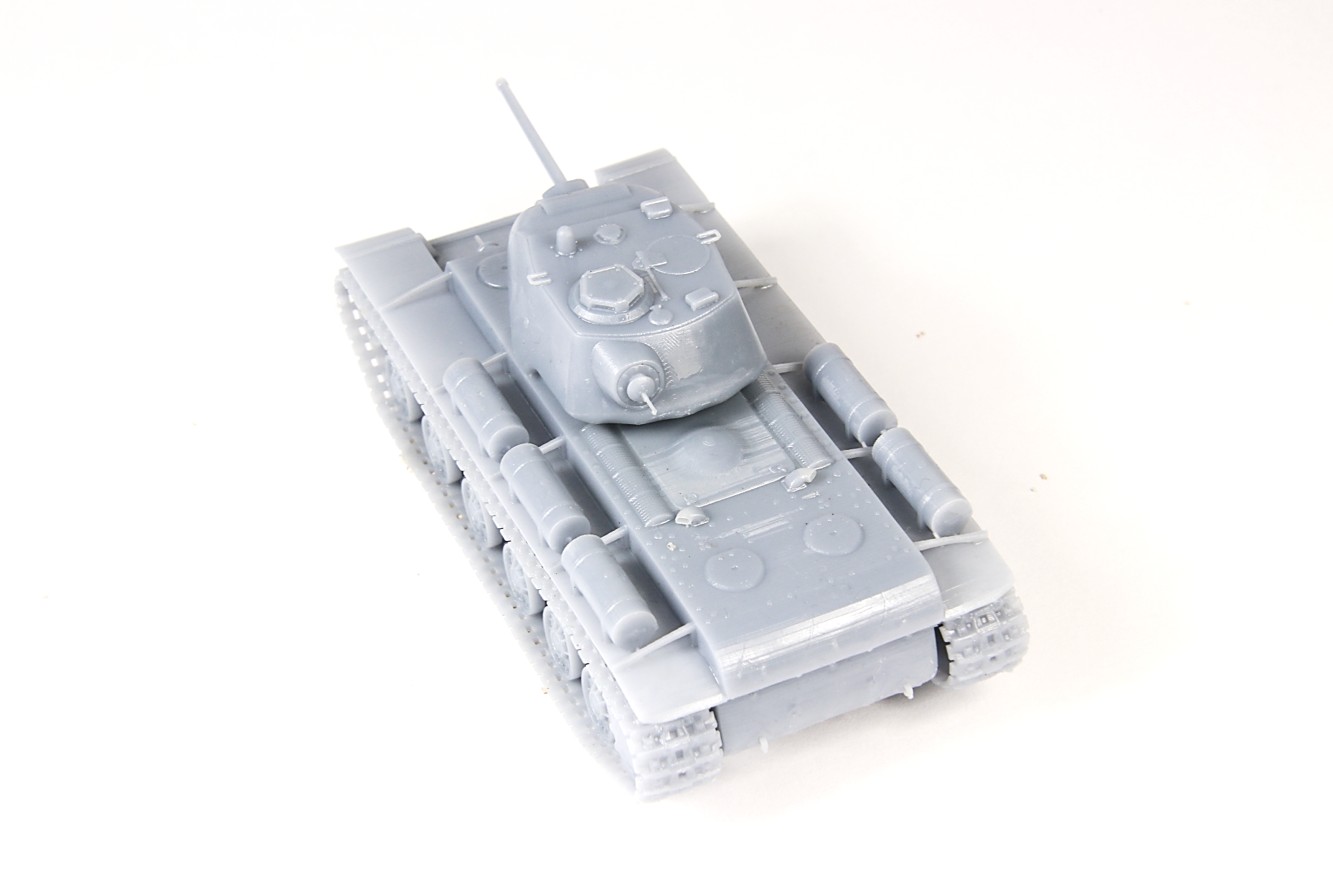

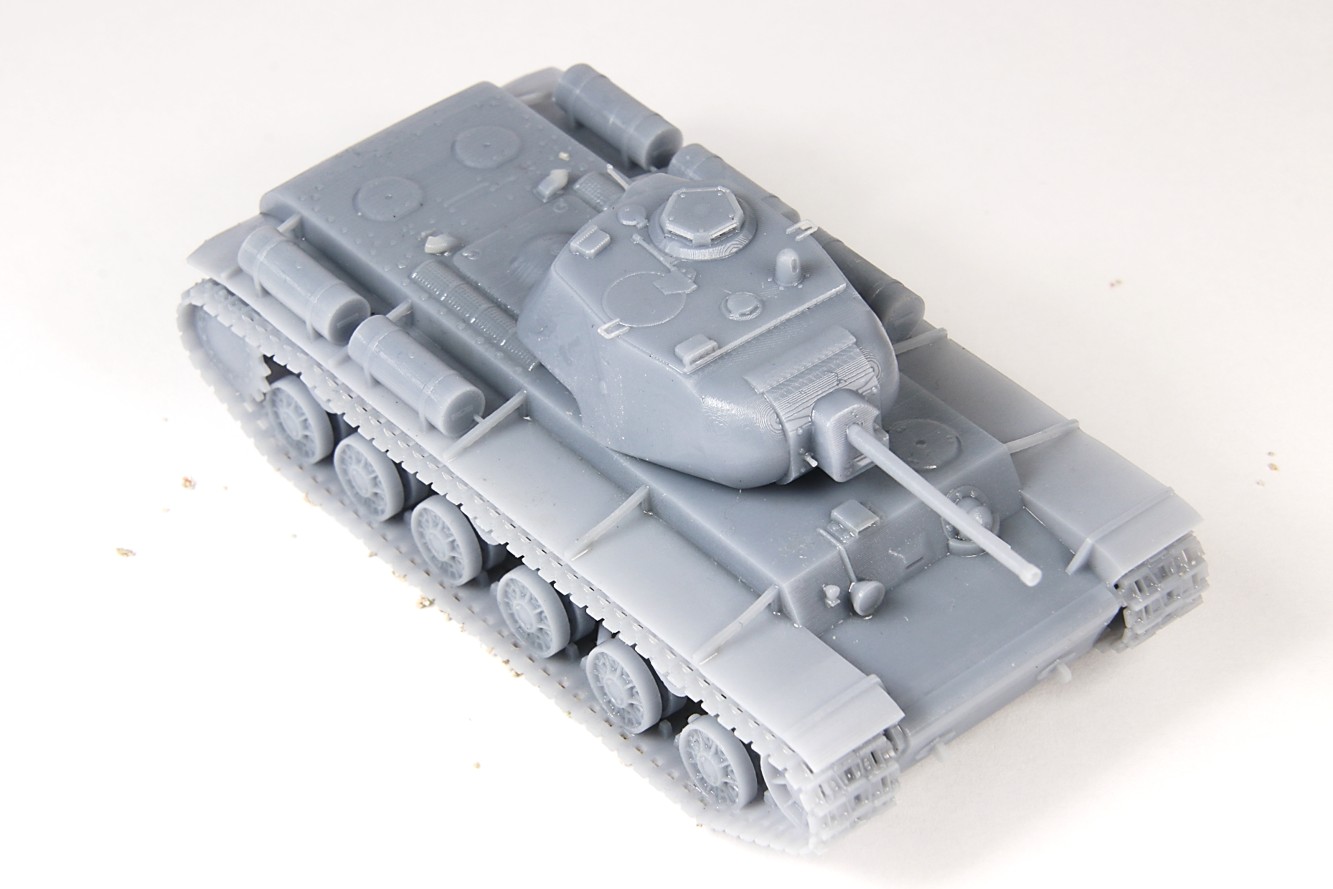

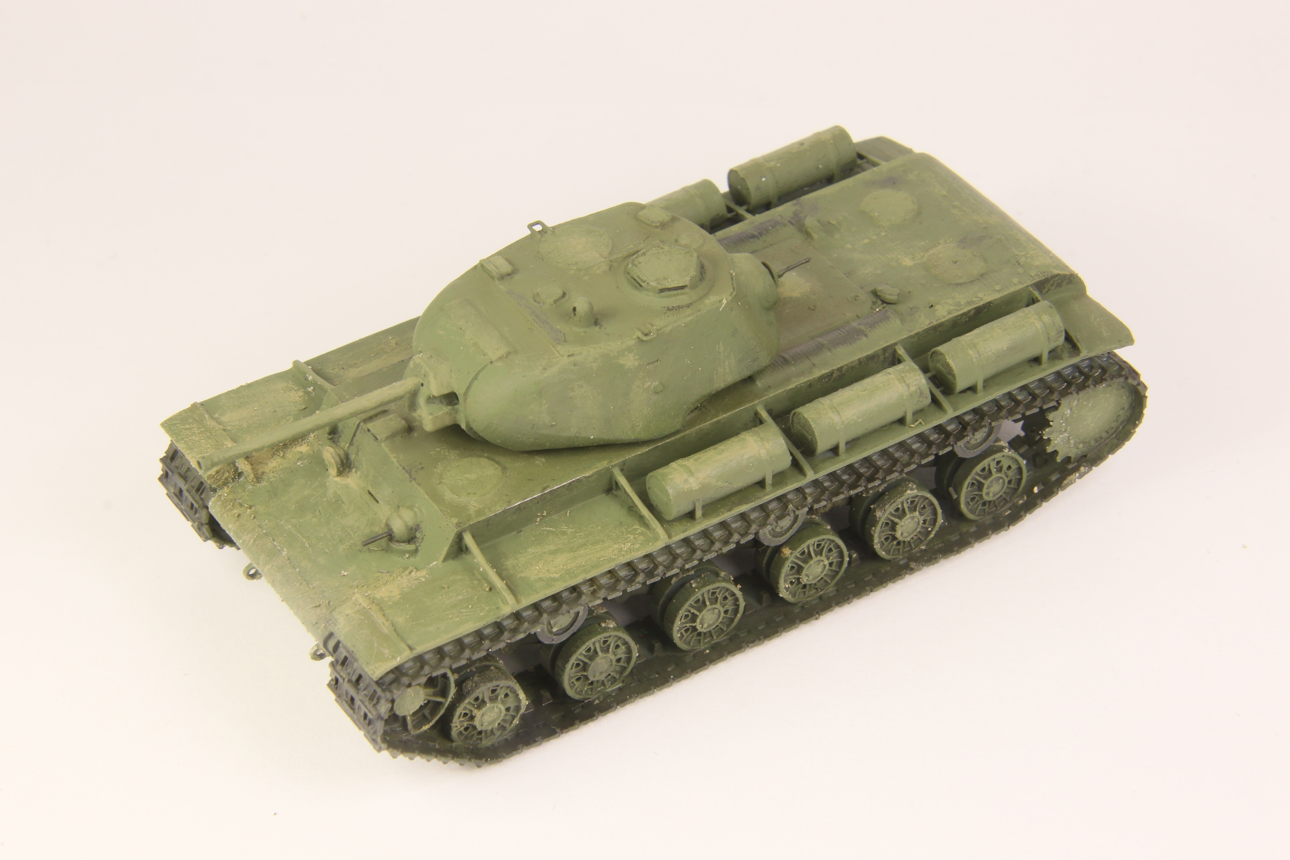

Model Description:
This download contains a highly detailed model of the KV-1S. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible, except in the cases where printability would have to be sacrificed (such as the fender thickness).
The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.
The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers. It is important to note that the vehicle is quite large, and may not fit on smaller resin printers, even at 20mm scale.
The model at its native scale took roughly 8 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 3.75" (95mm)
Width - 1.76" (45mm)
Height - 1.44" (37mm)
Historical Description:
The KV-1S was a heavy tank developed by the Soviet Union during World War 2. The vehicle was an attempt to make the KV-1 heavy tank more mobile and reliable by reducing the armor thickness and upgrading the drive system. The KV-1S was armed with the 76mm ZiS-5 cannon, as well as 7.62mm DT MGs. The vehicle featured a new, lighter turret with a much more bulbous geometry which would become prevalent on later Soviet designs such as the T-34-85 and the IS series tanks.
In Armored Advance:
In armored advance the KV-1S does exactly what it did in real life. It is a KV-1 with reduced armor, but in return it gains some mobility in the form of a boost from 5" to 6" per action. Furthermore, it is marginally cheaper to field. The ZiS-5 cannon is fairly powerful and can deal with medium armor at moderate ranges, with a high damage stat.
Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
This download contains a highly detailed model of the KV-1S. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible, except in the cases where printability would have to be sacrificed (such as the fender thickness).
The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.
The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers. It is important to note that the vehicle is quite large, and may not fit on smaller resin printers, even at 20mm scale.
The model at its native scale took roughly 8 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 3.75" (95mm)
Width - 1.76" (45mm)
Height - 1.44" (37mm)
Historical Description:
The KV-1S was a heavy tank developed by the Soviet Union during World War 2. The vehicle was an attempt to make the KV-1 heavy tank more mobile and reliable by reducing the armor thickness and upgrading the drive system. The KV-1S was armed with the 76mm ZiS-5 cannon, as well as 7.62mm DT MGs. The vehicle featured a new, lighter turret with a much more bulbous geometry which would become prevalent on later Soviet designs such as the T-34-85 and the IS series tanks.
In Armored Advance:
In armored advance the KV-1S does exactly what it did in real life. It is a KV-1 with reduced armor, but in return it gains some mobility in the form of a boost from 5" to 6" per action. Furthermore, it is marginally cheaper to field. The ZiS-5 cannon is fairly powerful and can deal with medium armor at moderate ranges, with a high damage stat.
Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
No one's reviewed this product yet. Let people know if you enjoyed this model!
| Filename | Size | Last updated |
|---|---|---|
| KV-1S Print Files.zip | 47.5 MiB | 2025-09-28 |
