KV-1 (1939) Heavy Tank

Model Description:

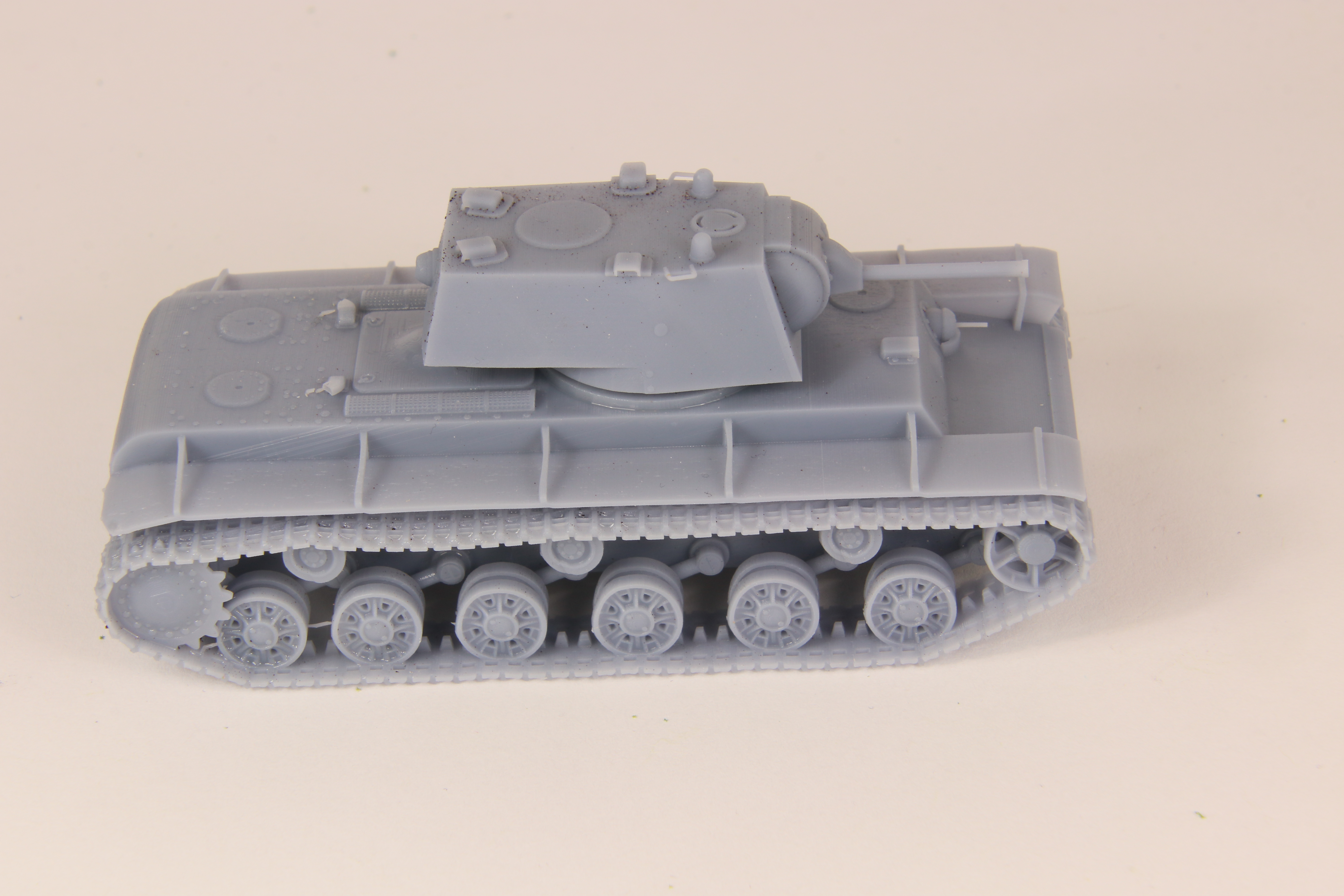

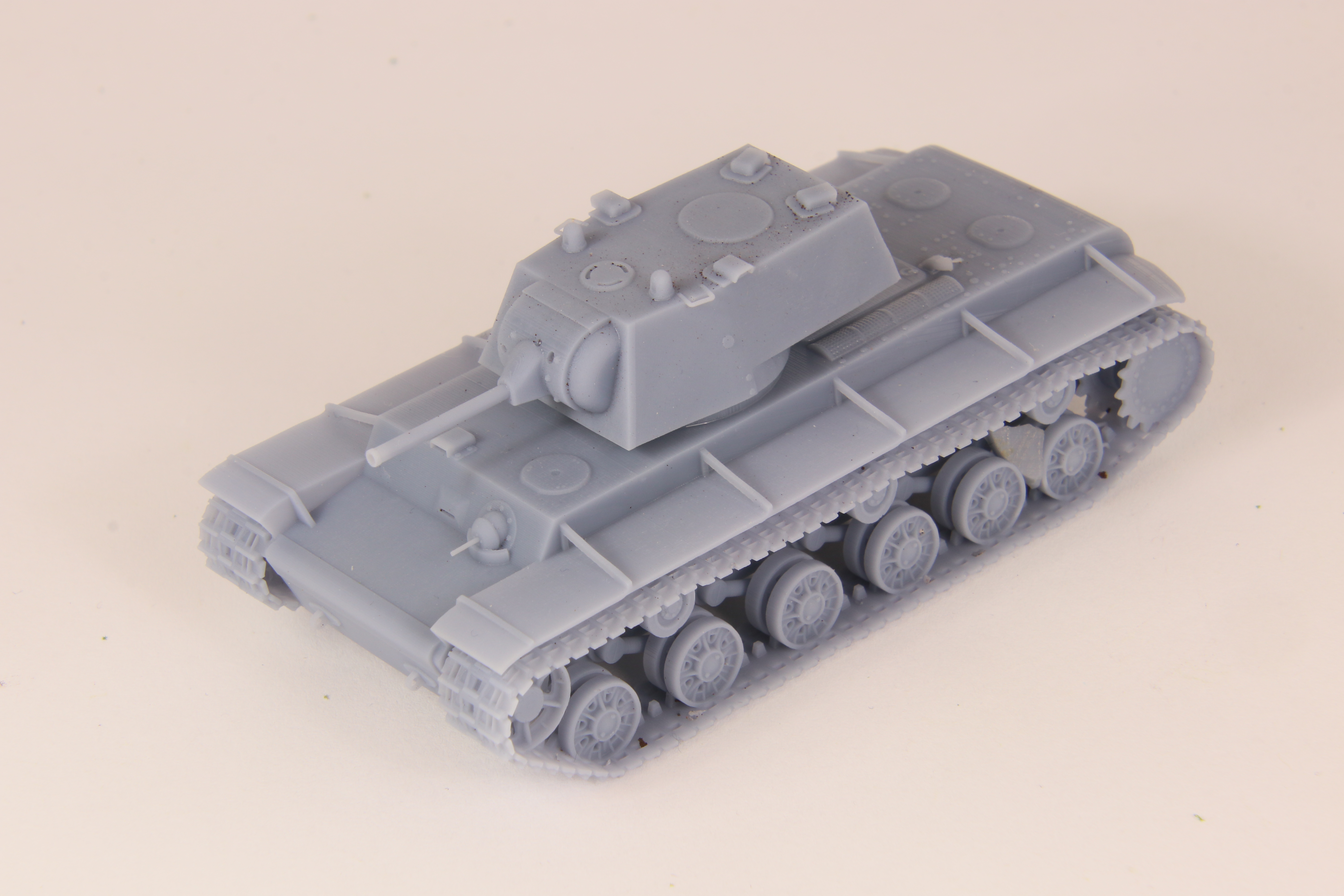

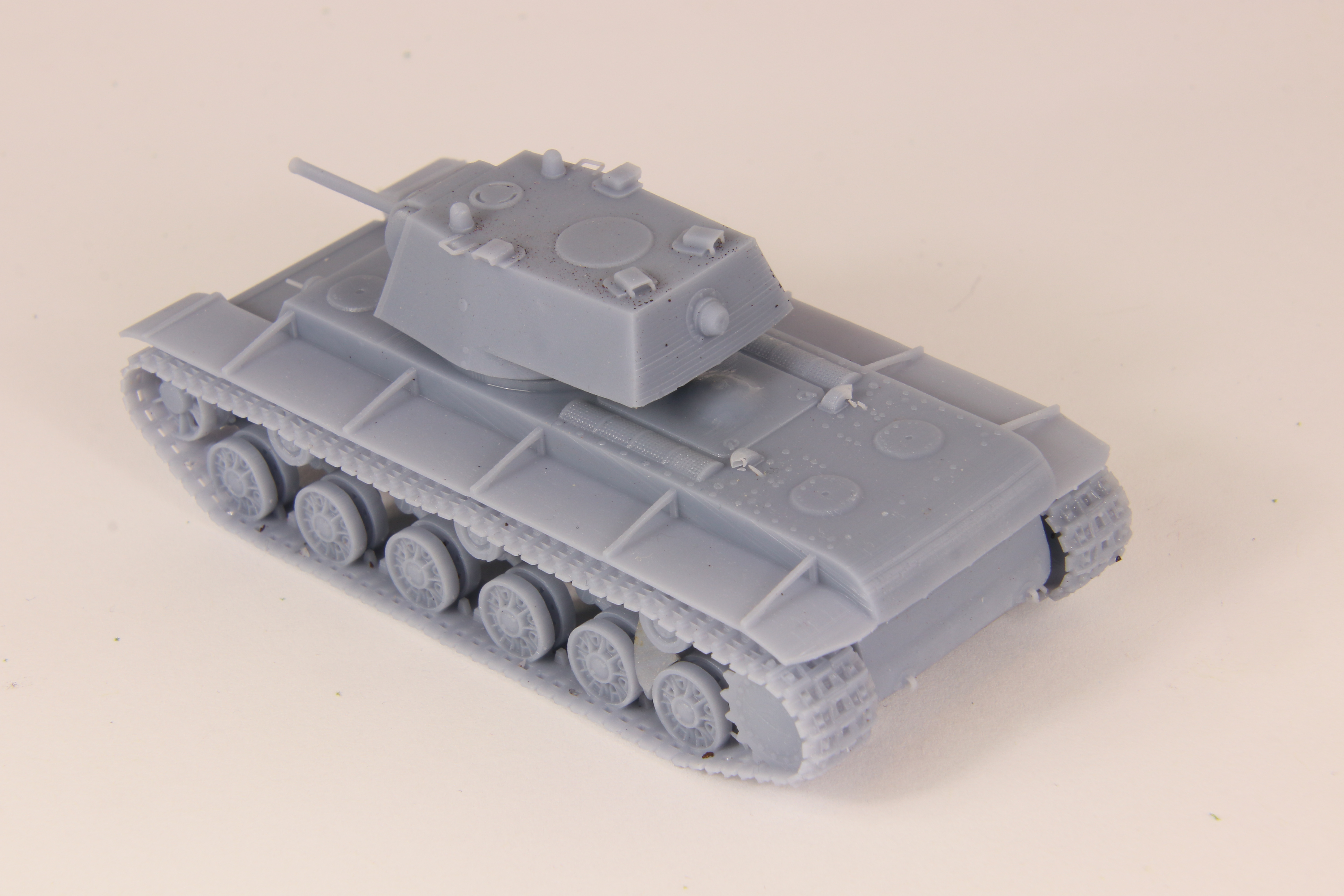

This download contains a highly detailed model of an early production KV-1 equipped with the L-11 AT gun. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible, except in the cases where printability would have to be sacrificed (such as the fender thickness).

The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.

The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers. It is important to note that the vehicle is quite large, and may not fit on smaller resin printers, even at 20mm scale.

The model at its native scale took roughly 8 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 3.75" (95mm)
Width - 1.76" (45mm)
Height - 1.44" (37mm)

Historical Description:
The KV-1 was a heavy tank developed by the Soviet Union during World War 2. The vehicle was well armored for the time, particularly the later versions with additional applique armor. The KV-1 mod. 1939 was an early version without the aforementioned applique but was still potent. This version of the vehicle was armed with the low velocity 76mm L-11 cannon as well as several 7.62mm DT MGs.

In Armored Advance:
In armored advance the KV-1 (1939) is a relatively well armored vehicle and is the cheapest KV-1 variant. It is visually similar to other KV-1s, but the cannon is decidedly shorter, and the add-on armor is not present. The vehicle does cost a decent number of points to field despite the poor armament; however the armor still provides it a significant presence on the battlefield.

Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
