Soviet Gaz Cargo and Anti-Aircraft Truck - updated September 2020
- Description
- Files
** this file was updated August 2020, with a reworked FDM .stl series, a new .stl pack for resin printing, plus a new single pintle mount MMG for the truck bed plus a new Quad Maxim gun pack **
This is a 28mm model of the Soviet GAZ AA truck, which was the standard transport and jack-of-all-trades ("Ivan-of-all-trades"?) for the Red Army in WW2. It was a licenced copy of the Ford AA truck, as noted in its history:
https://en.m.wikipedia.org/wiki/Ford_Model_AA
FDM Files
The FDM file contains the following separate files
- The truck hull
- The truck cargo box
- The axles ** please note there are separate axles for the front and rear; they are marked as such, they have an alignment line to ensure they are centred on the model **
- The truck wheels
- An optional tarp cover
- A single MMG pack
- A Quad MMG pack.
Assembly of Quad gun pack consists of three parts, as noted in the photos below. Please study the specific location of the lower gun mount; the angle of the gun post, must align with the angle of the gun mount.
Once that part is glued, secure the actual gun pack as noted in the photos
Print at 0.1mm layer, with supports everywhere. Remove supports carefully, and test fit before gluing.

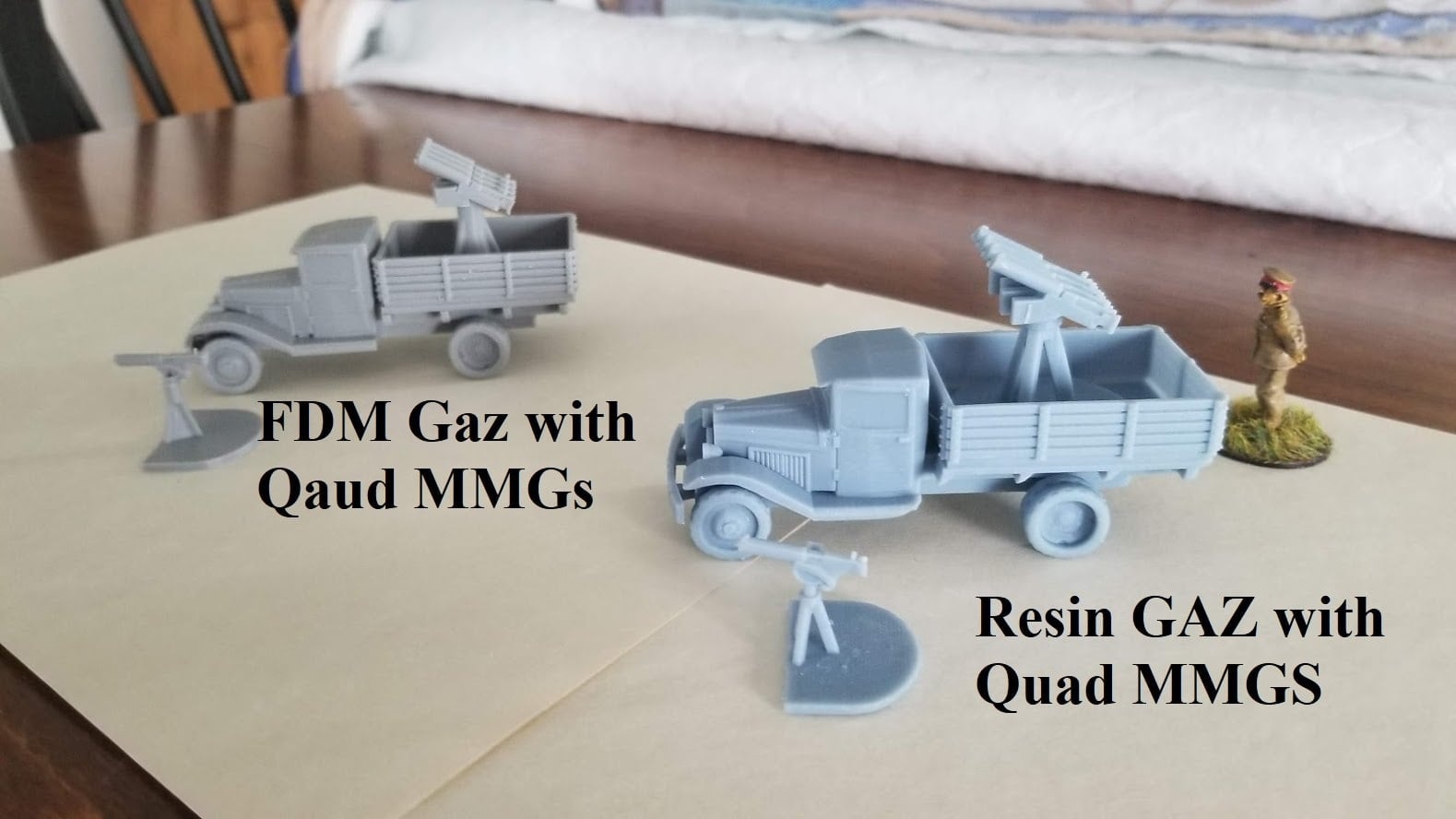

Resin Files
The resin files consist of the one-piece truck, plus the two weapon options – (single and quad MMGs). The tarp cover in the FDM file pack can be used for resin printing as well.
Filename | Size | Last updated |
---|---|---|
GAZ-truck-package-updated-Feb-2021.zip | 4.8 MiB | 2024-02-28 |
