Santisima Trinidad Spanish ship of the line (112/130+ gun) 1769 - 1805

Santisima Trinidad (Nuestra Señora de la Santísima Trinidad) 112/130+ gun Spanish ship of the line launched in 1769.

https://en.wikipedia.org/wiki/Spanish_ship_Nuestra_Se%C3%B1ora_de_la_Sant%C3%ADsima_Trinidad

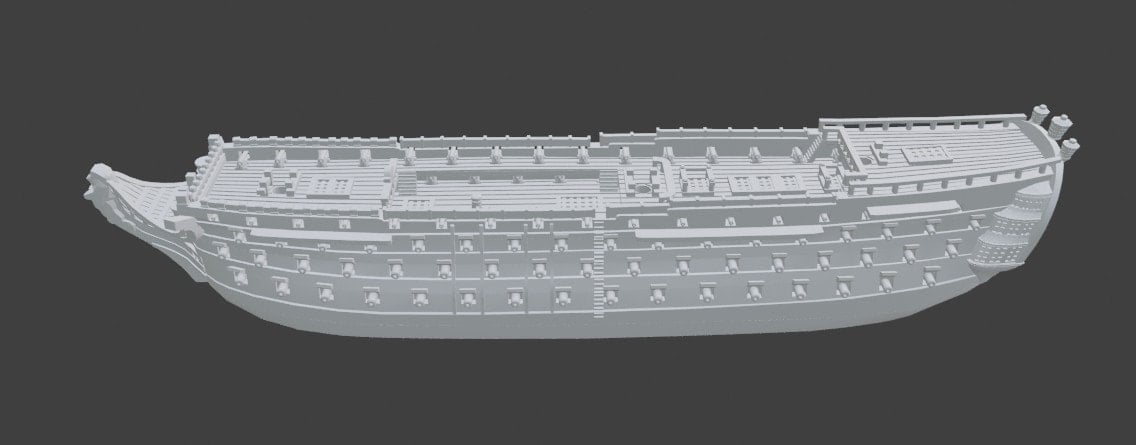

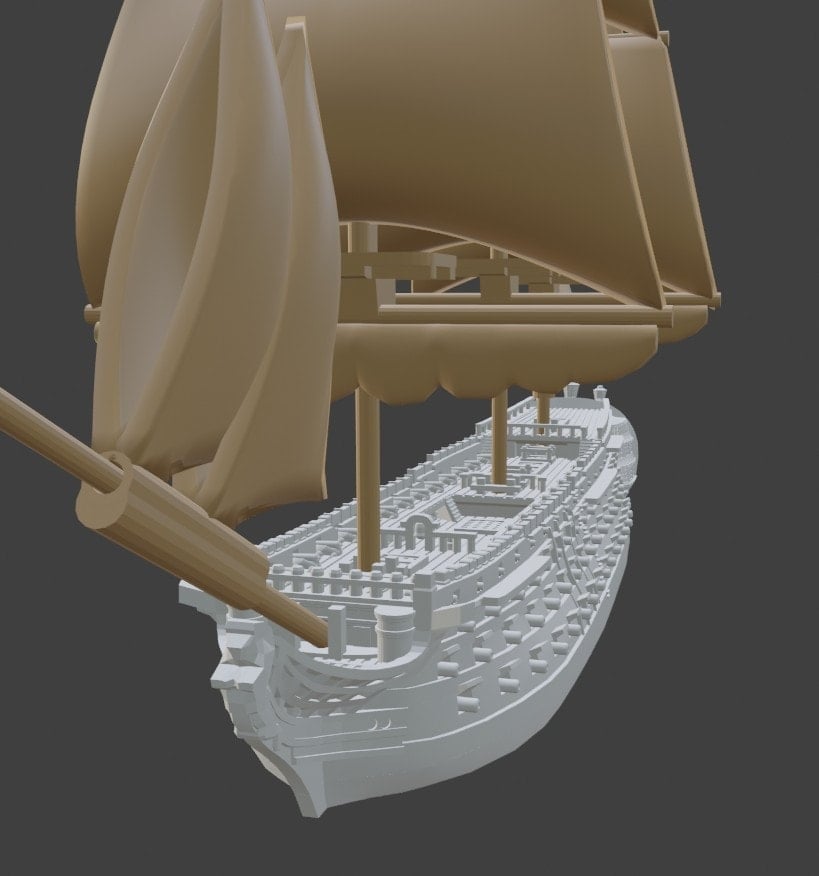

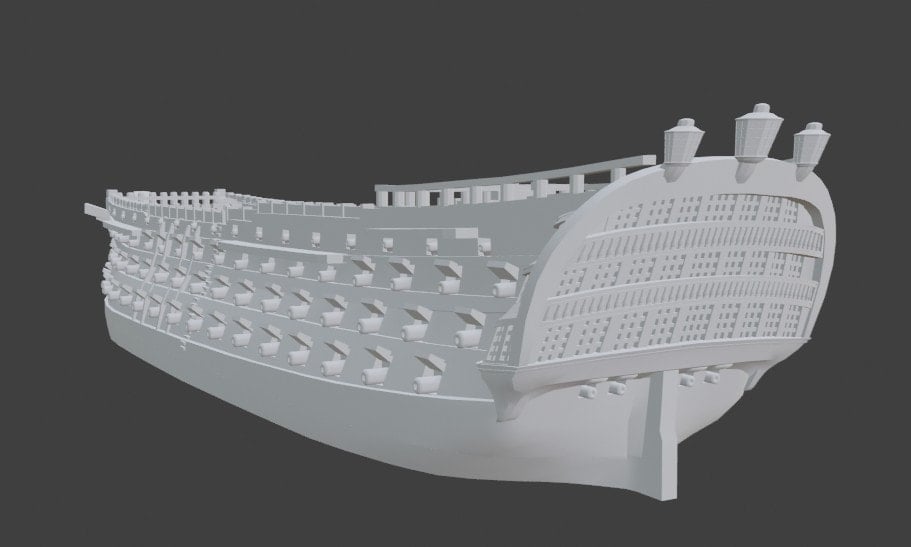

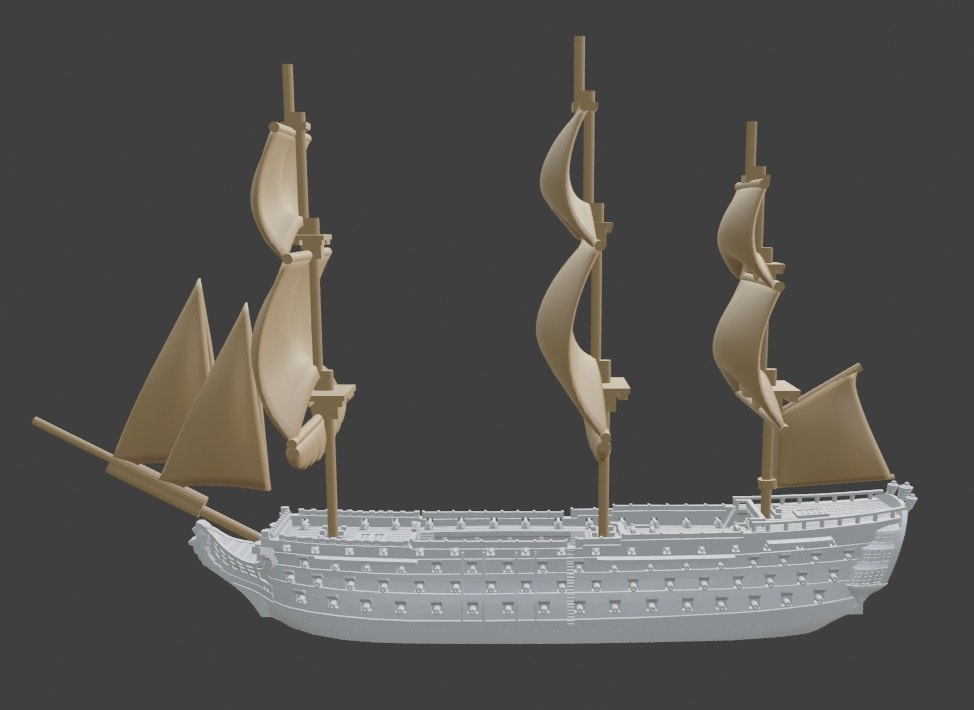

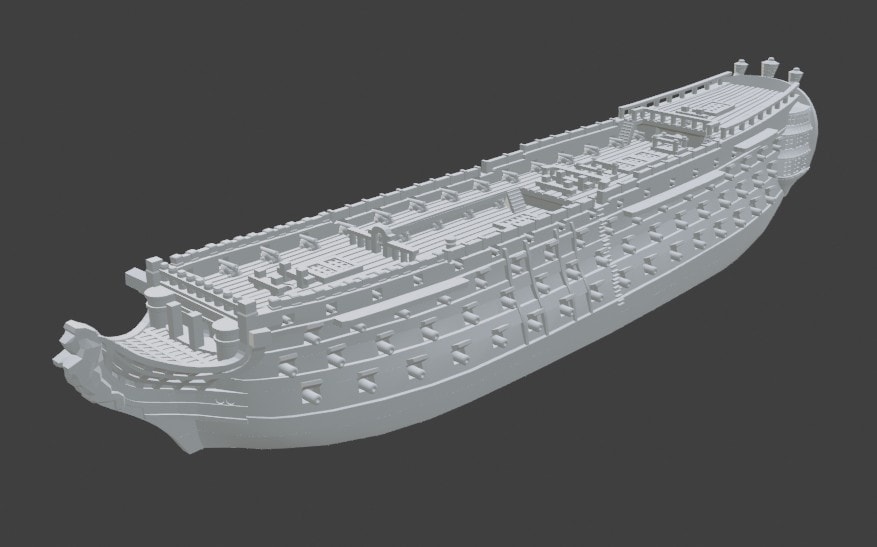

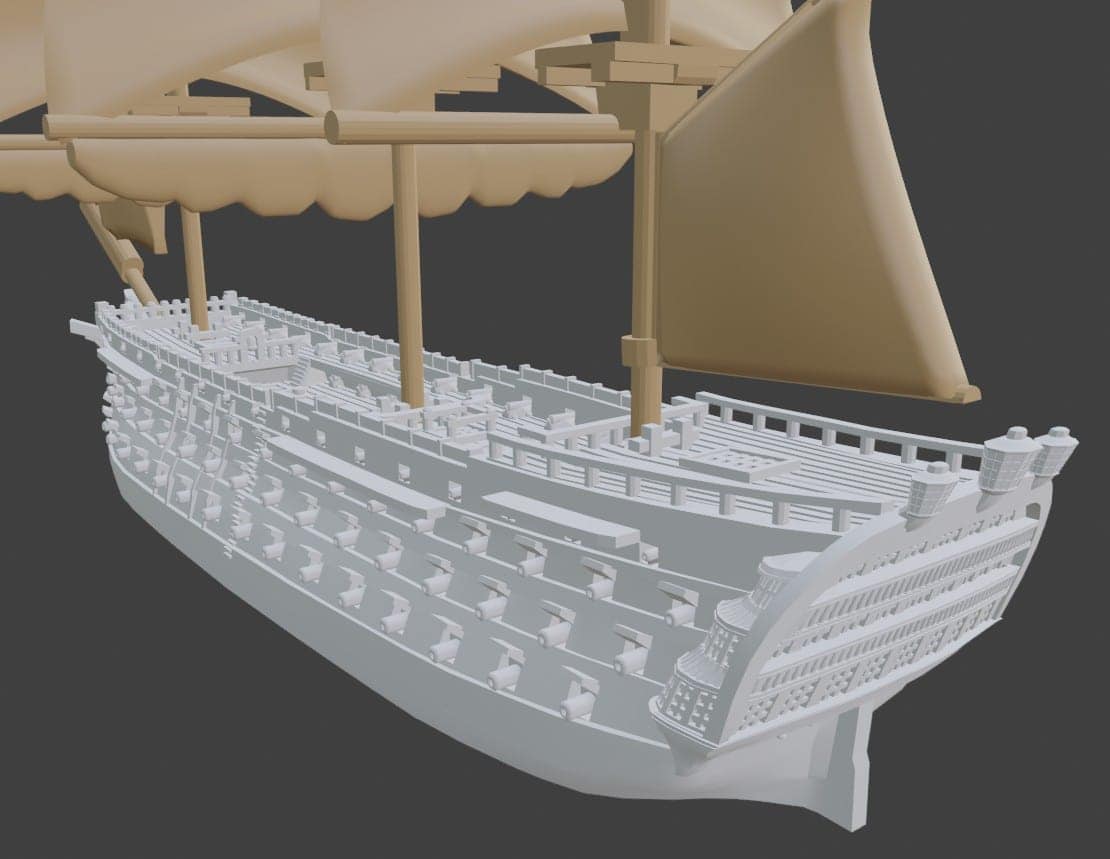

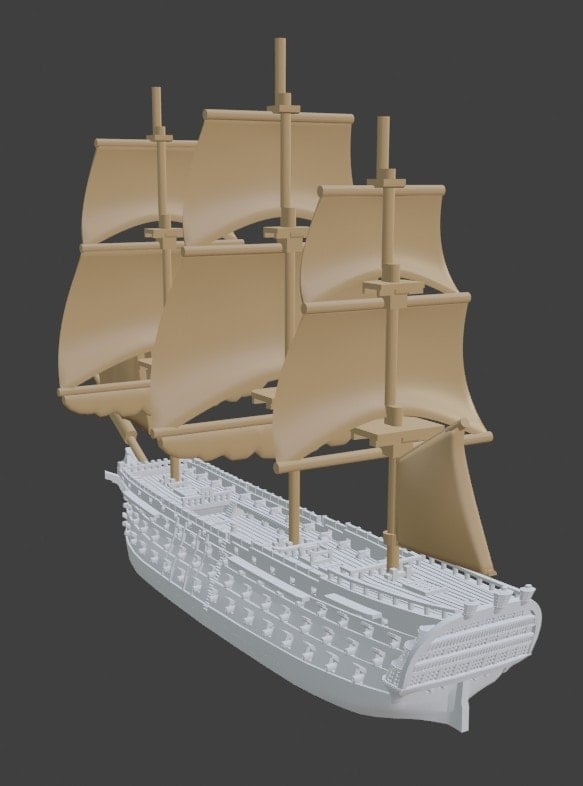

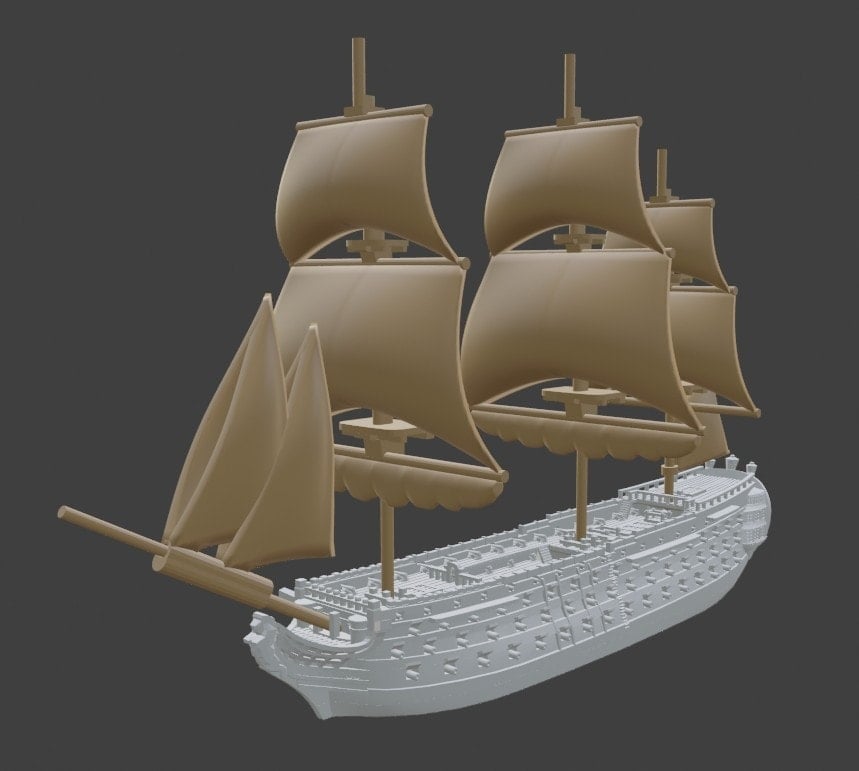

• Version 1 (30/01/2021) includes the original 112 gun hull and the subsequent 1795+ refit to the 4 deck version both now with stern lanterns as can be seen in the 3d model pictures. Each are split into a high and low hull version. The high hull will better match other ship manufacture models and allow bases with wavy/rough sea conditions to better fit the model. The low version is better suited to a glass sea.

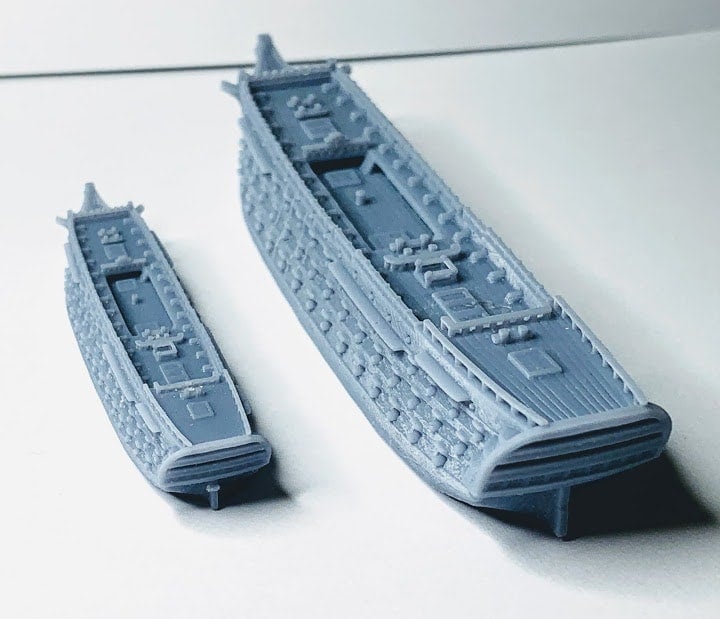

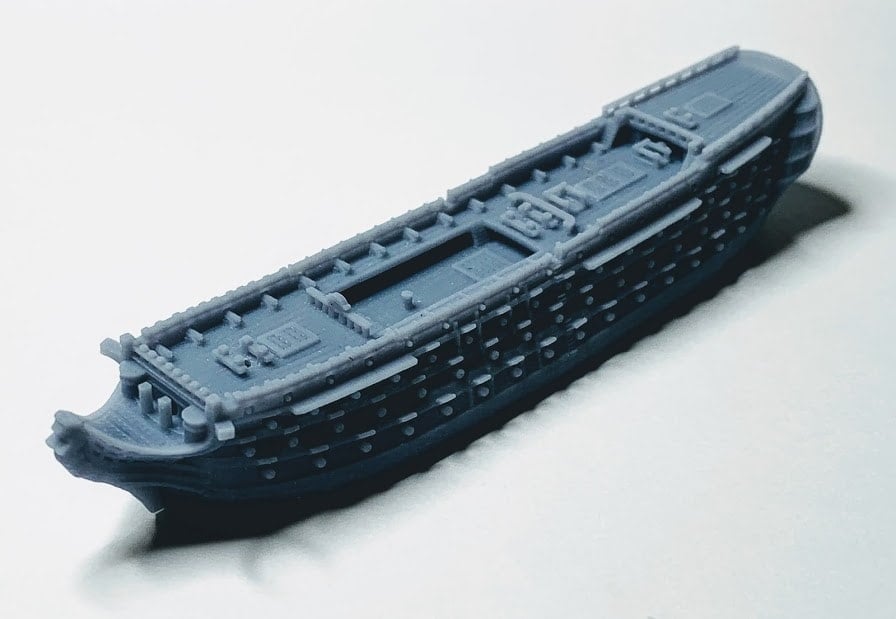

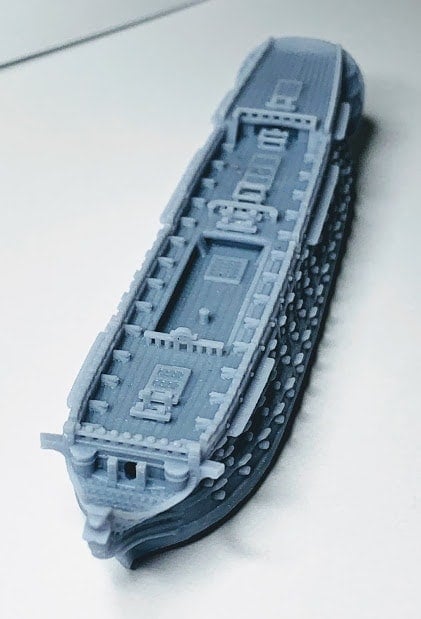

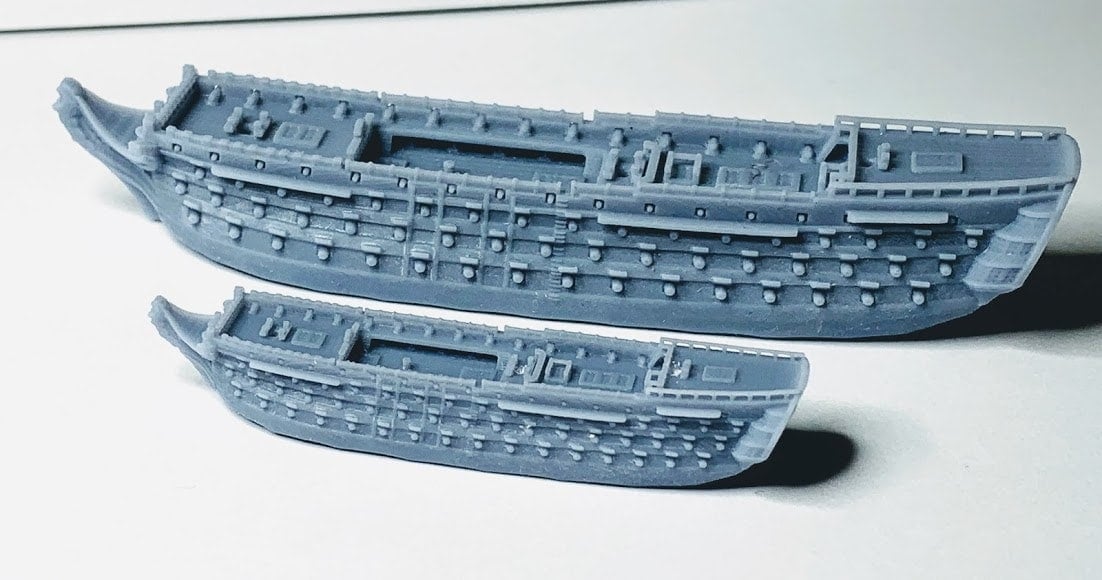

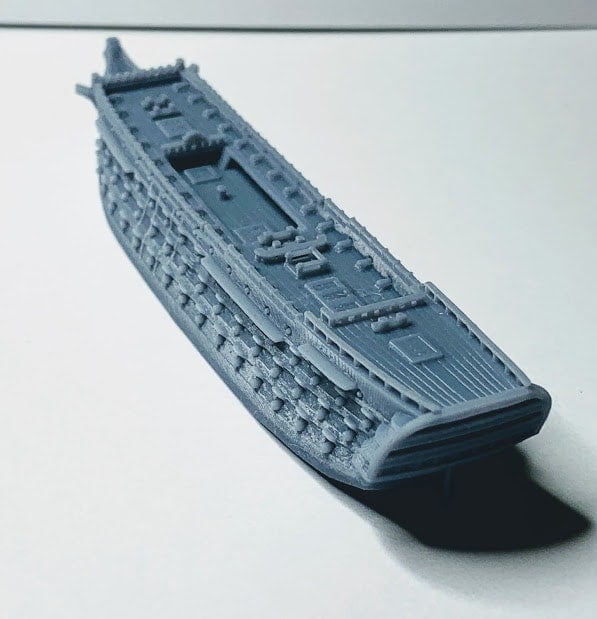

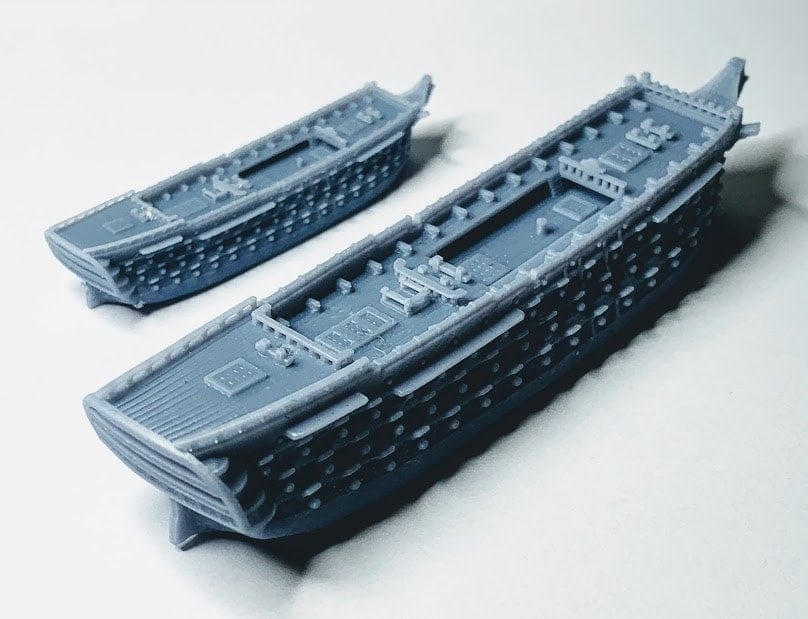

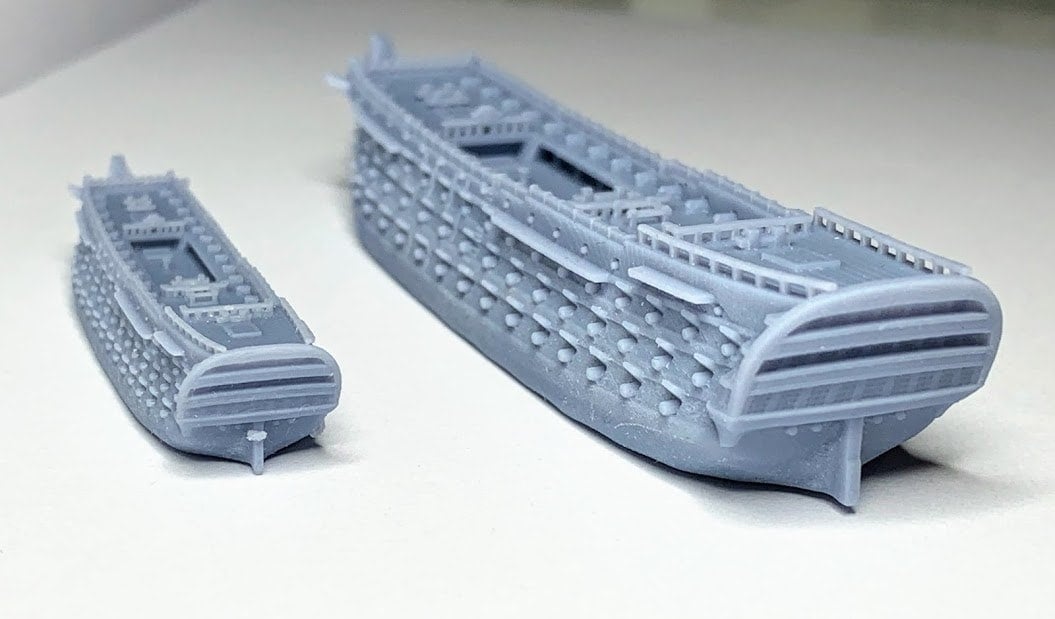

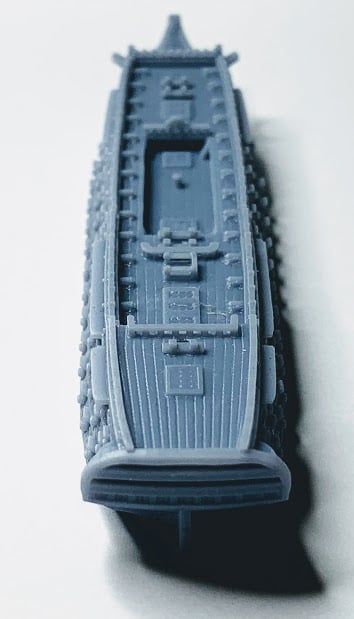

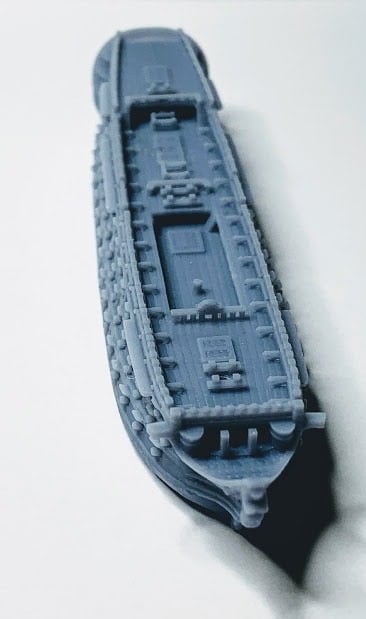

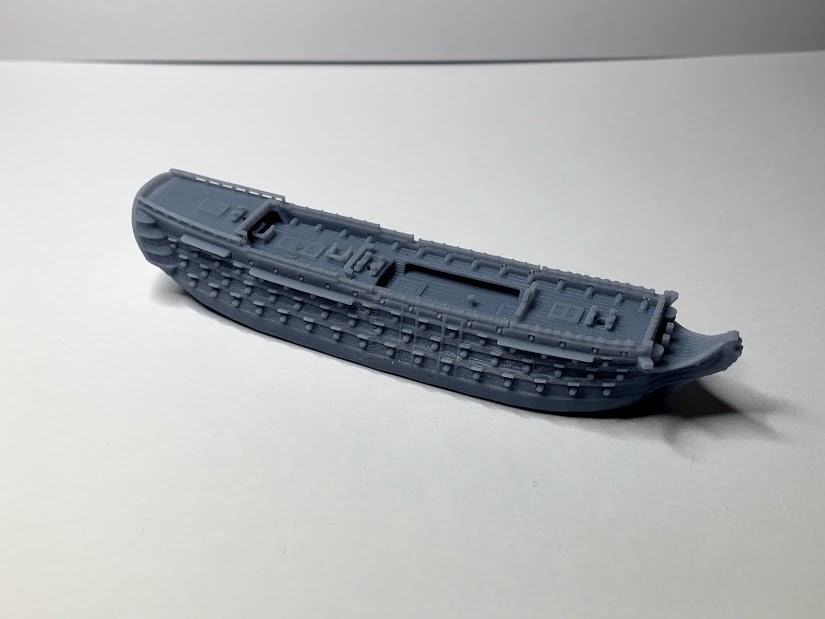

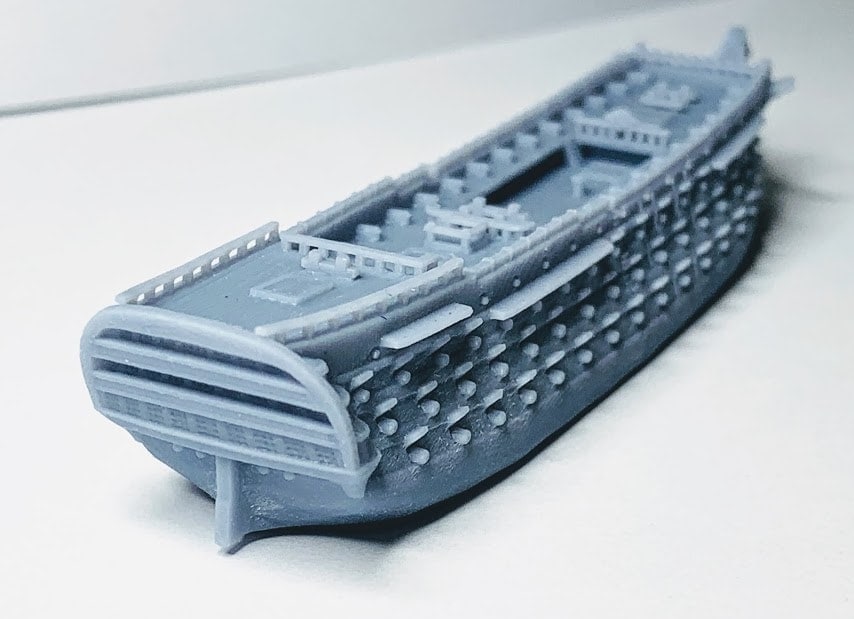

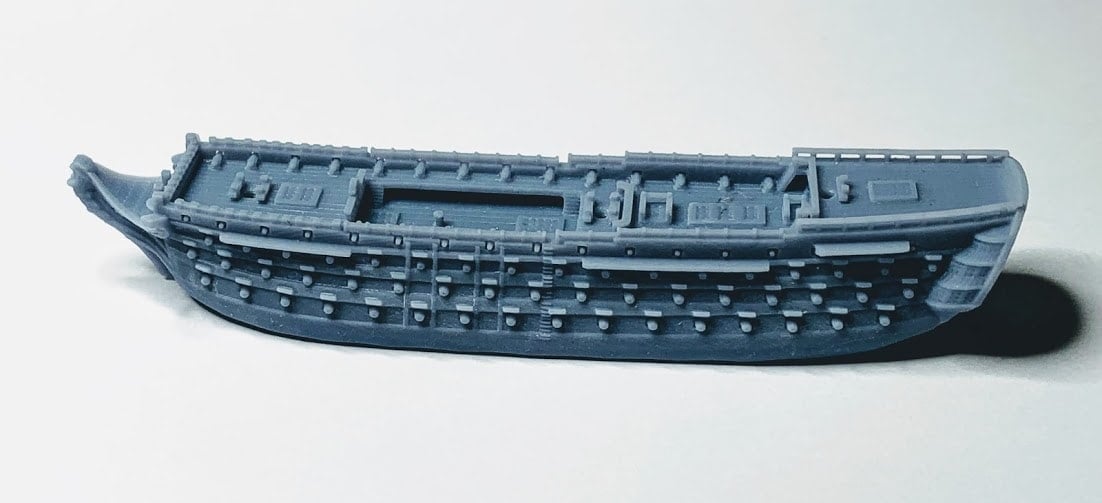

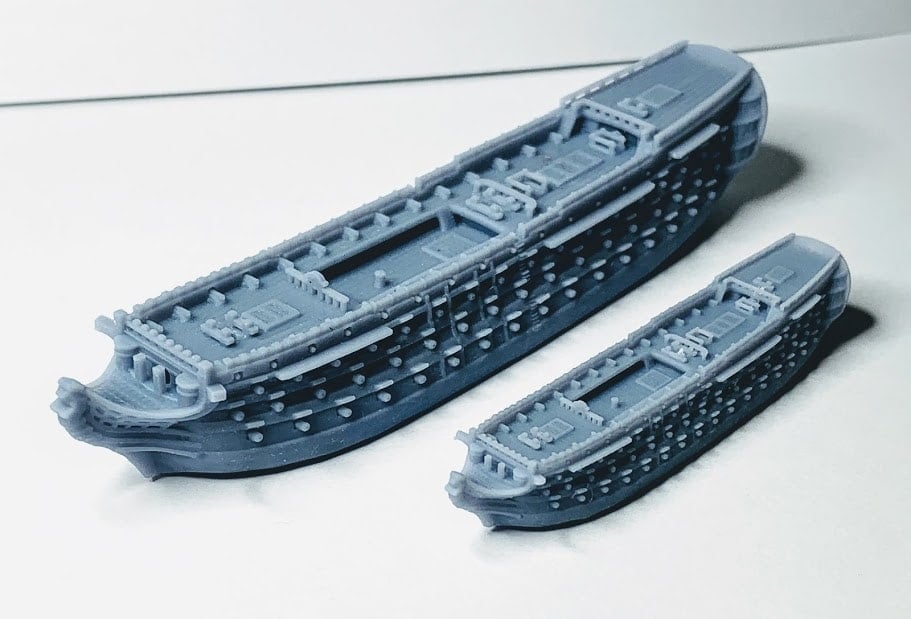

Photos are of the resin printed high hull version of the  130+ gun 1795 refit hull without stern lanterns. Lanterns have now been added as can be seen in the 3d model pictures. Photos with a single hull show the 1:700 version and photos with two hulls show the 1:700 version and a 1:1200 scale version.

The ship hull and shape was built as accurately as possible to various plans. The hull under the waterline was then removed and the upper parts were simplified in detail at the bow, thickened in the stern, windows exaggerated, and deck detail exaggerated. All this to be able to print out at 1:700 (and larger) scales. Prints very well at smaller scales in resin. For 1:1200 scale the hull to be 58.36% of the original model size).

Contains:

• Hull (includes deck planking, cannons and gunports):



  • resin:



    • Original 1769 112 gun hull



      • 1 x 1:700 scale high height hull


      • 1 x 1:700 scale low height hull






    • 130+ gun 1795 4 deck hull



      • 1 x 1:700 scale high height hull


      • 1 x 1:700 scale low height hull










  • fdm



    • Original 1769 112 gun hull



      • 1 x 1:700 scale high height hull for fdm printing


      • 1 x 1:700 scale low height hull for fdm printing






    • 130+ gun 1795 4 deck hull



      • 1 x 1:700 scale high height hull for fdm printing


      • 1 x 1:700 scale low height hull for fdm printing














• Sails:



  • resin



    • Combined masts/sails without lower mast section and with a hole for a rod/wire - for resin printing






  • fdm



    • Split masts/sails with lower mast section - for fdm printing










• Ships Anchor

The sails are of a generic 1st/2nd rate size and will be usable with other published 1st/2nd rate ships. Does not include the ratlines, flags or rigging string. No supports are usually required on any part of an fdm print. Supports will be required for the sails when resin printing.

For fdm mast assembly, please see the photos on the Intrepid-class 64 gun model (on this site) showing the bowsprit parts and mizzen (rear sail parts) being assembled.
