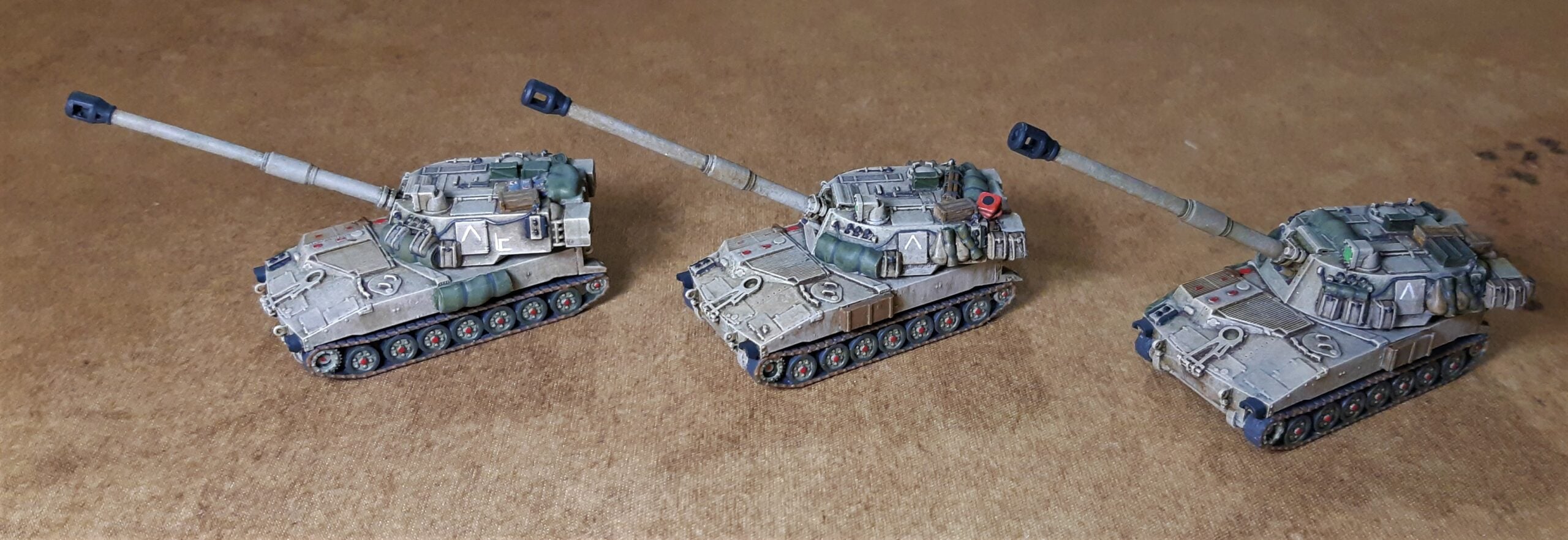

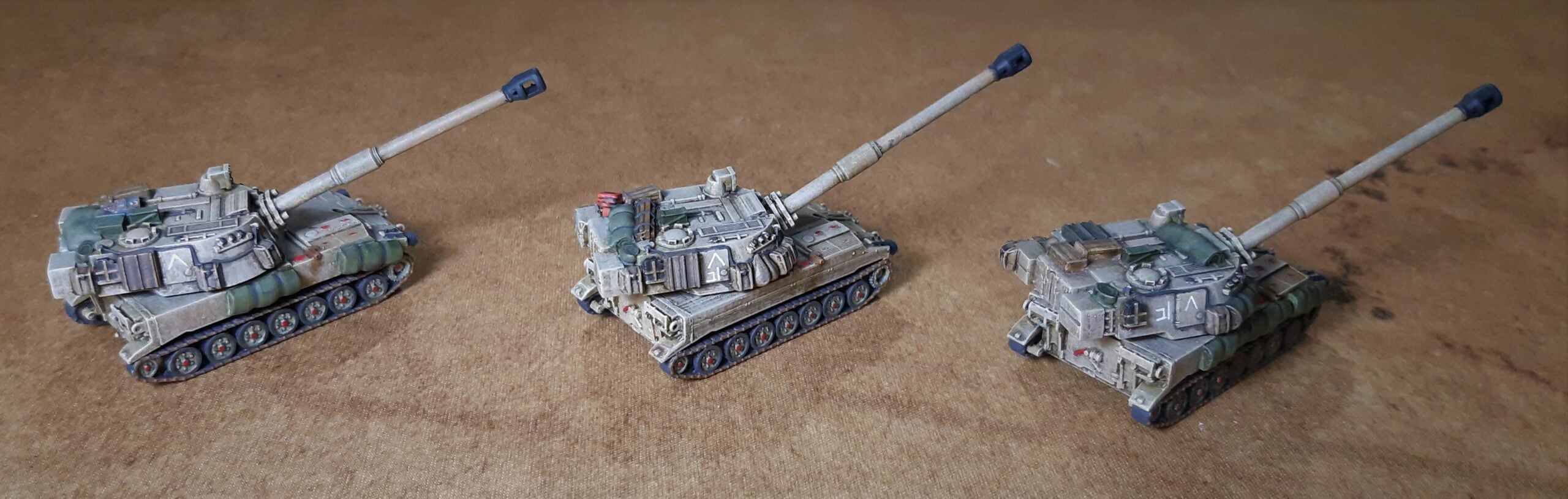

M109 IDF Stowage (kkentium mod)

This is a 15mm compatible M109 model with IDF-themed stowage for resin printers.

This file is a heavily modified version of 1:100 Scale M109A3G by kkentium on thingiverse. As it is a derivative work it is being released for free under the CC BY-NC 4.0 license.

11/09/2022: updated .zip to correct errors

This model features thorough hollowing, drain holes, and careful support placement to ensure optimal print quality. Thought has been put into making the components easy to paint, and detail is deeply recessed and exaggerated to avoid being drowned in thick paint.

Included in this download are all the files you will need to print the M109.

These models are optimised for detail at 1/100 or 15mm scale on a resin printer, but they should scale up well too.

Printed dimensions of hull (excl. gun, turret and stowage):
L 61 W 33 H 12 mm

Printer settings used for display models:

Anycubic Photon Mono
Translucent Green Anycubic Resin
0.03mm layer height
1.4s exposure time
24s bottom exposure time
5 bottom layers
lift speed: 1mm/s
8x Antialiasing

Slicer used:

Photon Workshop V2.1.23.RC8
