Model Description:

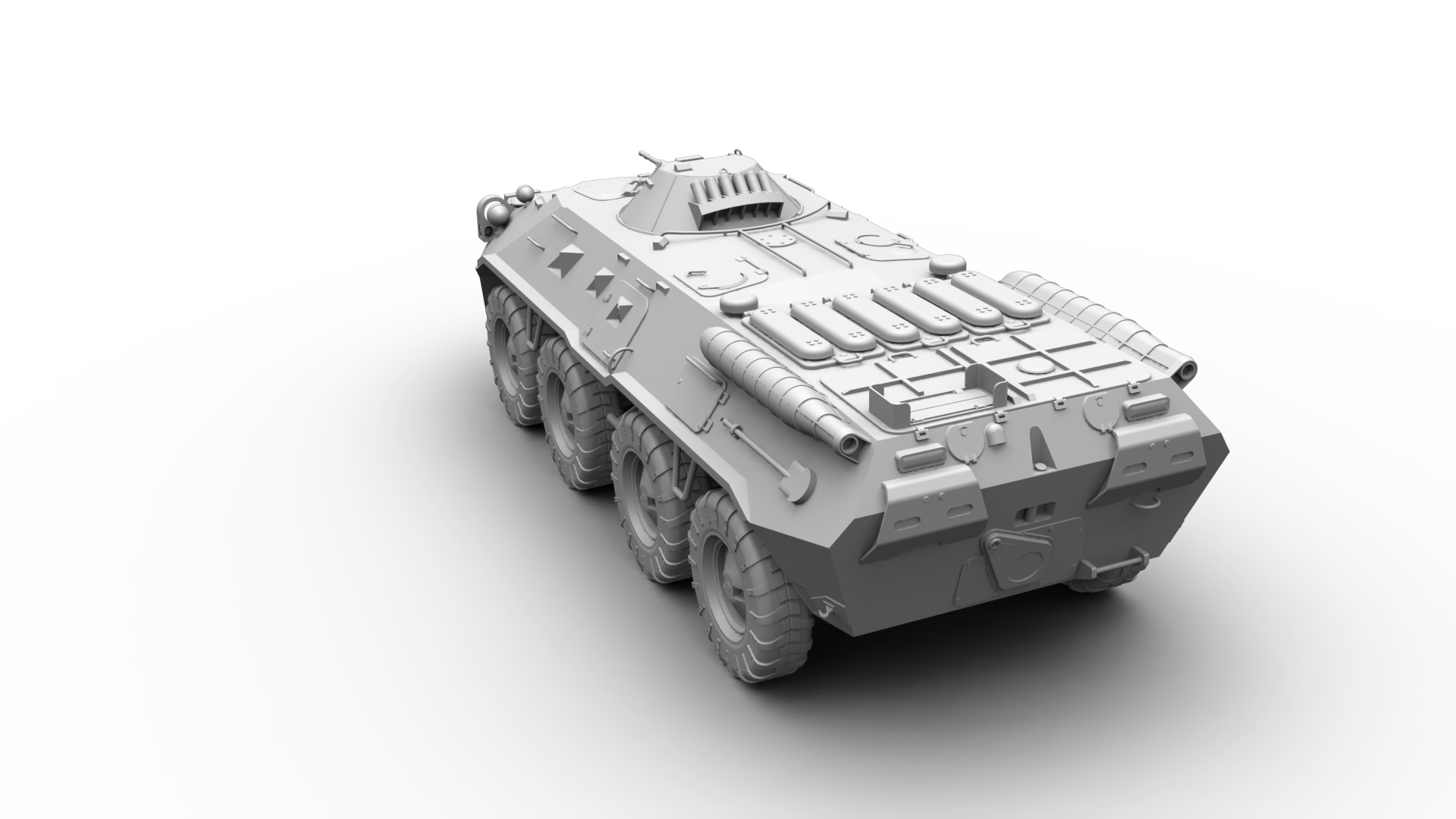

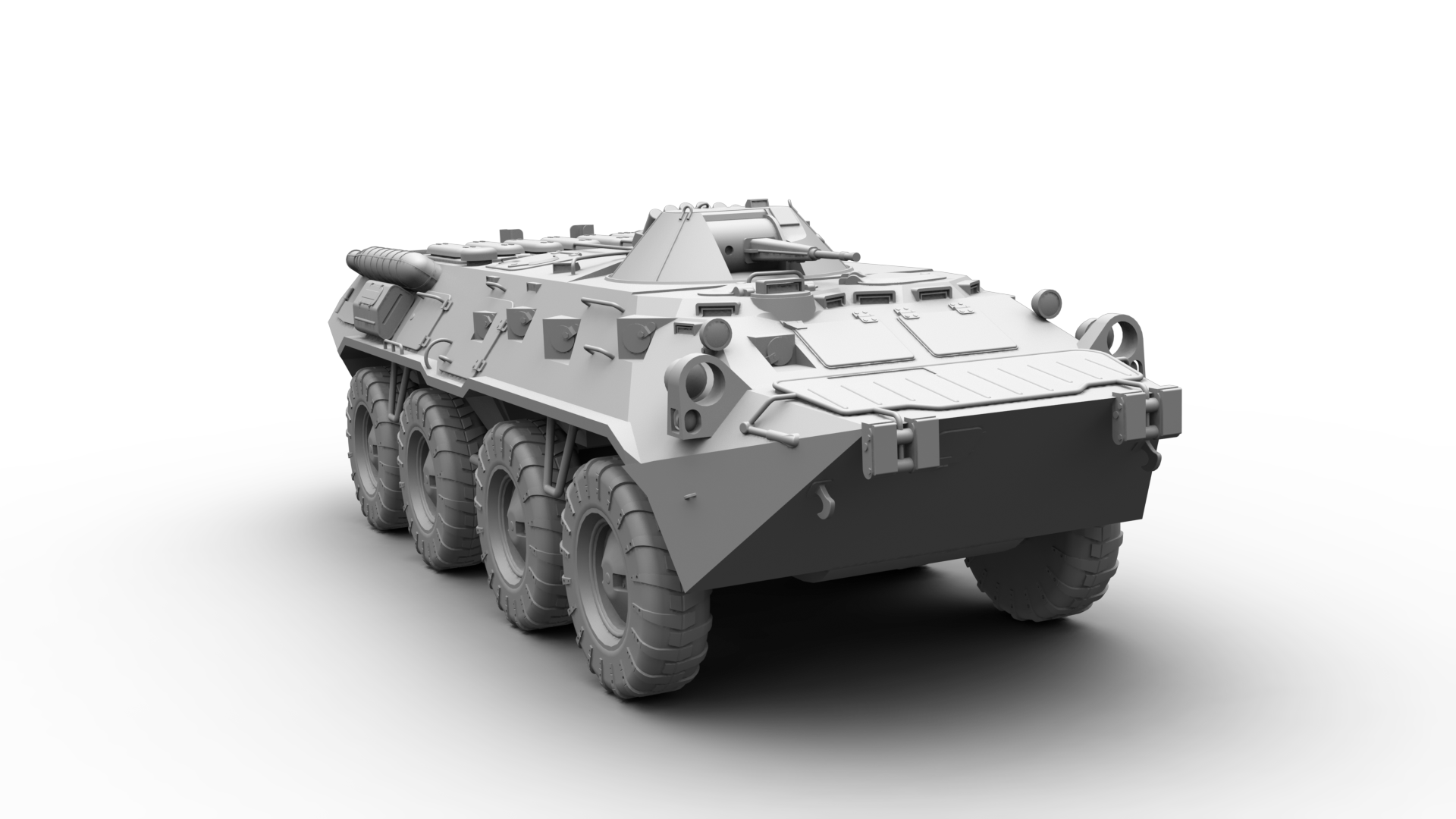

This download contains a highly detailed model of a Soviet BTR-80 wheeled APC. This version of the vehicle was only equipped with a small turret and MG, and not the autocannon found on the BTR-80A. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible without sacrificing printability or durability.
The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.
The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers.

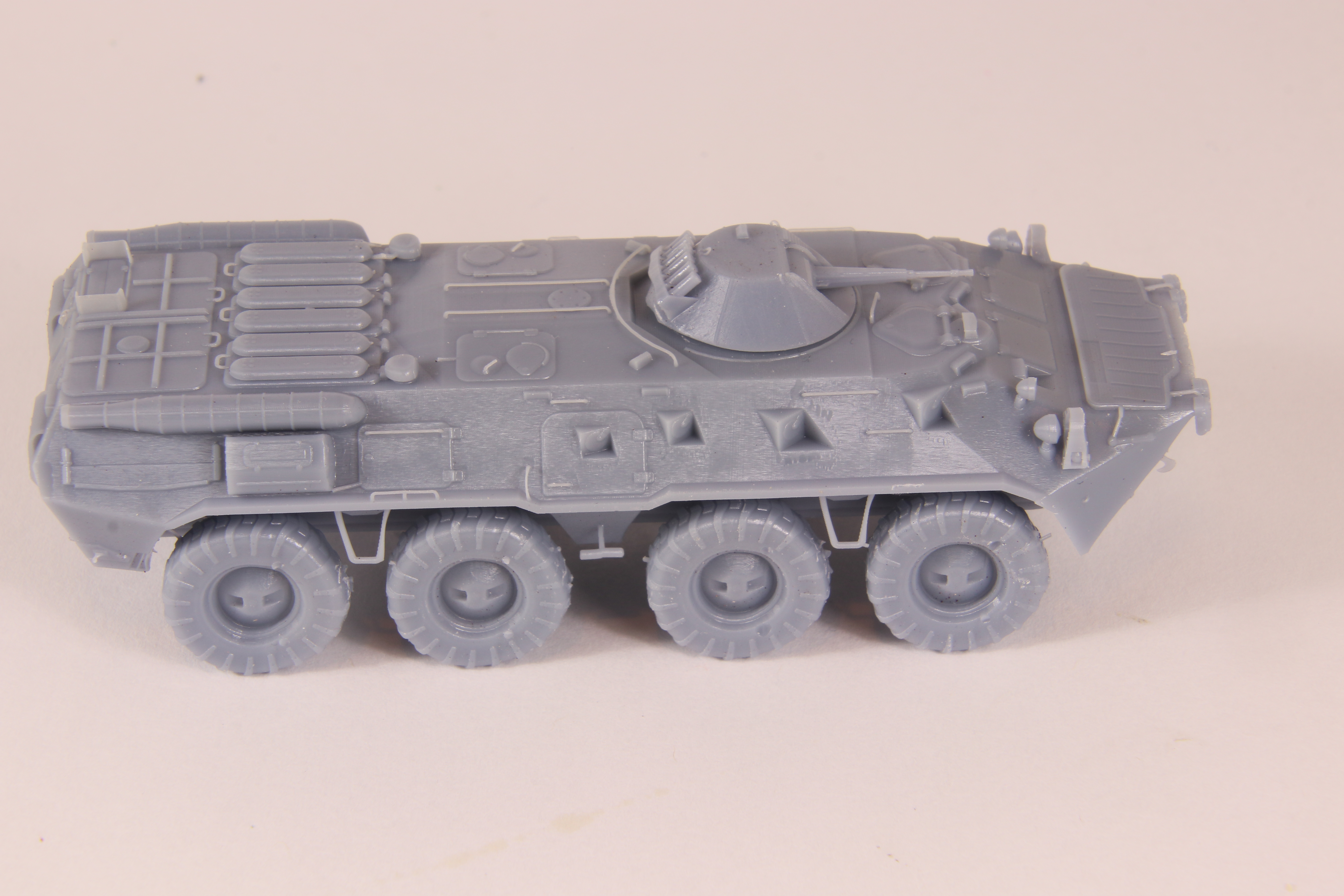

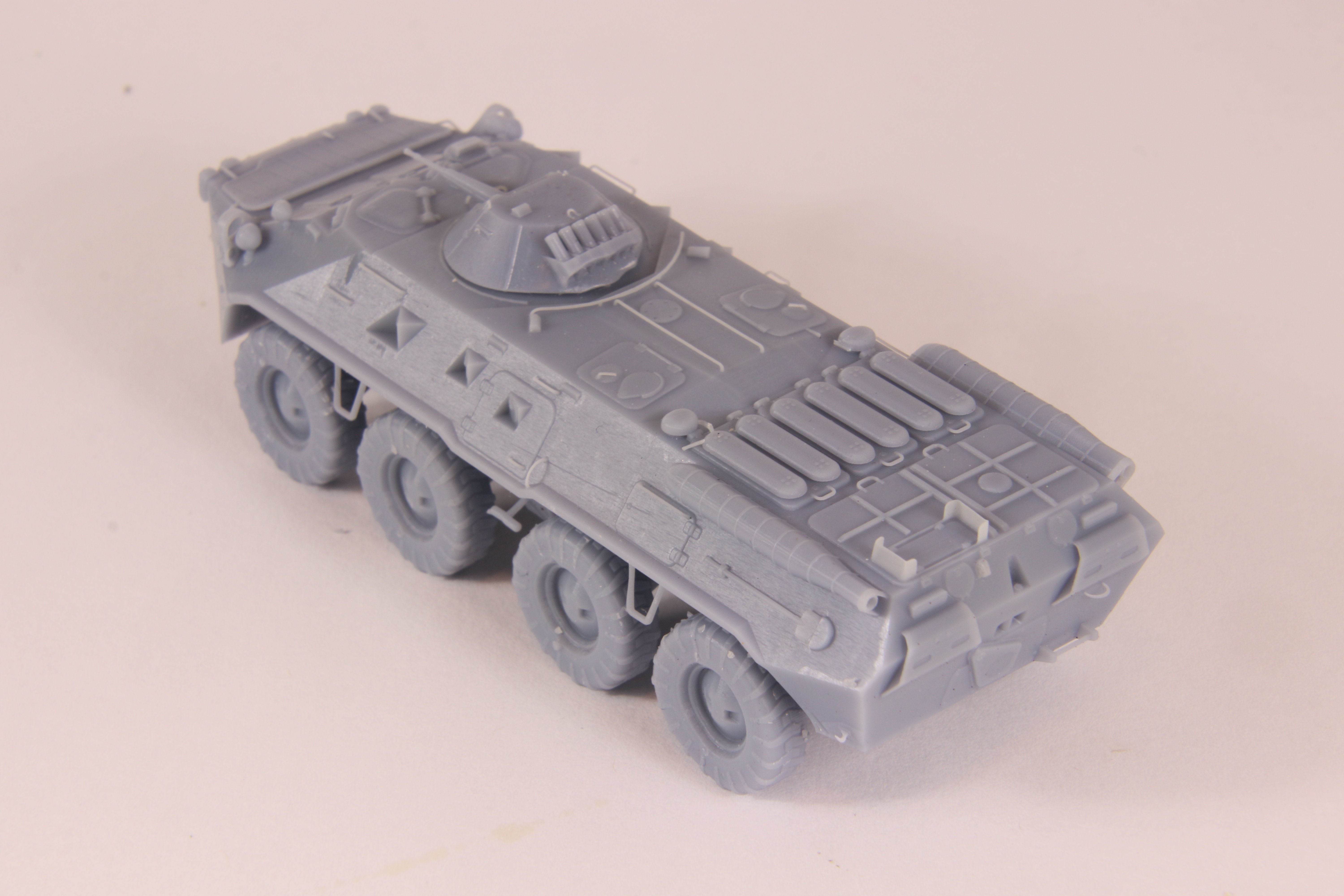

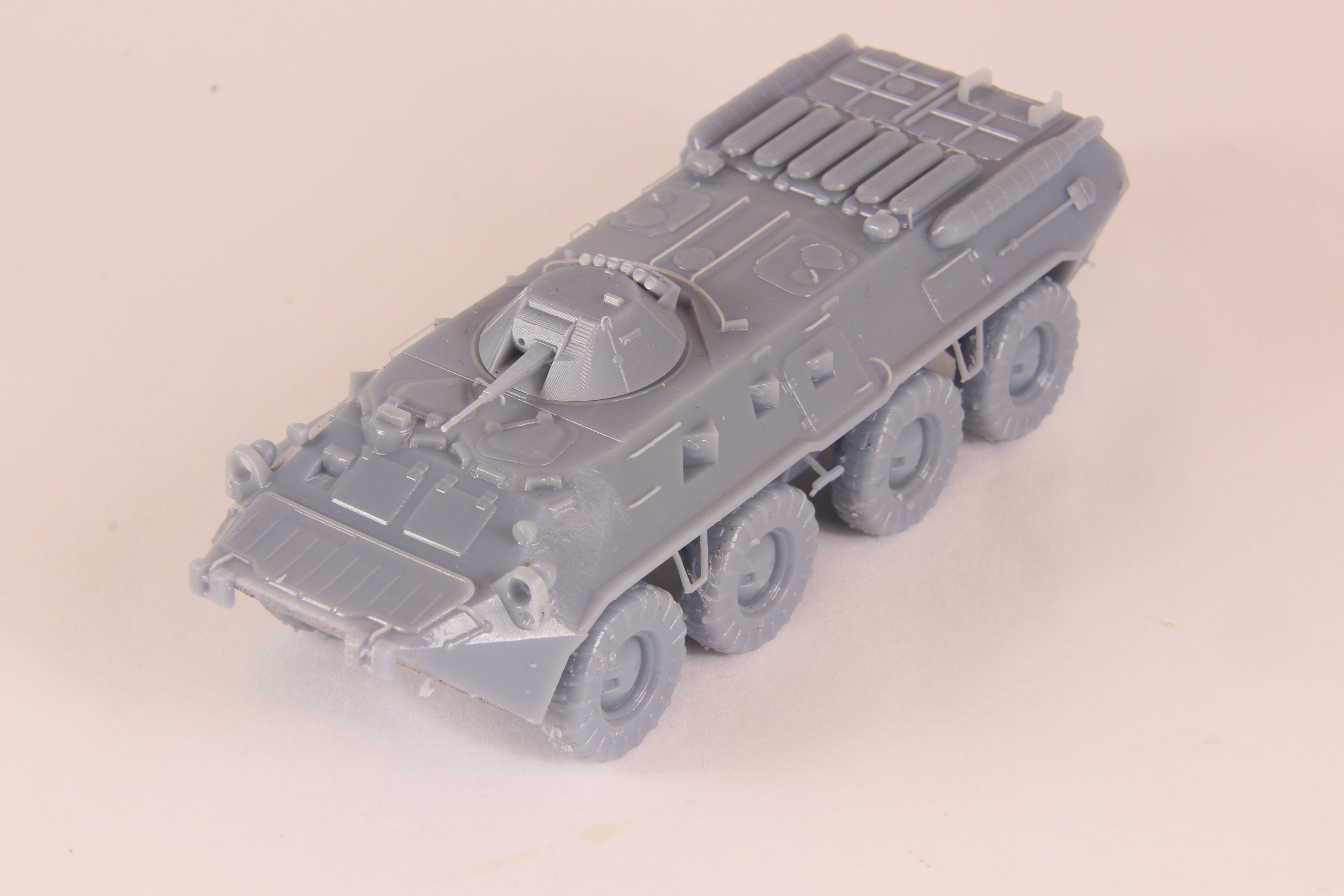

The model at its native scale took roughly 5 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 4.24" (108mm)
Width - 1.58" (40mm)
Height - 1.28" (33mm)
Historical Description:
The BTR-80 is a wheeled Armored Personnel Carrier (APC) designed by the Soviet Union. The vehicle entered service in 1986 and remains in service to this day. The BTR-80 is an 8x8 platform able to carry 7 passengers, alongside its 3-man crew, for a total of 10 people. The vehicle is quite fast, able to reach speeds of 56mph (90km/h). The BTR-80 possesses a 14.5mm KPVT MG as its primary armament within the turret. This is different than the 30mm 2A72 found on the BTR-80A variant. The vehicle's armor is very thin, designed only to stop low caliber rounds for limited passenger protection.
Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
This download contains a highly detailed model of a Soviet BTR-80 wheeled APC. This version of the vehicle was only equipped with a small turret and MG, and not the autocannon found on the BTR-80A. Documentation and references for the real vehicle were rigorously studied to make the model as geometrically accurate as possible without sacrificing printability or durability.
The model is designed for resin 3D printing comes natively in 20mm (1/72) scale and includes a supported version for this size. Furthermore, the files are pre-hollowed, reducing the material requirements, improving the probability of print success, and ensuring no voids are present within the geometry.
The file is designed to be detailed enough to hold up well at larger scales however, including the common 28mm (~1/56) scale. Larger scales will have to be manually supported at present, however a future goal of TCR designs is to include supported files for larger scales, as well as a less-detailed version designed to function on FDM (filament) printers.
The model at its native scale took roughly 5 hours to print on an "Anycubic Photon Mono 4K" printer and has the following dimensions:
Length - 4.24" (108mm)
Width - 1.58" (40mm)
Height - 1.28" (33mm)
Historical Description:
The BTR-80 is a wheeled Armored Personnel Carrier (APC) designed by the Soviet Union. The vehicle entered service in 1986 and remains in service to this day. The BTR-80 is an 8x8 platform able to carry 7 passengers, alongside its 3-man crew, for a total of 10 people. The vehicle is quite fast, able to reach speeds of 56mph (90km/h). The BTR-80 possesses a 14.5mm KPVT MG as its primary armament within the turret. This is different than the 30mm 2A72 found on the BTR-80A variant. The vehicle's armor is very thin, designed only to stop low caliber rounds for limited passenger protection.
Contact Information:
If you face any problems with this vehicle, whether they be related to printability, integrity, or historical accuracy of the model, please contact us at [email protected]. We will do what we can to rectify any issues and improve the quality of the product for everyone.
No one's reviewed this product yet. Let people know if you enjoyed this model!
| Filename | Size | Last updated |
|---|---|---|
| BTR-80 - Hull.STL | 26.0 MiB | 2026-03-24 |
| BTR-80 - Hull - supported.stl | 51.4 MiB | 2026-03-24 |
| BTR-80 - Turret.STL | 1.5 MiB | 2026-03-24 |
| BTR-80 - Turret - supported.stl | 2.1 MiB | 2026-03-24 |
