IJN Takao class Heavy Cruiser

The Takao class Heavy cruisers were a class of 4 ships of the IJN. All four ships participated in actions during WW2 in the Pacific.

One survived WW2.

IJN Takao, captured Sept 1945, sunk October 1946 as target ship by HMS Newfoundland

IJN Atago, sunk Oct 1944 by submarine USS Darter

IJN Maya, sunk Oct 1944 by submarine USS Dace

IJN Chokai, disabled Oct 1944 during the Battle off Samar, scuttled by Destroyer Fujinami

Copyright Allan Smit 2023
Non Commercial and personal use only.

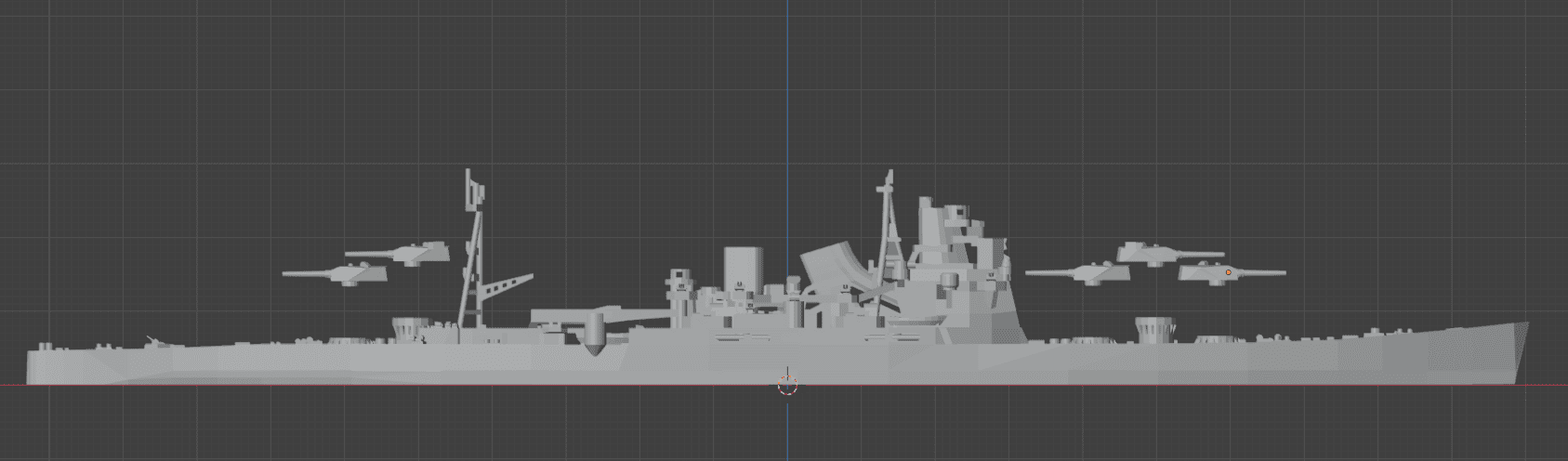

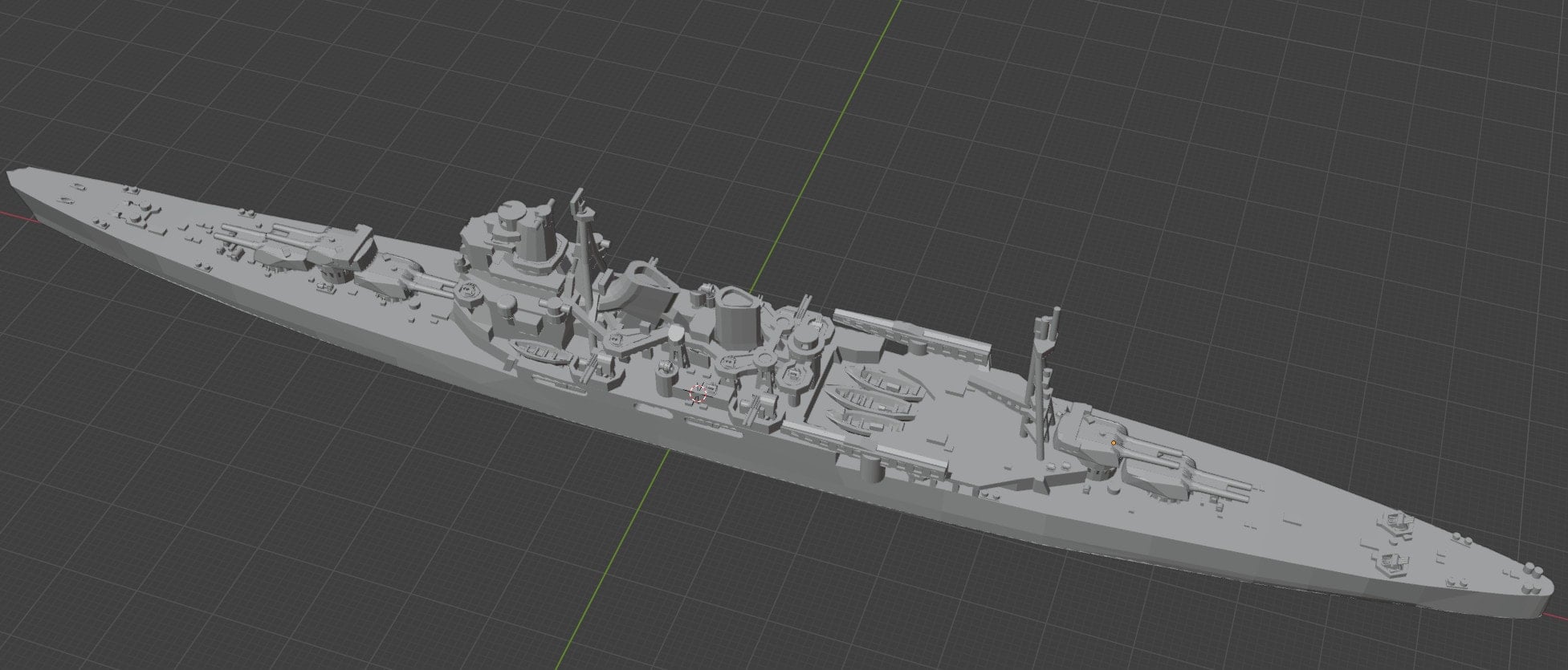

The model is provided in 1/1000 scale and is Resin print only. It consists of separate parts, the hull, and gun-turrets (2 types) which you need to glue on the hull.

1/1800 - resize to 55,56%

1/1200 - resize to 83,5%

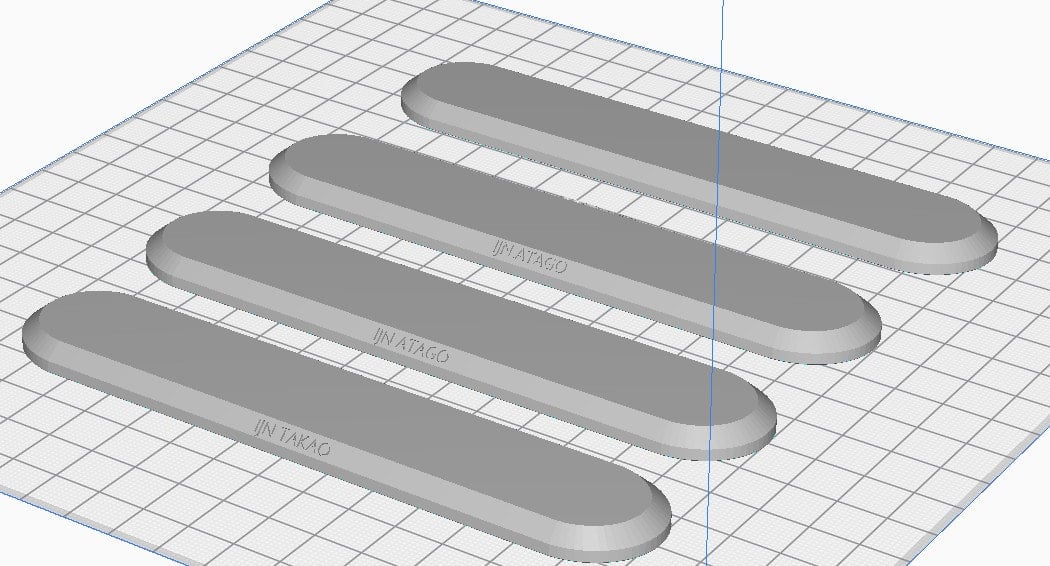

There are 4 named bases provided, one per Cruiser. And each base comes in 2 versions. Text recessed and the raised. I used the recessed version for FDM printed bases. Finally a base without text is also included. Do not forget to also re-scale the bases if you print in 1/1200 or 1/1800 scale.

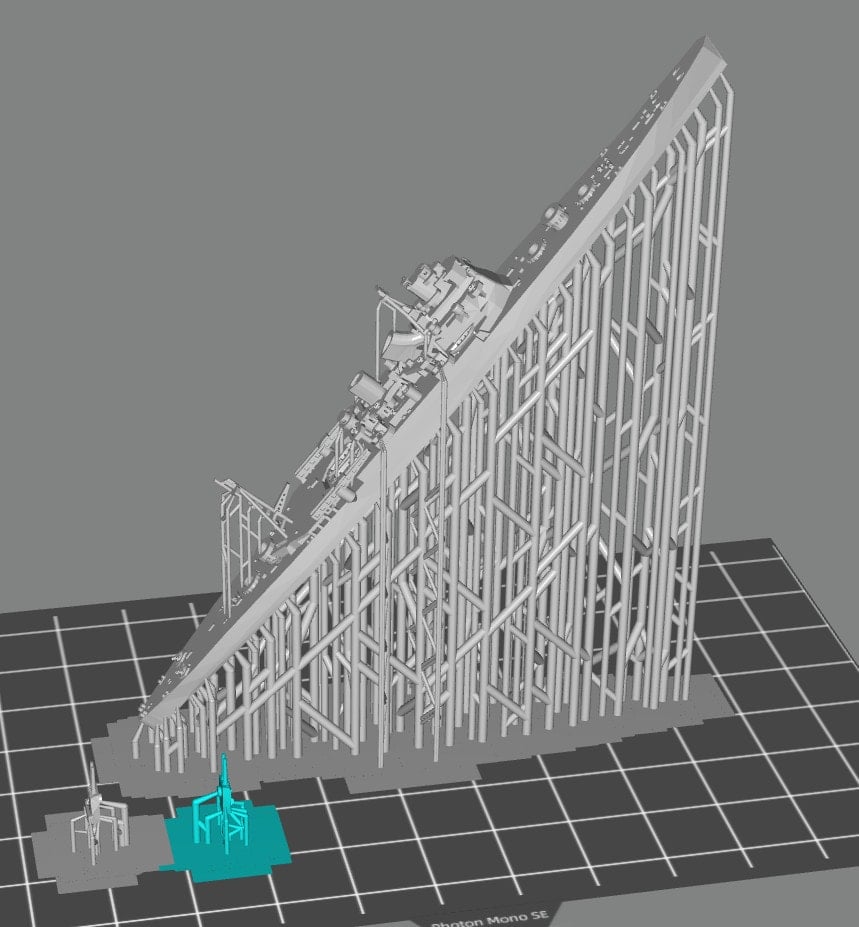

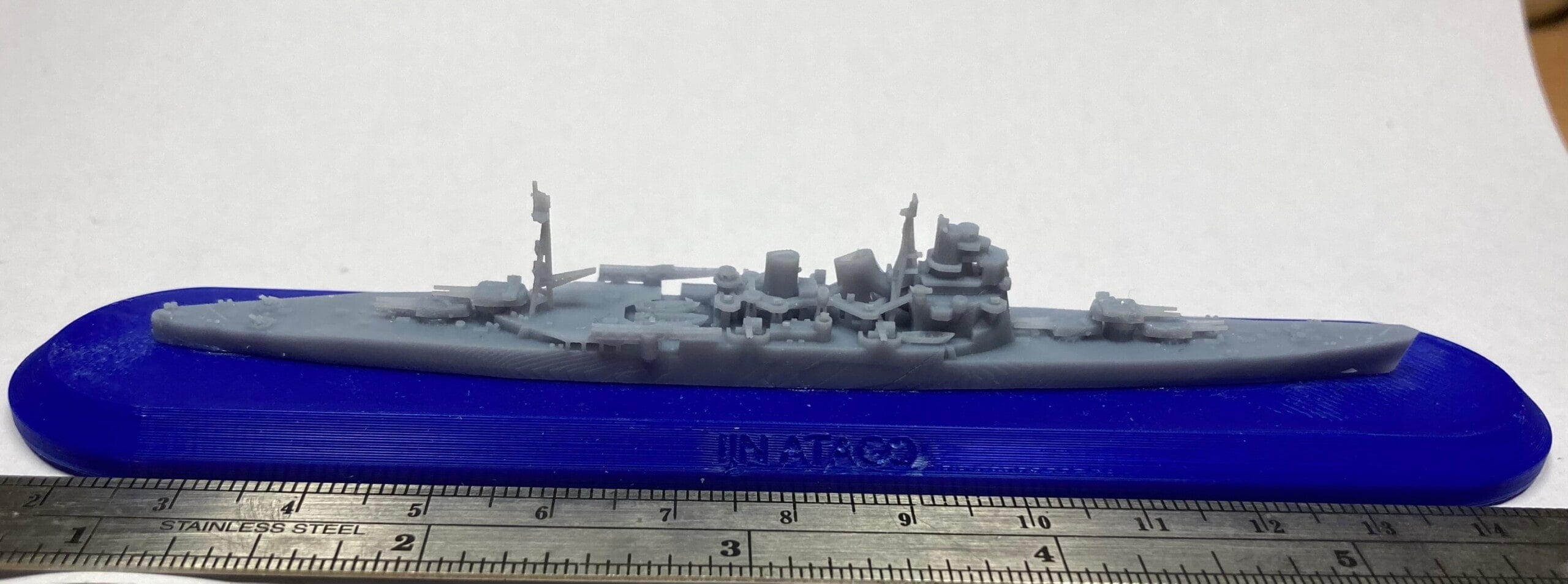

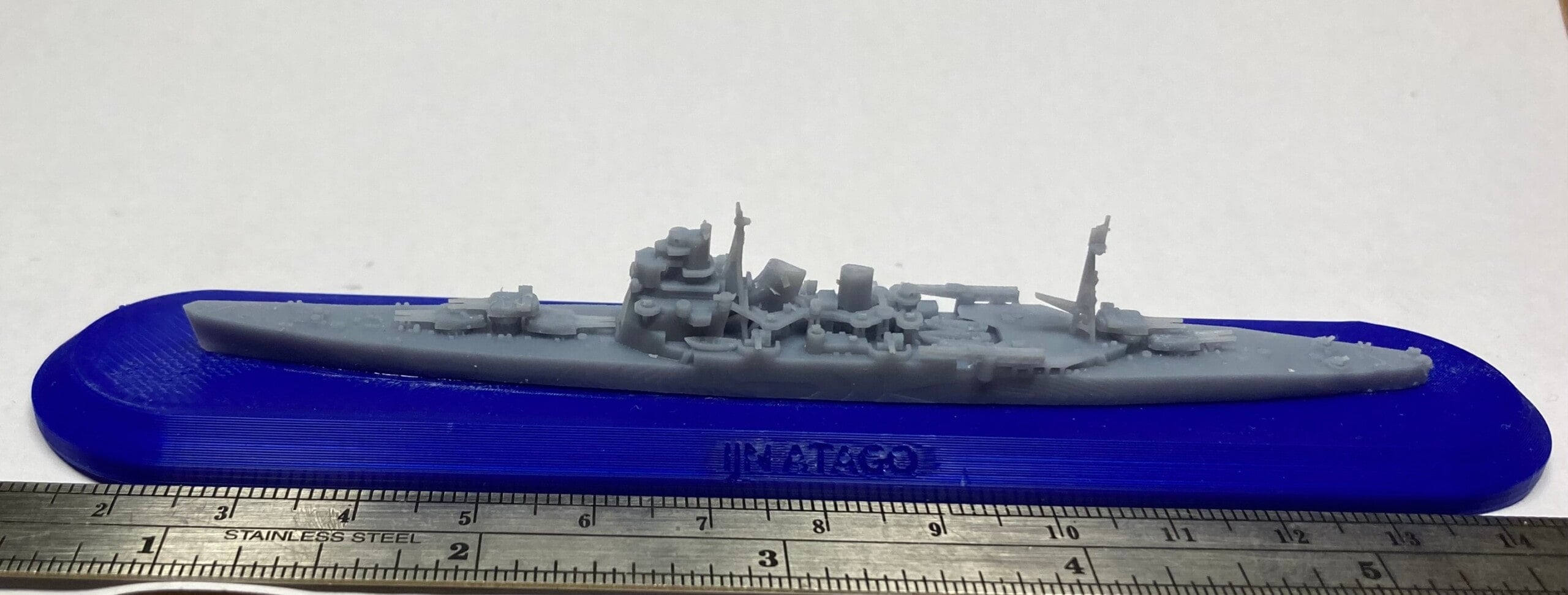

Also included a 1/1800 scale pre-supported model which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.

The base was printed on an Ender 5 pro (0.16 mm layer) standard PLA. But could also be printed in Resin if you want (no supported file provided)

There is a Hull V1 and V2. Version 1 is missing the anchors, which you will not notice in 1/1800 scale prints. The supported file is the V1 version.
