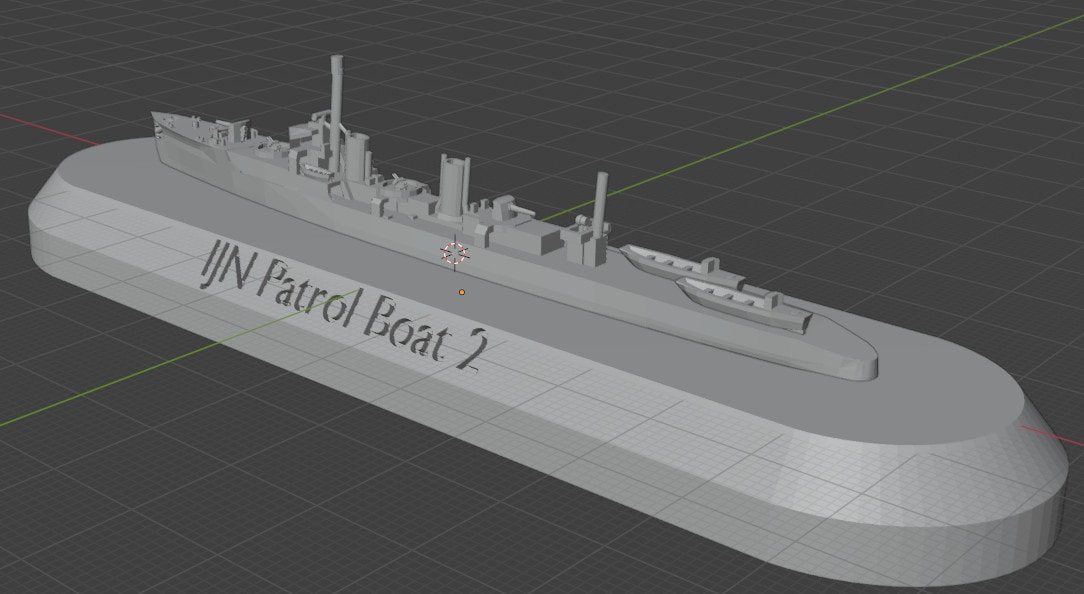

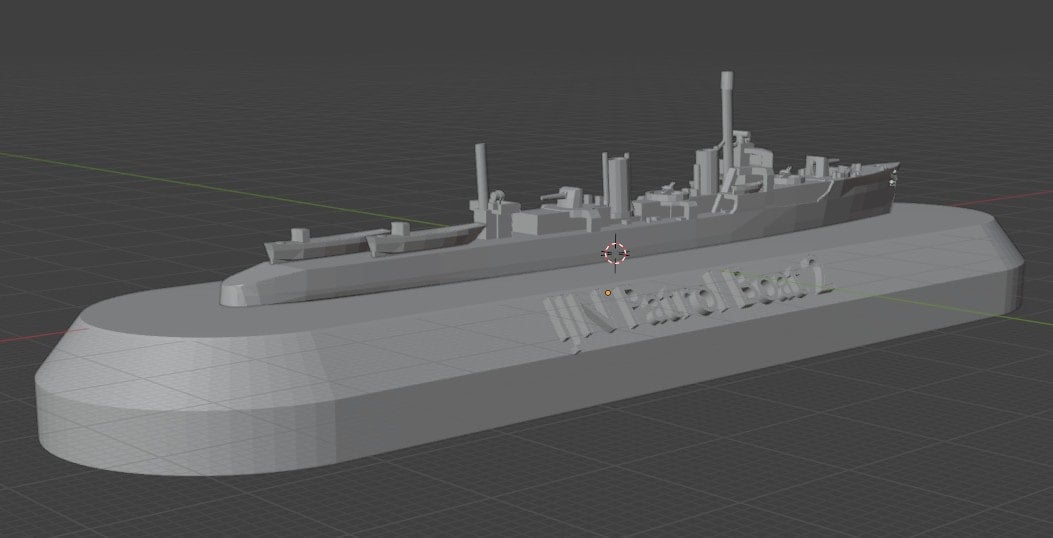

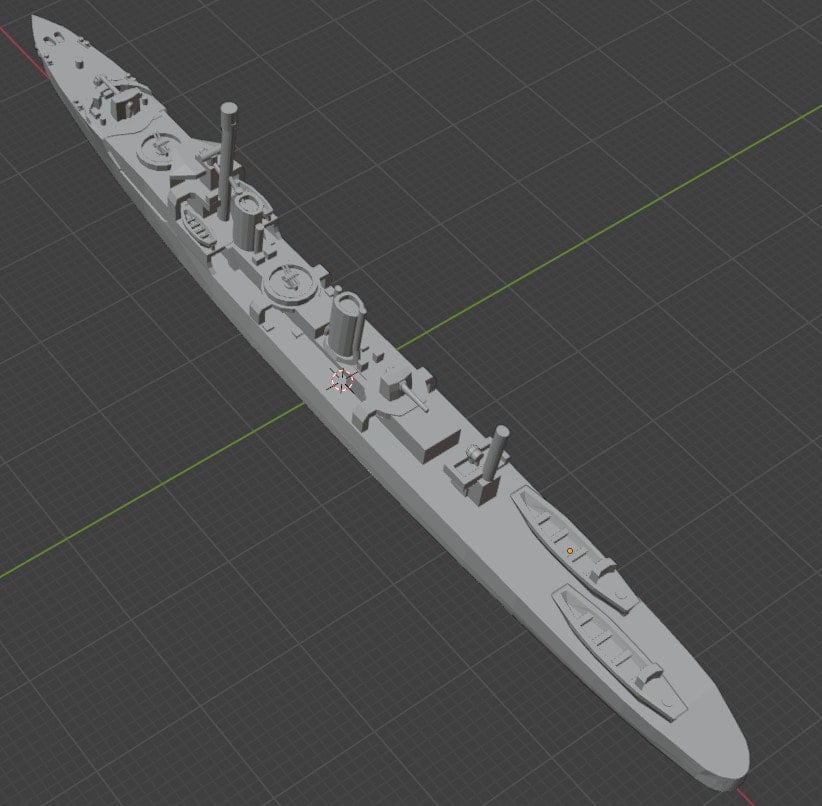

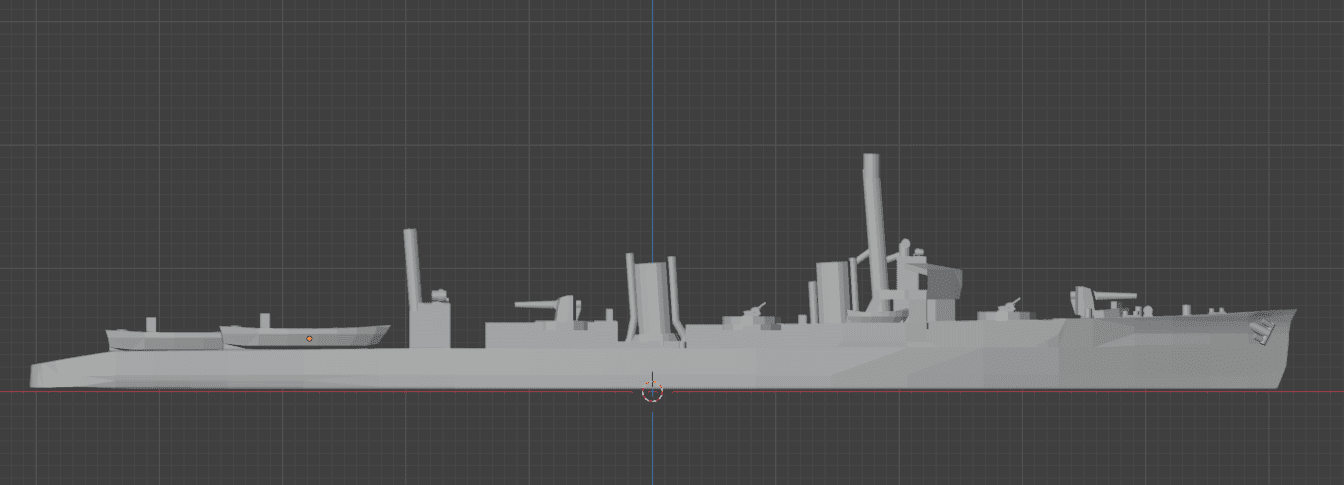

The Patrol Boats No-1 and No-2 were 2 vessels converted from Minekaze destroyers. The class was called No.1-class patrol boat

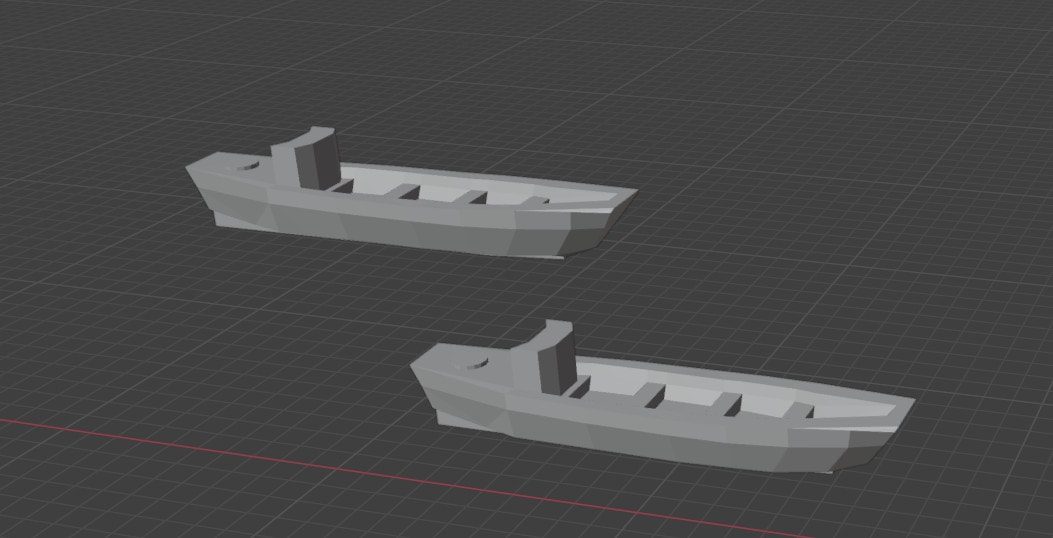

During the war the Shimakaze and Nadakaze had been converted to Patrol Boats, PB-1 and PB-2. Both patrol boats were sunk during WW2. The ships carried 2 Daihatsu Landing craft, the armament was changed and accommodations for 250 troops was added.
Copyright Allan Smit 2023
Non Commercial and personal use only.
The models are provided in 1/1000 scale and are Resin print only.
1/1800 - resize to 55,56%
1/1200 - resize to 83,5%

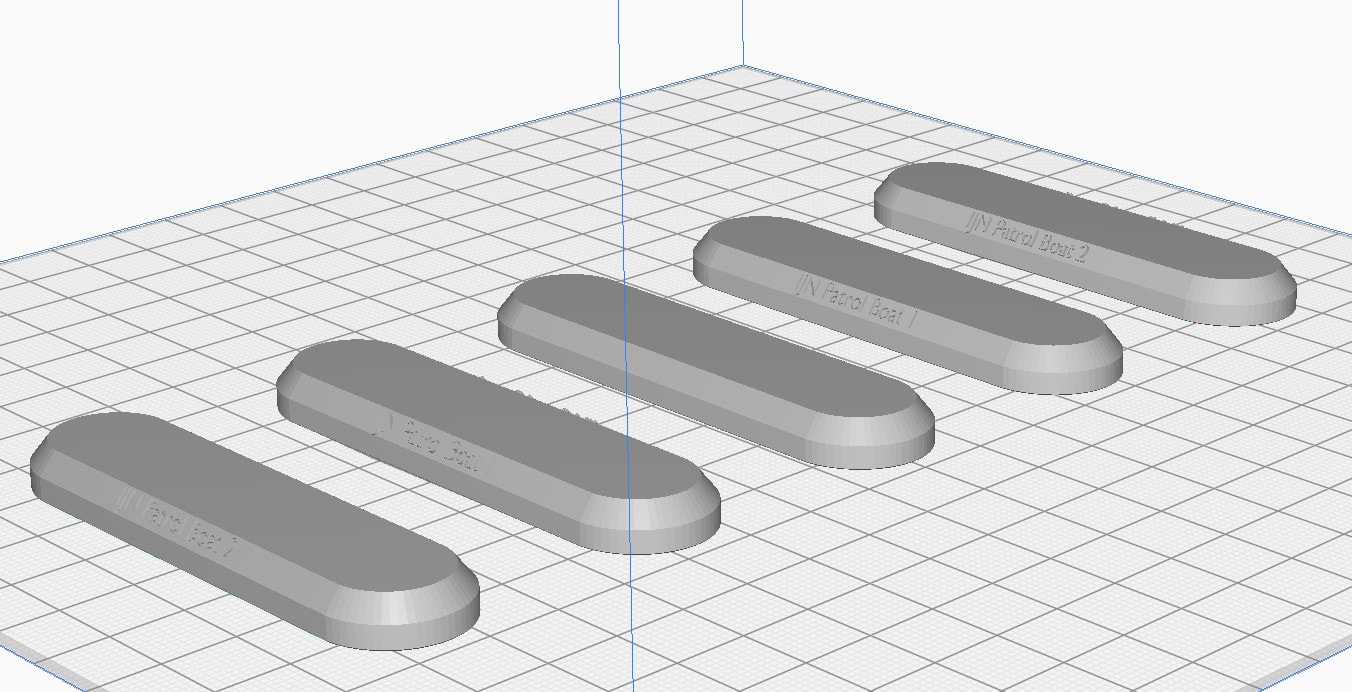

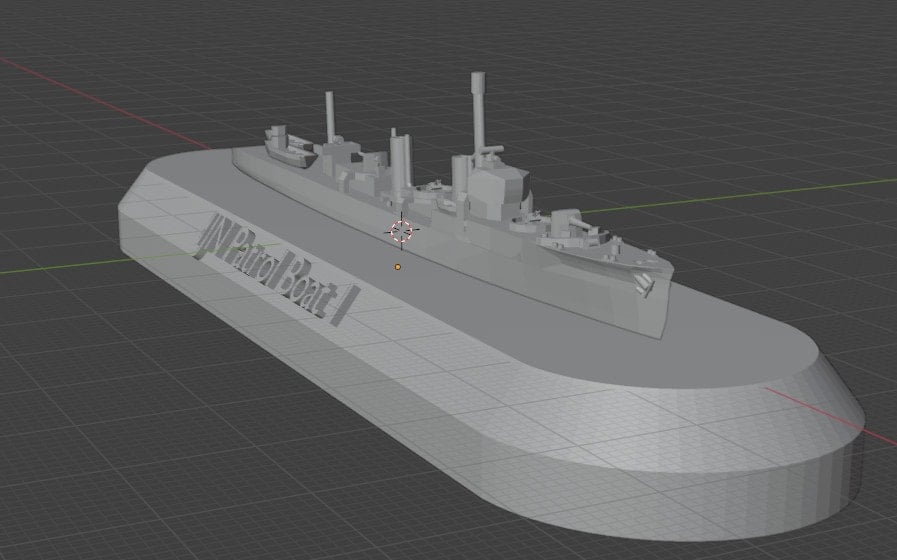

There are 5 different bases provided, text recessed and the text raised for each Patrol Boat. I used the recessed version for FDM printed bases. Finally a base without text is also included. Do not forget to also re-scale the bases if you print in 1/1200 or 1/1800 scale.

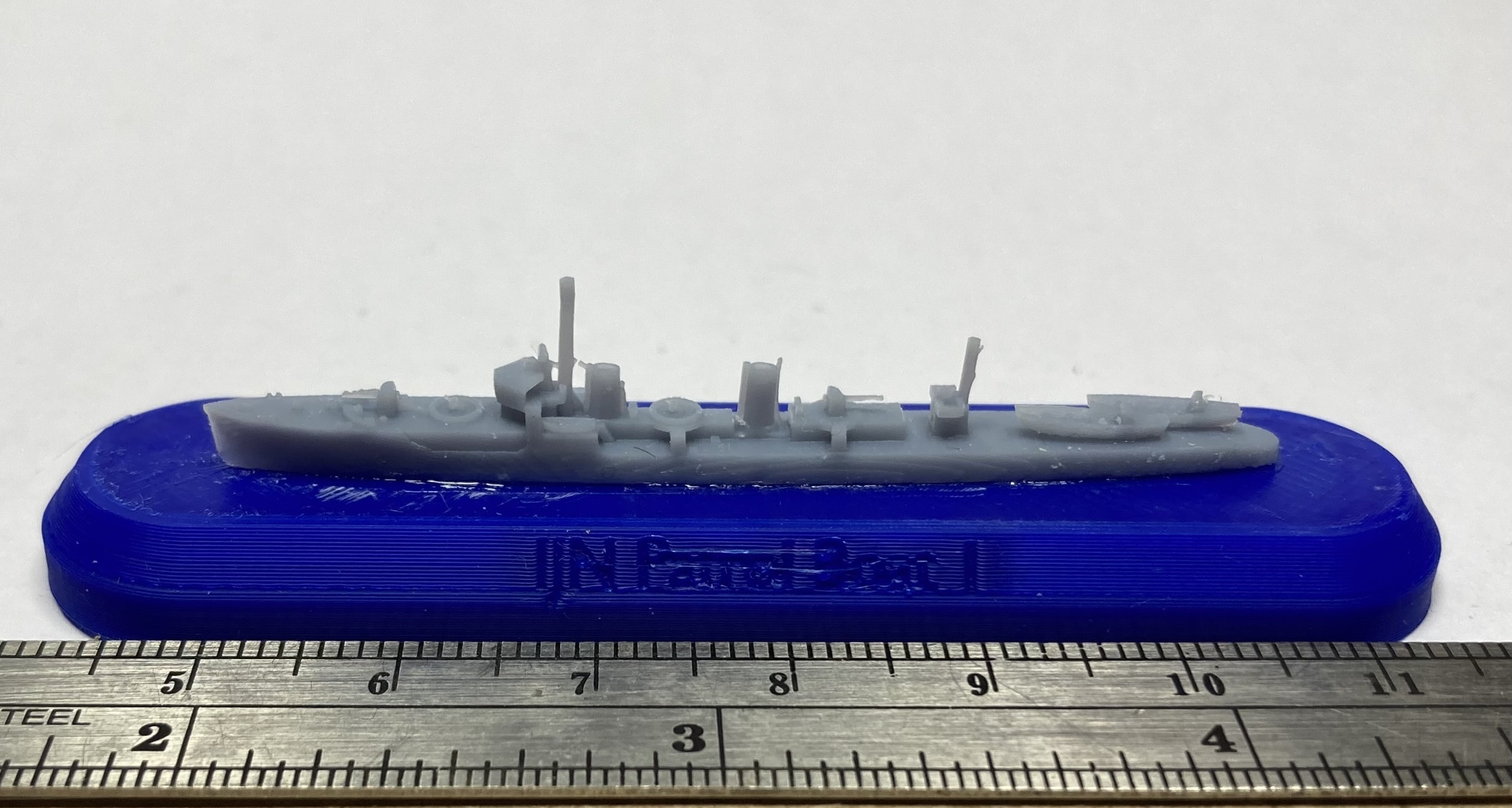

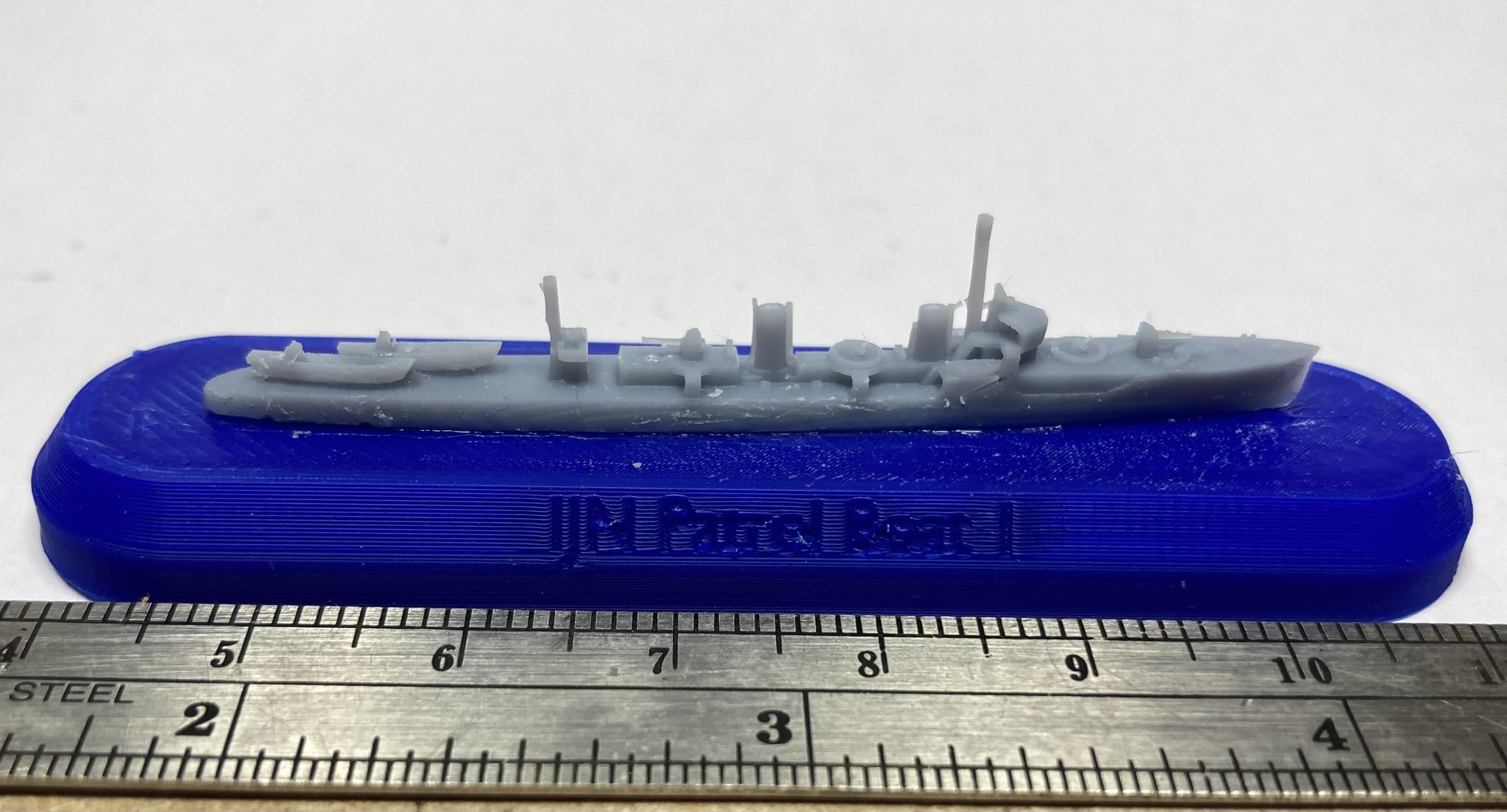

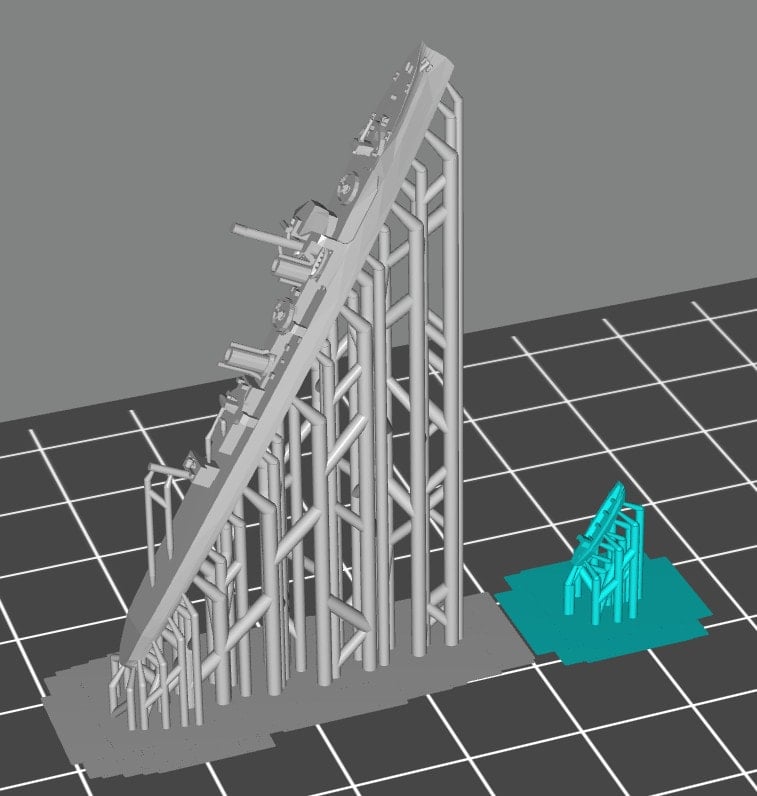

Also included a 1/1800 scale pre-supported model which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.
The base was printed on an Ender 5 pro (0.16 mm layer) standard PLA. But could also be printed in Resin if you want (no supported file provided)
During the war the Shimakaze and Nadakaze had been converted to Patrol Boats, PB-1 and PB-2. Both patrol boats were sunk during WW2. The ships carried 2 Daihatsu Landing craft, the armament was changed and accommodations for 250 troops was added.
Copyright Allan Smit 2023
Non Commercial and personal use only.
The models are provided in 1/1000 scale and are Resin print only.
1/1800 - resize to 55,56%
1/1200 - resize to 83,5%
There are 5 different bases provided, text recessed and the text raised for each Patrol Boat. I used the recessed version for FDM printed bases. Finally a base without text is also included. Do not forget to also re-scale the bases if you print in 1/1200 or 1/1800 scale.
Also included a 1/1800 scale pre-supported model which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.
The base was printed on an Ender 5 pro (0.16 mm layer) standard PLA. But could also be printed in Resin if you want (no supported file provided)
| Filename | Size | Last updated |
|---|---|---|
| IJN-PB-Minekaze-class-1.zip | 8.1 MiB | 2024-02-28 |
