Generator 24kw for FLAK 150cm searchlight
- Description
- Files

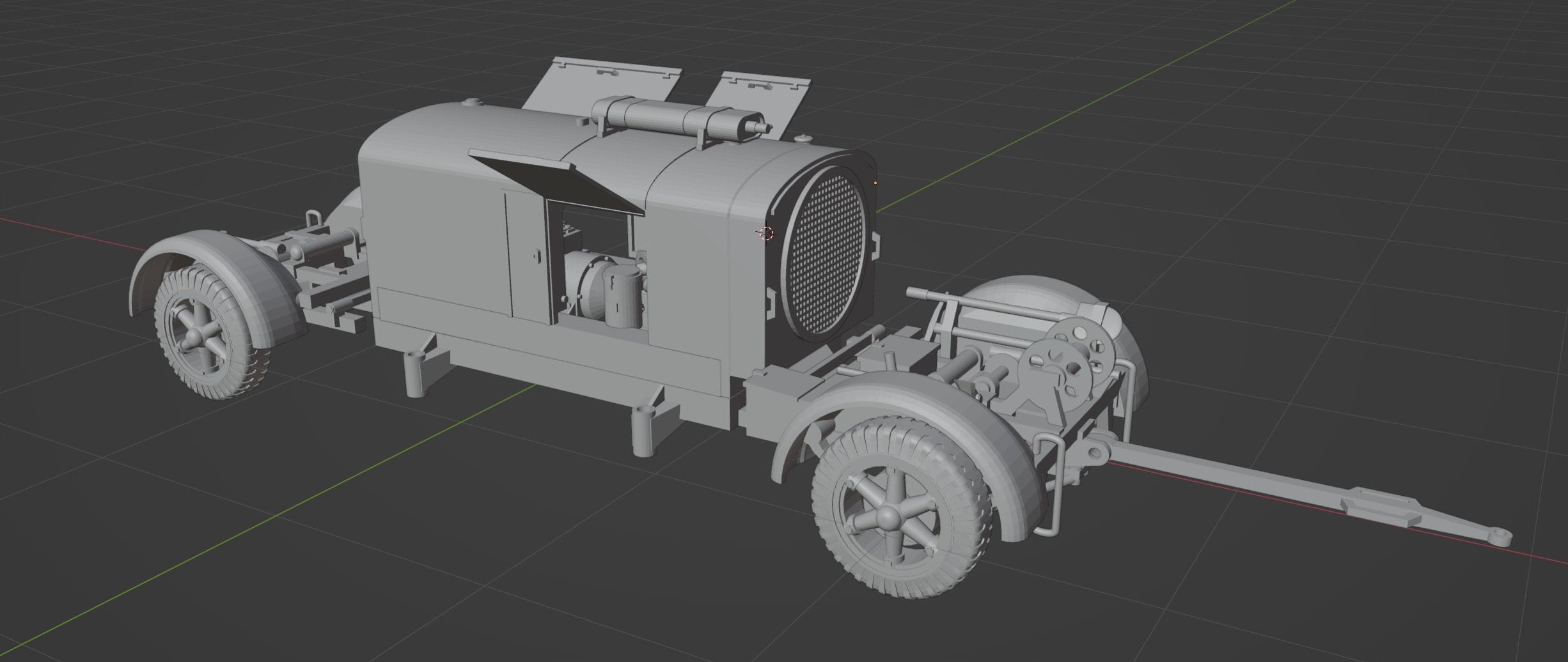

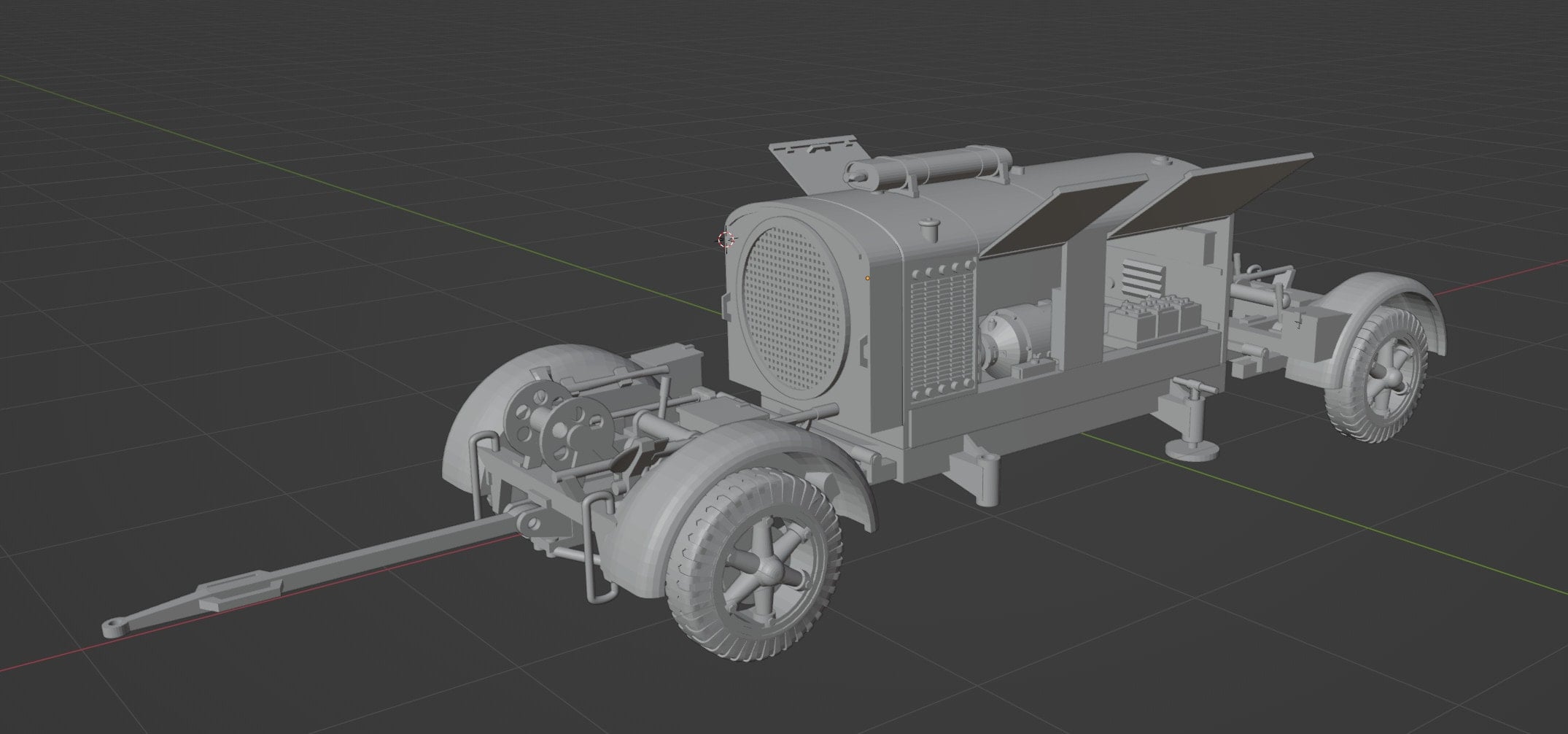

Detailed model of a German 24kW Generator as used by Searchlight FLAK teams.
The transportable generator was used to supply the 150 cm Flakscheinwerfer(Searchlights) 34 and 37 with power.
This model is part of a set including the 150 cm Search-light and the FMG 39 / FuSE 62 Wurzberg Radar.
The generator is placed on a Sonderanhanger 104 (Sd. Ah. 104) - Or Special trailer 104.
It includes a 51 HP 8-cylinder Mercedes petrol engine and would be attached to the searchlights by a cable of up to 200 meters.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only and it includes the inner details, e.g. Petrol Engine, generator and some other details.
It includes a few different options.
- Generator with the trailer attached.
- Generator with the trailer detached.
- The trailers have the option to be printed with or without the tools (Shovel, axe, etc)
- 3 doors
Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play. The trailer part have been closed, as original the model has an open trailer with beams and tubes, but in 1/100 that would be impossible to print for war-gaming.
The 3 doors can be attached in open or closed setup, when you want the doors te be open, make sure to use some thin metal tubes for support, as resin support will not work, will break to easy.

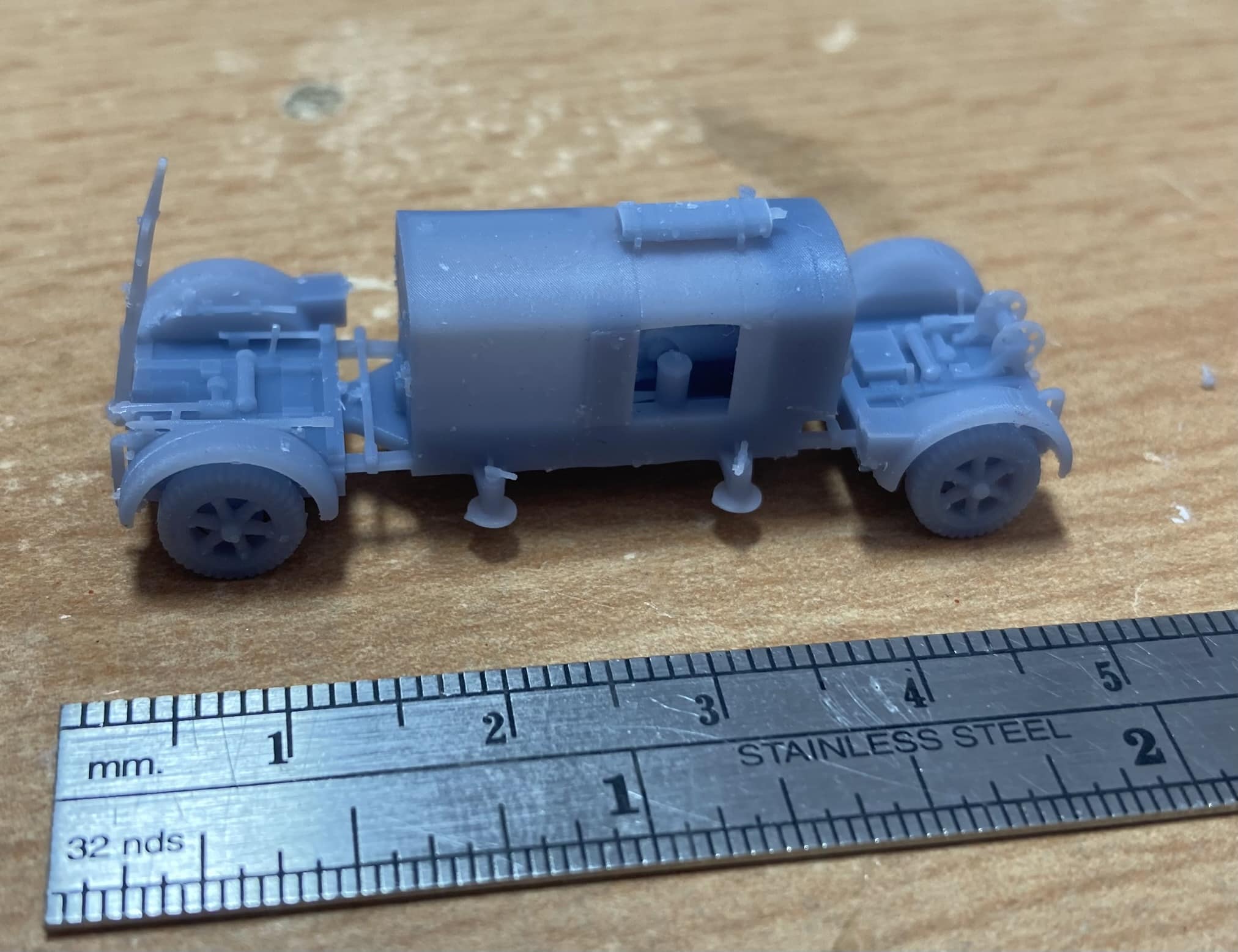

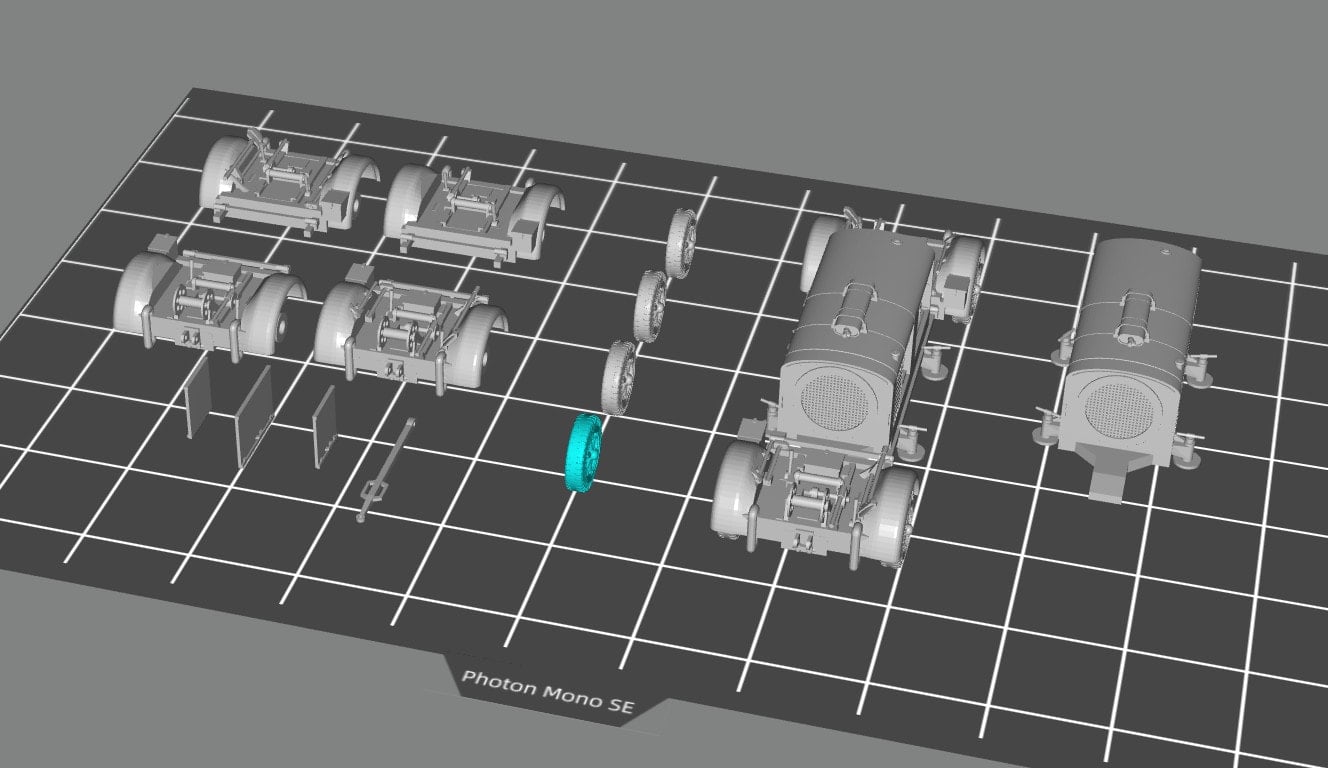

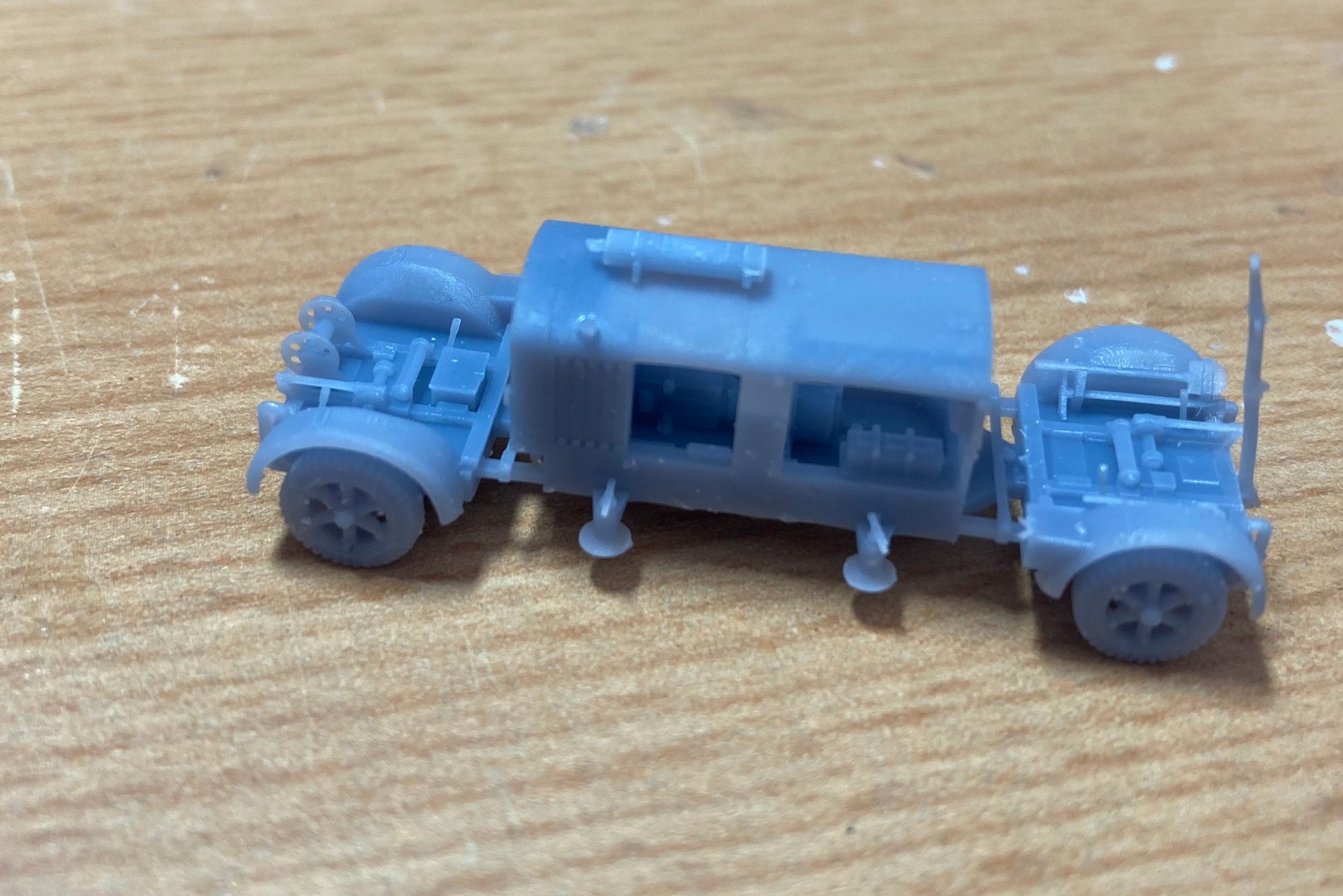

Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.
The transportable generator was used to supply the 150 cm Flakscheinwerfer(Searchlights) 34 and 37 with power.
This model is part of a set including the 150 cm Search-light and the FMG 39 / FuSE 62 Wurzberg Radar.
The generator is placed on a Sonderanhanger 104 (Sd. Ah. 104) - Or Special trailer 104.
It includes a 51 HP 8-cylinder Mercedes petrol engine and would be attached to the searchlights by a cable of up to 200 meters.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only and it includes the inner details, e.g. Petrol Engine, generator and some other details.
It includes a few different options.
- Generator with the trailer attached.
- Generator with the trailer detached.
- The trailers have the option to be printed with or without the tools (Shovel, axe, etc)
- 3 doors
Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play. The trailer part have been closed, as original the model has an open trailer with beams and tubes, but in 1/100 that would be impossible to print for war-gaming.
The 3 doors can be attached in open or closed setup, when you want the doors te be open, make sure to use some thin metal tubes for support, as resin support will not work, will break to easy.
Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.
| Filename | Size | Last updated |
|---|---|---|
| Generator-24kW-German.zip | 7.2 MiB | 2024-02-28 |
