Flores class gunboat

The Flores class gunboats were a class of 2 ships of the Netherlands Royal Navy. Possible the 2 most successful surface ships of the Dutch Navy during WW2. Both ships participated in landings of Sicily, Salerno, Garigliano and during Operation Overlord. And were called the "Terrible twins".

Copyright Allan Smit 2023
Non Commercial and personal use only.

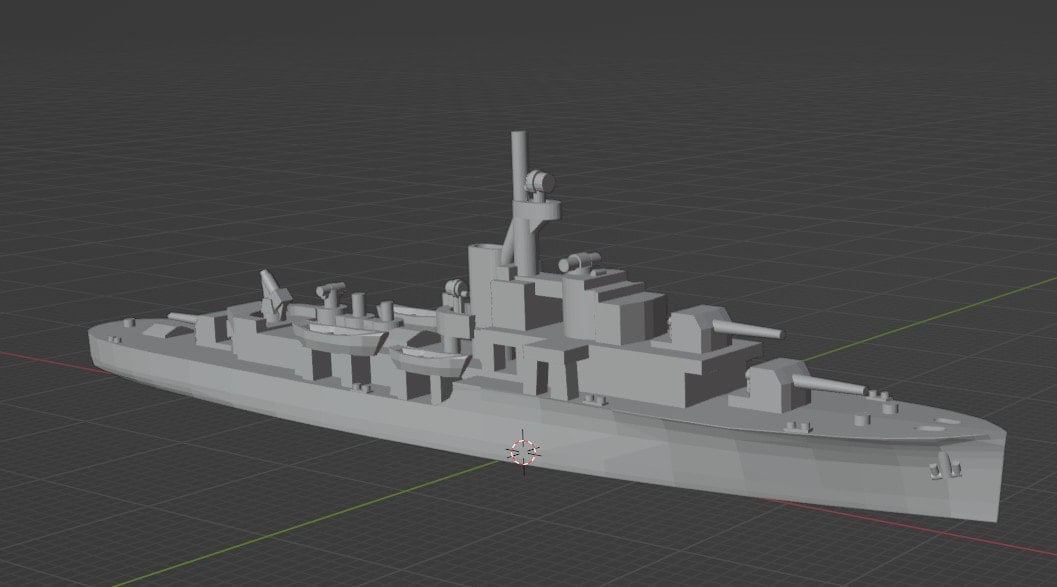

The models are provided in 1/1000 scale and are Resin print only.

1/1800 – resize to 55,56%

1/1200 – resize to 83,5%

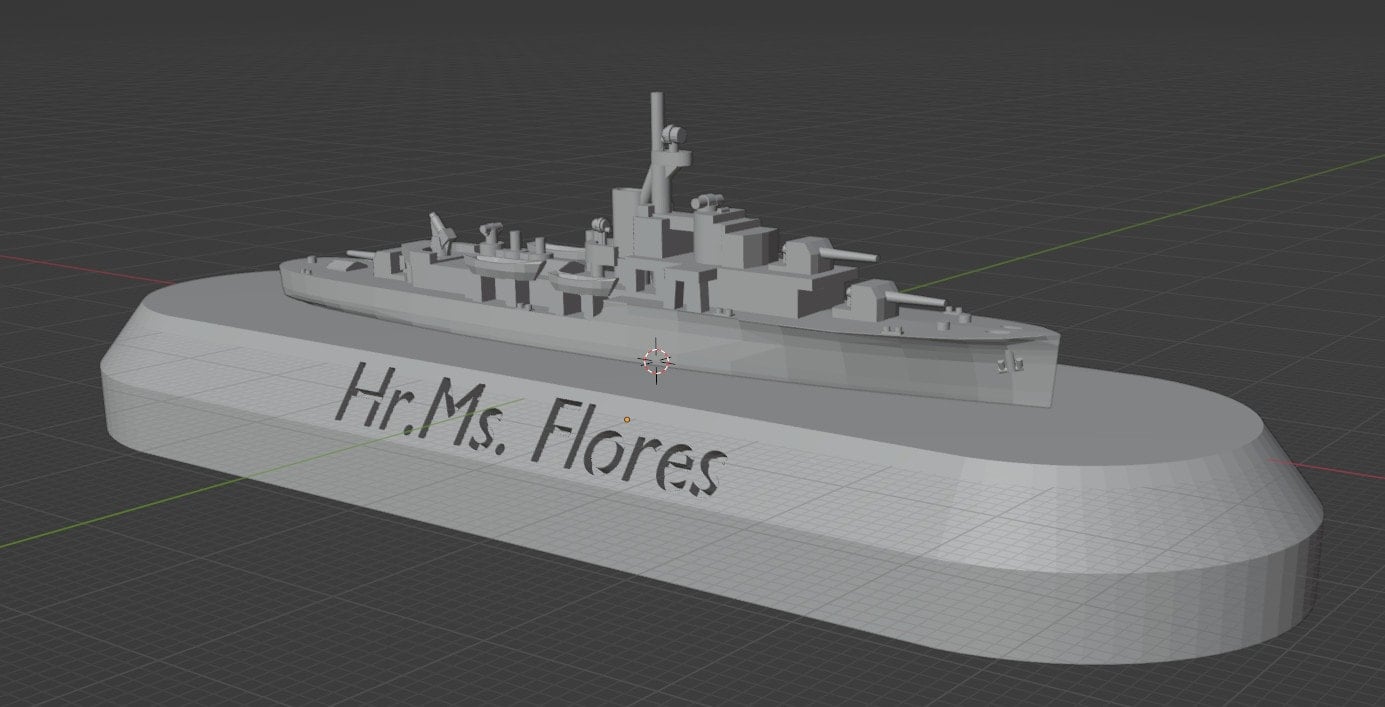

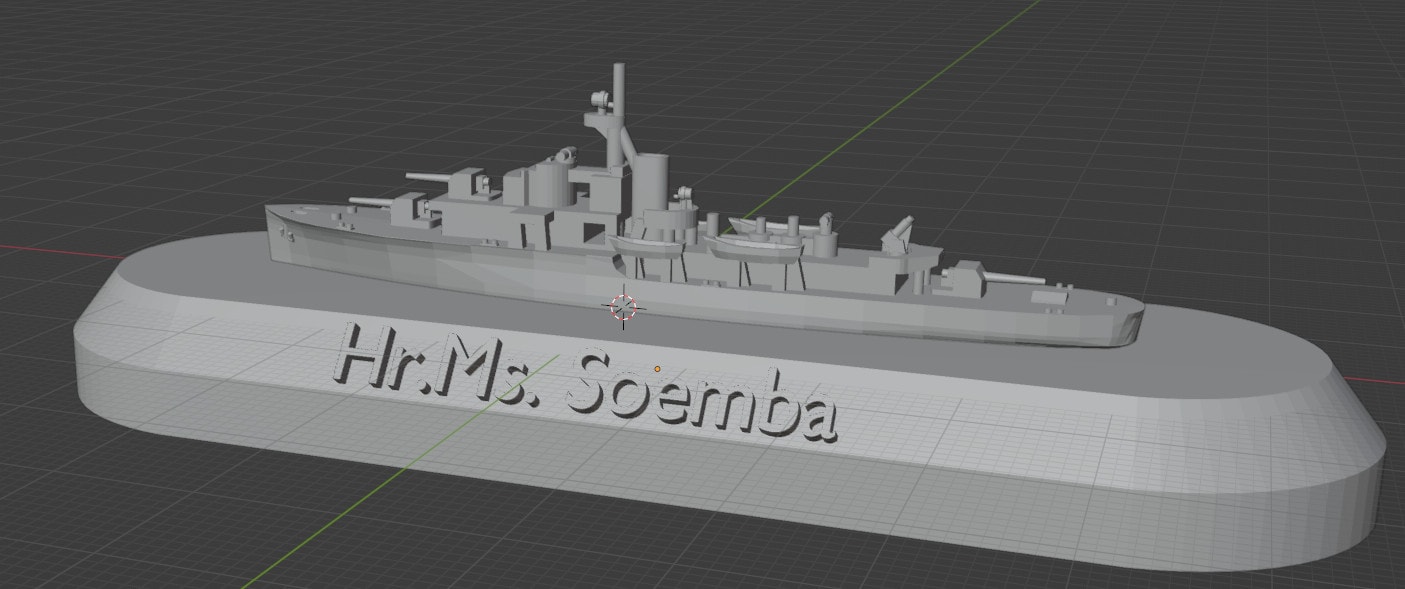

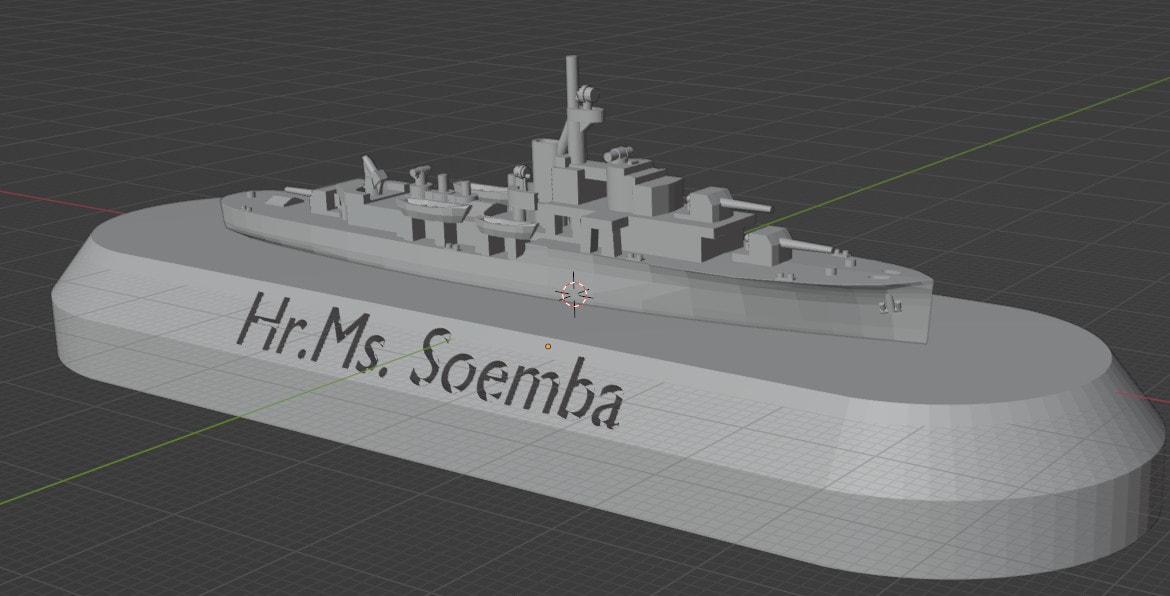

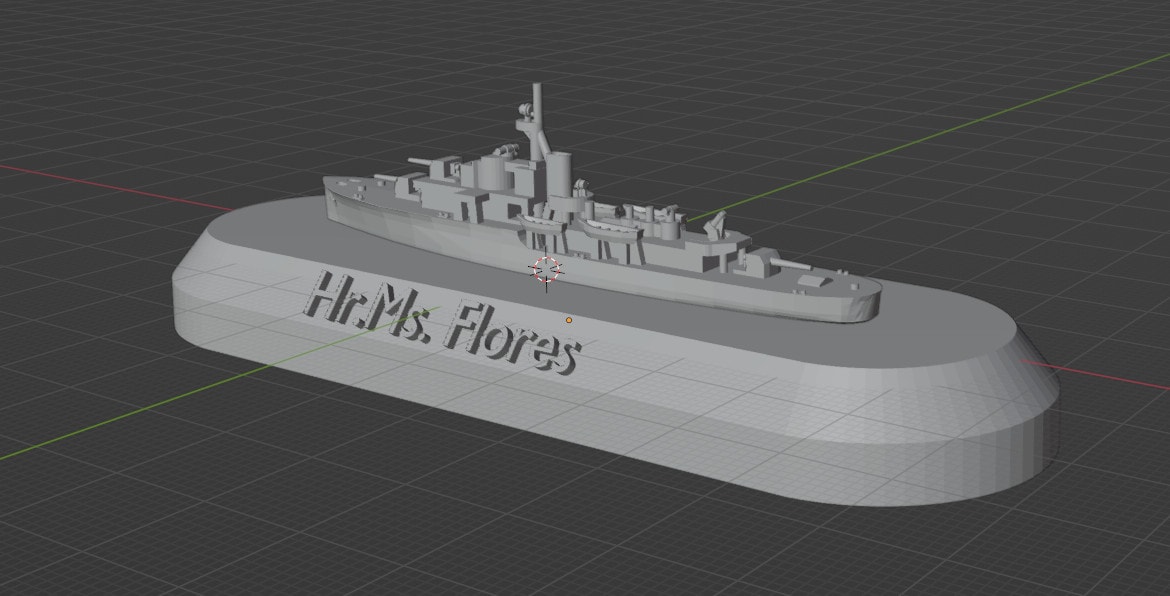

There are named bases provided, one per ship. And each base comes in 2 versions. Text recessed and the raised. I used the recessed version for FDM printed bases. Finally a base without text. Do not forget to also re-scale the bases if you print in 1/1200 or 1/1800 scale.

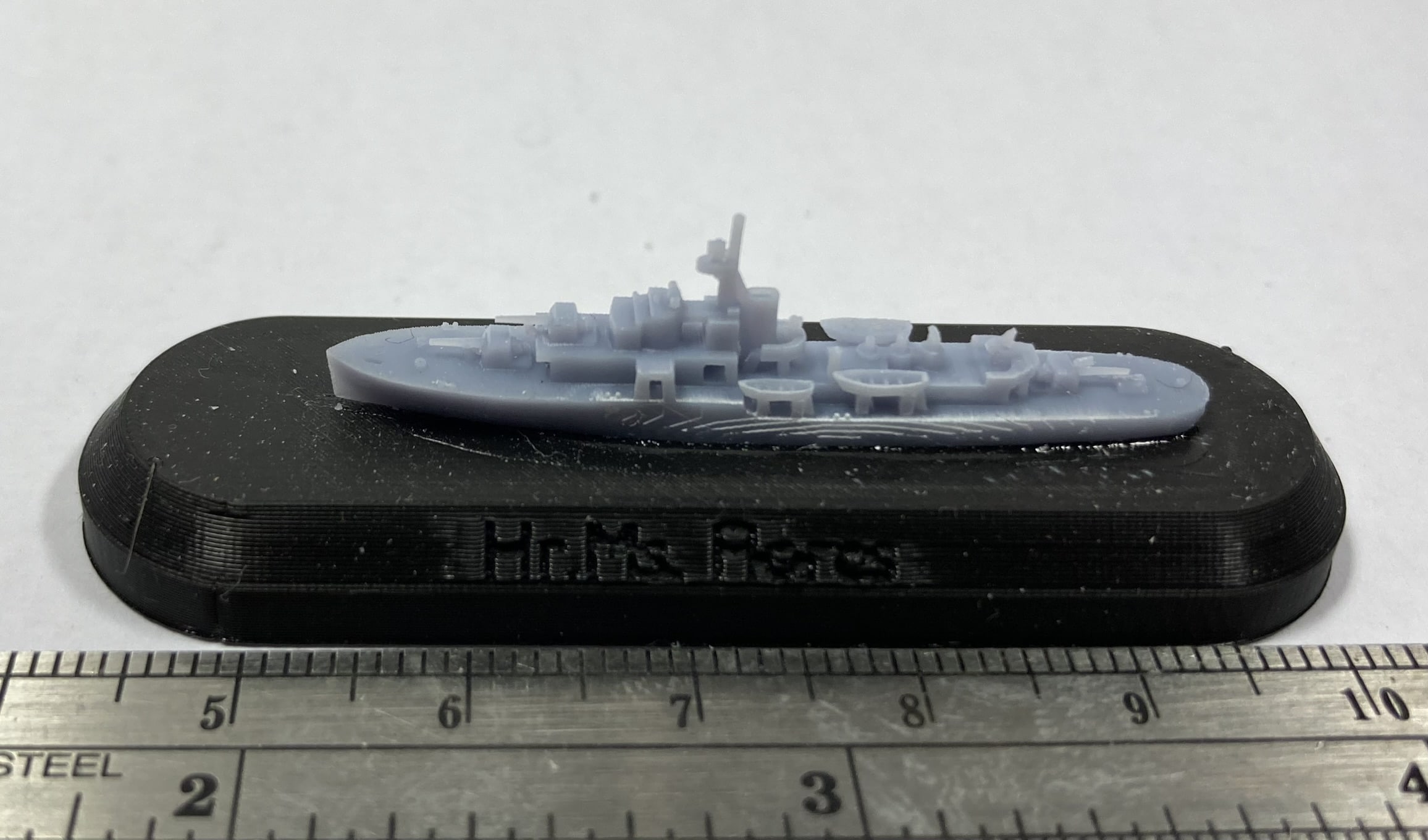

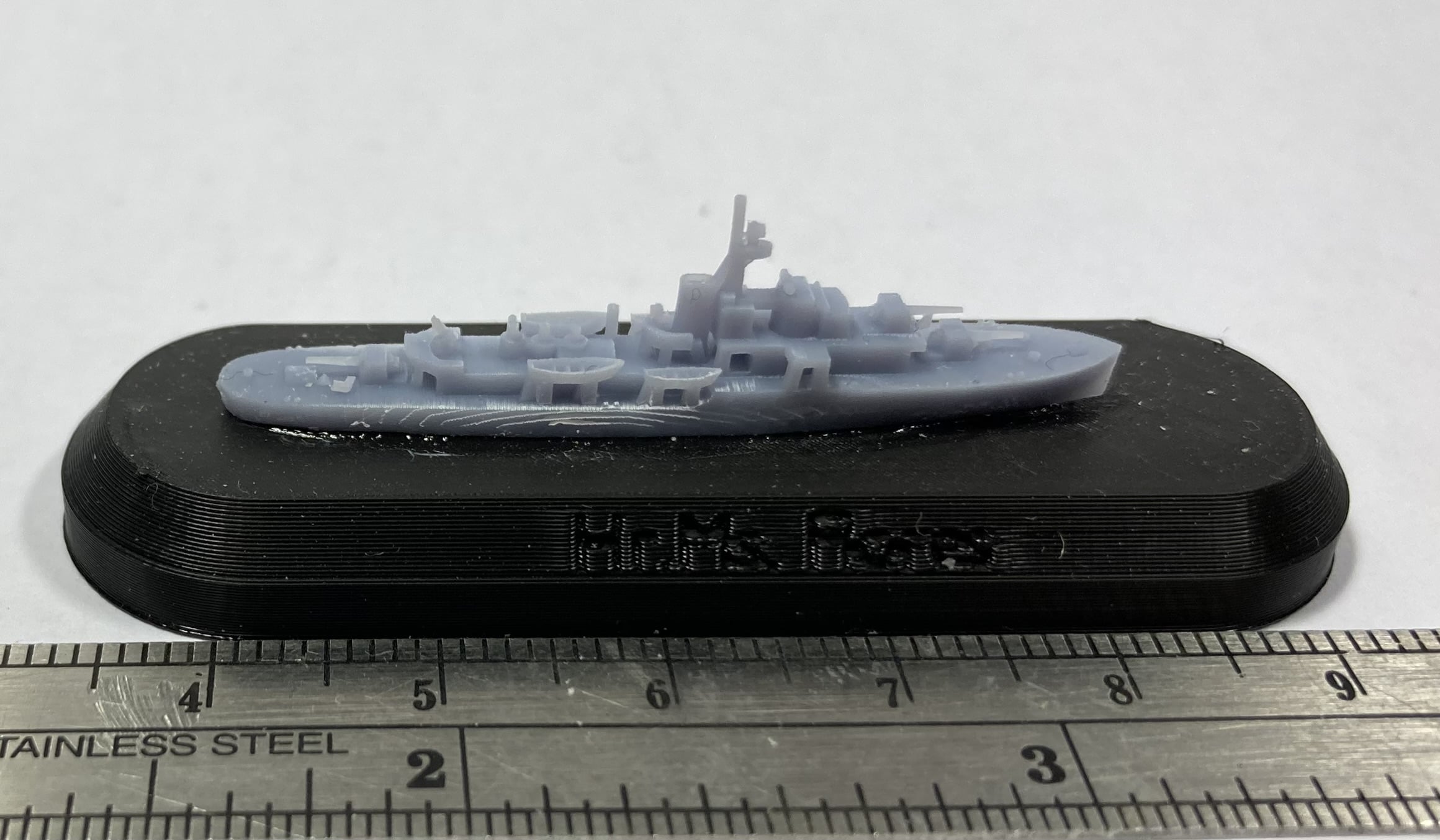

Included 1/1800 scale pre-supported models which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.

The base was printed on an Ender 5 pro (0.16 mm layer) standard PLA.
