Elco 80ft Patrol Boat (PT565 ~ PT624)

Elco 80ft Patrol Boat as used by the United States Navy in WW2.

Armament of the model: Four 569 mm Mk.13 torpedos, two twin 12.7 mm Browning AN-M2 machine gun turrets, one 20 Oerlikon Mk II, and one 37 mm AN-M4 cannon.

1/1800 - resize to 55,56%

1/1200 - resize to 83,5%

There are eight different bases provided, two sets of four with the ships in different positions on the base.
Each set has either "Elco 77ft PT20" or "Elco 77ft PT20-68" as text on the bases.

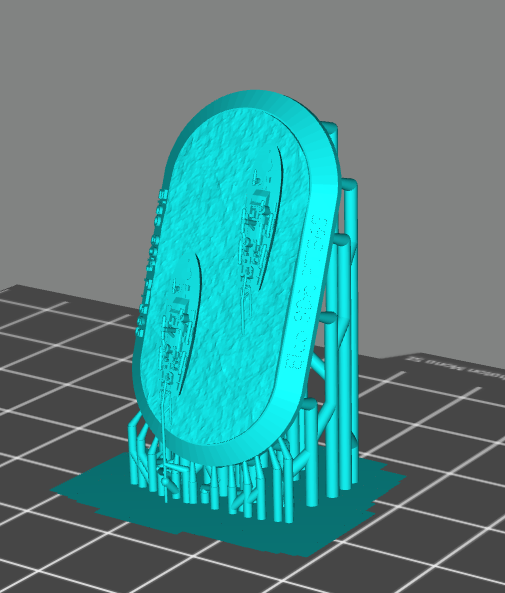

Included 1/1800 scale pre-support models for the set of bases with the PT103 on the bases, which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.
Best to use a somewhat more flexible resin to prevent breaking of the smaller parts when used on the war-gaming-table.

Copyright Allan Smit 2025
None Commercial and personal use only. May not be shared, uploaded or otherwise distributed.
