Pontoon Bridge M3 easy print
- Description
- Files

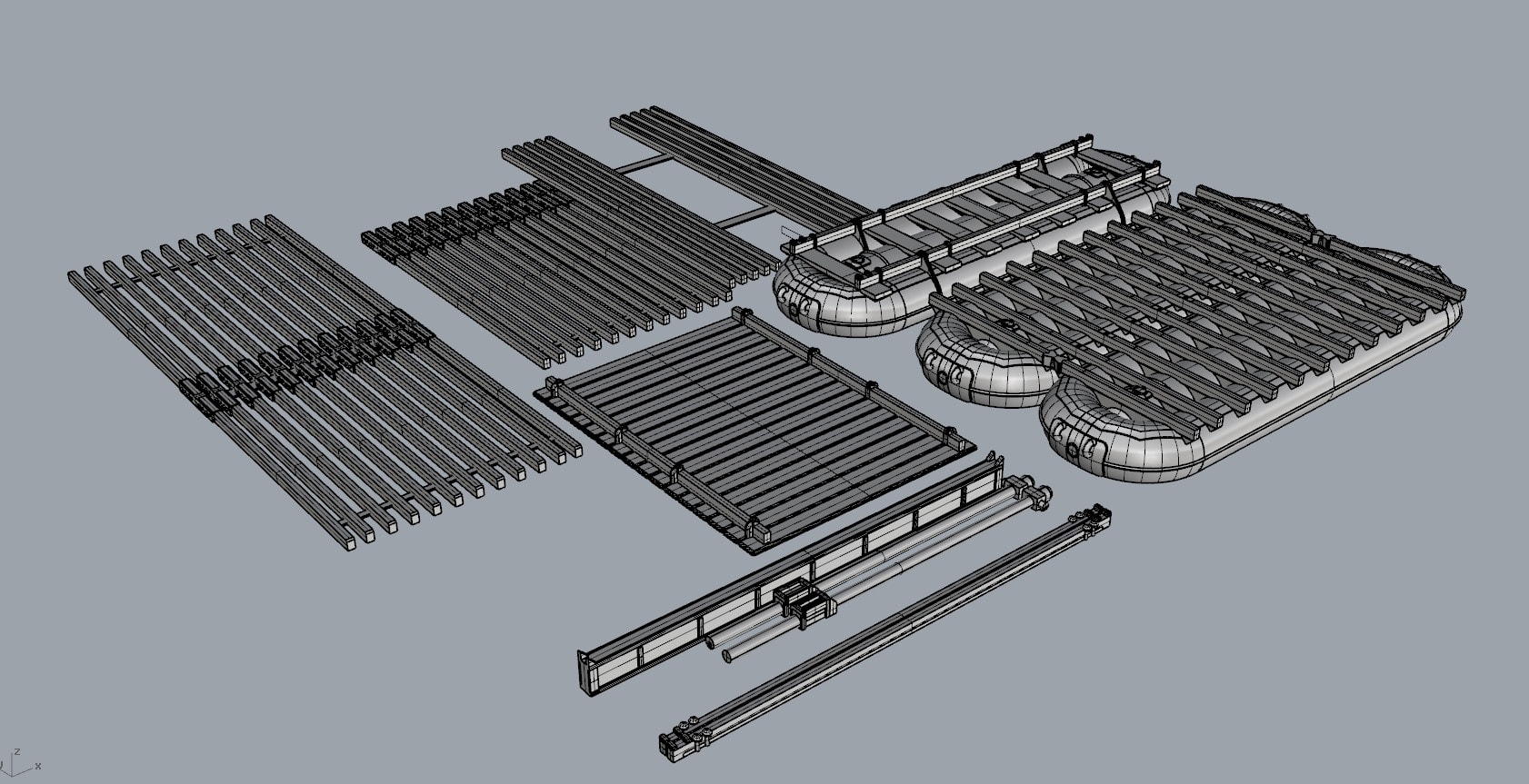

Easy to print Pontoon Bridge M3. Some details have been changed for looks and printability.
I would definitely read the manual before trying to put this together. I tried as much as possible to be faithful to the original components. Can be used for a pontoon bridge or, shown here, as a ferry/raft.
Manual: https://digital.library.unt.edu/ark:/67531/metadc29951/m1/
Image is of models printed in 1/52, with 3dbreed figure and easy eight (also 1/52) for scale.
The standard files are designed to print AS-IS on filament, no additional supports required.
Please remember that unless otherwise noted these models are uploaded at 1/100, and you need to scale it to match your preferred play-scale.
1/72= 139% (“standard” 20mm)
1/64= 156%
1/56 = 179% (“standard” 28mm)
1/52 = 192% (my preferred scale for 28mm heroic)
1/48 = 208%
Should you have any trouble with them, please feel free to contact me.
I would definitely read the manual before trying to put this together. I tried as much as possible to be faithful to the original components. Can be used for a pontoon bridge or, shown here, as a ferry/raft.
Manual: https://digital.library.unt.edu/ark:/67531/metadc29951/m1/
Image is of models printed in 1/52, with 3dbreed figure and easy eight (also 1/52) for scale.
The standard files are designed to print AS-IS on filament, no additional supports required.
Please remember that unless otherwise noted these models are uploaded at 1/100, and you need to scale it to match your preferred play-scale.
1/72= 139% (“standard” 20mm)
1/64= 156%
1/56 = 179% (“standard” 28mm)
1/52 = 192% (my preferred scale for 28mm heroic)
1/48 = 208%
Should you have any trouble with them, please feel free to contact me.
| Filename | Size | Last updated |
|---|---|---|
| Trestle.stl | 60.7 KiB | 2024-02-28 |
| Road Bed.stl | 197.8 KiB | 2024-02-28 |
| Float normal.stl | 649.7 KiB | 2024-02-28 |
| Raft Balks 4 float.stl | 1.3 MiB | 2024-02-28 |
| Float full.stl | 662.6 KiB | 2024-02-28 |
| Float Hinge normal.stl | 1.4 MiB | 2024-02-28 |
| End Abutment.stl | 130.2 KiB | 2024-02-28 |
| Float Low.stl | 572.6 KiB | 2024-02-28 |
| Float Hinge Low.stl | 1.3 MiB | 2024-02-28 |
| Bridge Balks.stl | 14.1 KiB | 2024-02-28 |
| Float Hinge full.stl | 1.5 MiB | 2024-02-28 |
