Landing Craft Tank - Mk4
- Description
- Files
Waterline-model of Landing Craft Tank (Mk4). They could carry 6 x 40-ton or 9 x 30-ton tanks or 12 loaded 3-ton trucks or 350 ton of cargo.
Armament 2 x single 20 mm guns. (Not included)
British development of the LCT (Mk1) ~ (Mk3) designs. Shorter and broader, the hold cannot be covered.
Tanks etc on the test-prints are NOT included. The 20 mm Oerlikon gun is NOT included as that is not my model, there are free designs available for the 20 mm Oerlikon on wargaming3d.
Copyright Allan Smit 2022
Non Commercial and personal use only

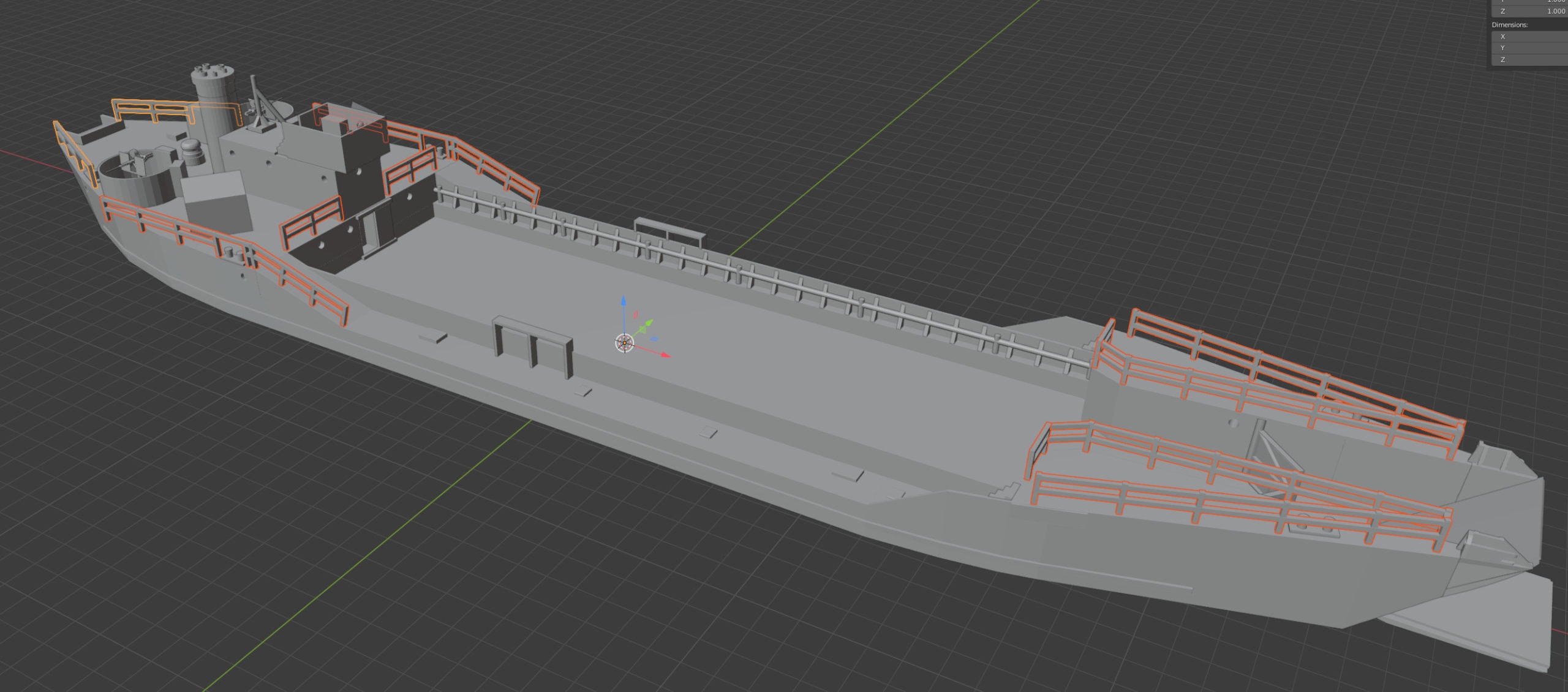

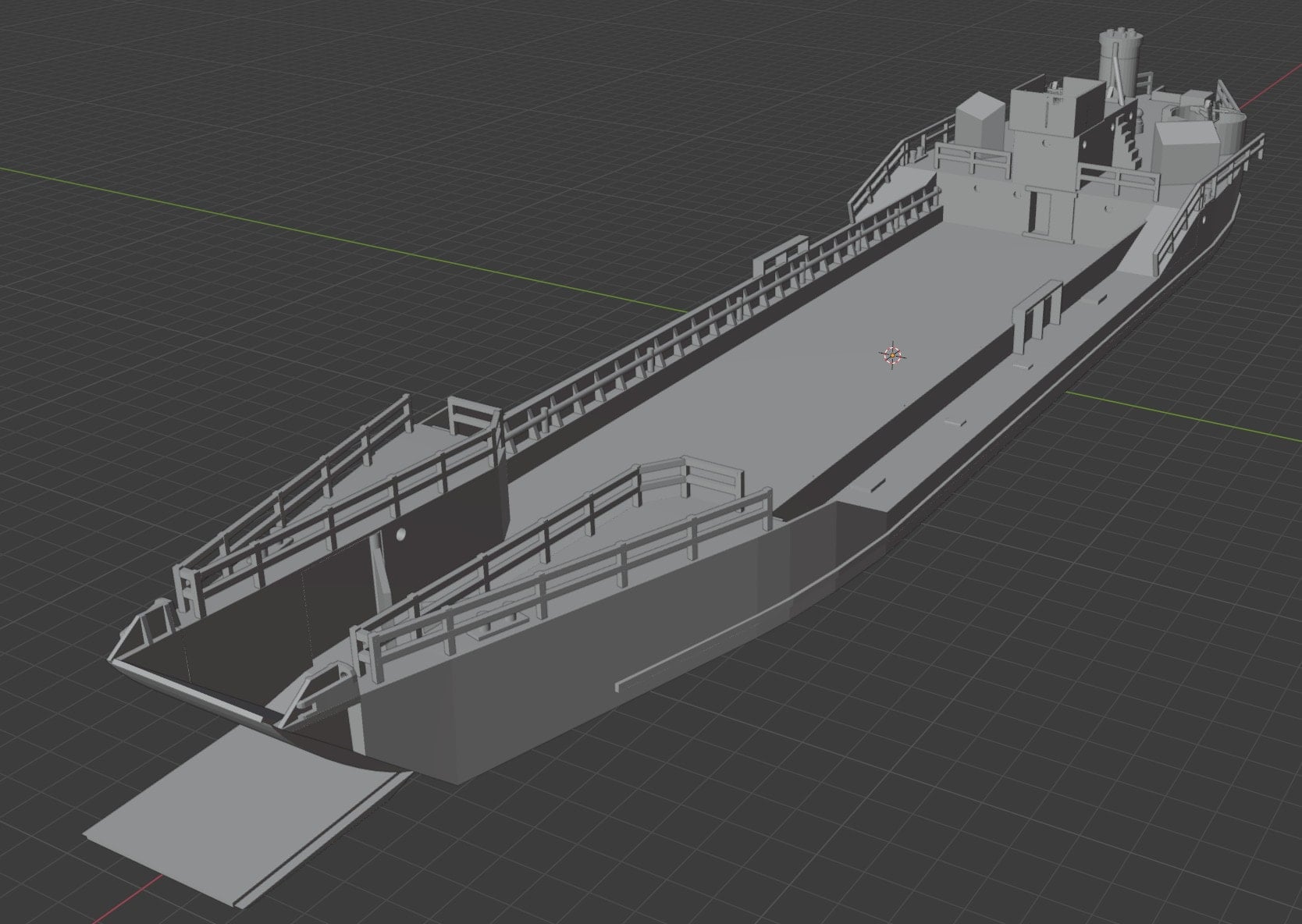

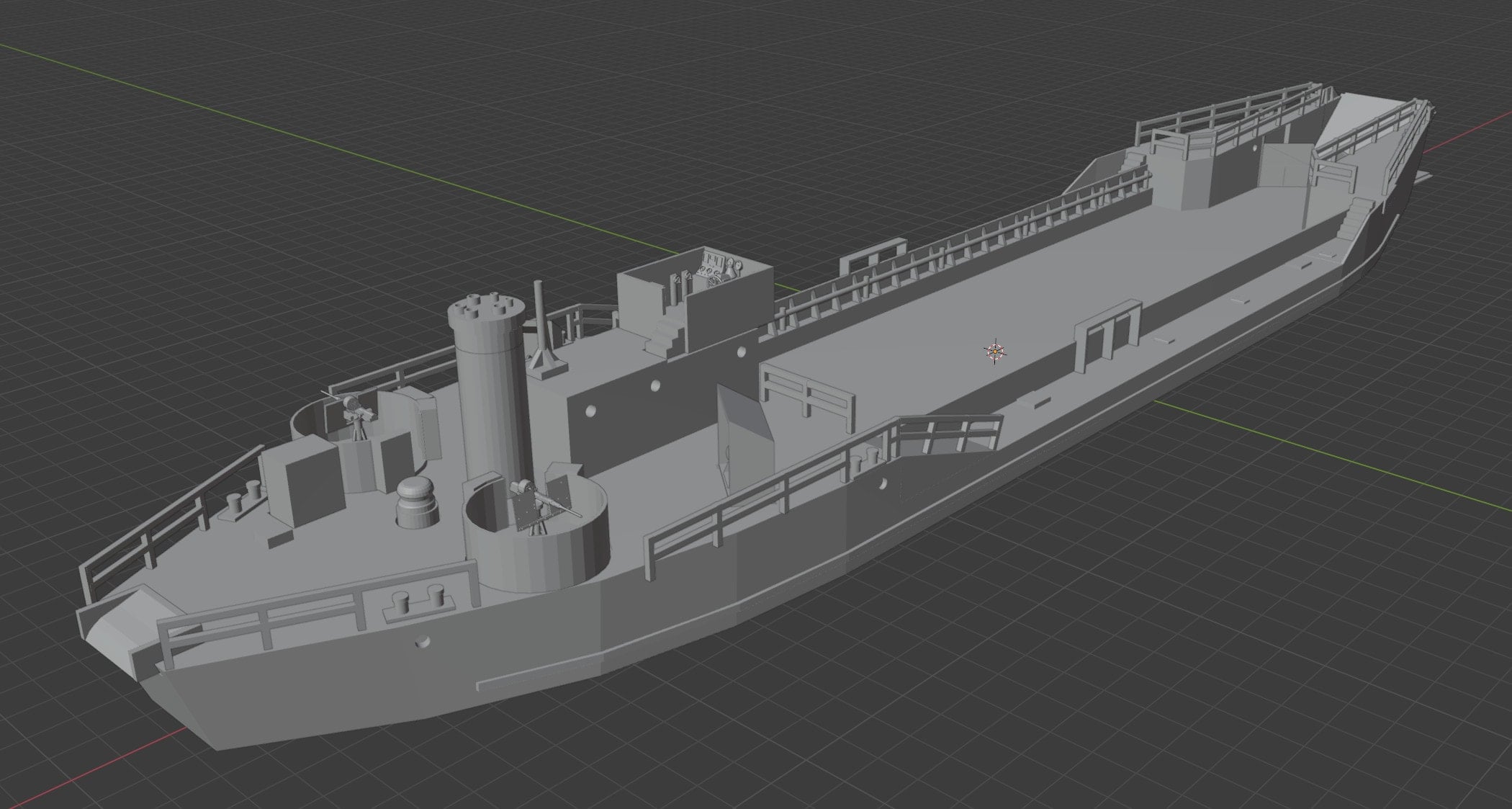

Model of LCT - Mark 4.
The model has been prepared and detailed for 1:100 wargaming. Meaning the railing is a bit stronger to prevent breaking to easy. It is waterline model and not a complete hull design. The Hull would be below water and would not work on a gaming table. The model is based on original drawings.

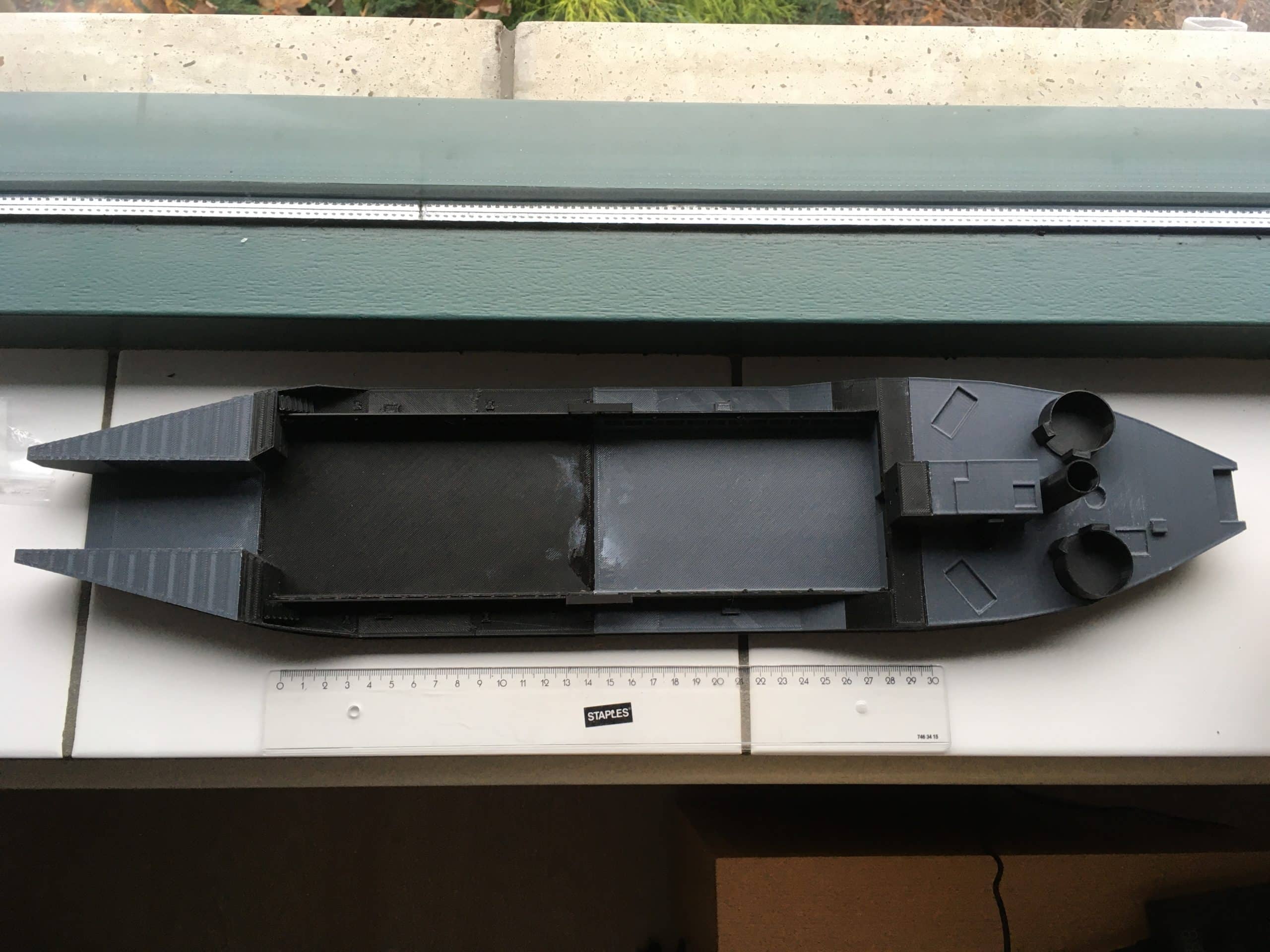

Test-printed on a Creality Ender-5 FDM in 020mm layer and Anycubic Mono SE 004mm layer. The whole model can be printed on a FDM printer. Just the 2 stl-files starting with RESIN- are, yes you guessed it; RESIN only. But those parts are also provided in a FDM version with less detail. Total of 40 seperate stl-files.

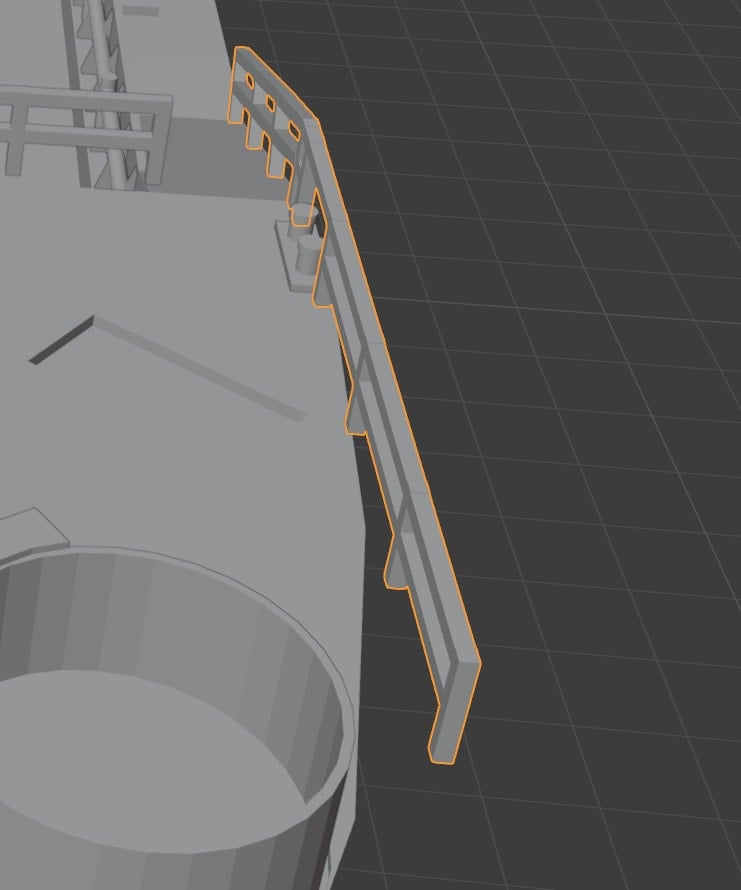

The 3D-prints of Railing-slope-deck-2-needed.stl needs to be bent after printing to fitt the deck correctly. Main reason is that it is more easy to print it flat on the printer-bed. (See picture Railing-slope-deck-2-needed-example.png ) If needed you can cut the stl in smaller pieces and glue it together on the craft.

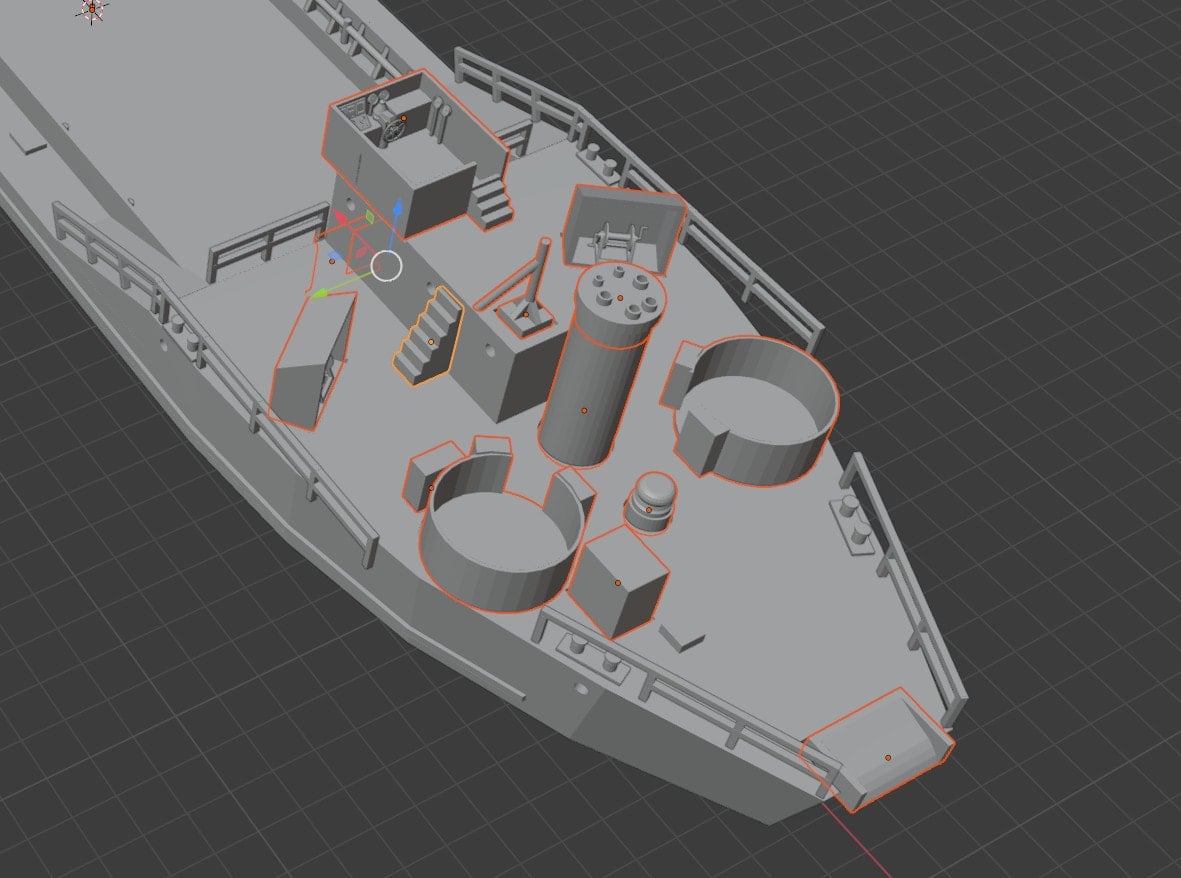

I have added the complete hull, but also cut in 4 parts. I used those cuts for test-printing. But if you have large bed-dimension you could cut the model yourself. If you do print the cut parts flat on the bed, make sure to add support (print-bed support only). There is a small extension along the hull which requires support.
Model dimensions when printed in 1:100 scale
58 cm long (Ramp-down)
12 cm wide
7 cm high (with main-mast)
The 20 mm oerlikon gun is NOT included as that is not my model, there are free designs available for the 20 mm Oerlikon on wargaming3d.
Armament 2 x single 20 mm guns. (Not included)
British development of the LCT (Mk1) ~ (Mk3) designs. Shorter and broader, the hold cannot be covered.
Tanks etc on the test-prints are NOT included. The 20 mm Oerlikon gun is NOT included as that is not my model, there are free designs available for the 20 mm Oerlikon on wargaming3d.
Copyright Allan Smit 2022
Non Commercial and personal use only
Model of LCT - Mark 4.
The model has been prepared and detailed for 1:100 wargaming. Meaning the railing is a bit stronger to prevent breaking to easy. It is waterline model and not a complete hull design. The Hull would be below water and would not work on a gaming table. The model is based on original drawings.
Test-printed on a Creality Ender-5 FDM in 020mm layer and Anycubic Mono SE 004mm layer. The whole model can be printed on a FDM printer. Just the 2 stl-files starting with RESIN- are, yes you guessed it; RESIN only. But those parts are also provided in a FDM version with less detail. Total of 40 seperate stl-files.
The 3D-prints of Railing-slope-deck-2-needed.stl needs to be bent after printing to fitt the deck correctly. Main reason is that it is more easy to print it flat on the printer-bed. (See picture Railing-slope-deck-2-needed-example.png ) If needed you can cut the stl in smaller pieces and glue it together on the craft.
I have added the complete hull, but also cut in 4 parts. I used those cuts for test-printing. But if you have large bed-dimension you could cut the model yourself. If you do print the cut parts flat on the bed, make sure to add support (print-bed support only). There is a small extension along the hull which requires support.
Model dimensions when printed in 1:100 scale
58 cm long (Ramp-down)
12 cm wide
7 cm high (with main-mast)
The 20 mm oerlikon gun is NOT included as that is not my model, there are free designs available for the 20 mm Oerlikon on wargaming3d.
| Filename | Size | Last updated |
|---|---|---|
| LCT-Mk-4.zip | 9.3 MiB | 2024-02-28 |
