IJN Kagero class Destroyer

The Kagero class destroyers were a class of 19 ships of the IJN. Built in the 1930's.

Only Yukikaze survived WW2 and was surrendered to the Republic of China in 1947, was renamed DD-12 and scrapped in 1970.

Copyright Allan Smit 2023

Non Commercial and personal use only.

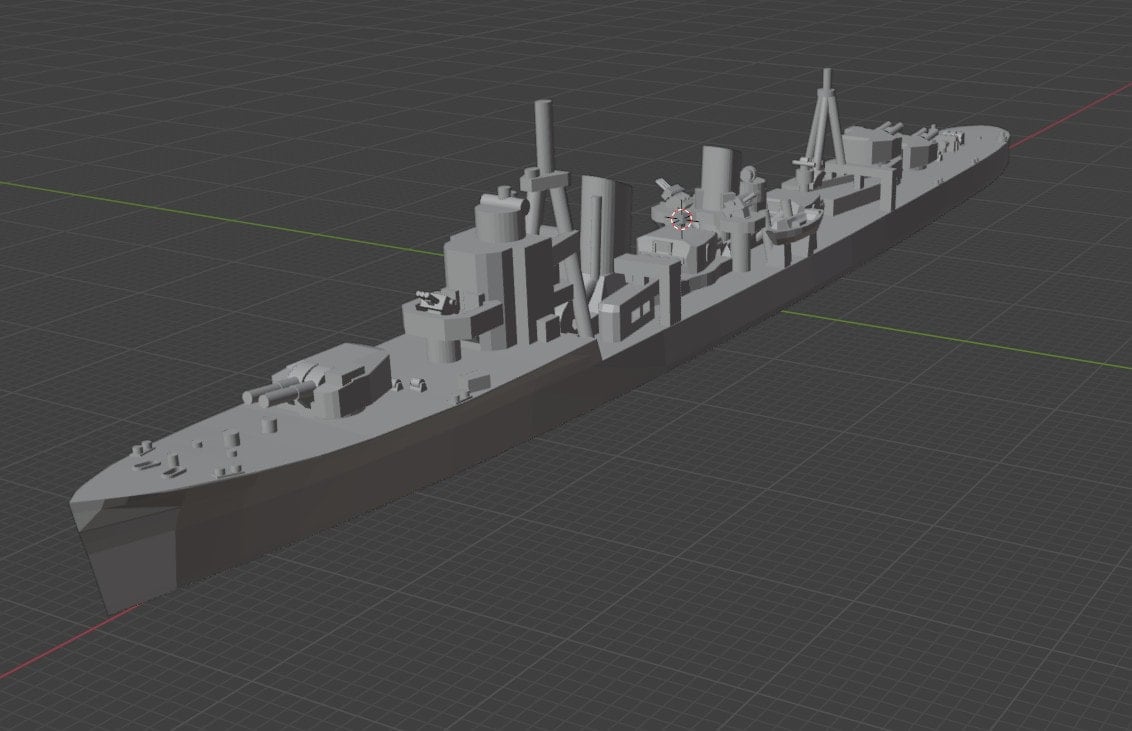

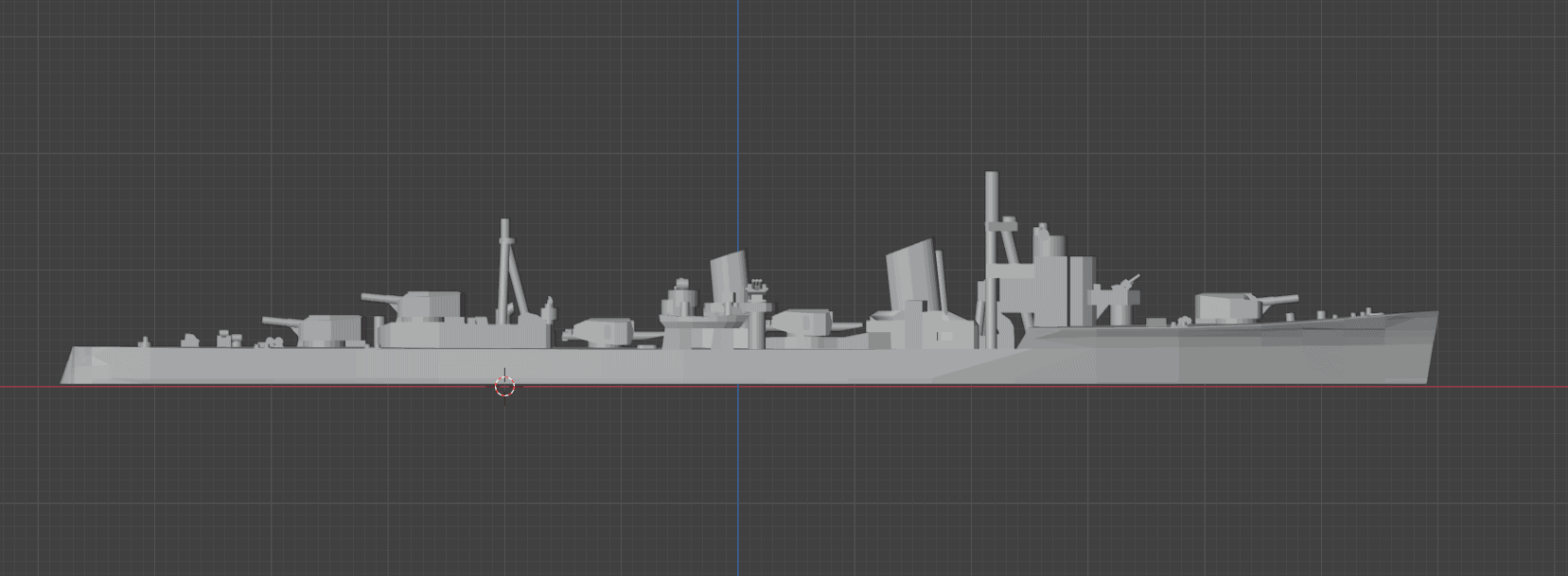

The model is provided in 1/1000 scale and is Resin print only.

1/1800 - resize to 55,56%

1/1200 - resize to 83,5%

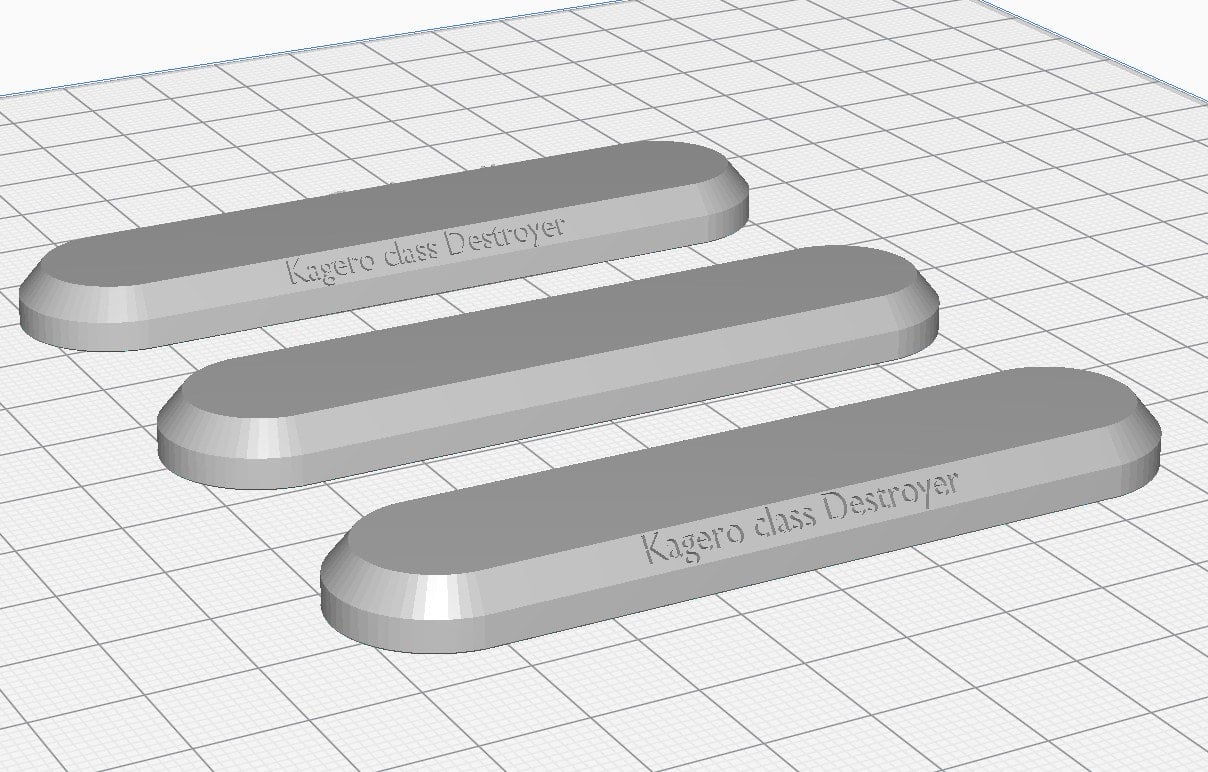

There are 3 bases provided, text recessed and the text raised. I used the recessed version for FDM printed bases. Finally a base without text is also included. Do not forget to also re-scale the bases if you print in 1/1200 or  1/1800 scale.

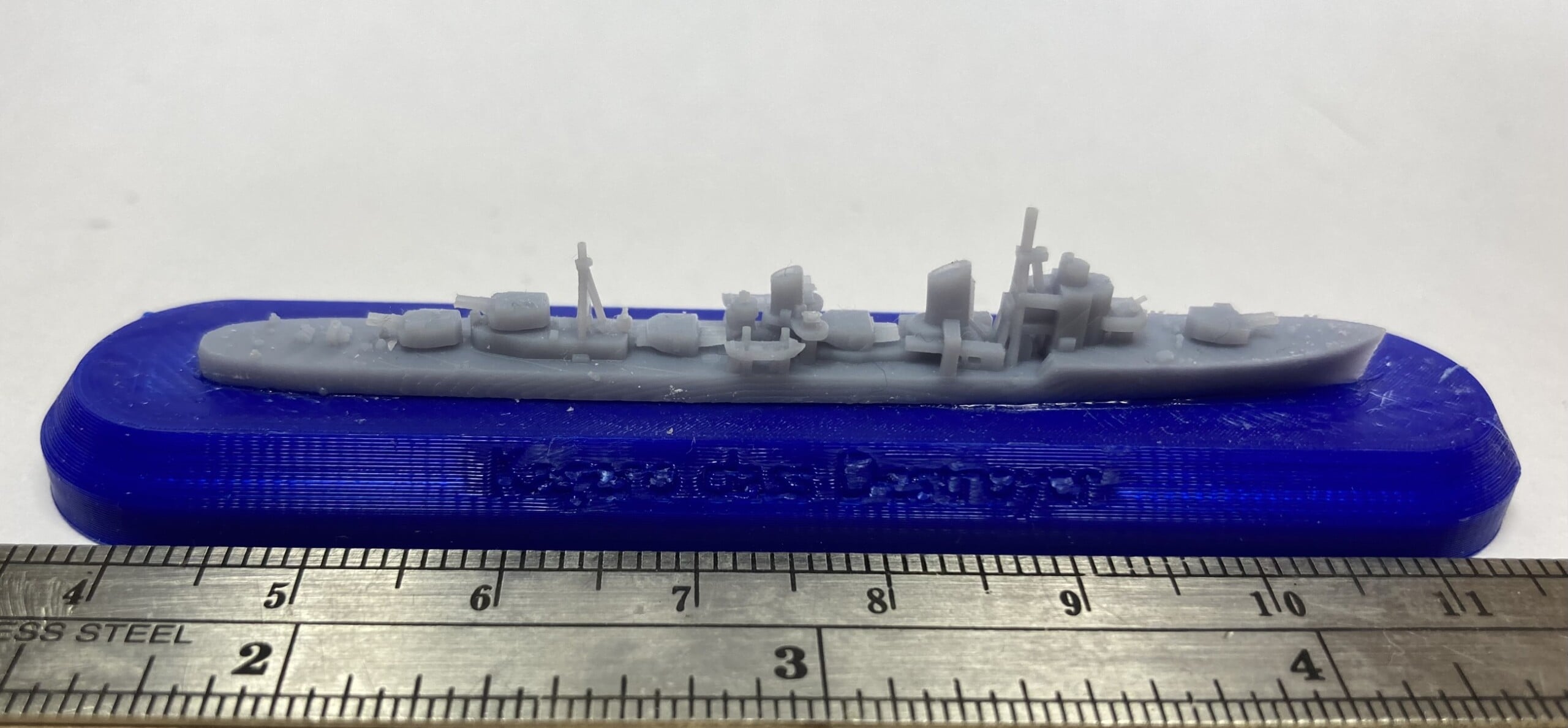

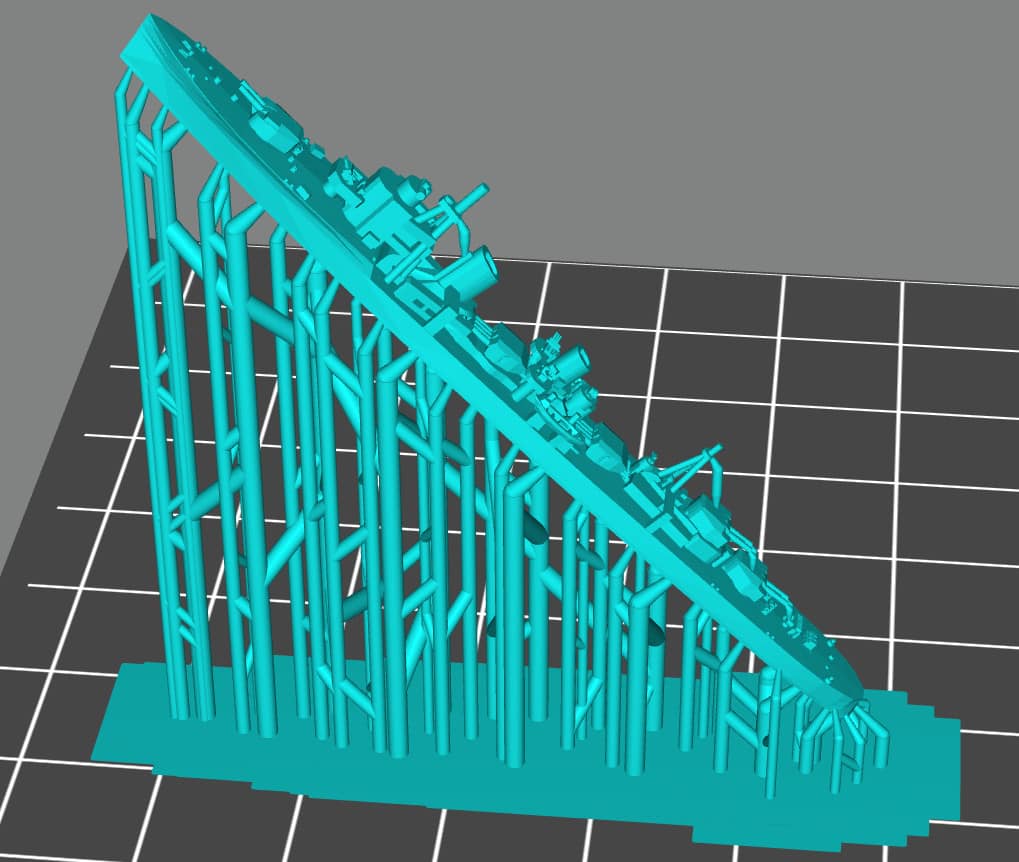

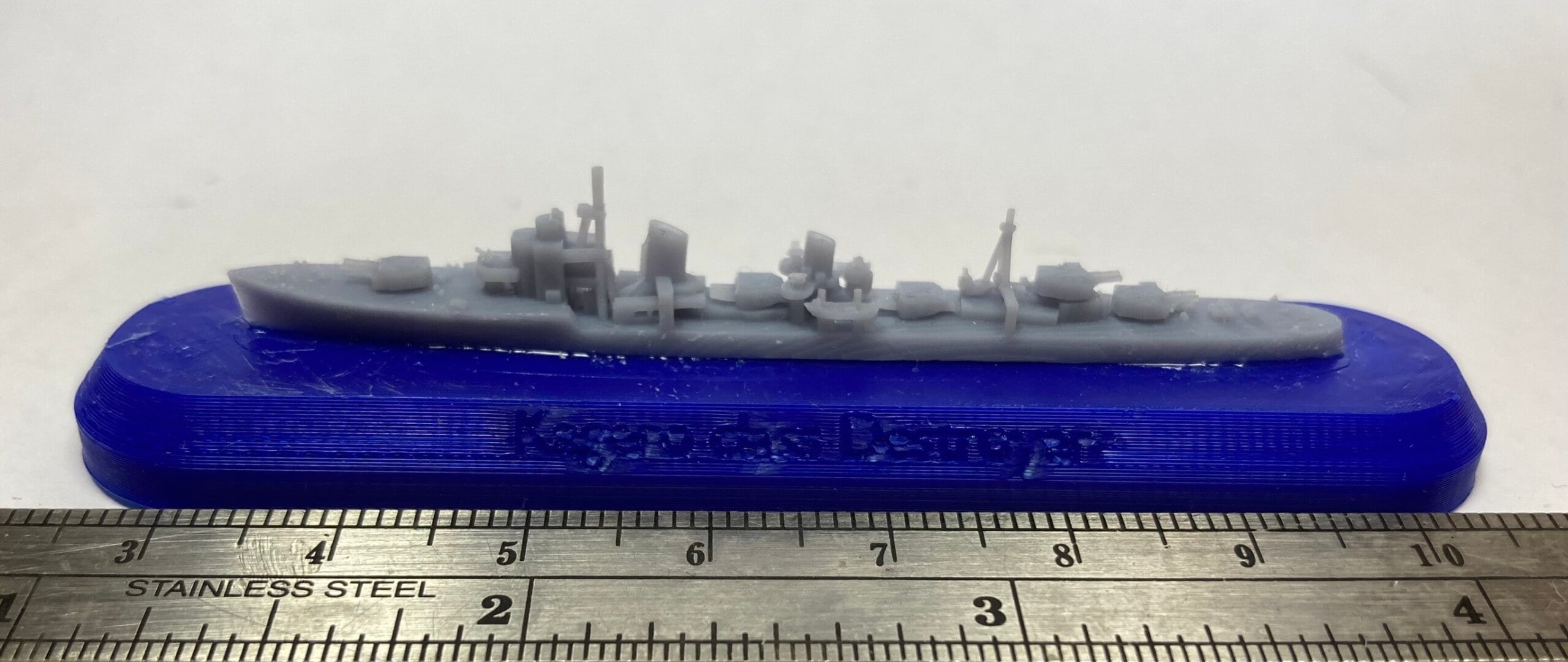

Also included a 1/1800 scale pre-supported model which I used for the test-prints on my Anycubic Mono SE (0.05mm layer) using standard resin. Use at your own risk, might be best you create your own supported files, which prints best on you own printer. Some parts are rather delicate, mainly the gun barrels, and you will need to remove support carefully.

The base was printed on an Ender 5 pro (0.16 mm layer) standard PLA. But could also be printed in Resin if you want (no supported file provided)
