Fokker C.VII-w seaplane
- Description
- Files
Highly detailed model of the Dutch Fokker C.VII-w reconnaissance from the late 1920's, still active until the out break of WW2.
A total of 30 planes have been build and delivered to the Netherlands Naval Aviation Service. 12 for the Dutch East Indies and the other 18 served in he Netherlands. The plane was withdraw from service in 1940 some have been destroyed by the Germans in May 1940.
In the Dutch East Indies the type stayed active as a trainer until the Japanese Invasion in 1942, four planes were destroyed in March 1942 during the Japanese attack, 2 were destroyed by the Dutch in March 1942, 1 crashed in May 1941 the others were removed from active services in 1938 and 1939.
The plane was used on the Admiralen Class Destroyers, Cruisers, gunboats like the Hr.Ms. Soemba and even as a Artillery observer transported and launched from a submarine.
Crew
- 2 Pilot and Observer
Engine
- 1 × Armstrong Siddeley Lynx 7-cylinder air-cooled radial piston engine, 168 kW (225 hp)
Armament
- MG Browing 7,7 mm in Fuselage
- MG Lewis 7,62 mm gun on Scarf ring in rear observer cockpit
- Provision for light bomb rack under observer cockpit
Copyright Allan Smit 2022
Non Commercial and personal use only

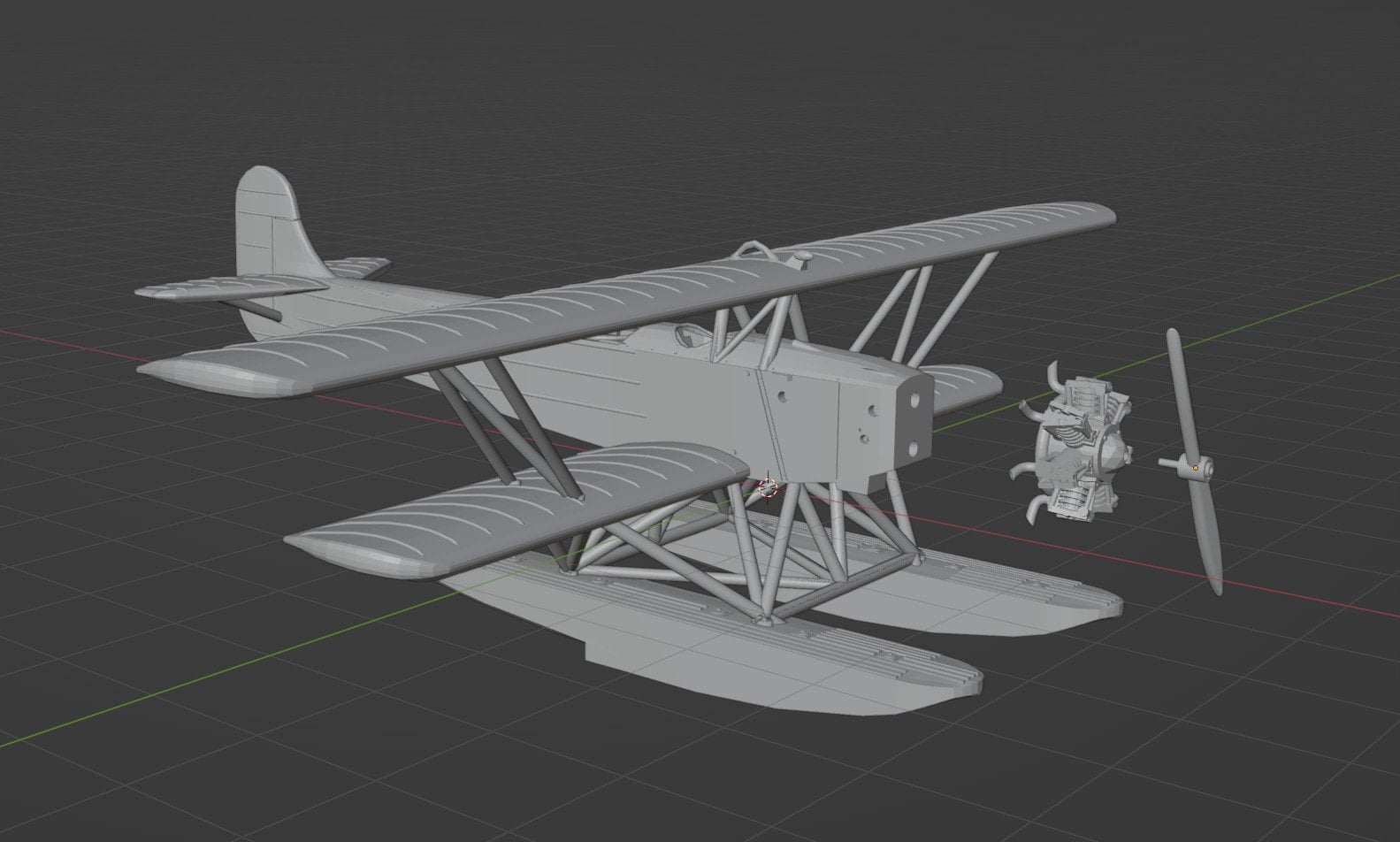

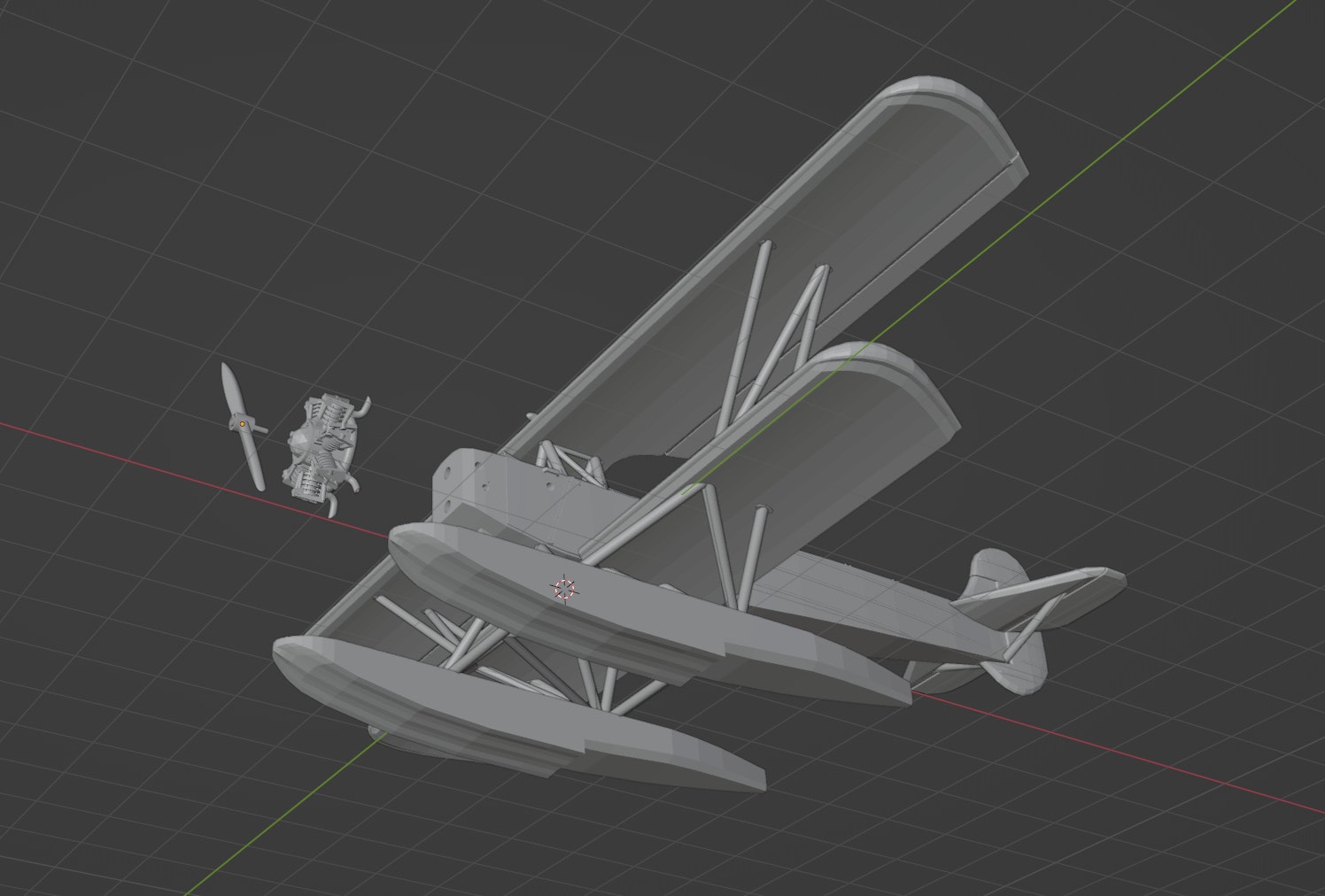

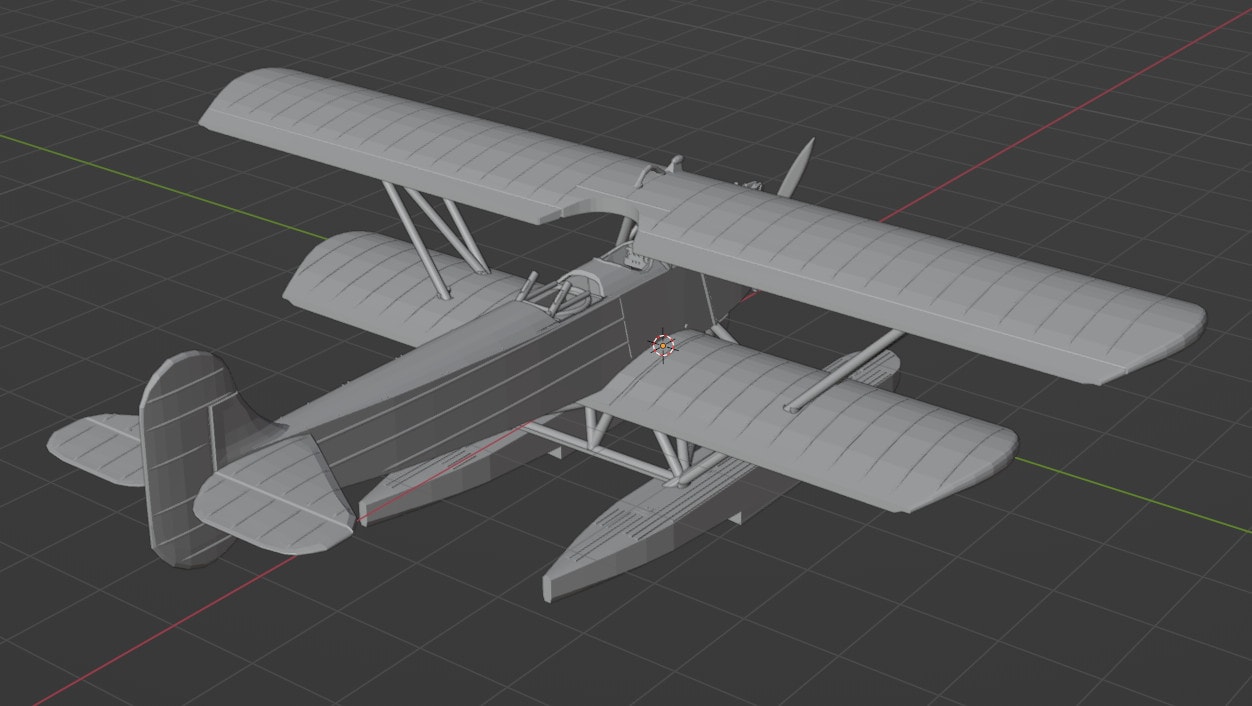

The model is 1/144 resin print only and is provided in 3 parts (both supported and none-supported)
- Fuselage + wings
- Engine
- Propeller

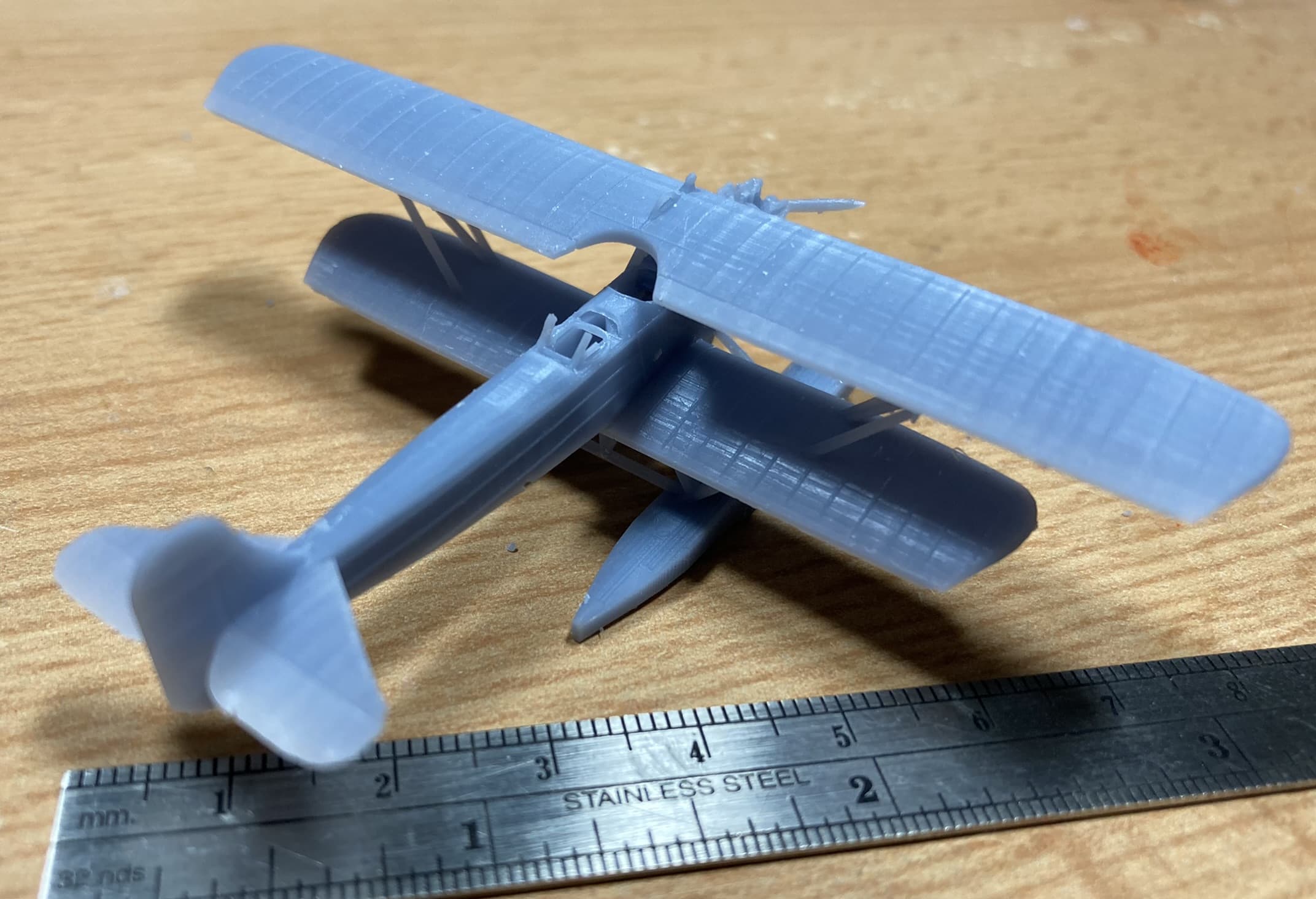

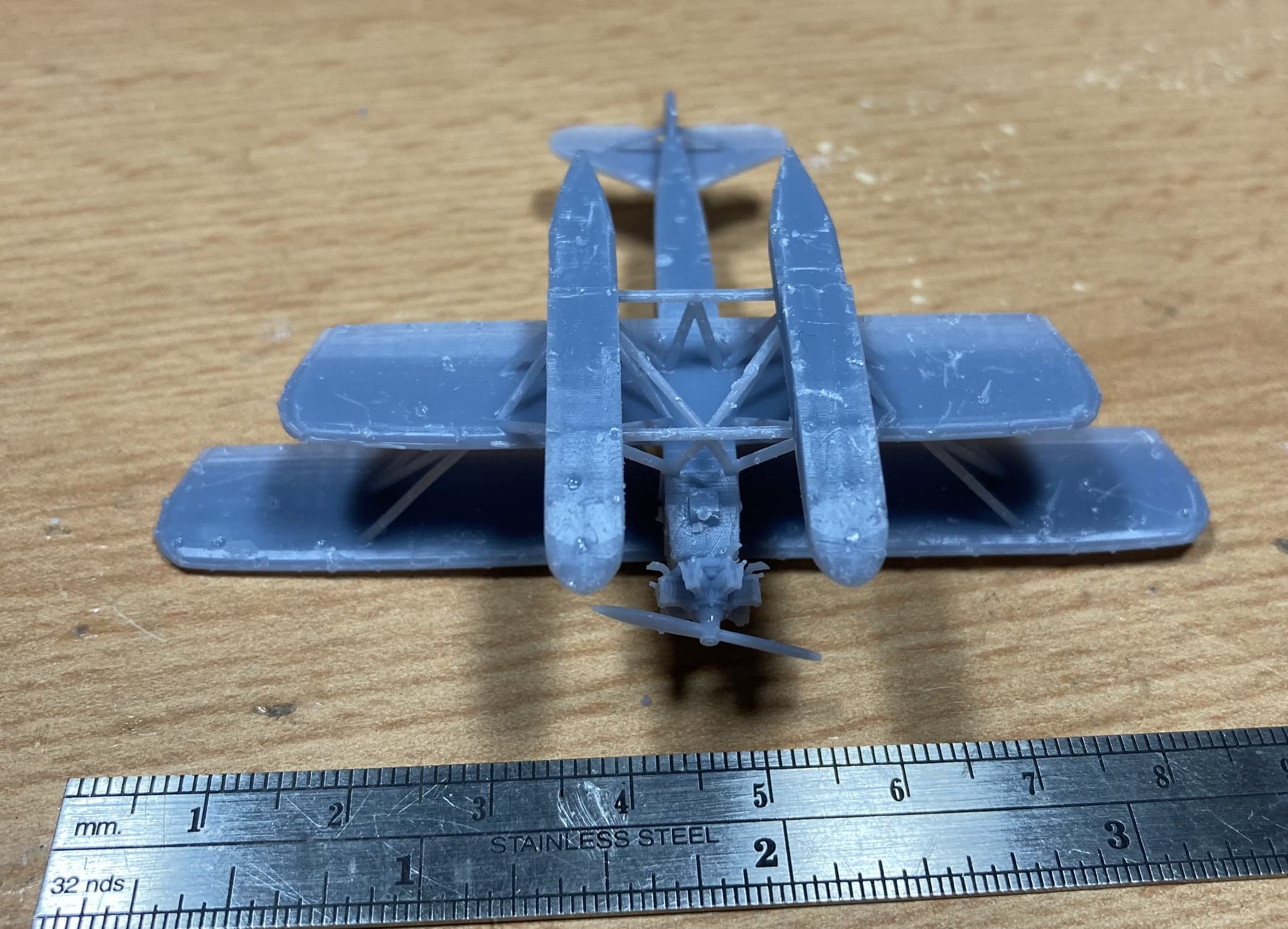

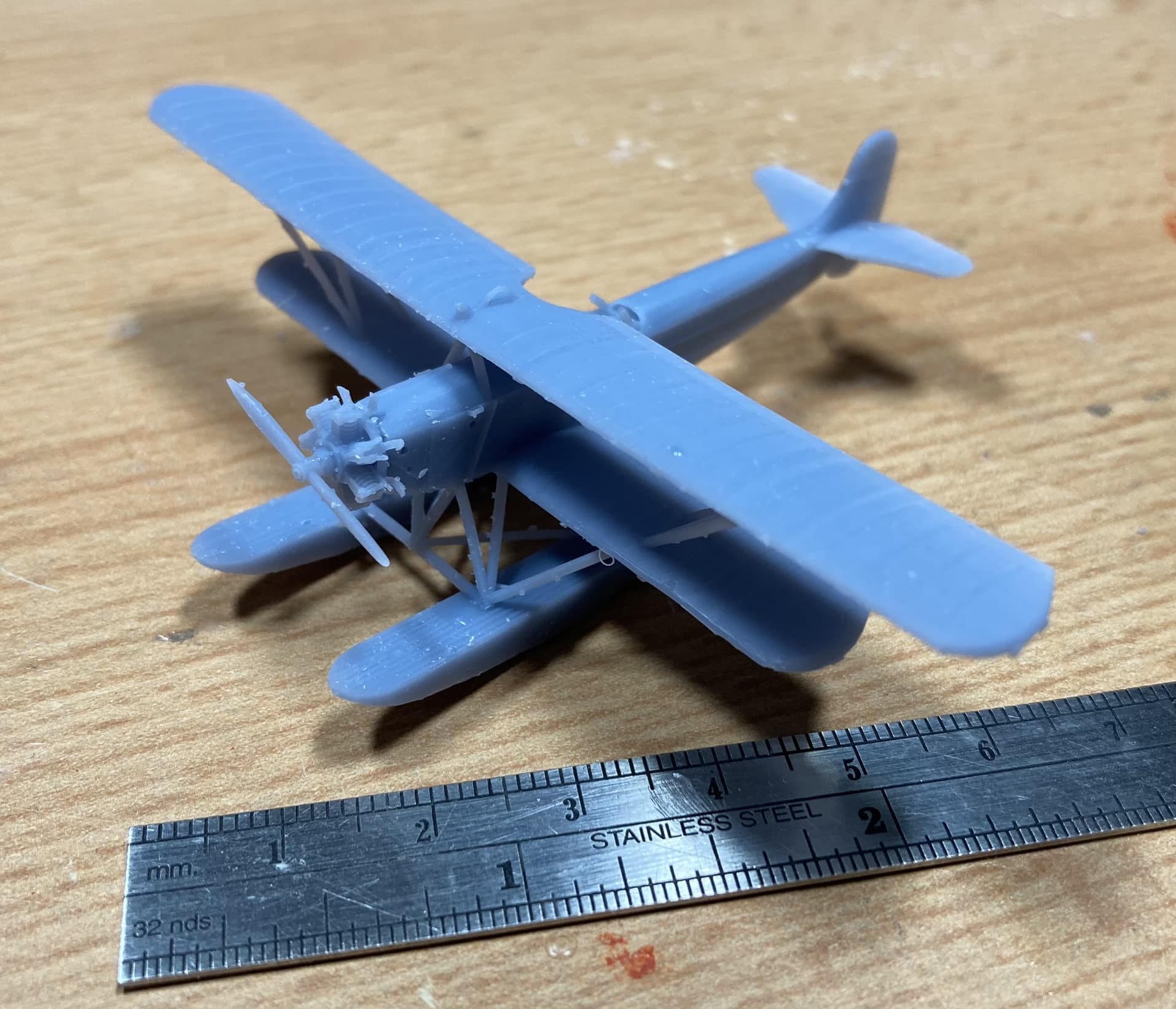

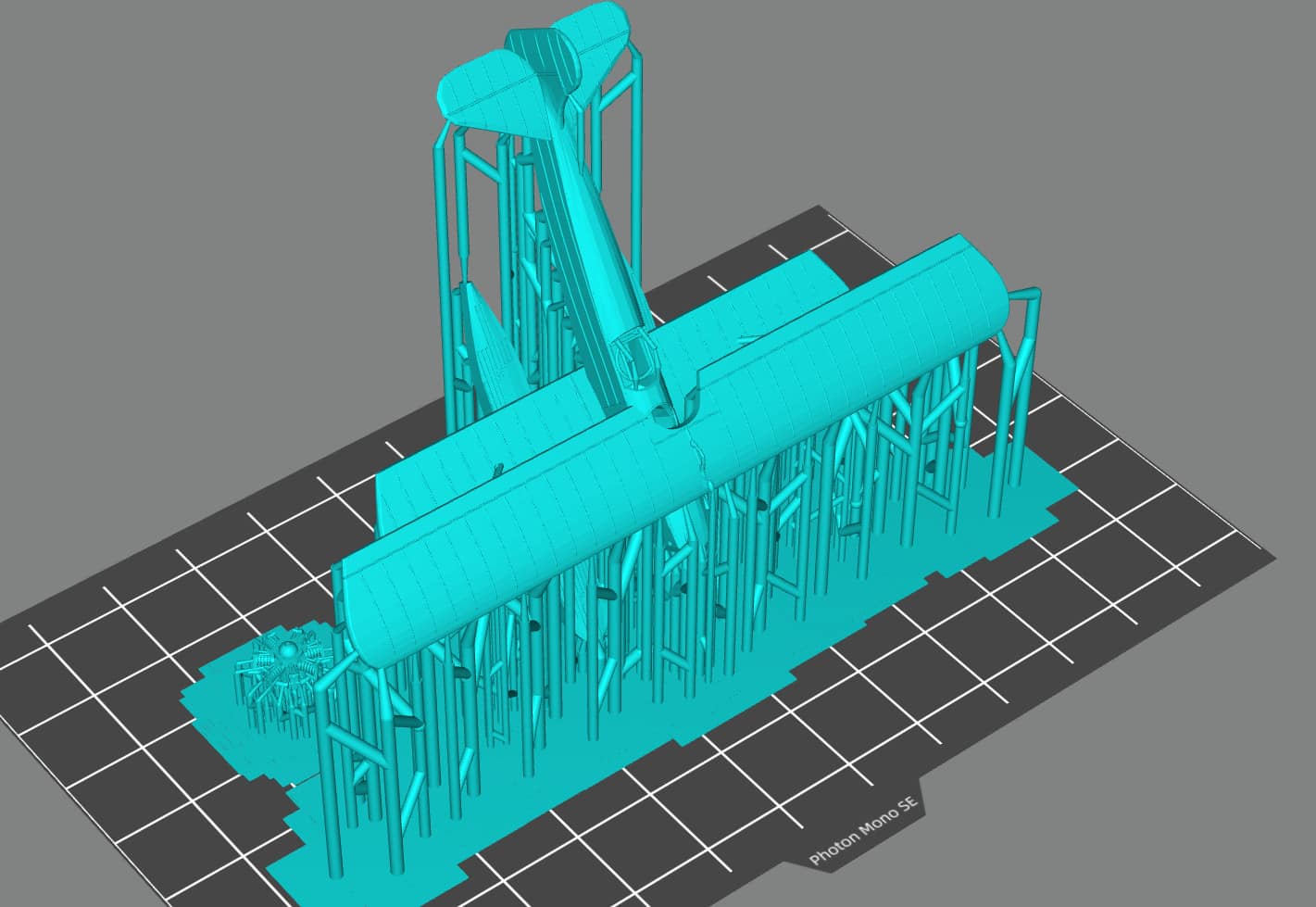

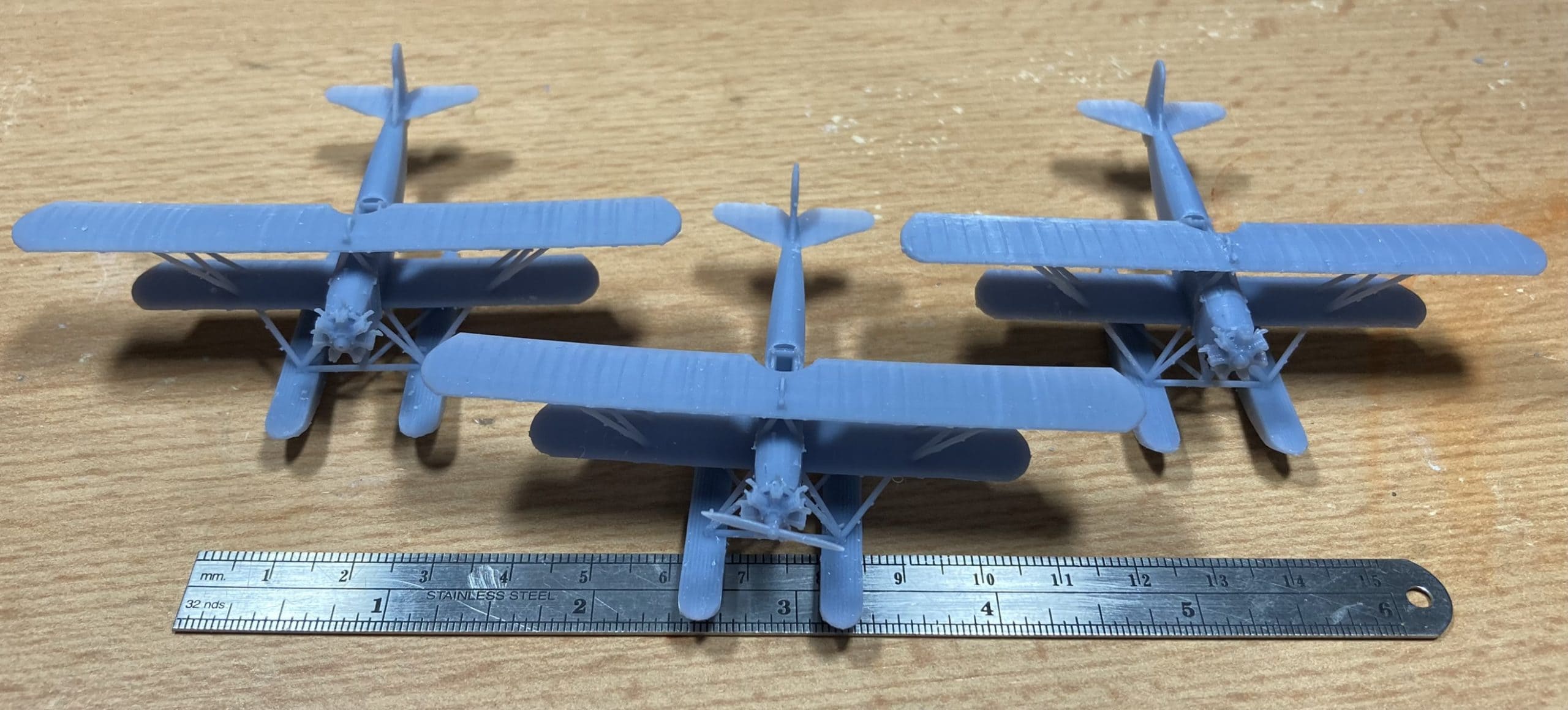

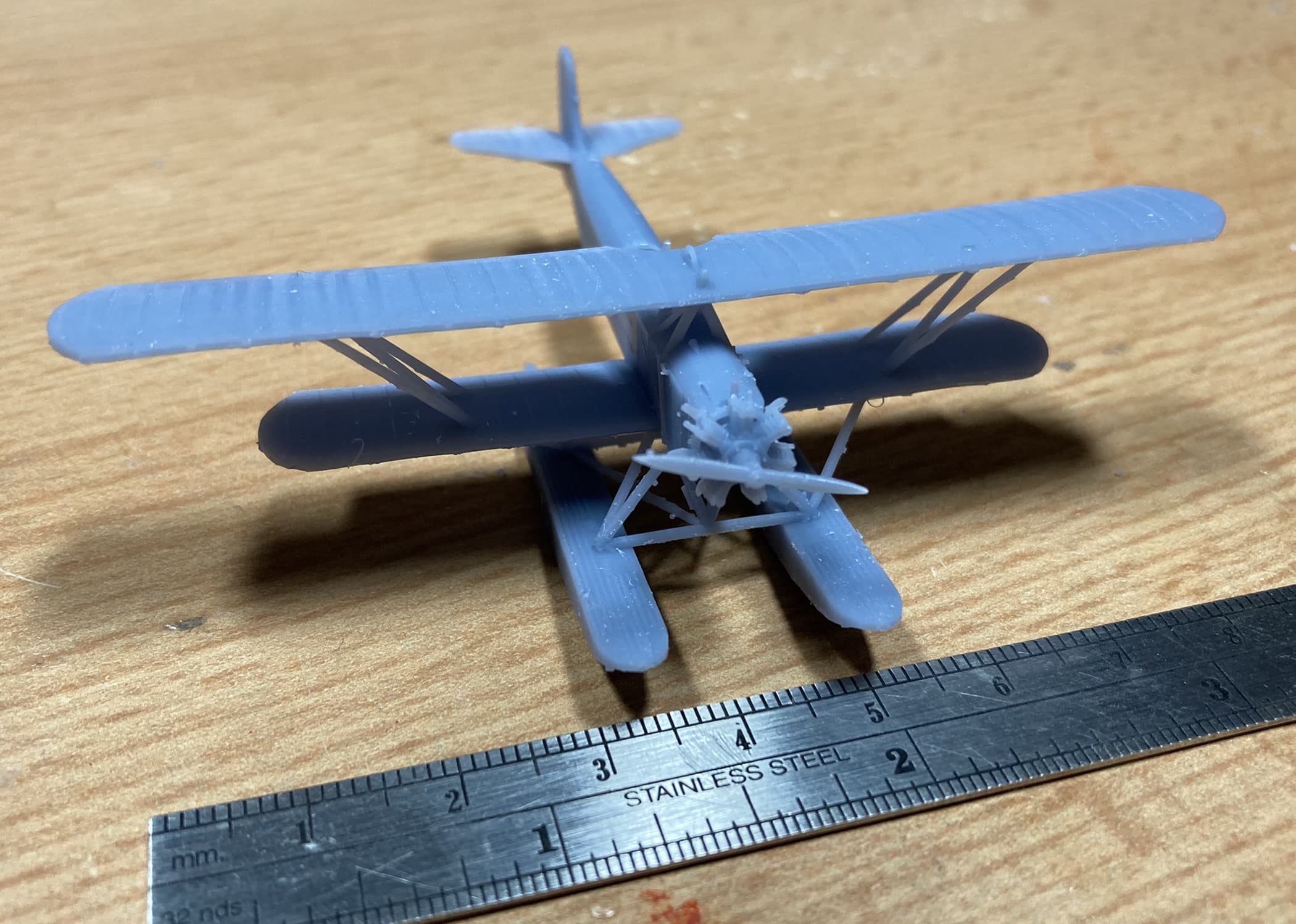

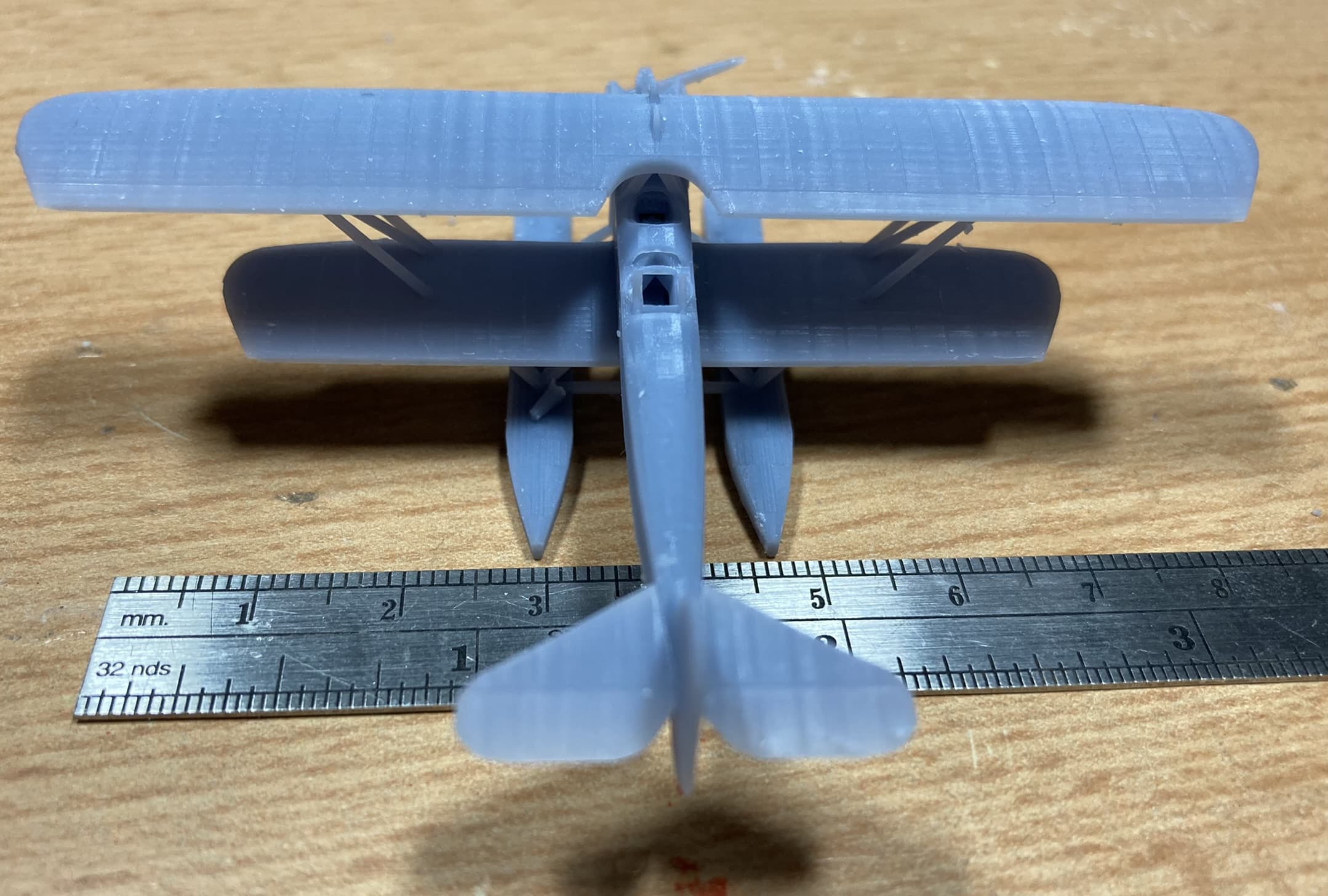

I used the supported files for the tests prints and those worked fine for me (Anycubic Mono SE, 0.05mm layer) But might be best to add your own support to make sure it will print fine on your own printer.
I mix my basic resin with about 15% flexible resin to make the model less brittle, this helps the delicate parts to survive the wargaming handling. The engine has some rather small exhausts, so take care when printing and removing the supports.
The support tubes of the plane and the wings are a bit thicker to make those strong enough, the other parts of the model are scaled according to original design drawings.
MG Lewis gun and light bomb rack are not included in the model.
A total of 30 planes have been build and delivered to the Netherlands Naval Aviation Service. 12 for the Dutch East Indies and the other 18 served in he Netherlands. The plane was withdraw from service in 1940 some have been destroyed by the Germans in May 1940.
In the Dutch East Indies the type stayed active as a trainer until the Japanese Invasion in 1942, four planes were destroyed in March 1942 during the Japanese attack, 2 were destroyed by the Dutch in March 1942, 1 crashed in May 1941 the others were removed from active services in 1938 and 1939.
The plane was used on the Admiralen Class Destroyers, Cruisers, gunboats like the Hr.Ms. Soemba and even as a Artillery observer transported and launched from a submarine.
Crew
- 2 Pilot and Observer
Engine
- 1 × Armstrong Siddeley Lynx 7-cylinder air-cooled radial piston engine, 168 kW (225 hp)
Armament
- MG Browing 7,7 mm in Fuselage
- MG Lewis 7,62 mm gun on Scarf ring in rear observer cockpit
- Provision for light bomb rack under observer cockpit
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is 1/144 resin print only and is provided in 3 parts (both supported and none-supported)
- Fuselage + wings
- Engine
- Propeller
I used the supported files for the tests prints and those worked fine for me (Anycubic Mono SE, 0.05mm layer) But might be best to add your own support to make sure it will print fine on your own printer.
I mix my basic resin with about 15% flexible resin to make the model less brittle, this helps the delicate parts to survive the wargaming handling. The engine has some rather small exhausts, so take care when printing and removing the supports.
The support tubes of the plane and the wings are a bit thicker to make those strong enough, the other parts of the model are scaled according to original design drawings.
MG Lewis gun and light bomb rack are not included in the model.
| Filename | Size | Last updated |
|---|---|---|
| Fokker-CVII-w.zip | 17.2 MiB | 2024-02-28 |
