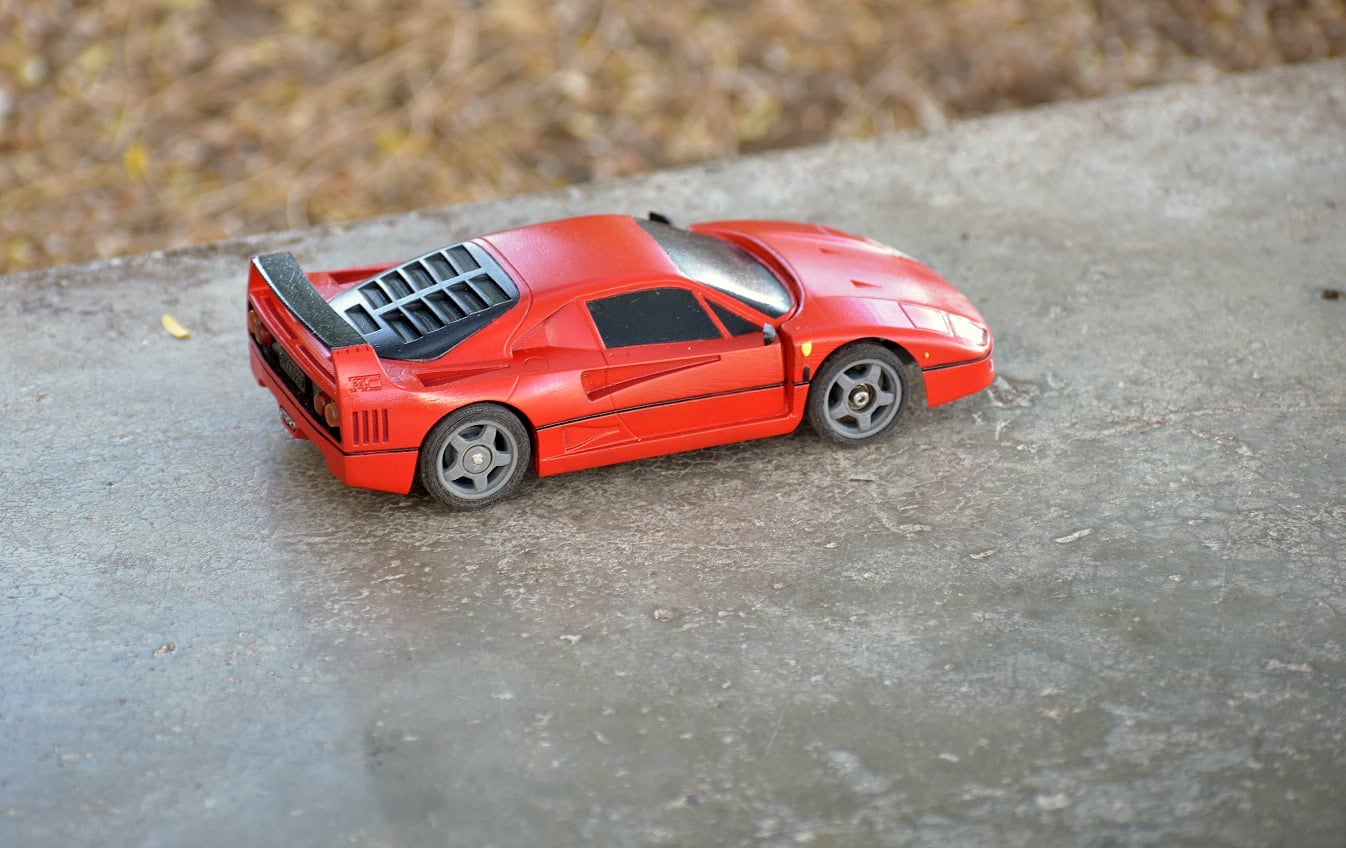

This is the v30 version of the Open Z project, this time with a F40 body.

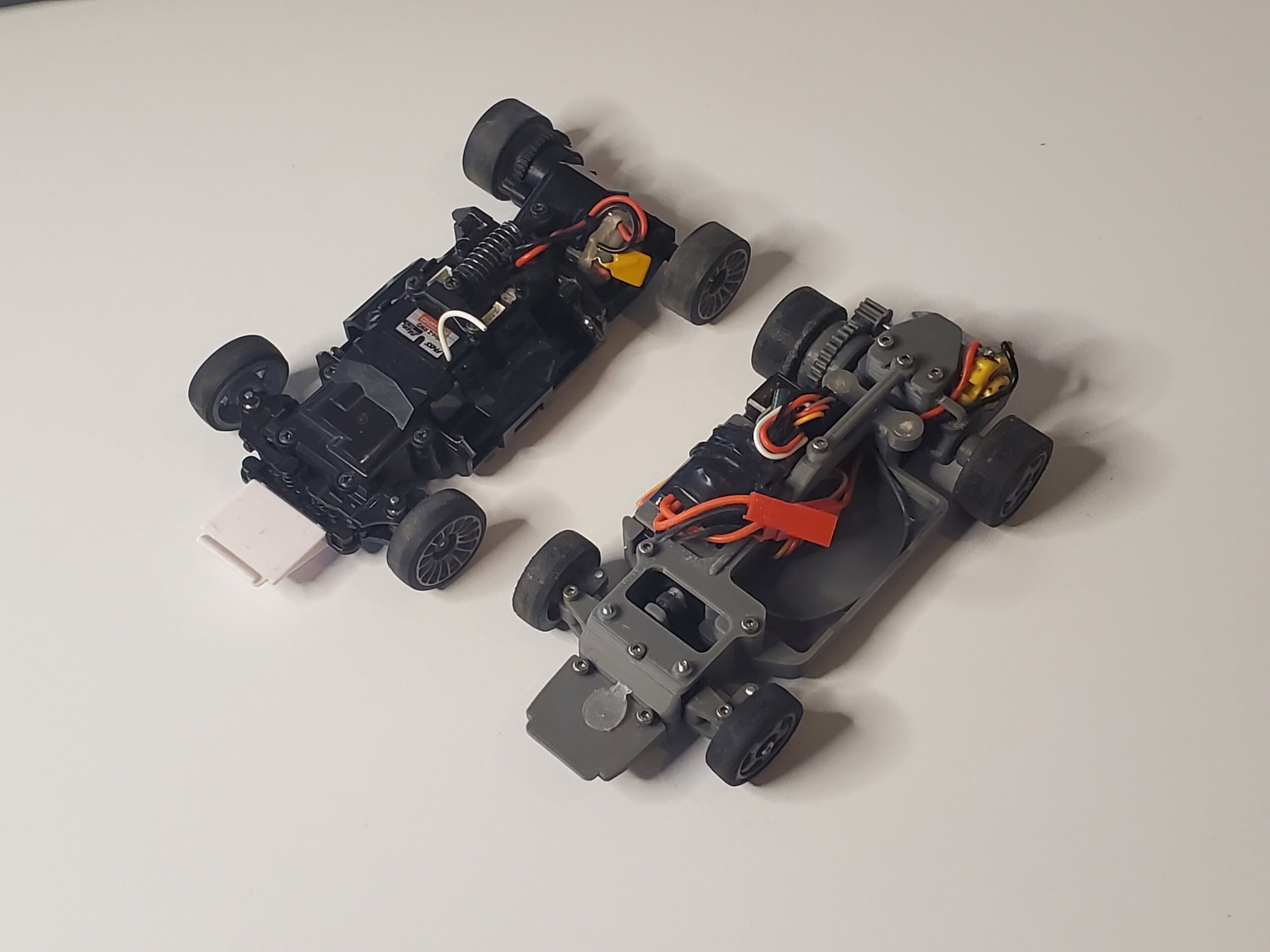

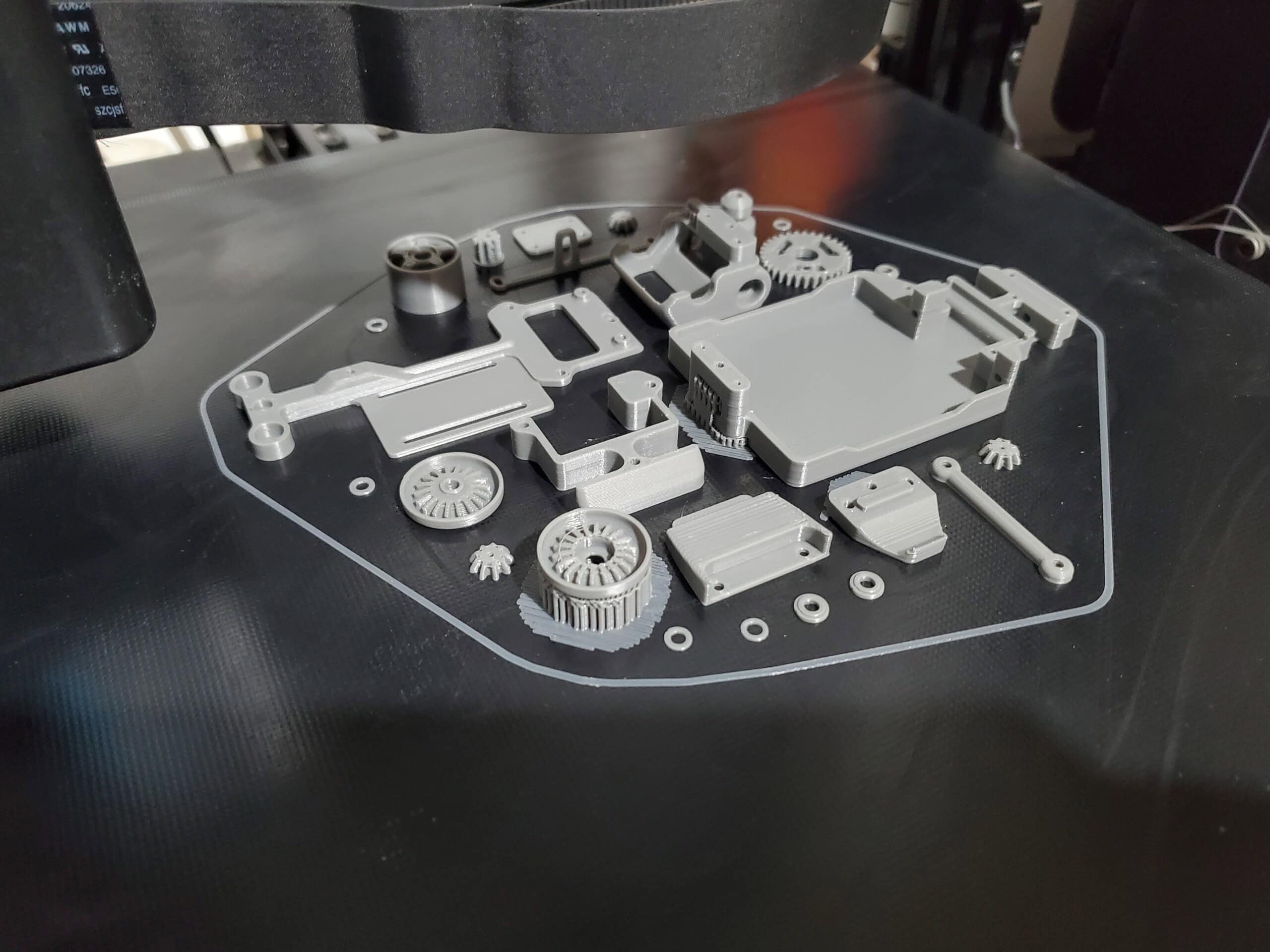

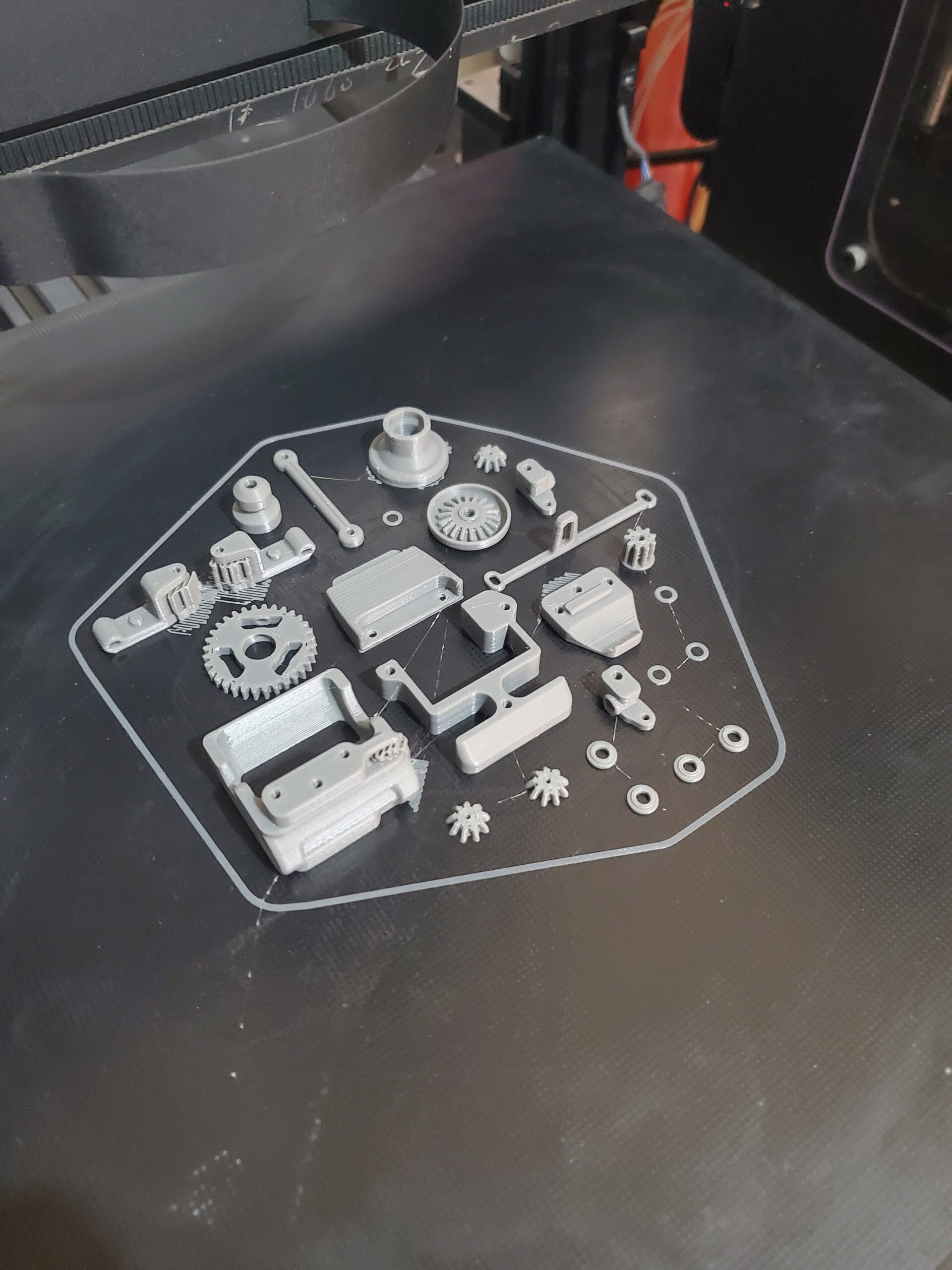

This chassis is the most advance chassis of the project, it has front suspension, differential, 3d printed gears, a lot of space for electronics. It is man to be the final open version of this project, I am planning to develop more chassis and bodies based on this geometry.

It uses the same components as the other chassis: SG90 servo, R130 brushed motor, 2ch-3ch receiver, 2S 10A brushed ESC and a 300mah 2S Lipo.

Almost all screws are M2, a detailed list is on the documents.

I am still working on instructions, I have uploaded a video with the assembly process and a preliminary instructions.

Assembly video (Spanish, with auto subs)

https://youtu.be/GsOtuDdhSEQ

Project overview and run test video (English)

https://youtu.be/OzYFOzZMNrQ

3d model (Fusion 360 browser viewer, no download required):

https://a360.co/3KLaWgG

pass: guaro3d
