Laser Cut -1/56 (28mm) Scale - Ruin 2

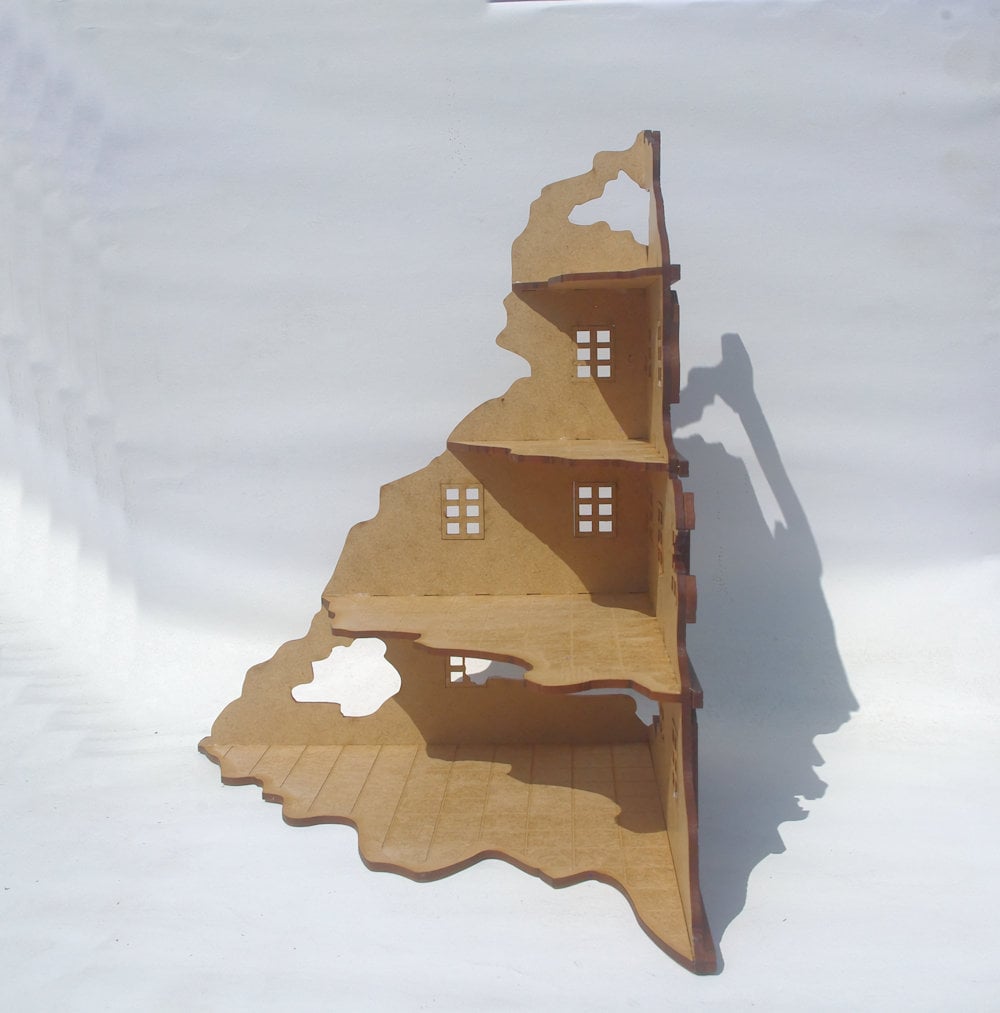

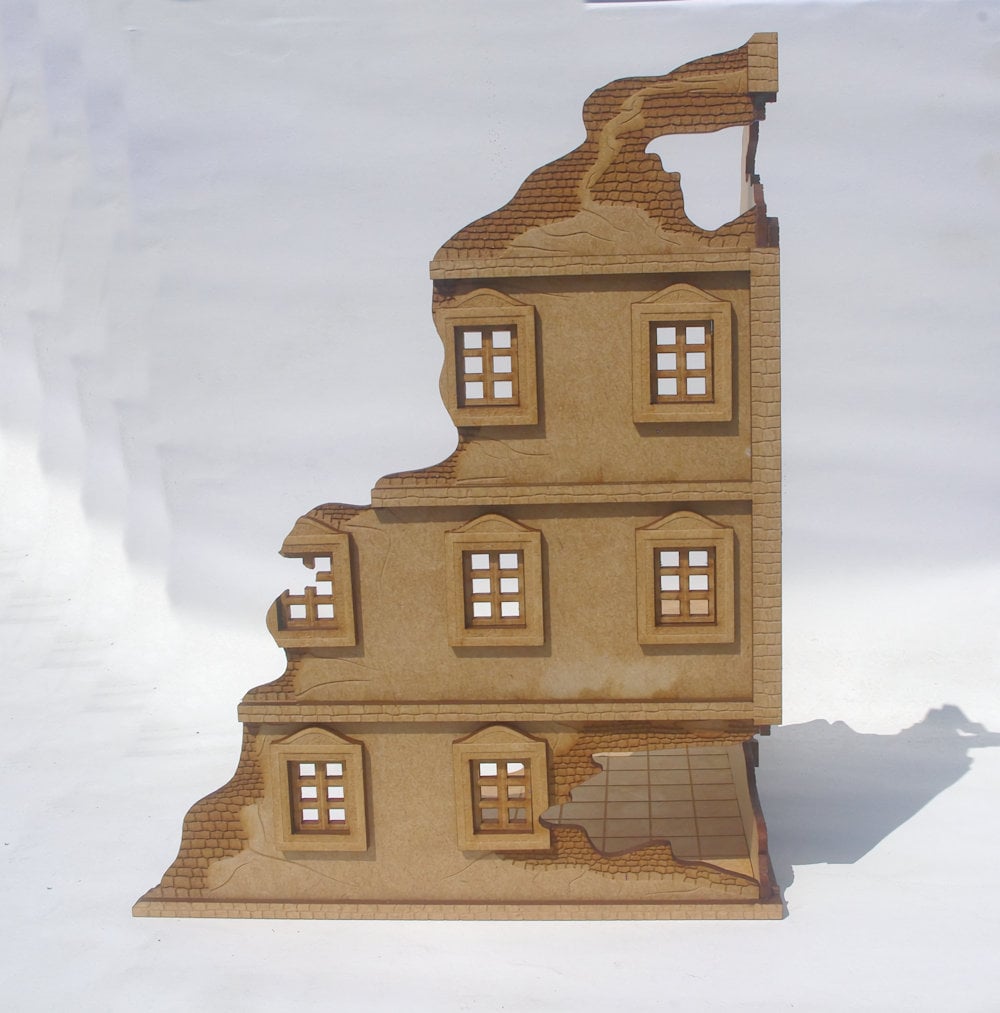

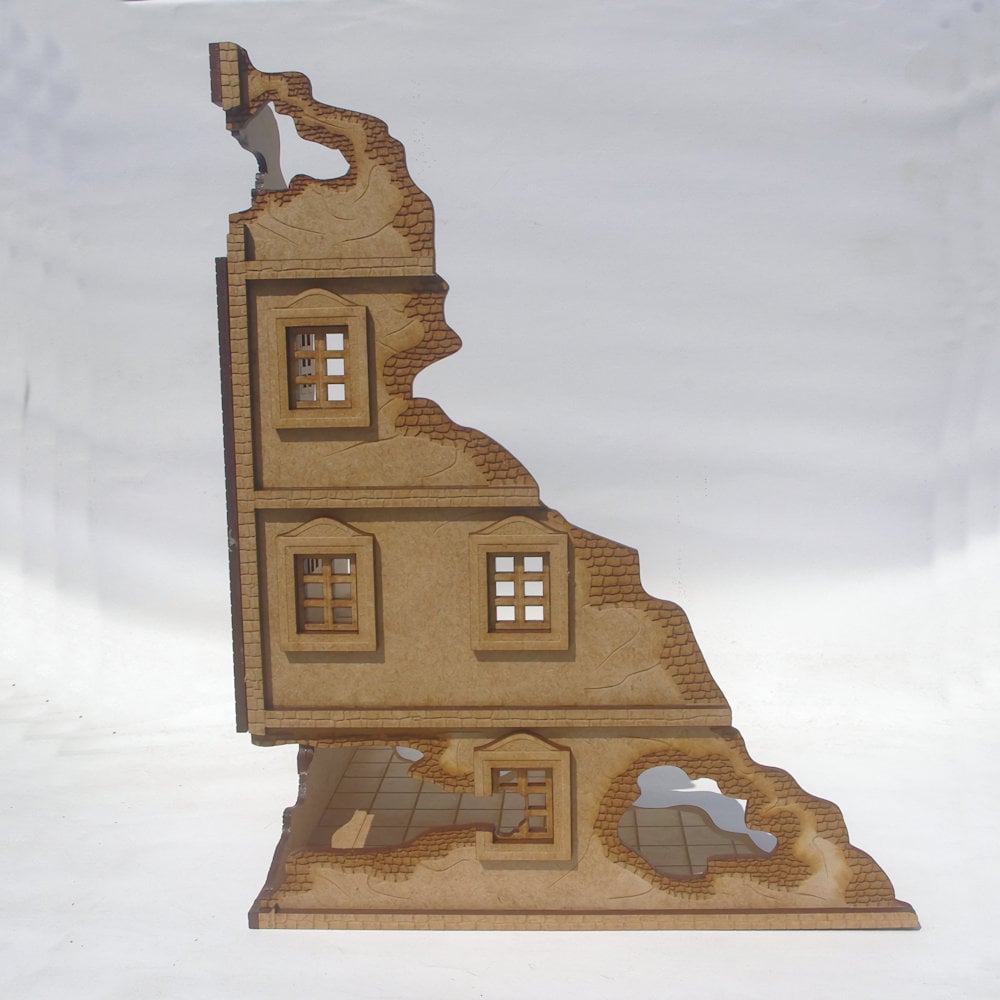

This model has been designed to be cut on a laser cutter and is designed to fit in a corner area of your miniature war gaming table.

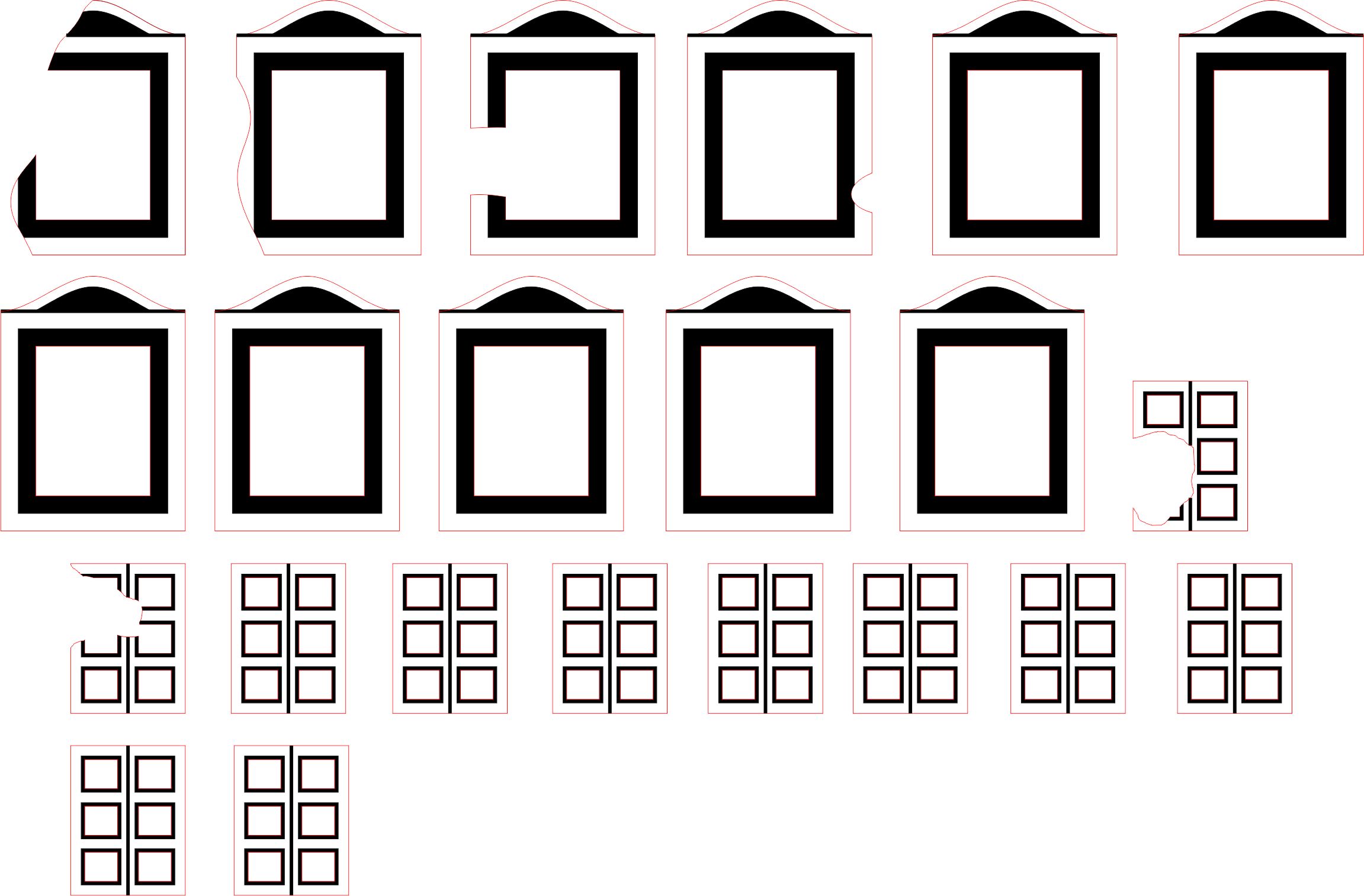

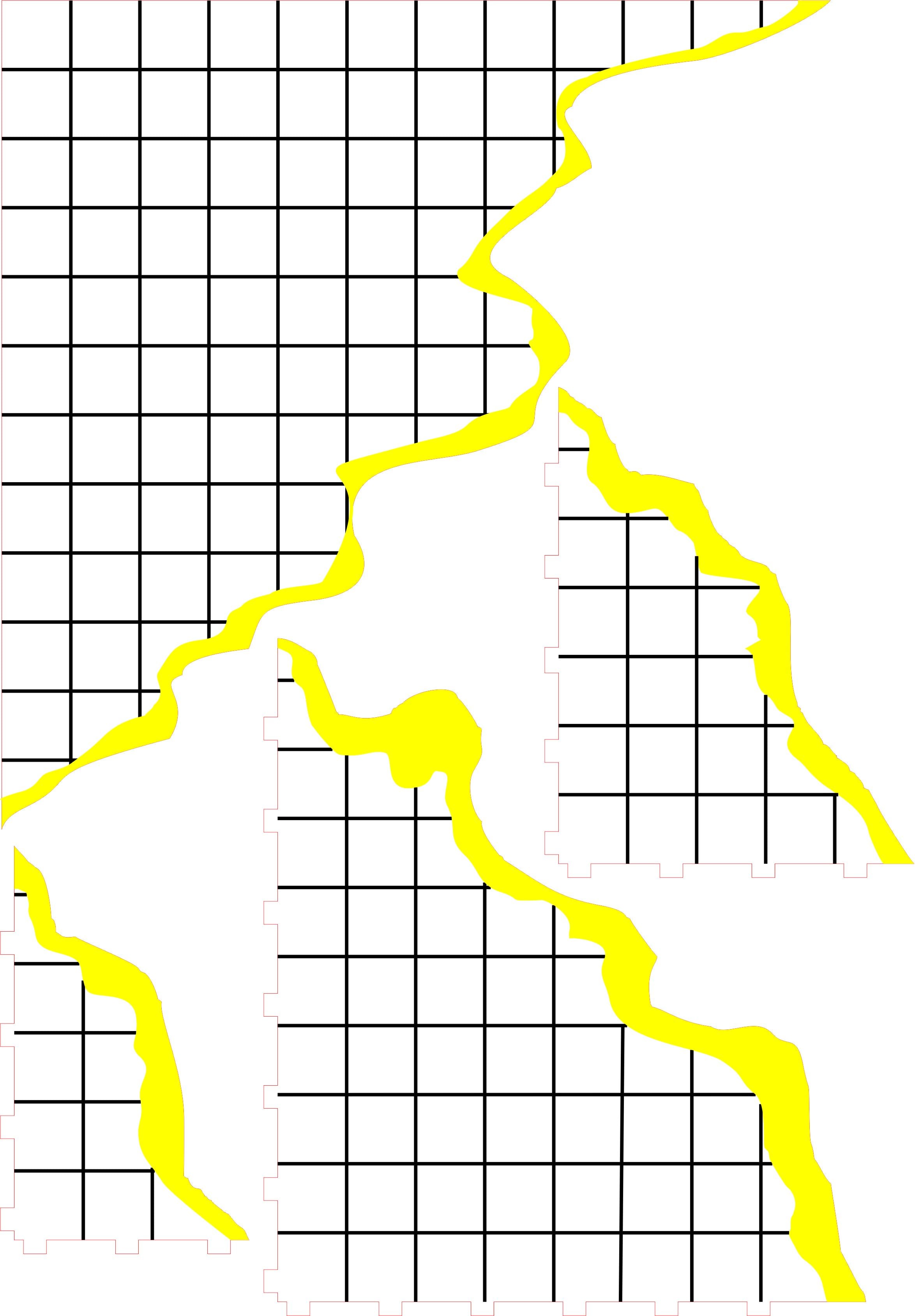

The windows and window frames are cut separately in order to make painting of the model easier. Excluding the ground floor there are 3 additional floors on which to place you soldiers. There are also some large openings for them to look out of.

The model has 3 different levels of engraving that have been used which gives it a nice 3D effect.

The model is designed for a material of 3mm thick and was cut using MDF. The approximate foot print of the model is 186mm x 186mm.

Instructions have been included in the files so that you know how to assemble the model.

There are two different file formats that have been included that you can import into your laser cutting software, the parts have been split into 5 files that fit on an A4 sheet.:

- svg
- pdf

Manufacturing Settings

The model has been designed to be cut on a laser cutter out of a material thickness of 3mm.

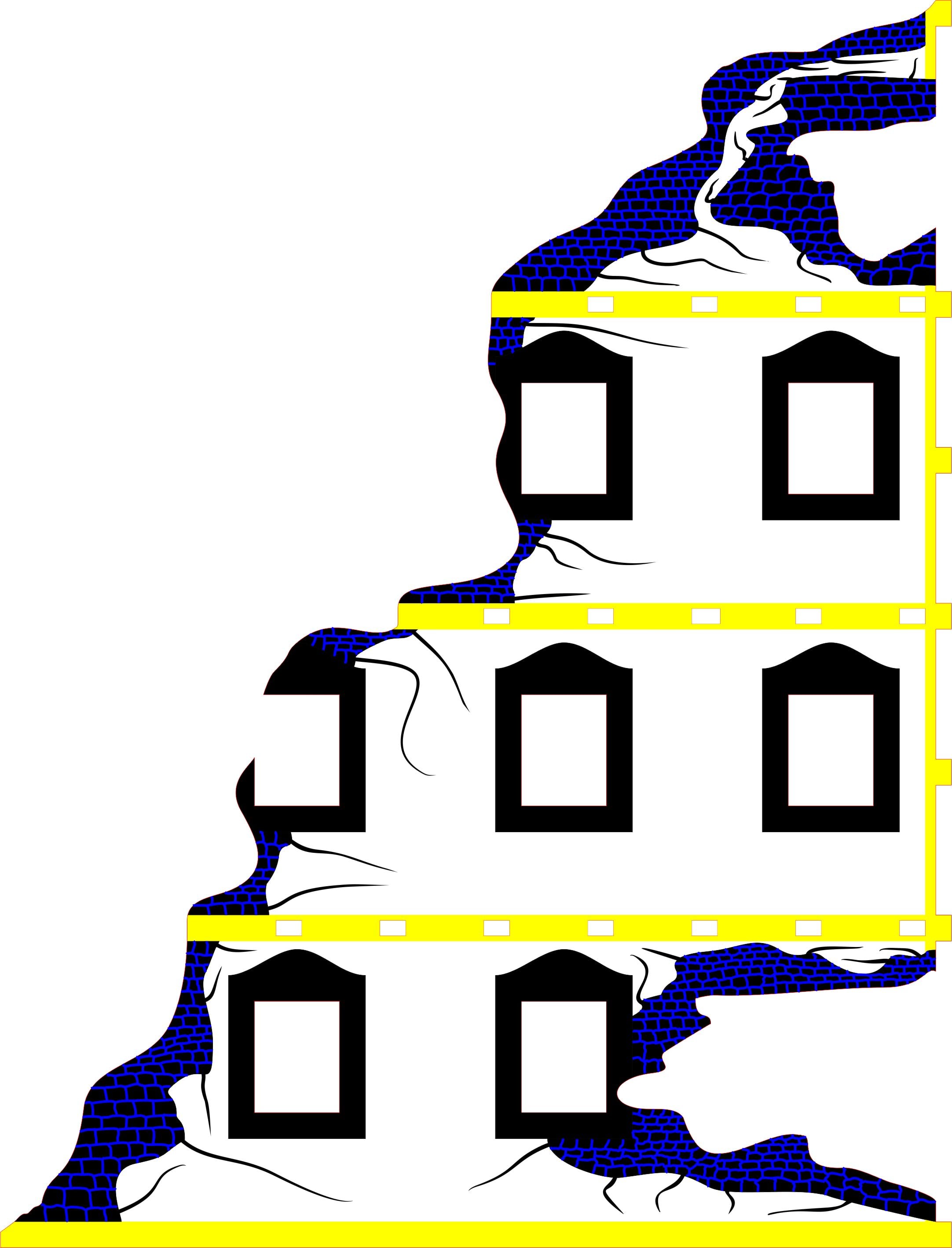

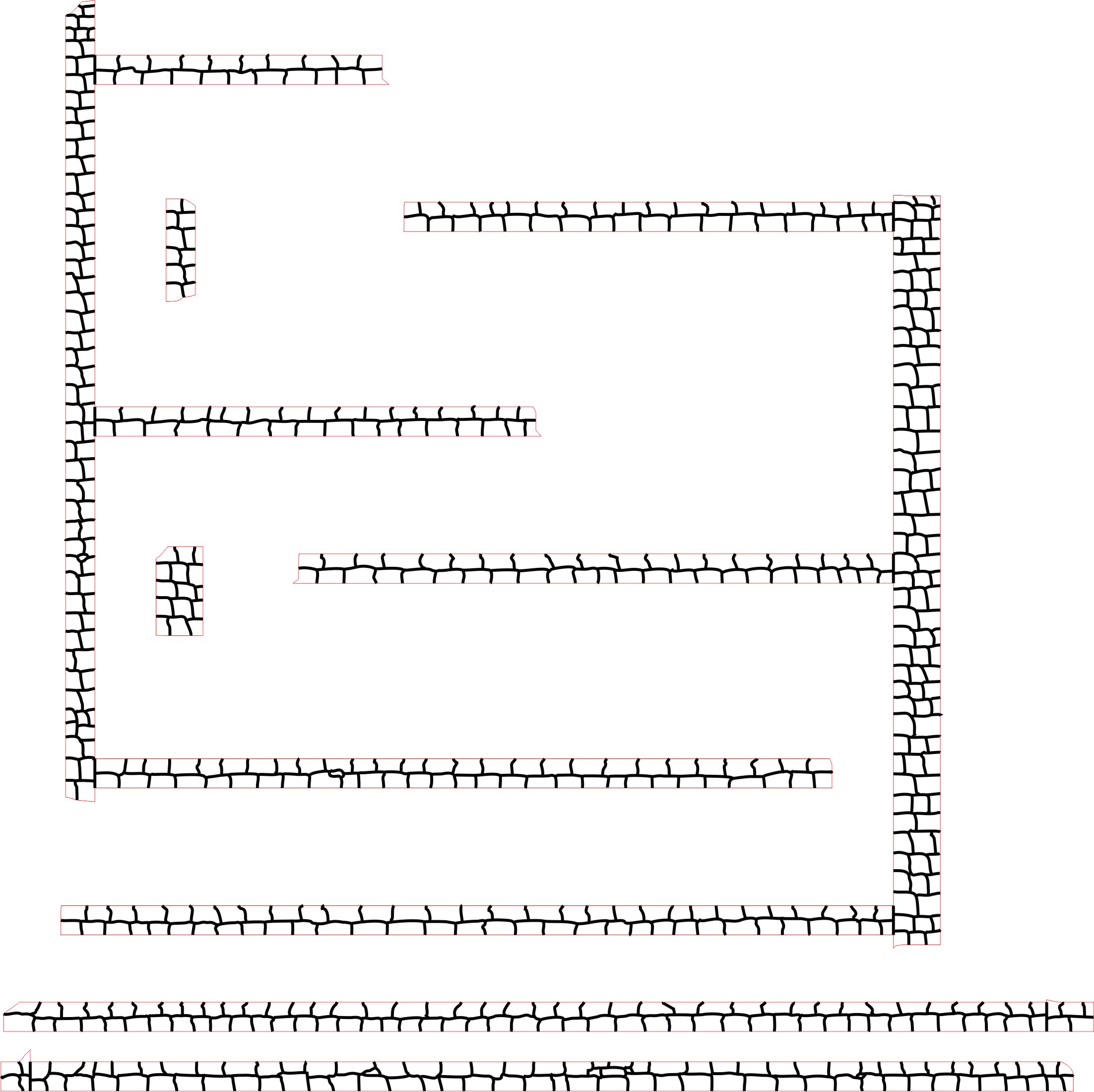

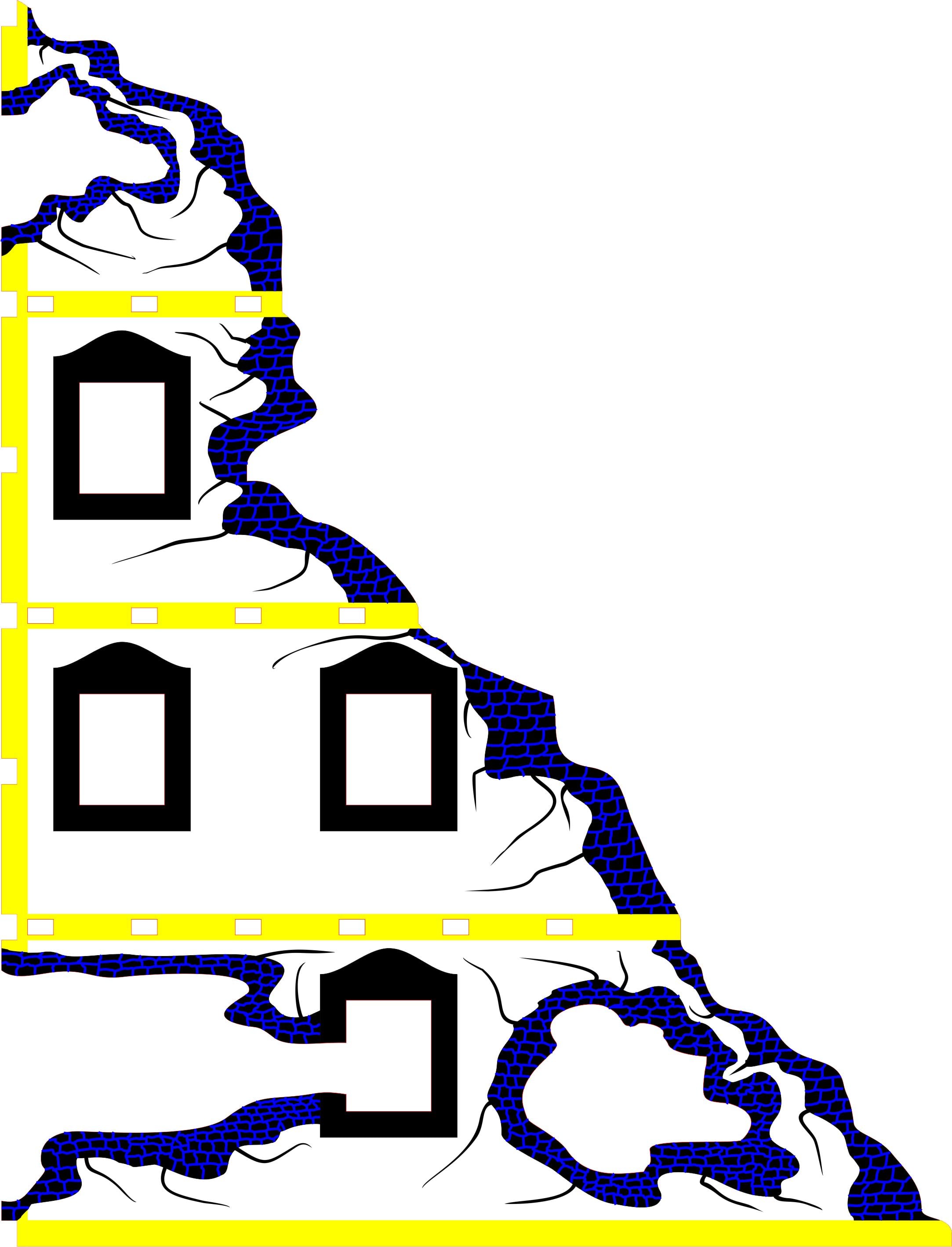

The different colours in the files represent the following:

- Red - Cut Line
- Black - Normal Engraving
- Yellow - Light Engraving
- Blue - Deep Engraving
