Laser Cut - 1/144 Scale - Caproni N1

This will be the perfect model for your miniature war game aerial battles. The model has been designed to be easy to put together and allot of the fragile items have been omitted so you do not need to worry about damaging the model during game play. The model also comes with a 25mm base.

The model is designed to be cut using 3mm MDF or any other 3mm thick material. Once you have cut the model you can paint the model into your desired colour scheme. A set of instructions are included the files in order to aid in the assembly of the model.

The following file formats are included that you can import into your laser cutting software:

• .pdf
• .svg

Manufacturing settings

The following files are included:

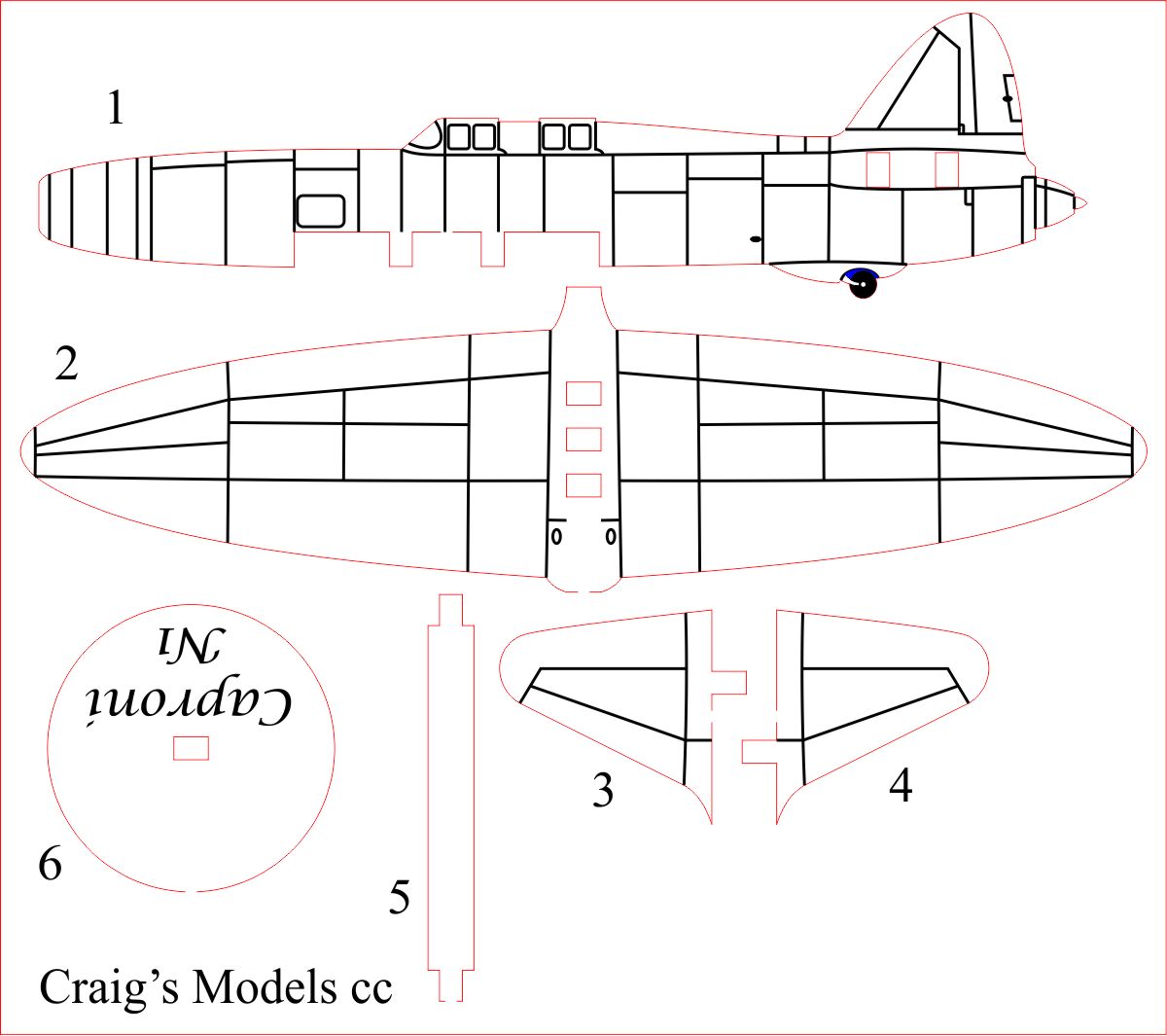

• 1/144 – Caproni N1 - Cut this file first

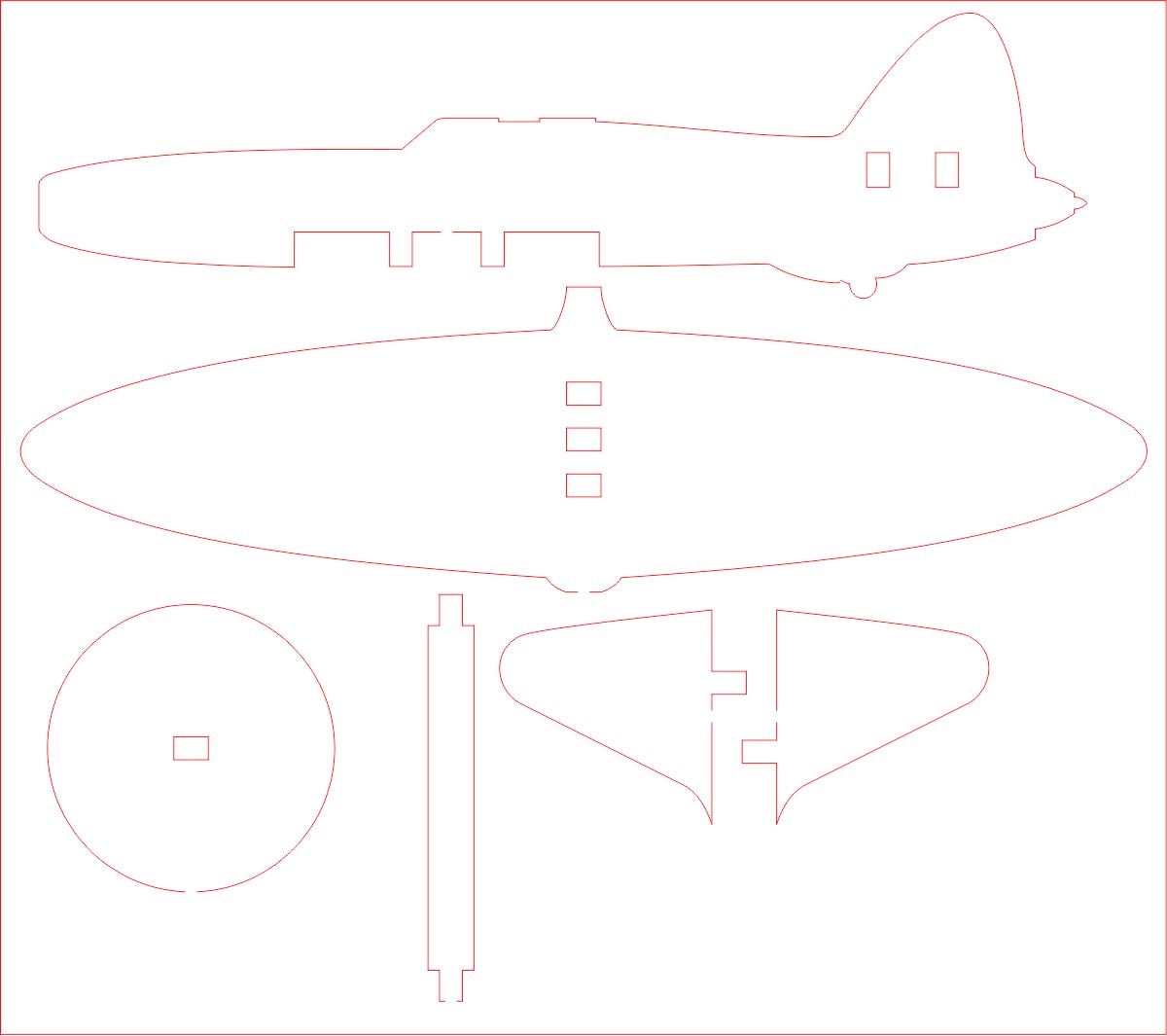

• 1/144 – Caproni N1 – Cut - Make use of this file if you need to cut the 3mm material a second time, I did not need to cut it a second time

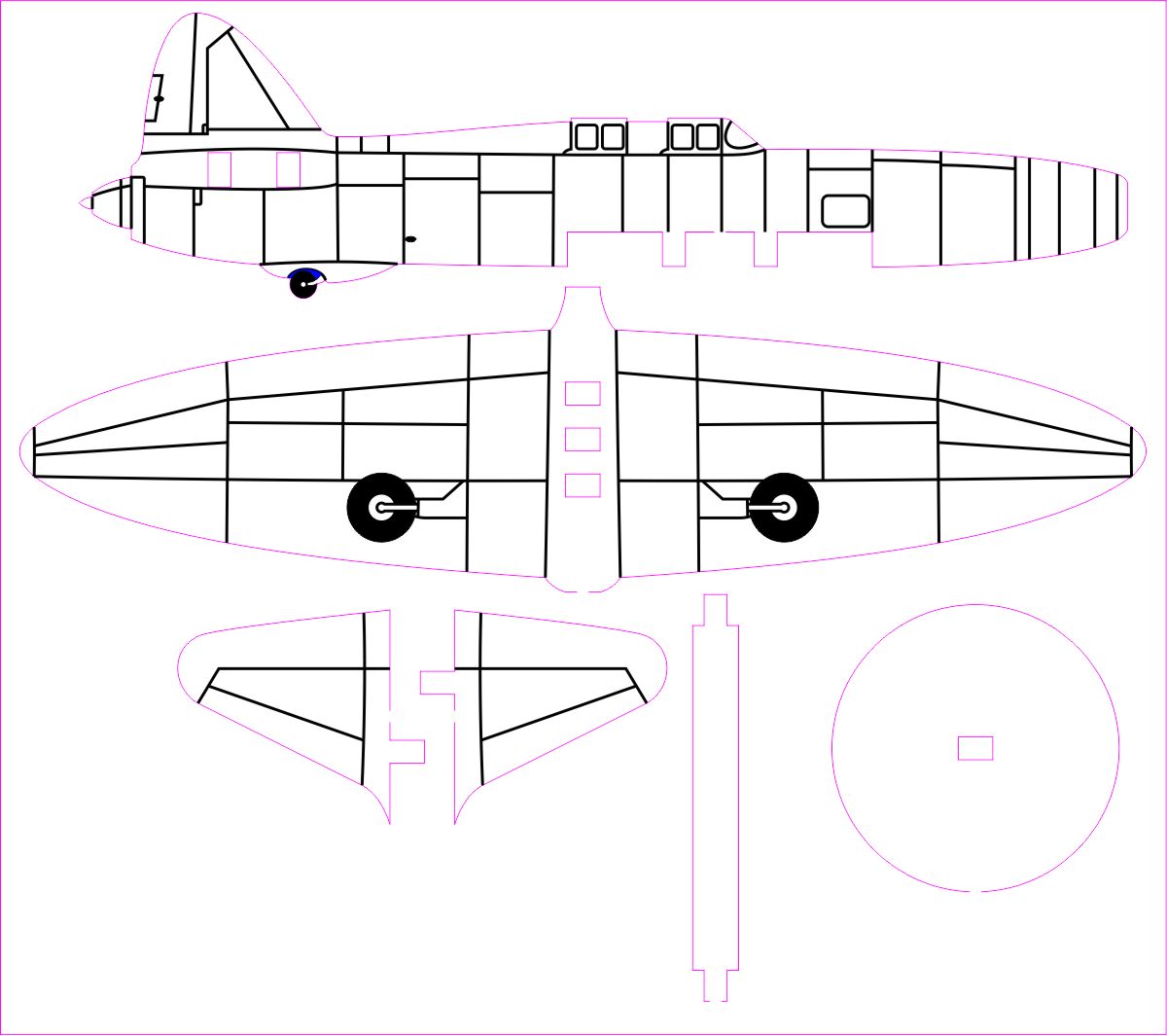

• 1/144 – Caproni N1 - Mirror - This file you use in order to engrave the other side of the model after doing the first cut. you will need to flip the model over in order to engrave the other side that is why I have designed it on a sprue.

The colours in the files represent the following:

• Red – Cut
• Black – Engrave
• Blue – Deep Engraving
• Purple - Only as an aid to line up the model for the mirror image cut of the other side of the model and does not need to be engraved or cut.
