150cm Flak Searchlight
- Description
- Files

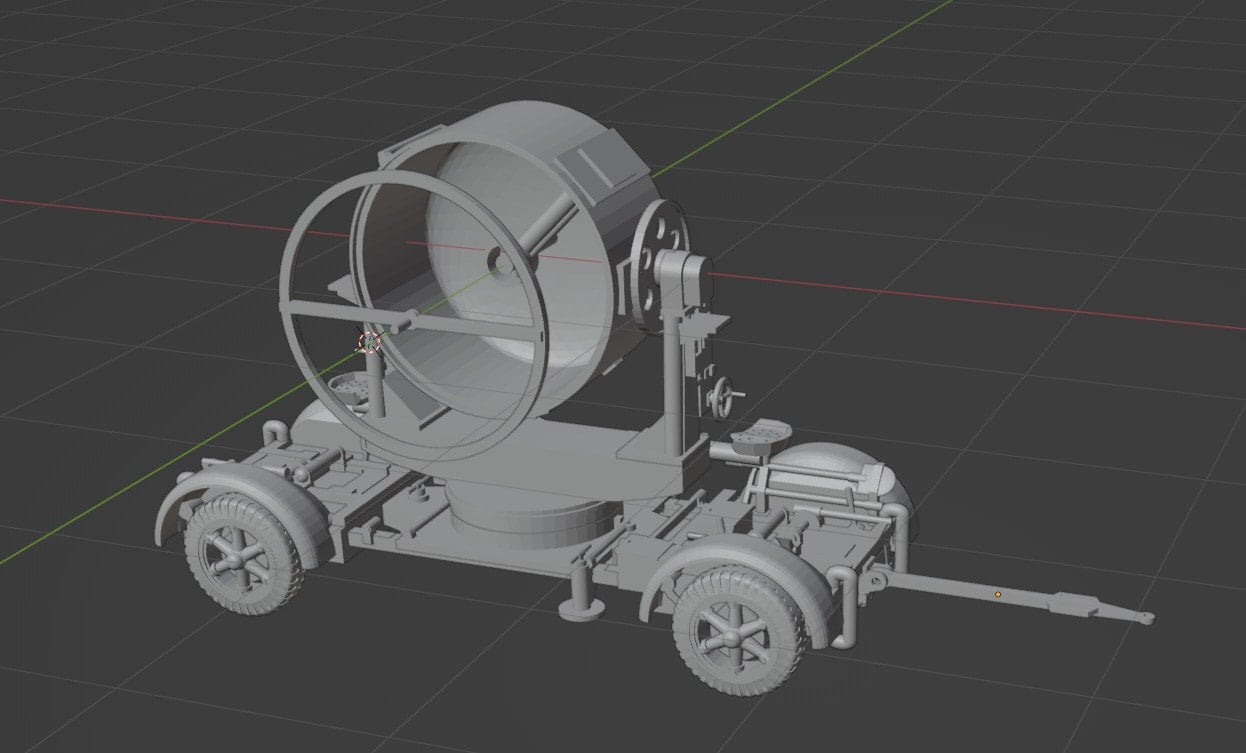

Detailed model of a German 150 cm Searchlight as used by FLAK teams.
This model is part of a set including the 24 kW Generator and the FMG 39 / FuSE 62 Wurzberg Radar.
The Searchlight was used to "catch" allied airplanes to make it much more easy for the FLAK crews the fire on the Bombers.
The Searchlight can be placed on the trailer or or in a static setup with the trailer detached and can be attached to a 24 kW Generator by a 200 meter long cable.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only.

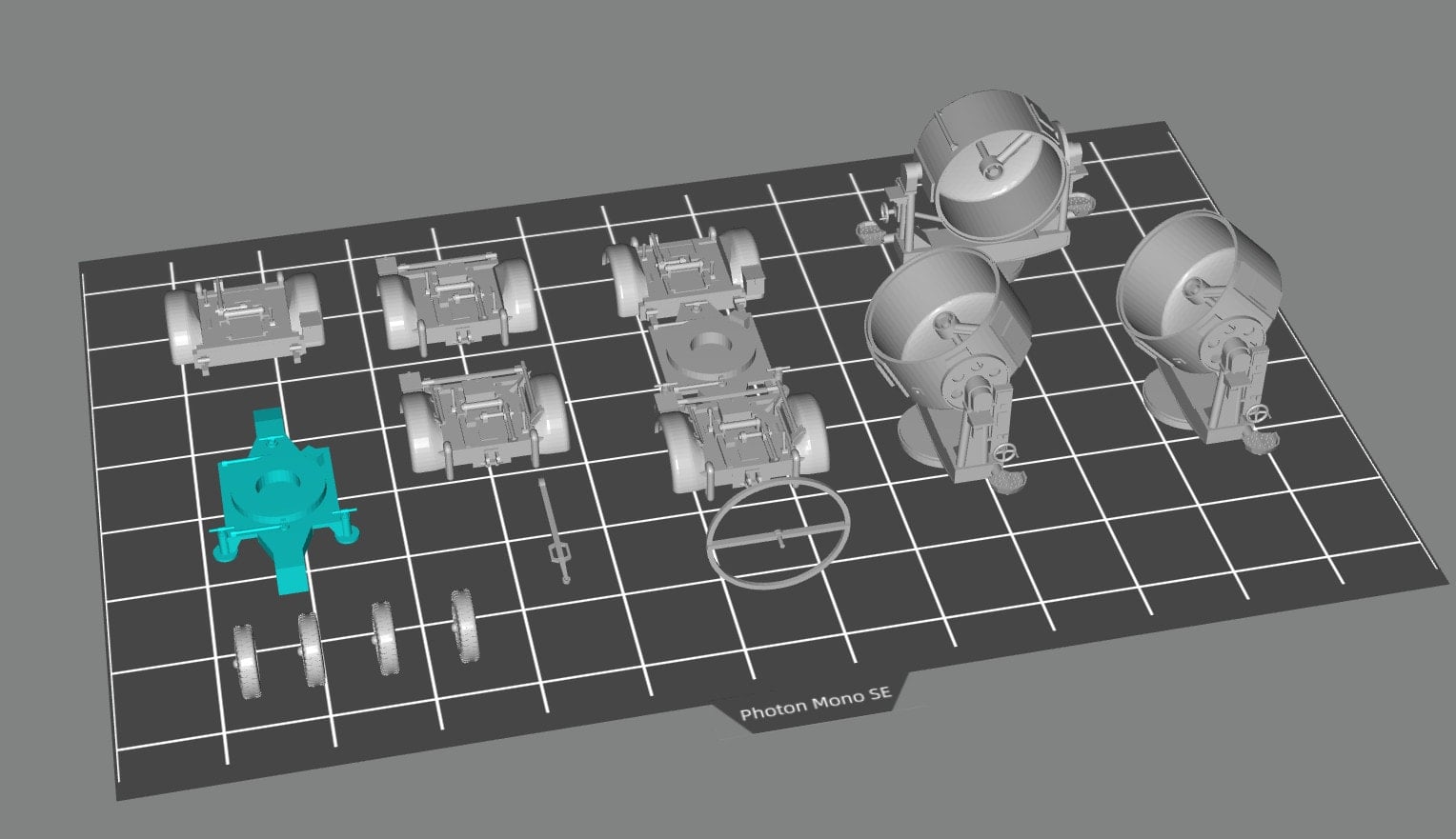

It includes a few different options.
- Searchlight with the trailer attached.

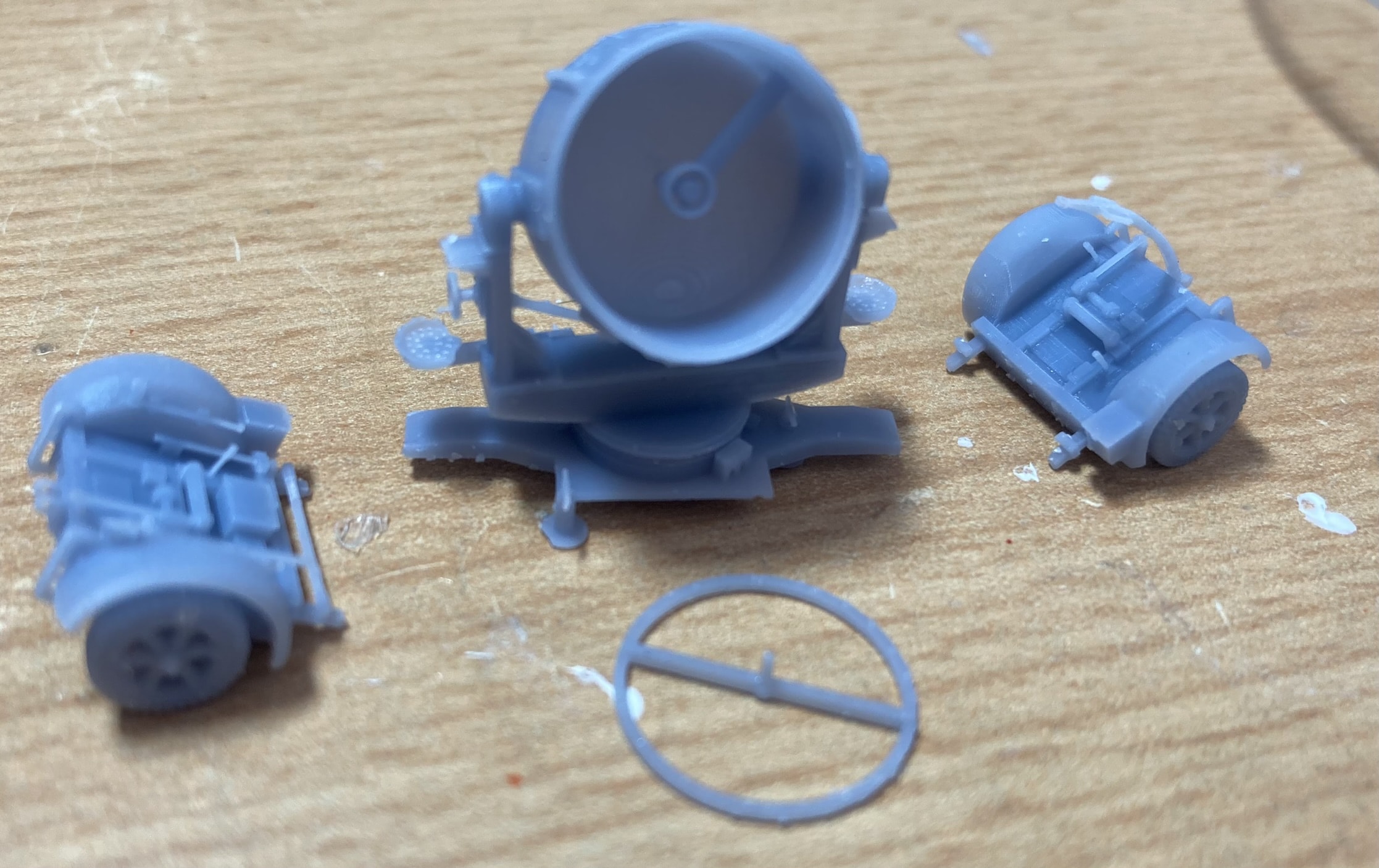

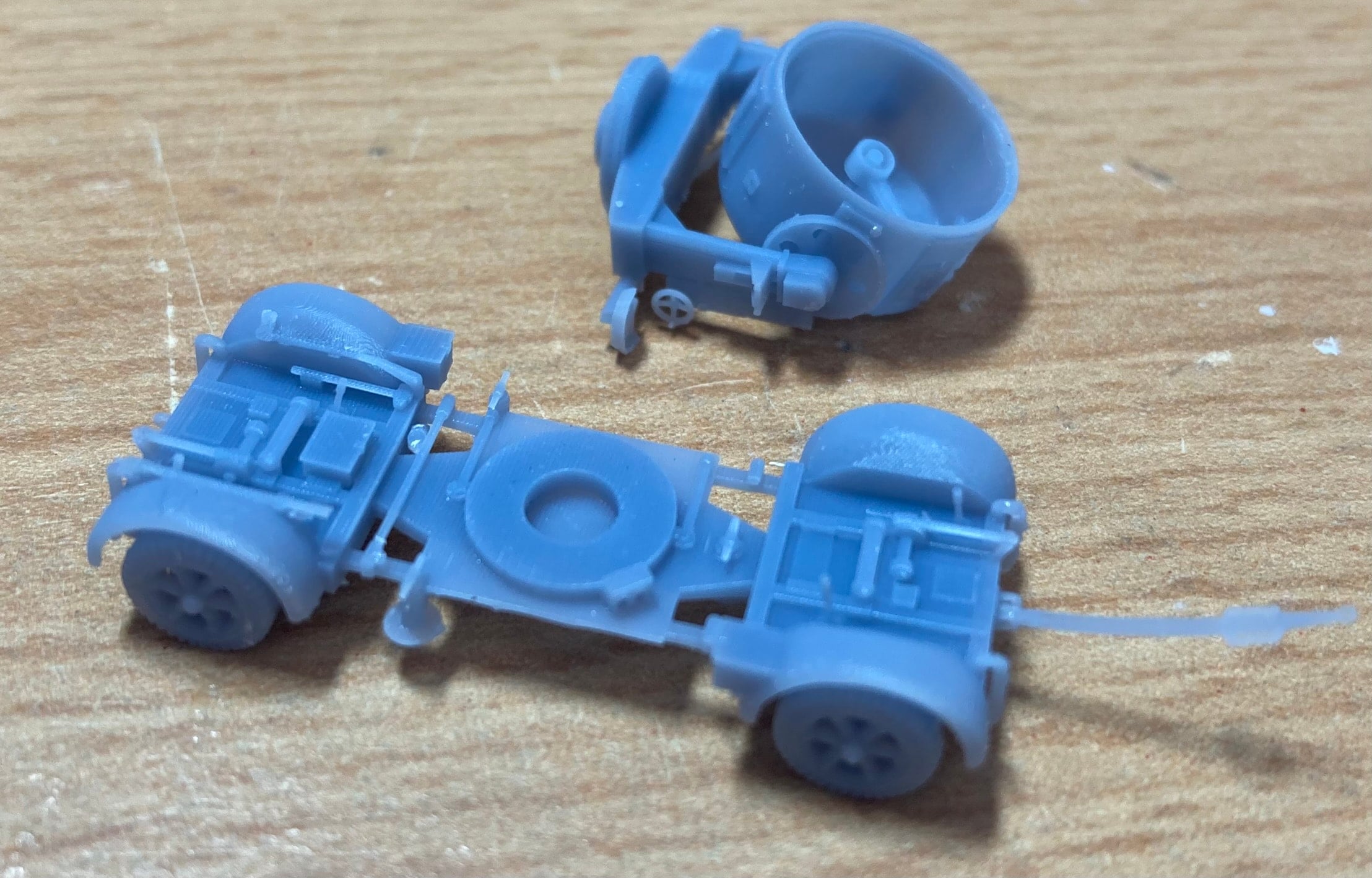

- Searchlight with the trailer detached.
- The front-trailer has the option to be printed with or without the tools (Shovel, axe, etc)
- Searchlight in 3 different elevations (0, 45 and 60 degrees)
Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play. The trailer part have been closed, as original the model has an open trailer with beams and tubes, but in 1/100 that would be impossible to print for war-gaming.
The searchlight is in 2 parts, rear-part and the front-part which is to hold the glass. The idea is you can attach a thin plastic sheet to the back of front-part with some clear glue. (Or something like Micro Kristal Klear)
Cut the plastic sheet carefully along the edge and glue it on the rear-part of the searchlight. It should fit, but if needed scale down the front-part by 5% to make a more easy fit.
And if you really want to go overboard and have the skills, include a small micro-LED in the searchlight.

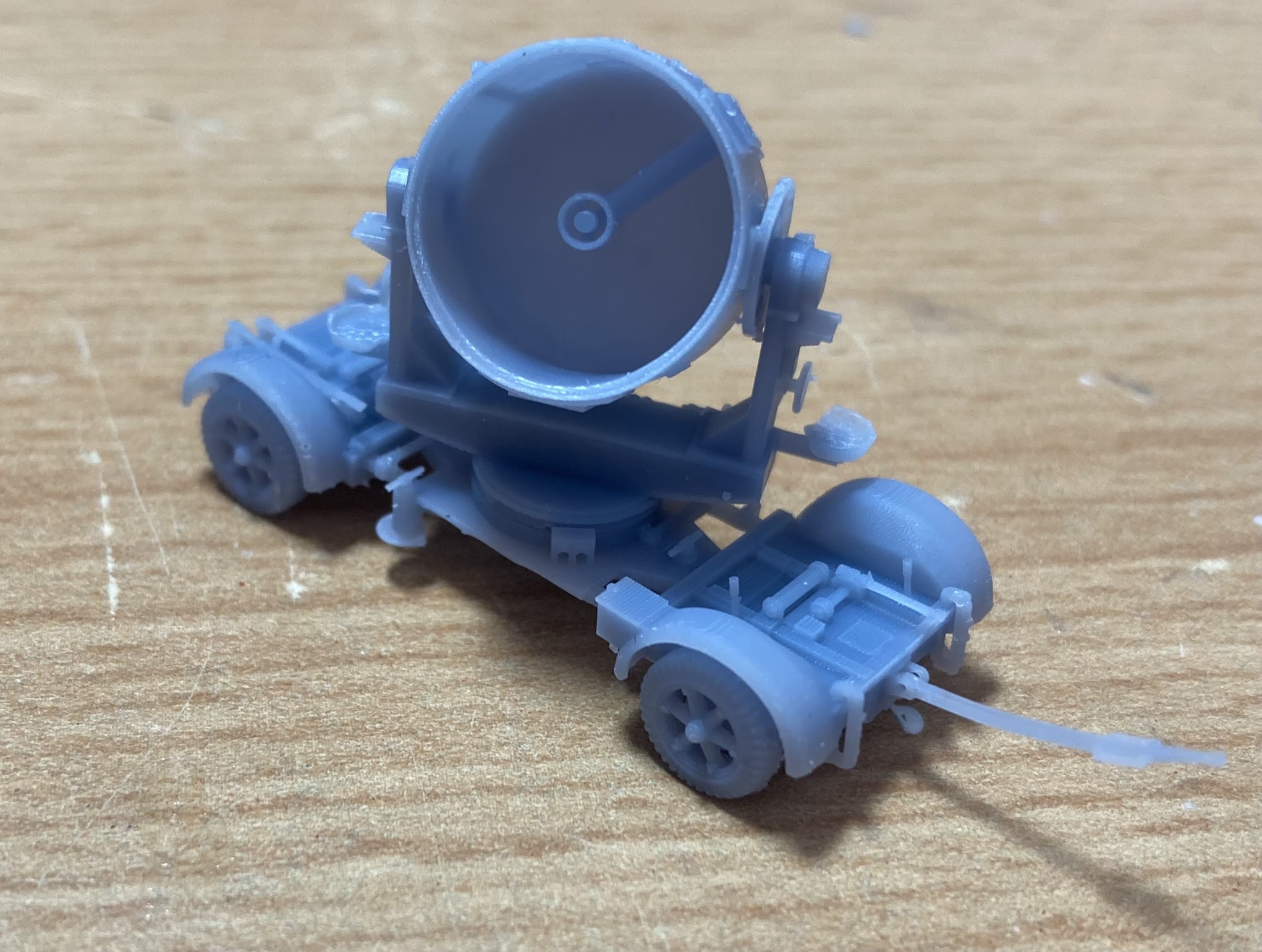

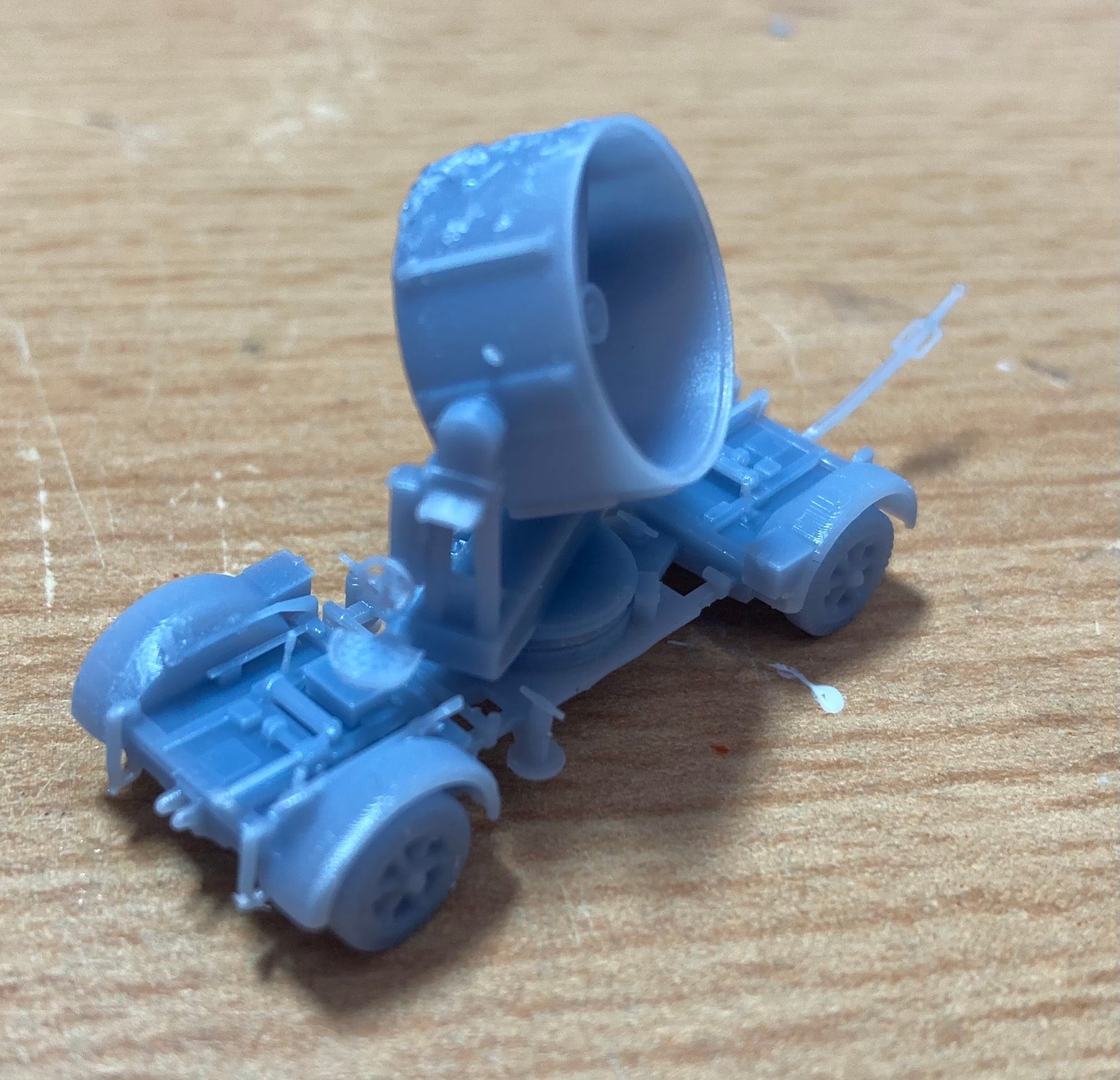

Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.

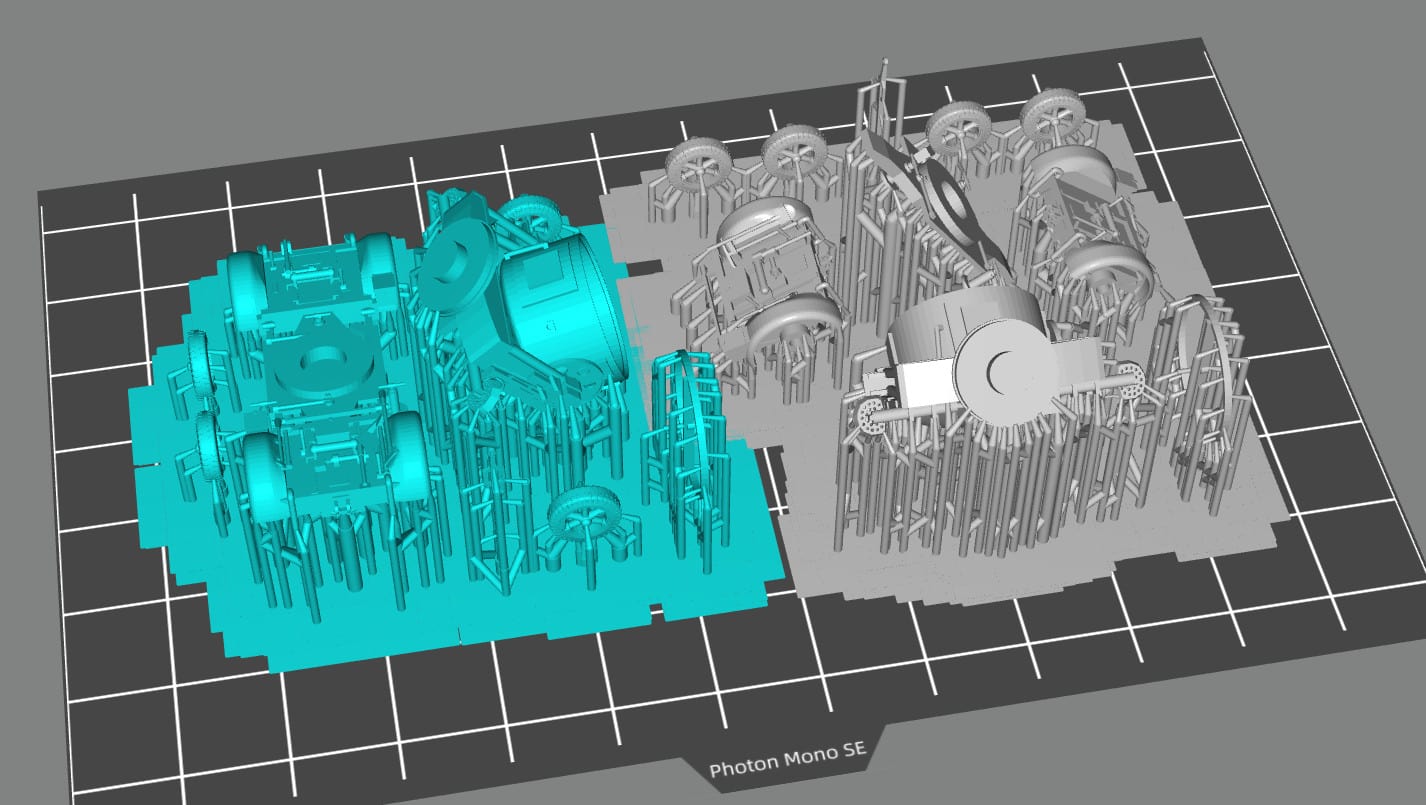

Included 2 STL's fully supported version (36 Degrees elevation) both attached and detached trailer. These worked fine on my printer, no guarantees the files will print good on your own printer, I usually use a bit too much support for some people. But feel free to use the files.
This model is part of a set including the 24 kW Generator and the FMG 39 / FuSE 62 Wurzberg Radar.
The Searchlight was used to "catch" allied airplanes to make it much more easy for the FLAK crews the fire on the Bombers.
The Searchlight can be placed on the trailer or or in a static setup with the trailer detached and can be attached to a 24 kW Generator by a 200 meter long cable.
Copyright Allan Smit 2022
Non Commercial and personal use only
The model is resin print only.
It includes a few different options.
- Searchlight with the trailer attached.
- Searchlight with the trailer detached.
- The front-trailer has the option to be printed with or without the tools (Shovel, axe, etc)
- Searchlight in 3 different elevations (0, 45 and 60 degrees)
Be aware that the models is a bit delicate, so I would propose the place the model on a base to prevent damage to your model during game play. The trailer part have been closed, as original the model has an open trailer with beams and tubes, but in 1/100 that would be impossible to print for war-gaming.
The searchlight is in 2 parts, rear-part and the front-part which is to hold the glass. The idea is you can attach a thin plastic sheet to the back of front-part with some clear glue. (Or something like Micro Kristal Klear)
Cut the plastic sheet carefully along the edge and glue it on the rear-part of the searchlight. It should fit, but if needed scale down the front-part by 5% to make a more easy fit.
And if you really want to go overboard and have the skills, include a small micro-LED in the searchlight.
Test-printed the model on a Anycubic Mono SE, 0.05mm Layer using Anycubic Basic resin mixed with 15% Anycubic tough resin.
Included 2 STL's fully supported version (36 Degrees elevation) both attached and detached trailer. These worked fine on my printer, no guarantees the files will print good on your own printer, I usually use a bit too much support for some people. But feel free to use the files.
| Filename | Size | Last updated |
|---|---|---|
| 150cm-searchlight-german.zip | 37.8 MiB | 2024-02-28 |
