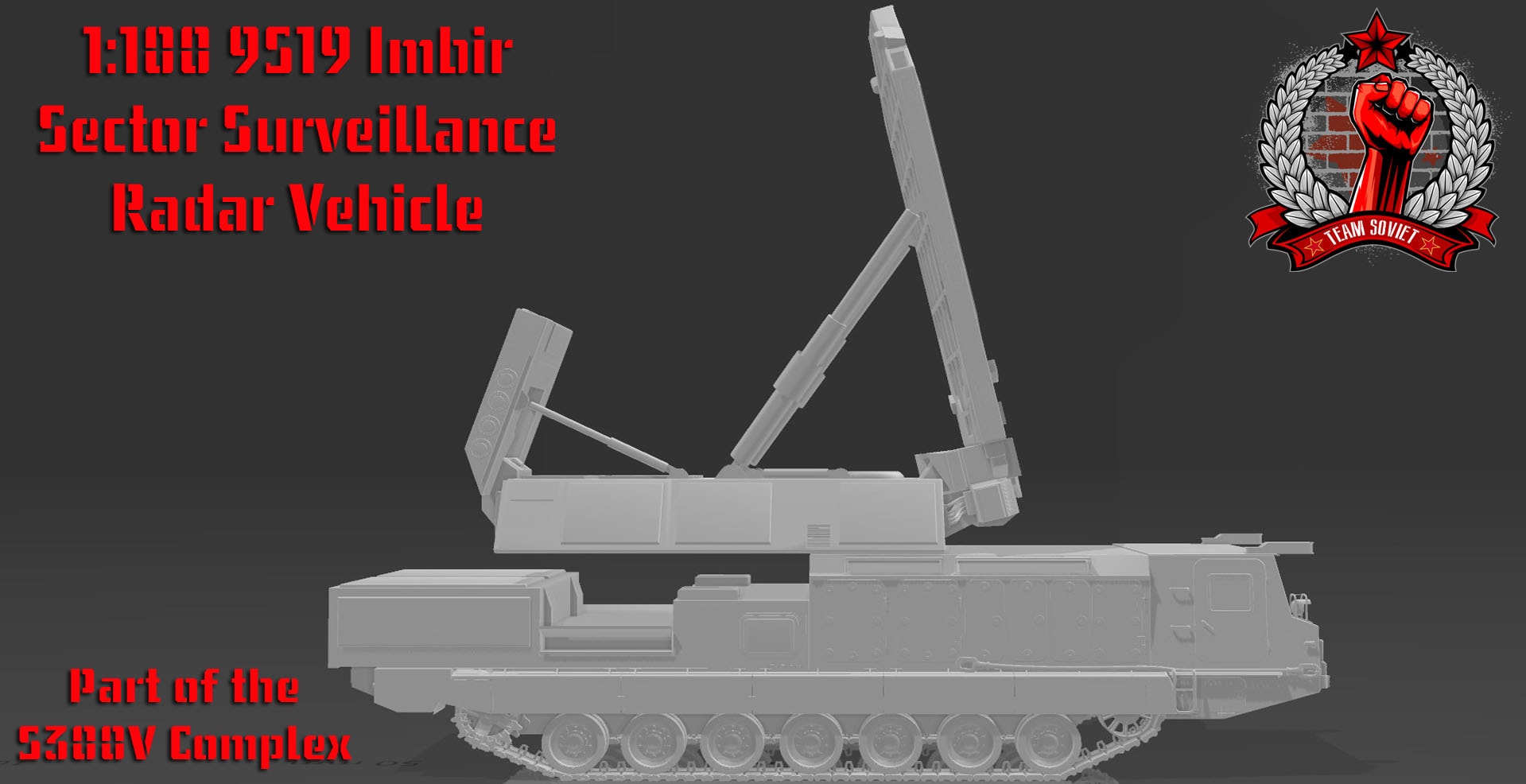

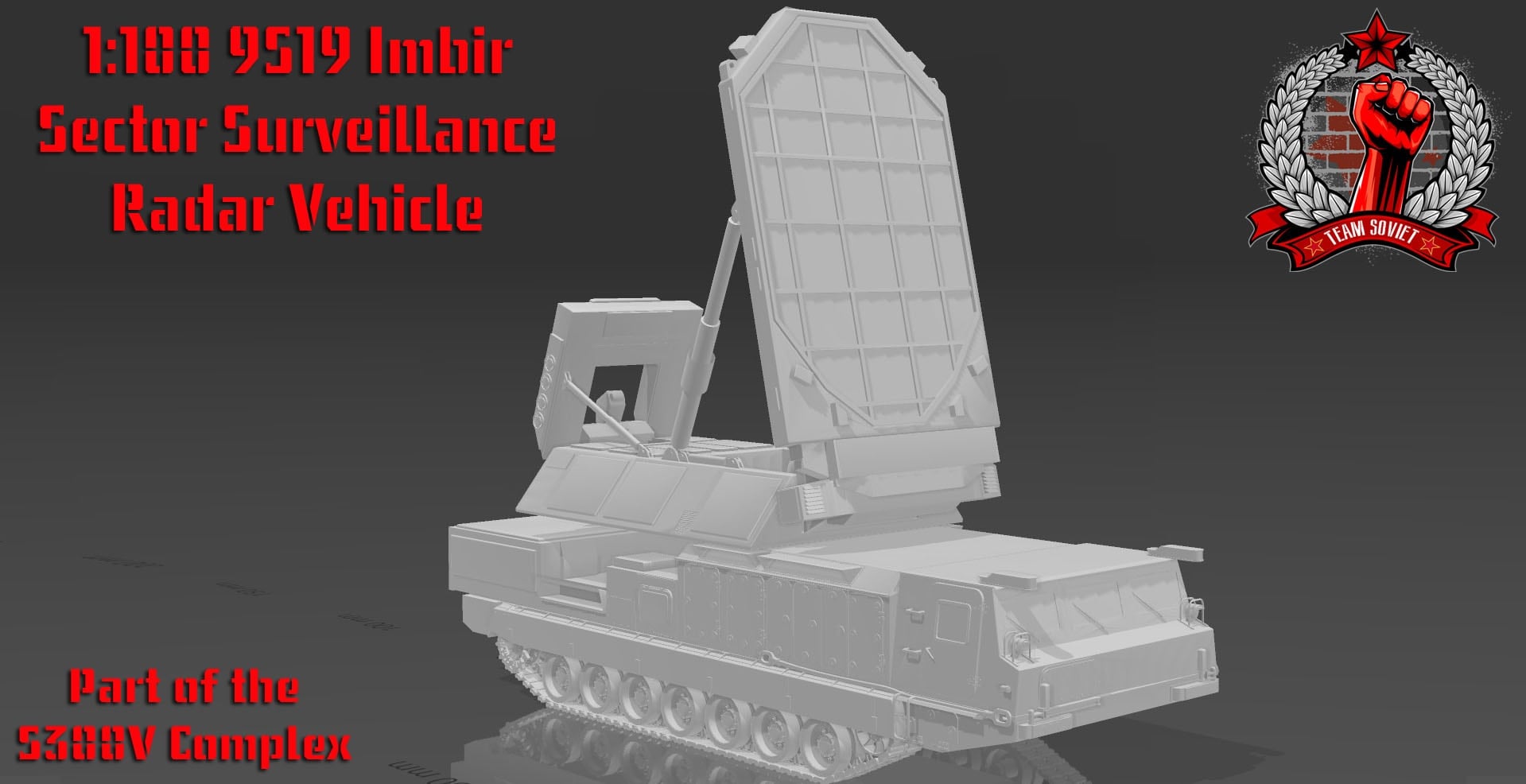

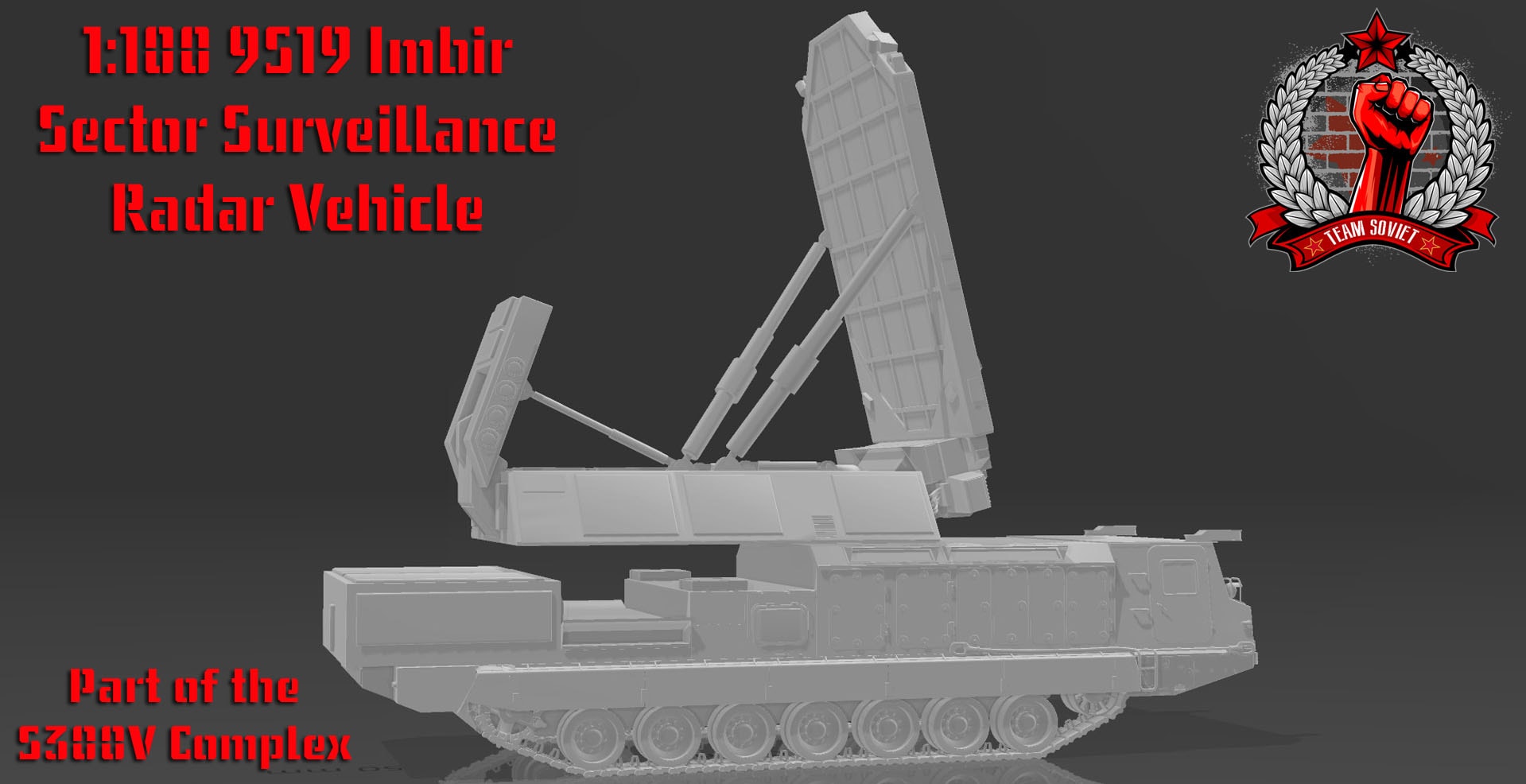

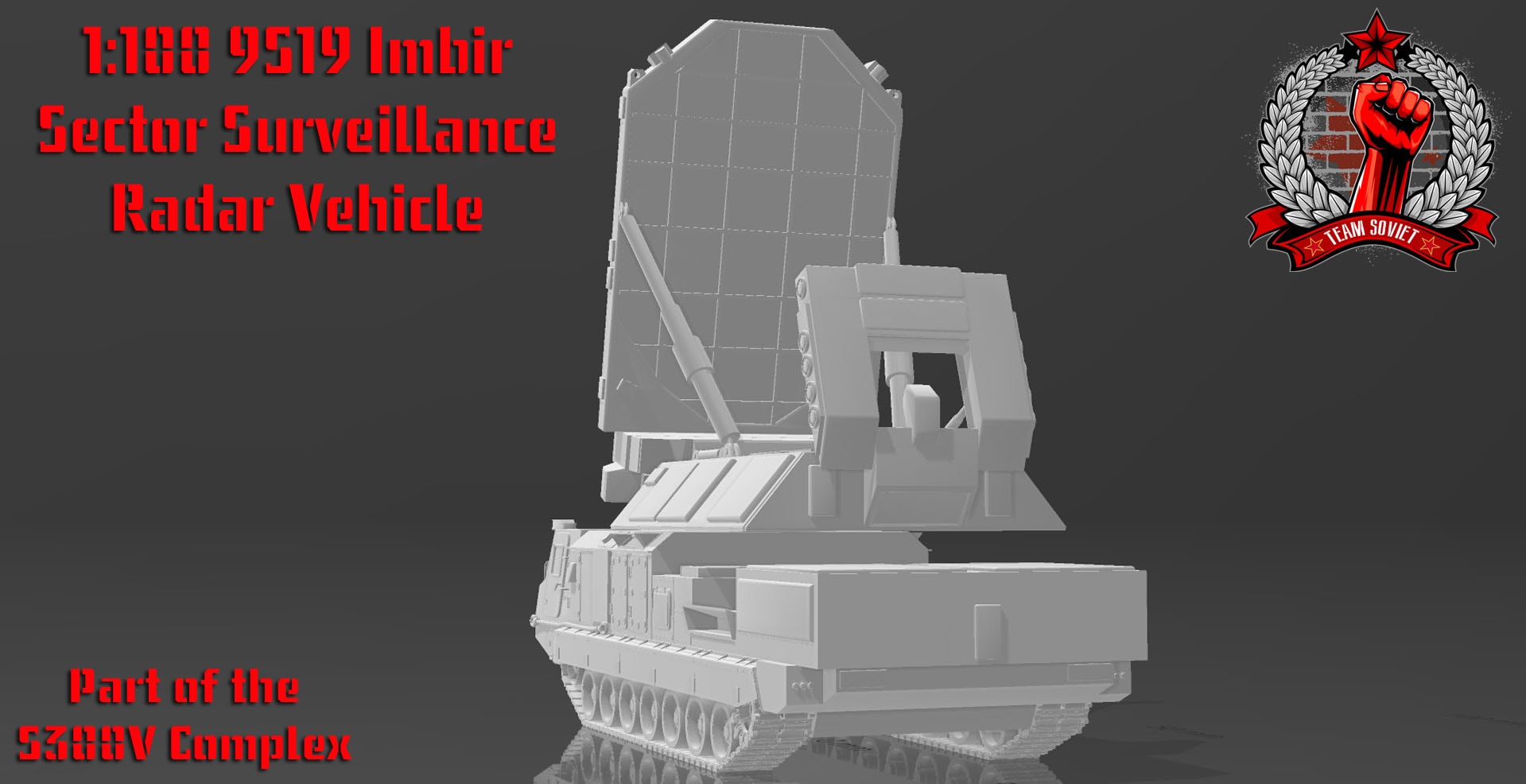

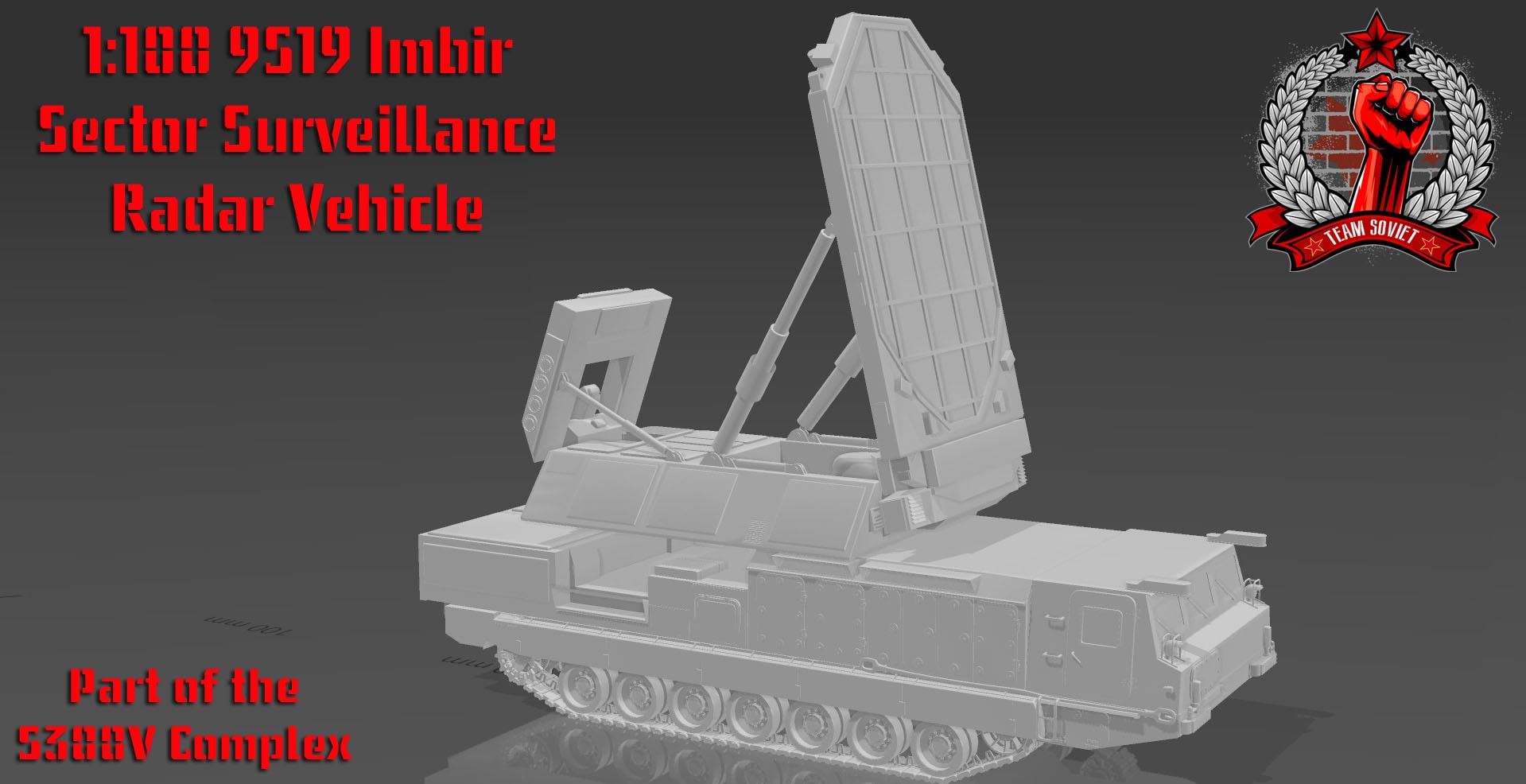

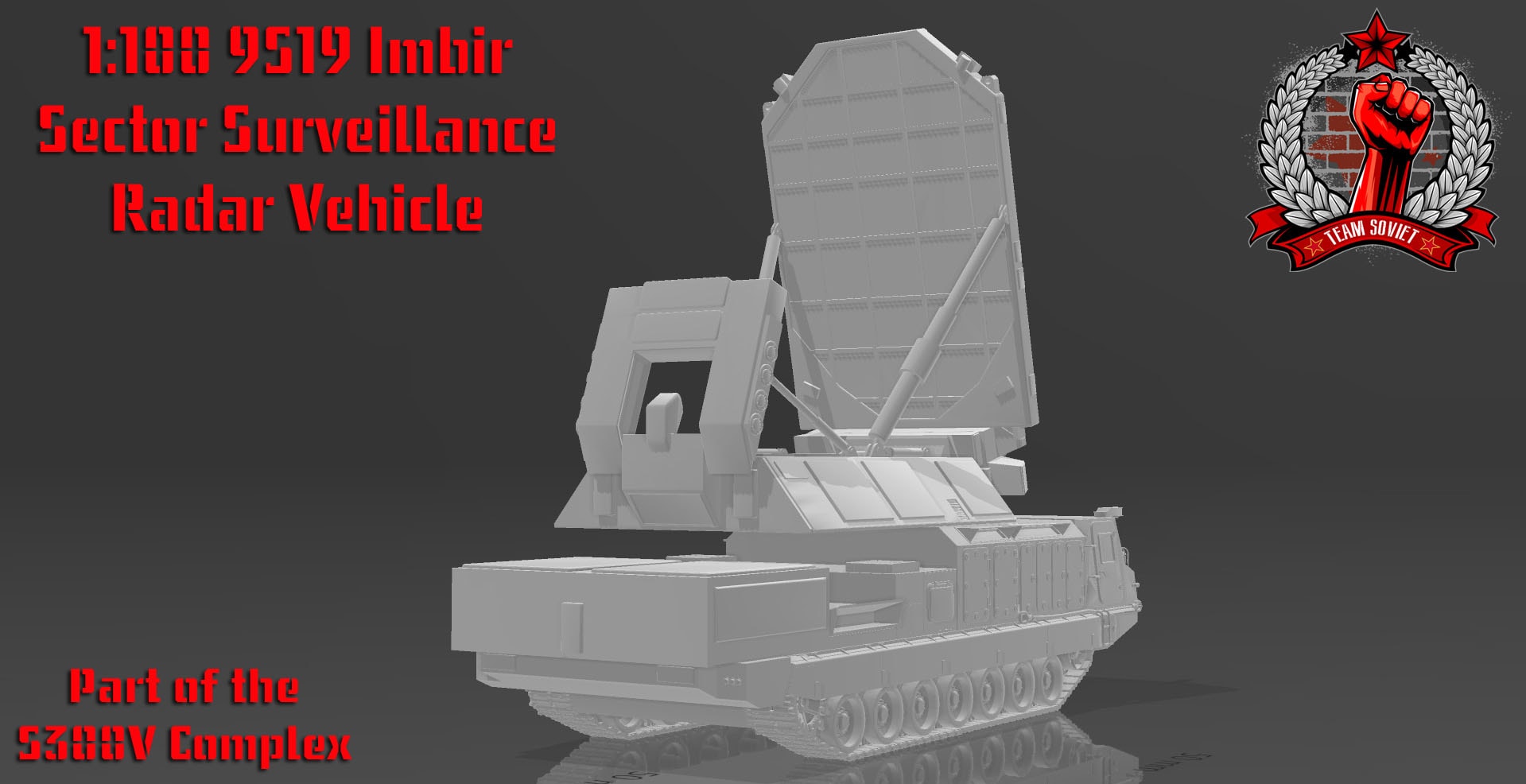

1:100 9S19 Imbir "High Screen" Sector Surveillance Radar Vehicle

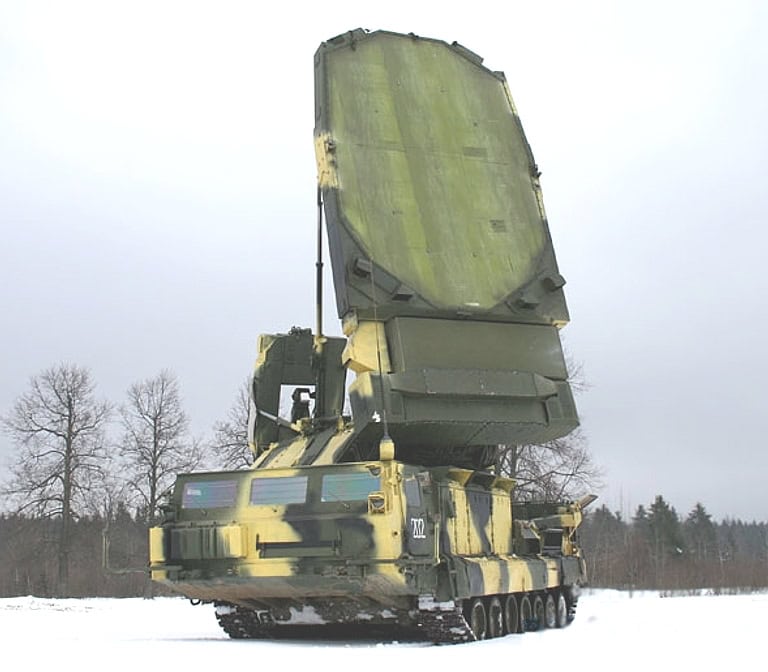

The 9S19 Imbir is an X-band, air surveillance and target acquisition radar mounted on a tracked chassis and associated with the Russian S-300V ground-based air defense system family.
The 9S19M4 Imbir-M4 radar has a maximum detection range of 220 kilometers against tactical ballistic missiles such as the American ATACMS. The early versions of the Imbir radar had an instrumental detection range of 175 kilometers. The Imbir-M4 can track bigger ballistic missiles at distances of 300-400 kilometers. The system, ‘High Screen’ NATO designation, was designed and introduced in the late 1980s by the former Soviet Union along with the early version of the S-300V air defense systems.
Printing Destructions:
IMPORTANT: DO NOT ALLOW PROGRAMS LIKE WINDOWS NATIVE 3D BUILDER TO REPAIR THE MODEL OR YOU WILL GET ERRORS THAT MAY OR MAY NOT ALLOW THE MODEL TO PRINT CORRECTLY

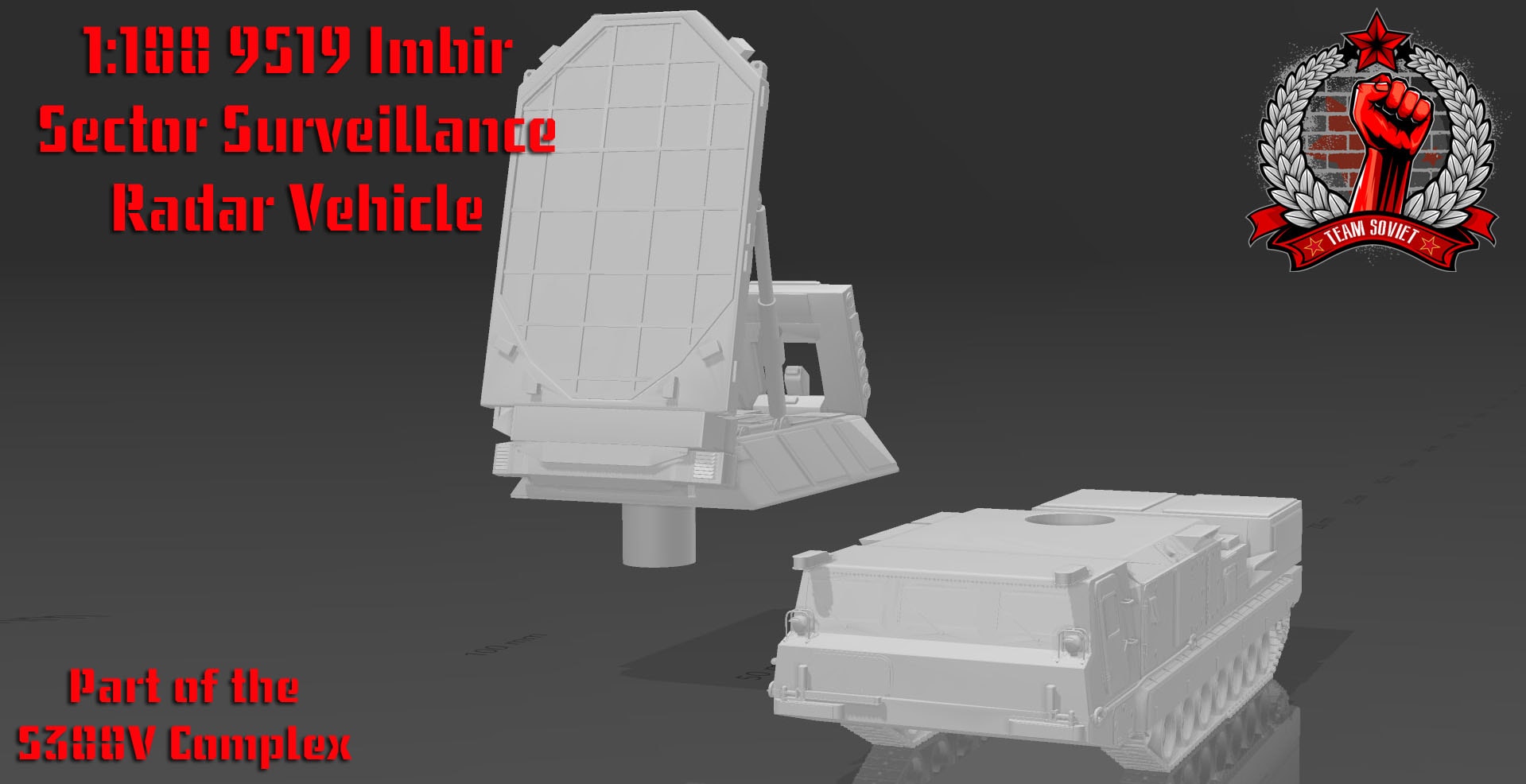

I have not broken this model up at all and it will fit on the old school Elegoo Mars printers just fine if you print it vertically. I prefer to print these on my Peopoly so not only can I print them in 1 piece I can print 12 at a time. It does come with the radar and chassis separate though for those that like to point things at other things ( shrug lol ).
Aside from that, on printers like Elegoo Mars and Anycubic Photon, if you rotate the model 90 degrees with the end down, just add your supports and print away. The weapons are modeled onto the aircraft and once I get my camera situation sorted out I’ll post pics, prints just fine
For resin I prefer to use Siraya Tech Simple Clear mixed with Tenacious. I use 75-80 Simple to 20-25% Tenacious. This has not given me any problems since I started this mix and the only time I get failures now is when I am experimenting with things or forget to do my supports right.
The 9S19M4 Imbir-M4 radar has a maximum detection range of 220 kilometers against tactical ballistic missiles such as the American ATACMS. The early versions of the Imbir radar had an instrumental detection range of 175 kilometers. The Imbir-M4 can track bigger ballistic missiles at distances of 300-400 kilometers. The system, ‘High Screen’ NATO designation, was designed and introduced in the late 1980s by the former Soviet Union along with the early version of the S-300V air defense systems.
Printing Destructions:
IMPORTANT: DO NOT ALLOW PROGRAMS LIKE WINDOWS NATIVE 3D BUILDER TO REPAIR THE MODEL OR YOU WILL GET ERRORS THAT MAY OR MAY NOT ALLOW THE MODEL TO PRINT CORRECTLY
I have not broken this model up at all and it will fit on the old school Elegoo Mars printers just fine if you print it vertically. I prefer to print these on my Peopoly so not only can I print them in 1 piece I can print 12 at a time. It does come with the radar and chassis separate though for those that like to point things at other things ( shrug lol ).
Aside from that, on printers like Elegoo Mars and Anycubic Photon, if you rotate the model 90 degrees with the end down, just add your supports and print away. The weapons are modeled onto the aircraft and once I get my camera situation sorted out I’ll post pics, prints just fine
For resin I prefer to use Siraya Tech Simple Clear mixed with Tenacious. I use 75-80 Simple to 20-25% Tenacious. This has not given me any problems since I started this mix and the only time I get failures now is when I am experimenting with things or forget to do my supports right.
| Filename | Size | Last updated |
|---|---|---|
| IHWS_9S19_Imbir_Sector_Surveillance_Radar_1-100.zip | 6.8 MiB | 2024-07-31 |
