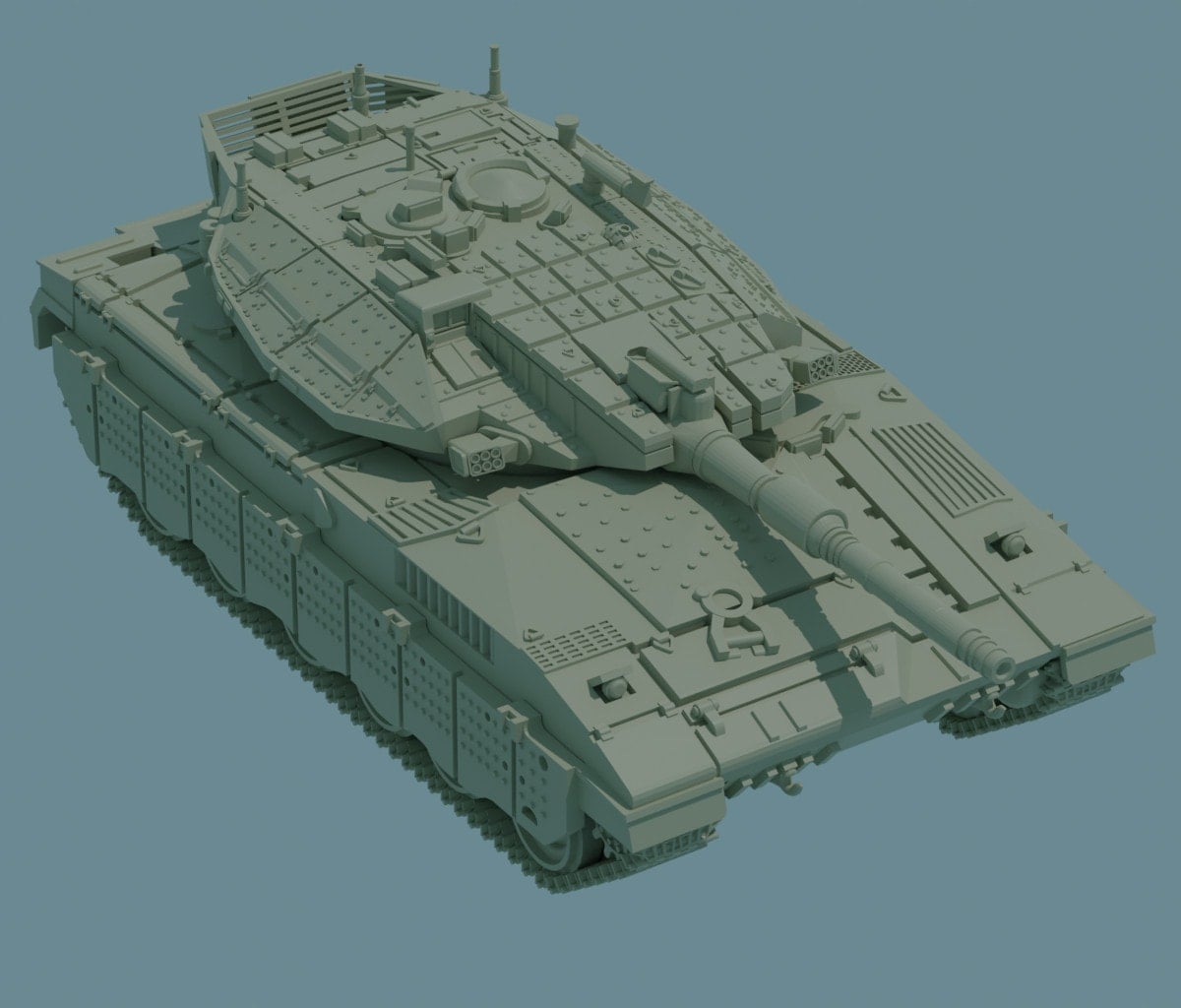

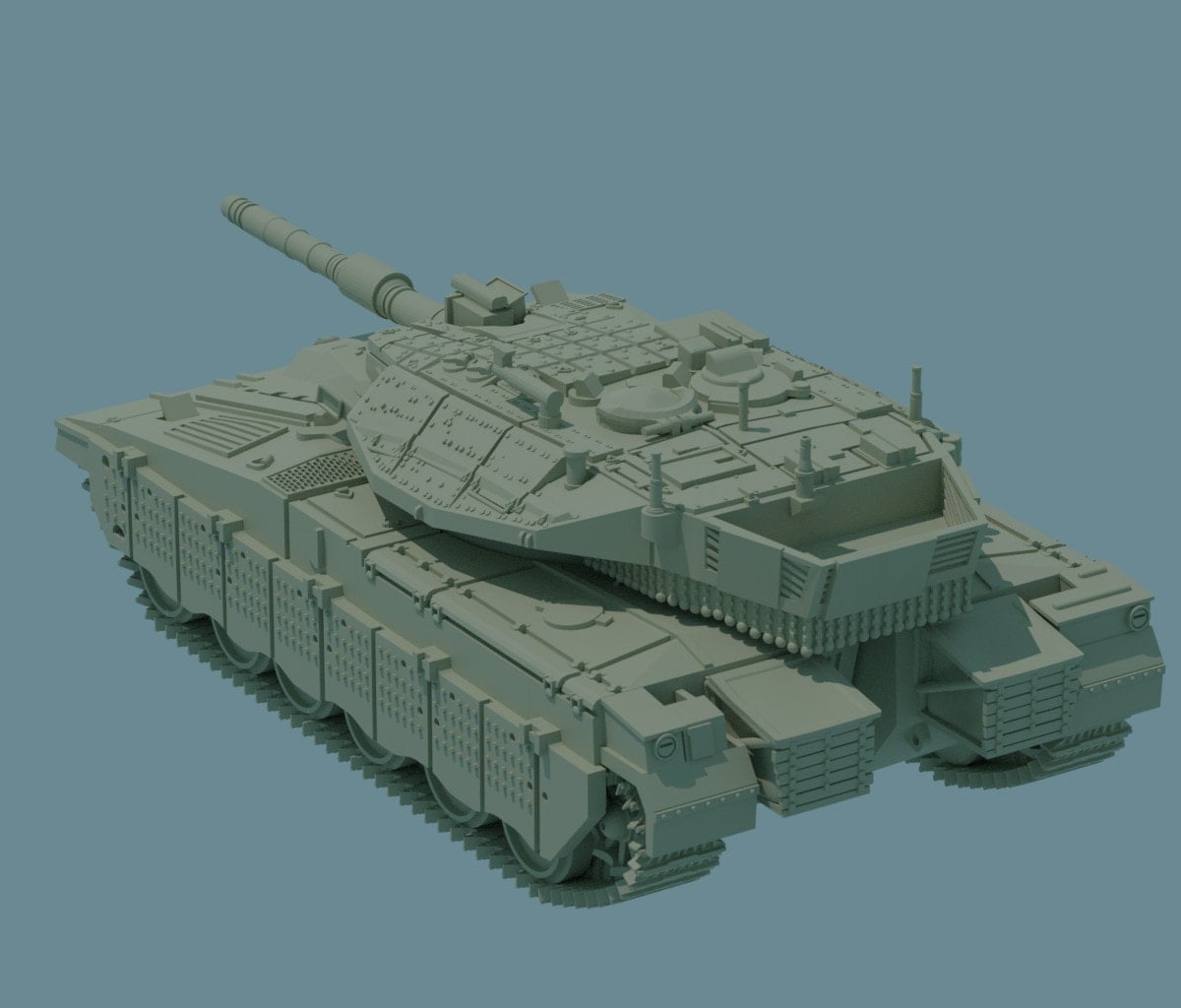

The Merkava is a family of Main Battle Tanks built for the Israel Defense Force since 1978 and has seen extensive use in the Levant. The Mark 3D is an upgrade from the Mark 2 that adds an entirely new turret, fire control system, 120mm gun (upgraded from 105mm) additional hull armour, and a redesigned rear door. The “D” variant denotes the use of replaceable applique armour panels on the turret to add extra protection.
This model features thorough hollowing, drain holes, and careful support placement to ensure optimal print quality. Thought has been put into making the components easy to paint, and detail is deeply recessed and exaggerated to avoid being drowned in thick paint.
Included in this download are all the files you will need to print the Mark 3D, along with some machineguns for the crew.
Files come in supported and unsupported formats.
These models are optimised for detail at 1/100 or 15mm scale on a resin printer, but they should scale up well too.
Printed dimensions of hull (excl. skirts and fenders):
L 70 W 40 H 18 mm
Printer settings used for display models:
Anycubic Photon Mono
Translucent Green Anycubic Resin
0.03mm layer height
1.4s exposure time
24s bottom exposure time
5 bottom layers
lift speed: 1mm/s
Photon Workshop V2.1.23.RC8
