Landing Craft Assault (LCA)
- Description
- Files

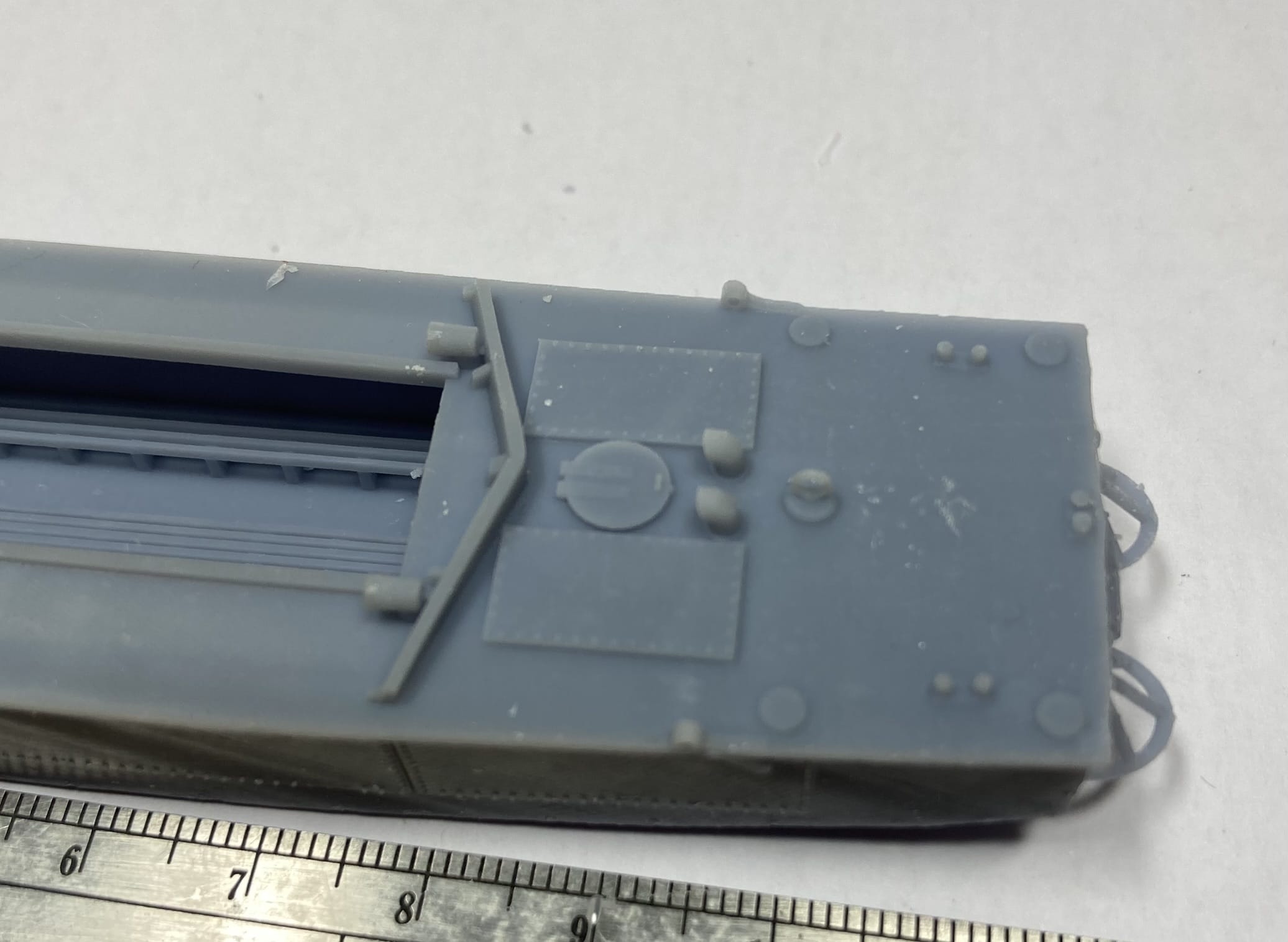

A landing craft used by the Royal Navy, Royal Canadian and Royal Indian Navy in WW2. Two different versions are included. Main difference are the hatches on the engine deck.
About 2000 have been build and 371 were lost.
The LCA can transport 36 troops or 360 kilogram cargo. It had a crew of 4. Armament one Bren light Machine gun or 2 Lewis guns, and later models also carried 2 x 2-inch mortars. Weapons are not included.
Version - 1
Version - 2

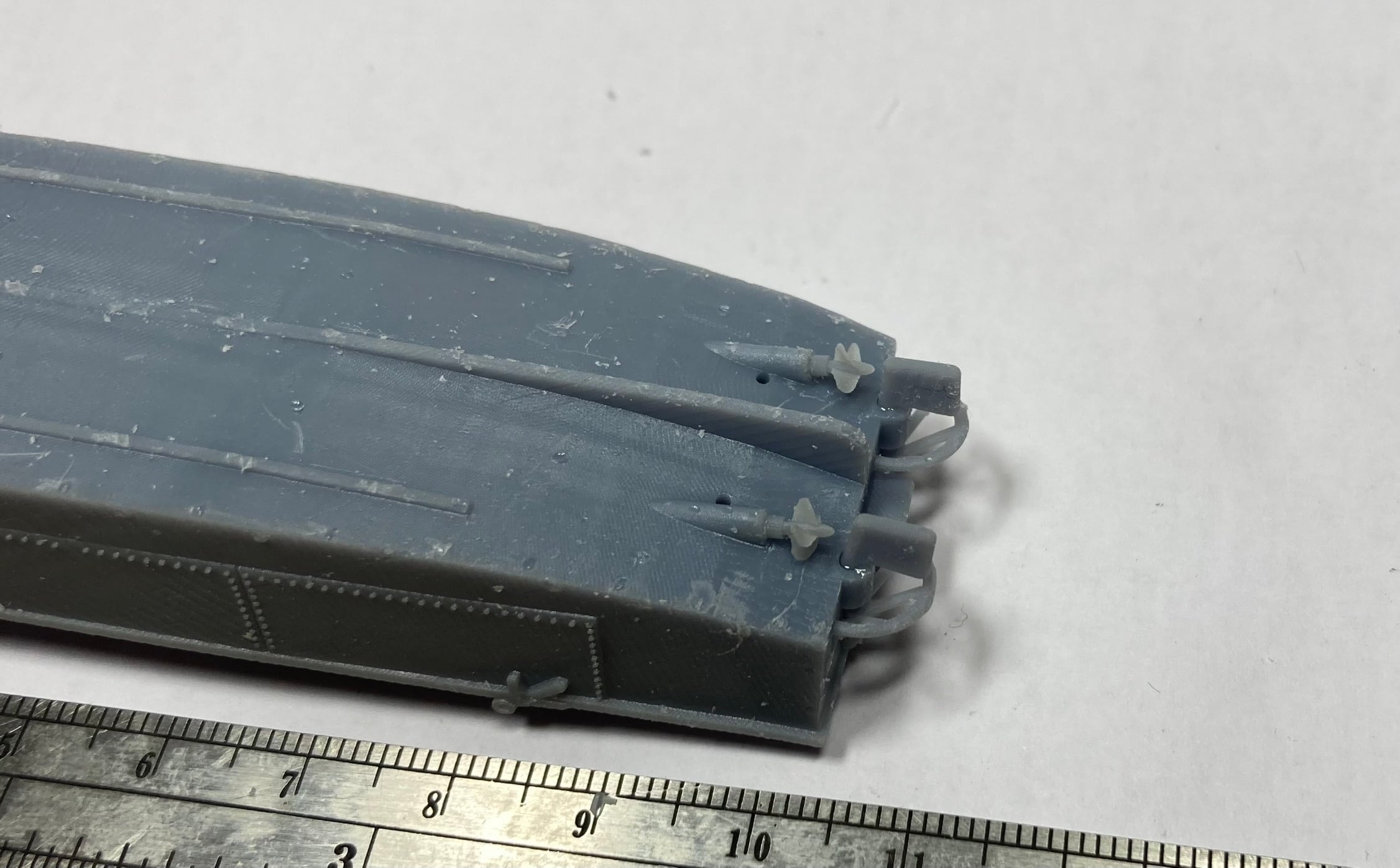

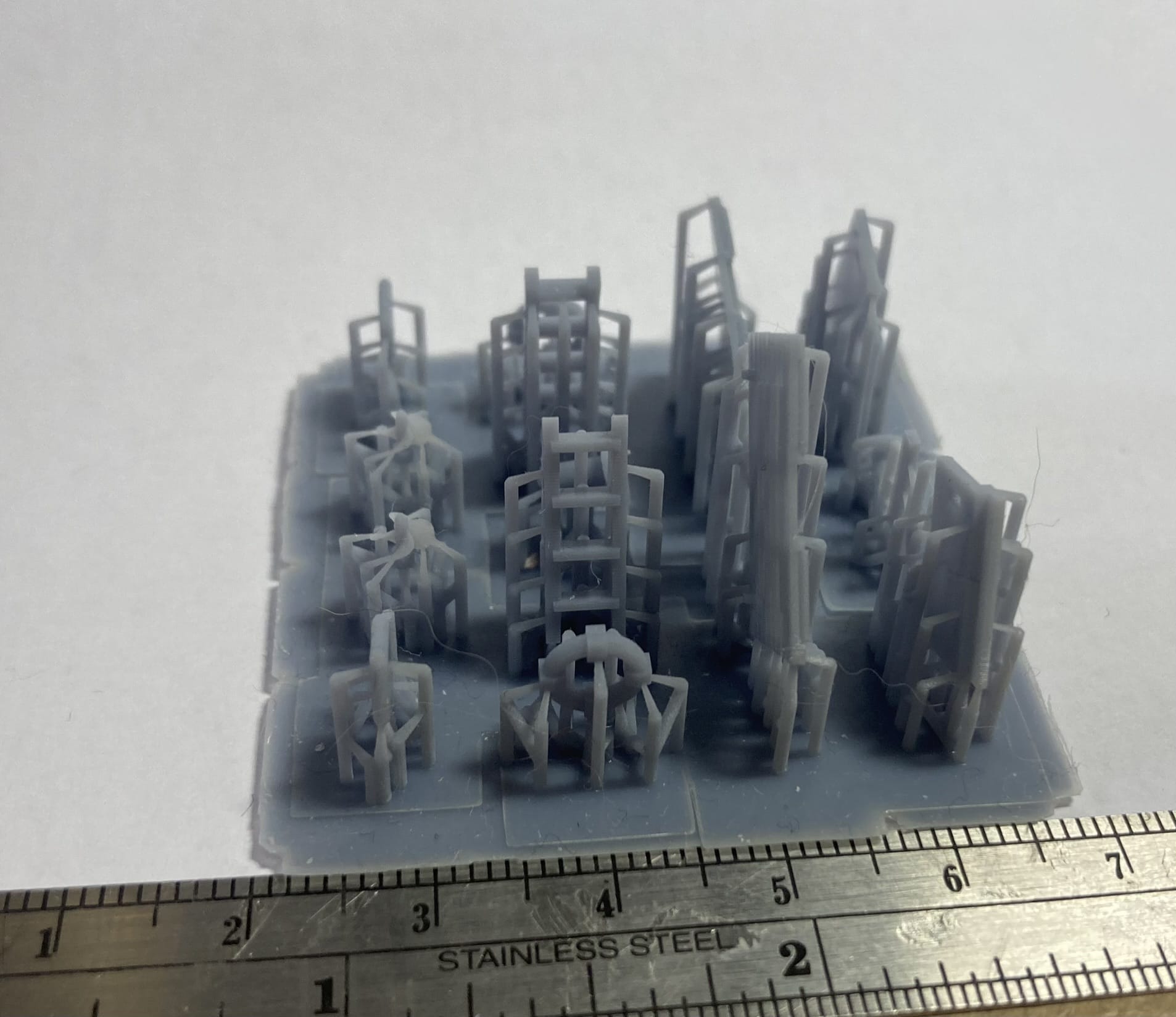

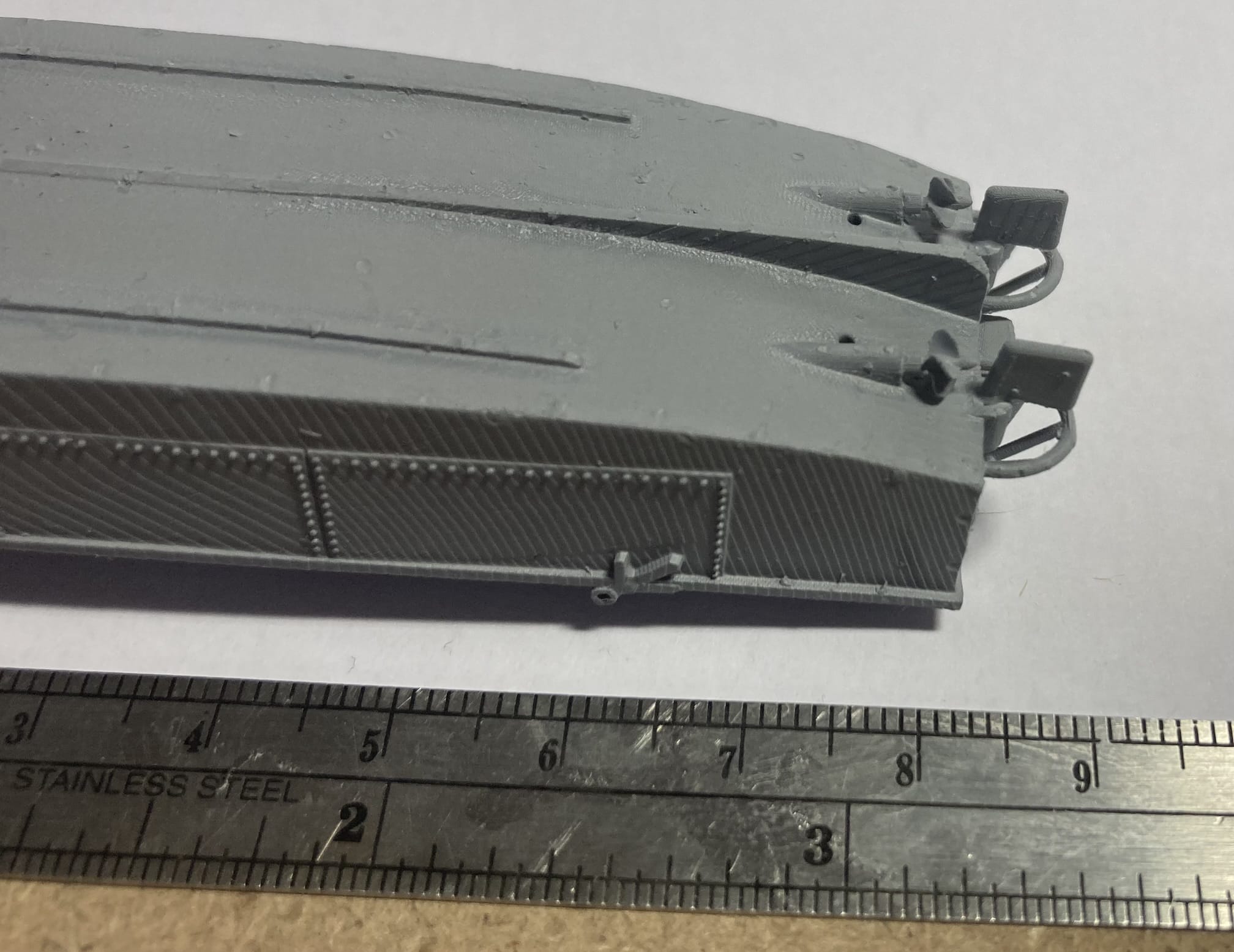

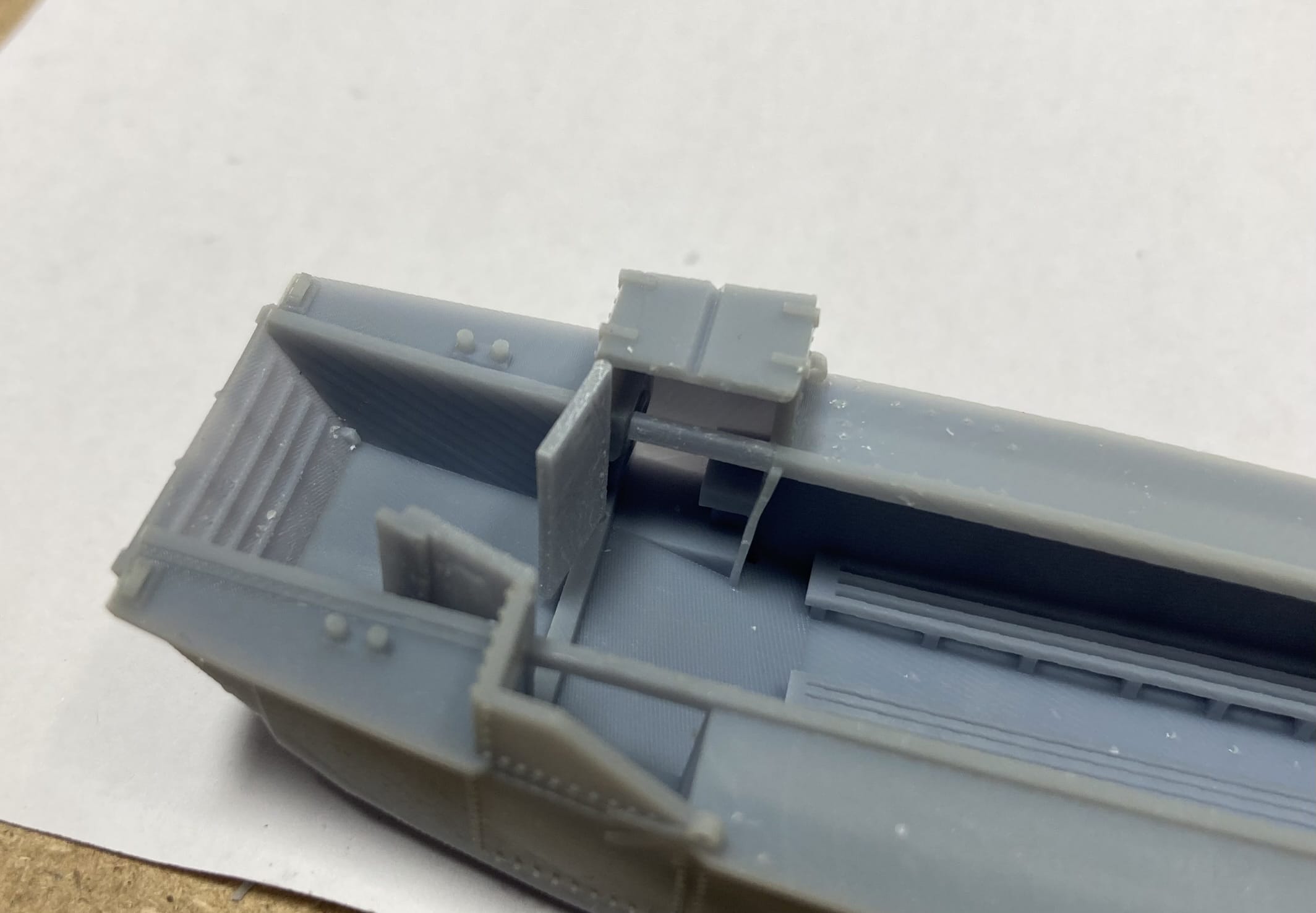

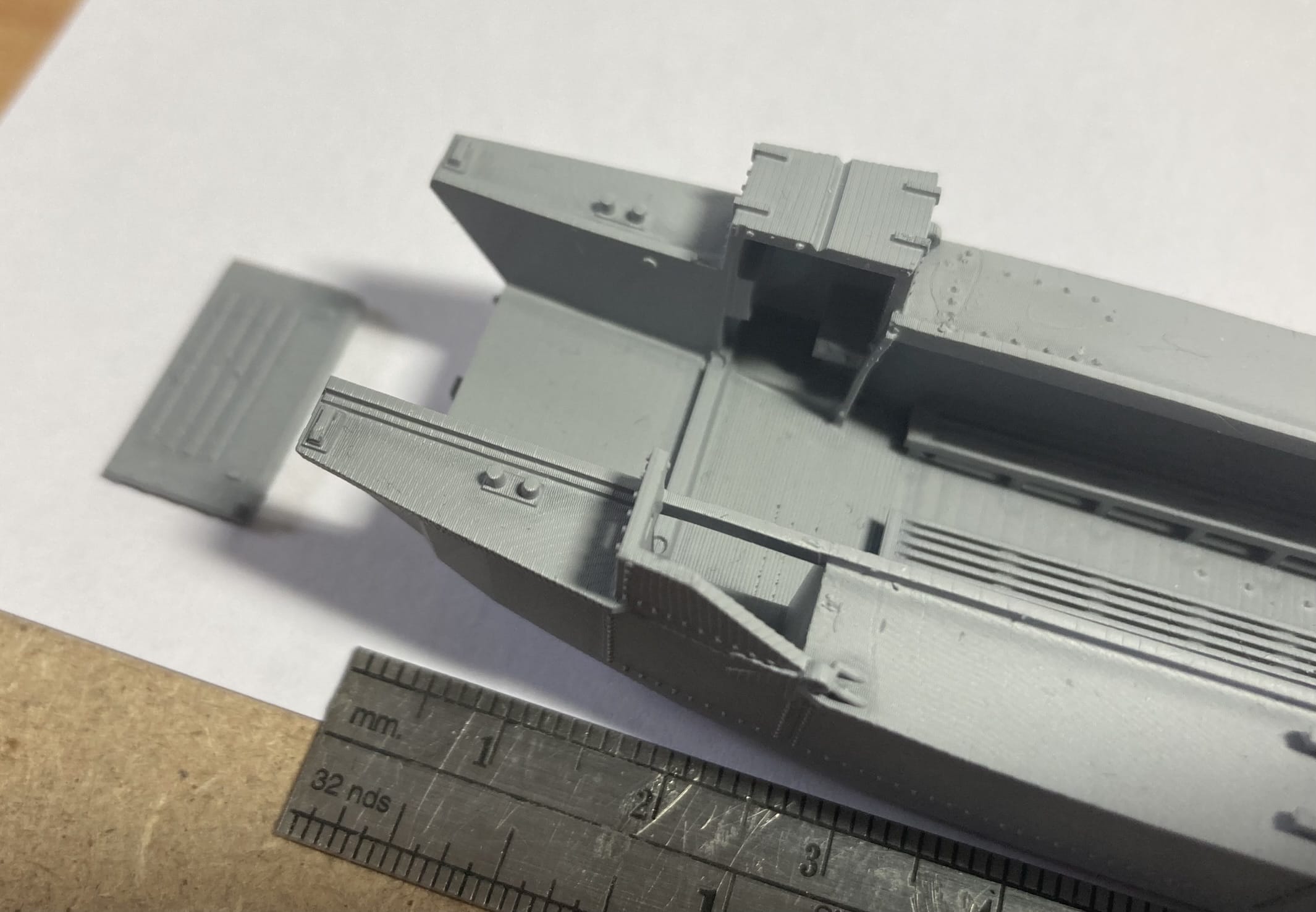

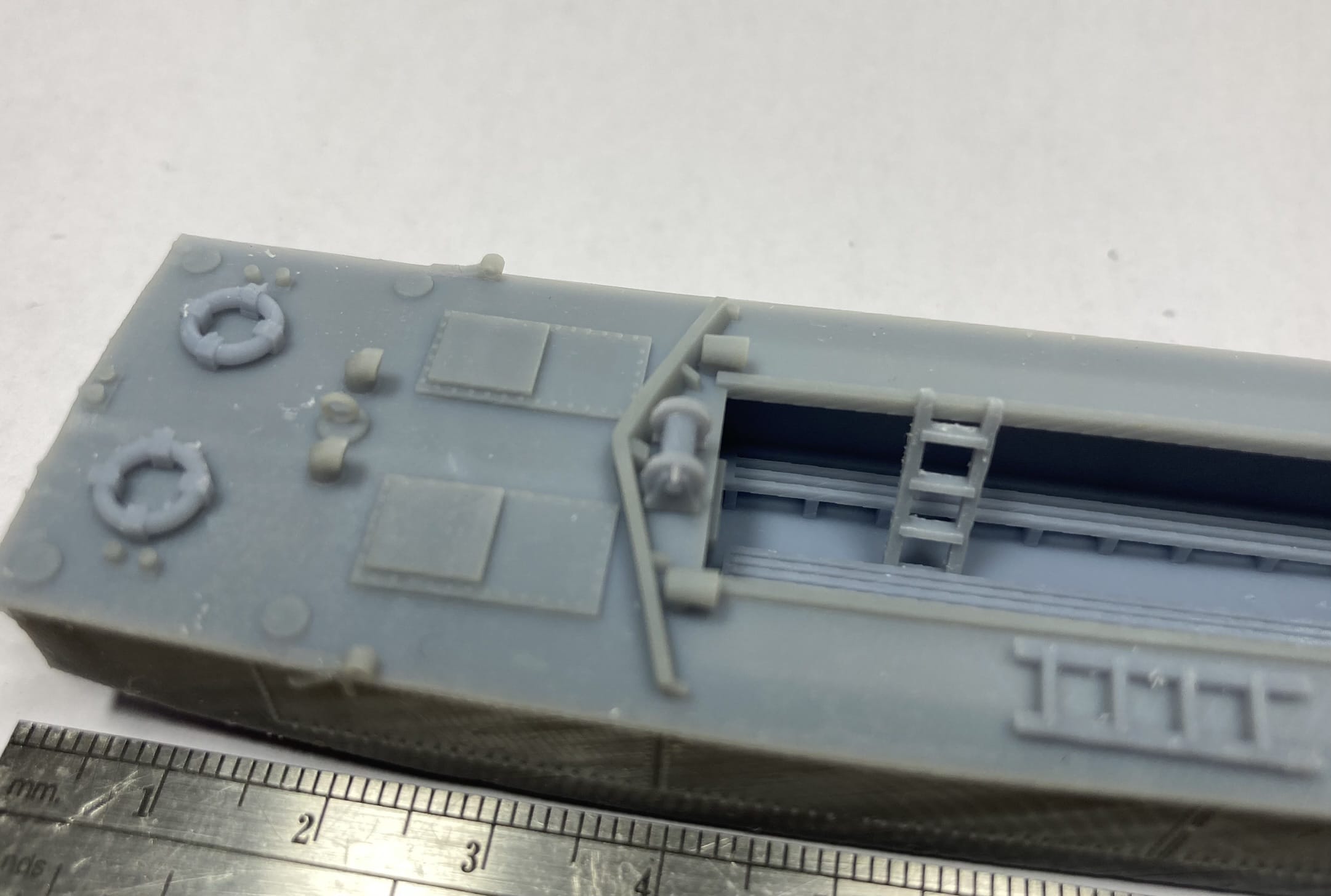

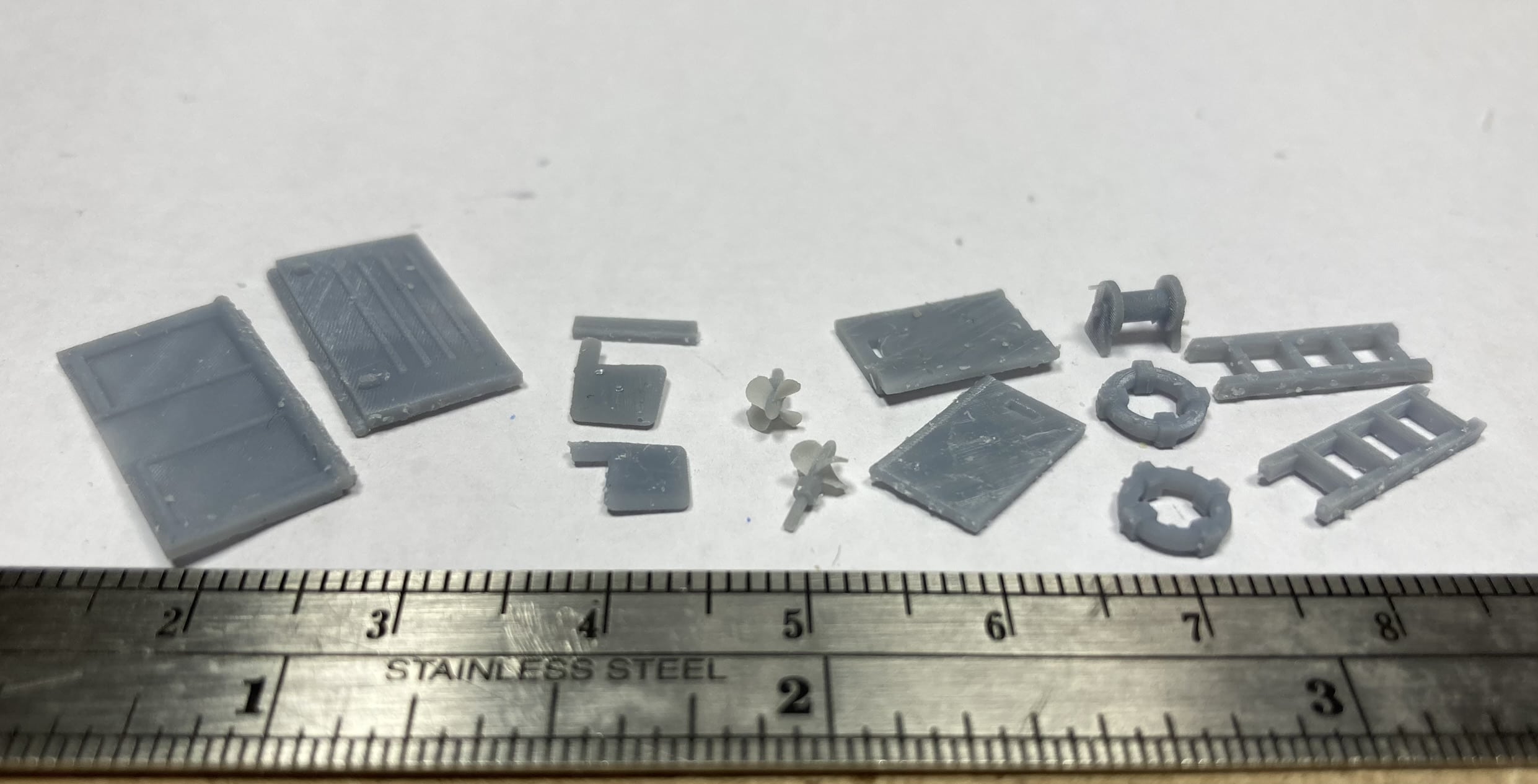

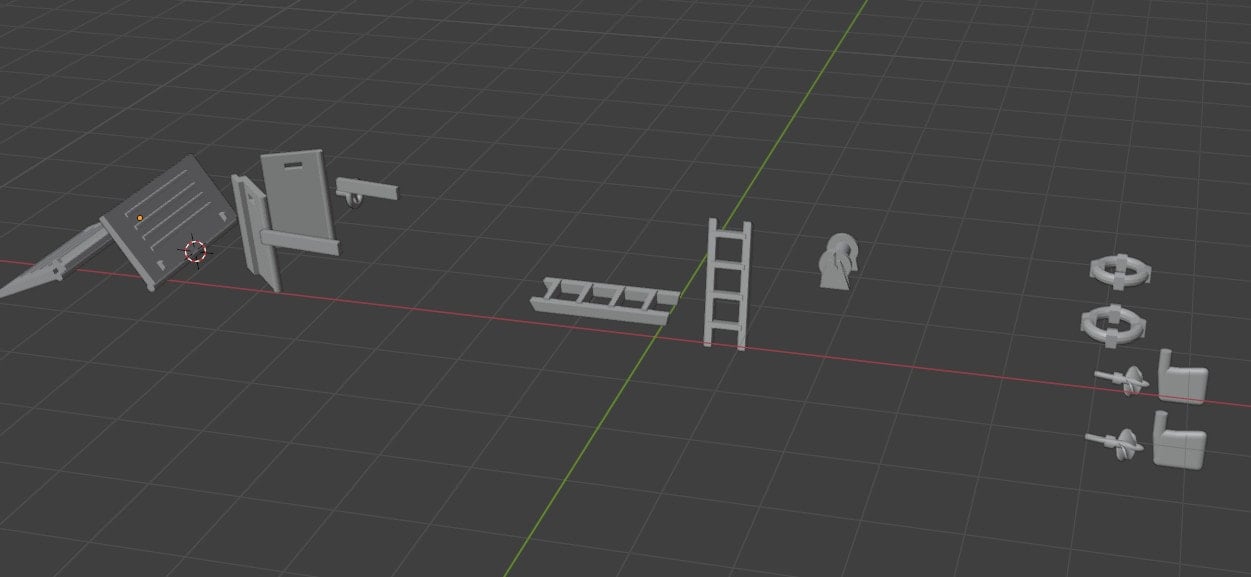

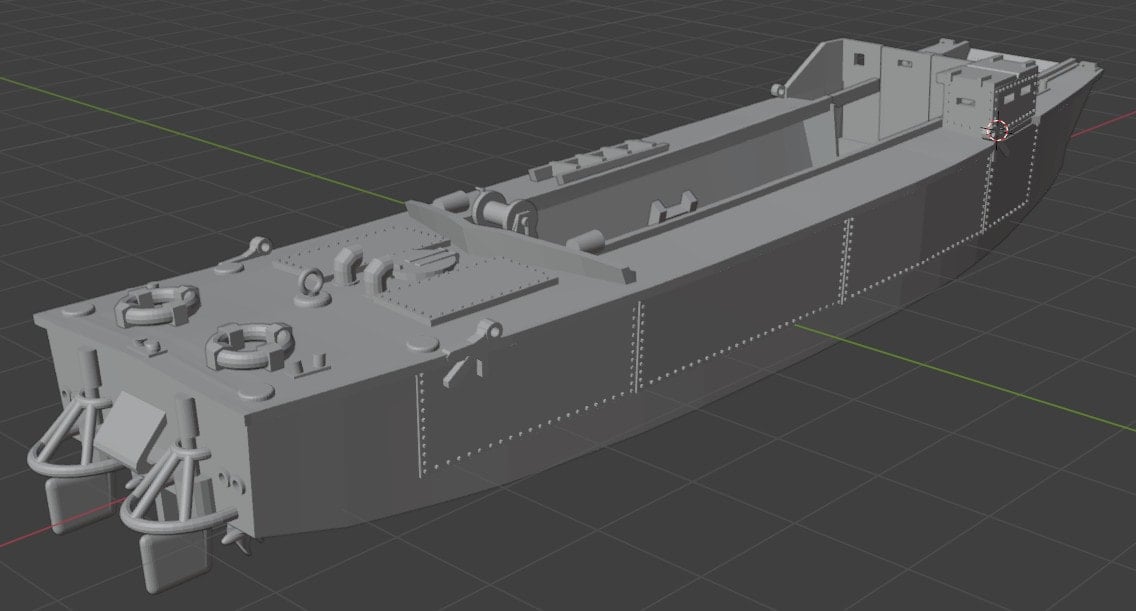

The model includes all the doors, ladders, winch, lifebuoy, screws and rudders. (Screws and rudders not needed for the wargaming waterline model)
Copyright Allan Smit 2024
Non Commercial and personal use only. May not be shared, uploaded or otherwise distributed.

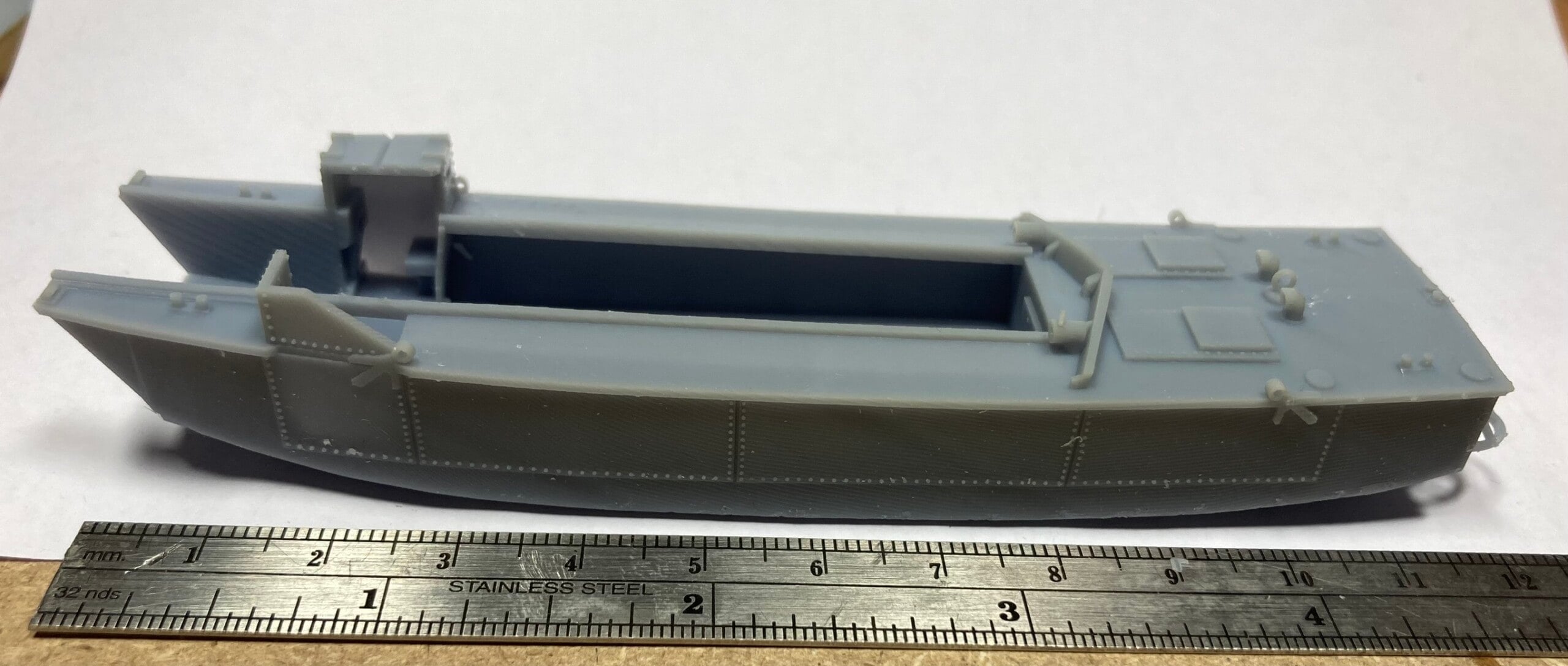

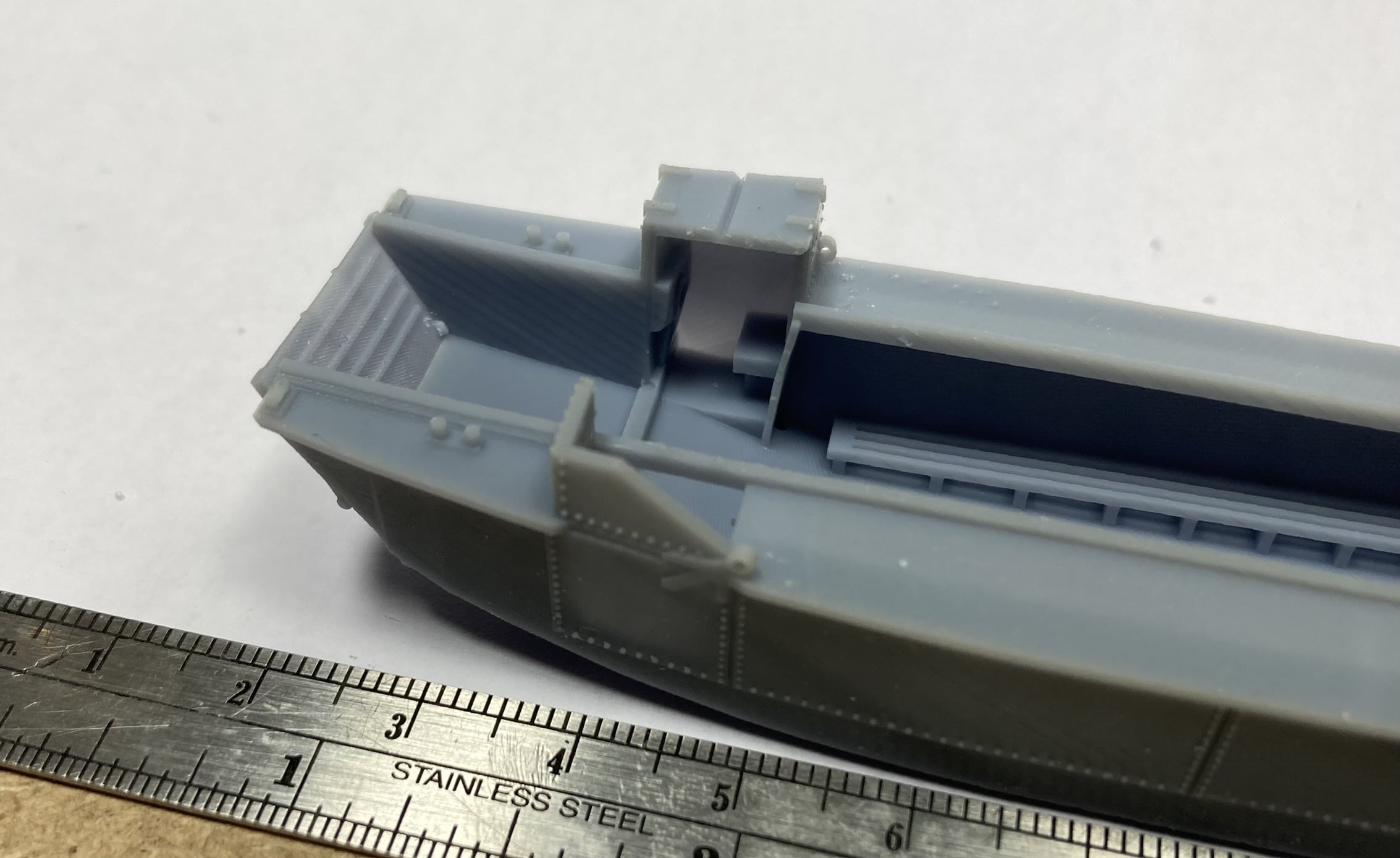

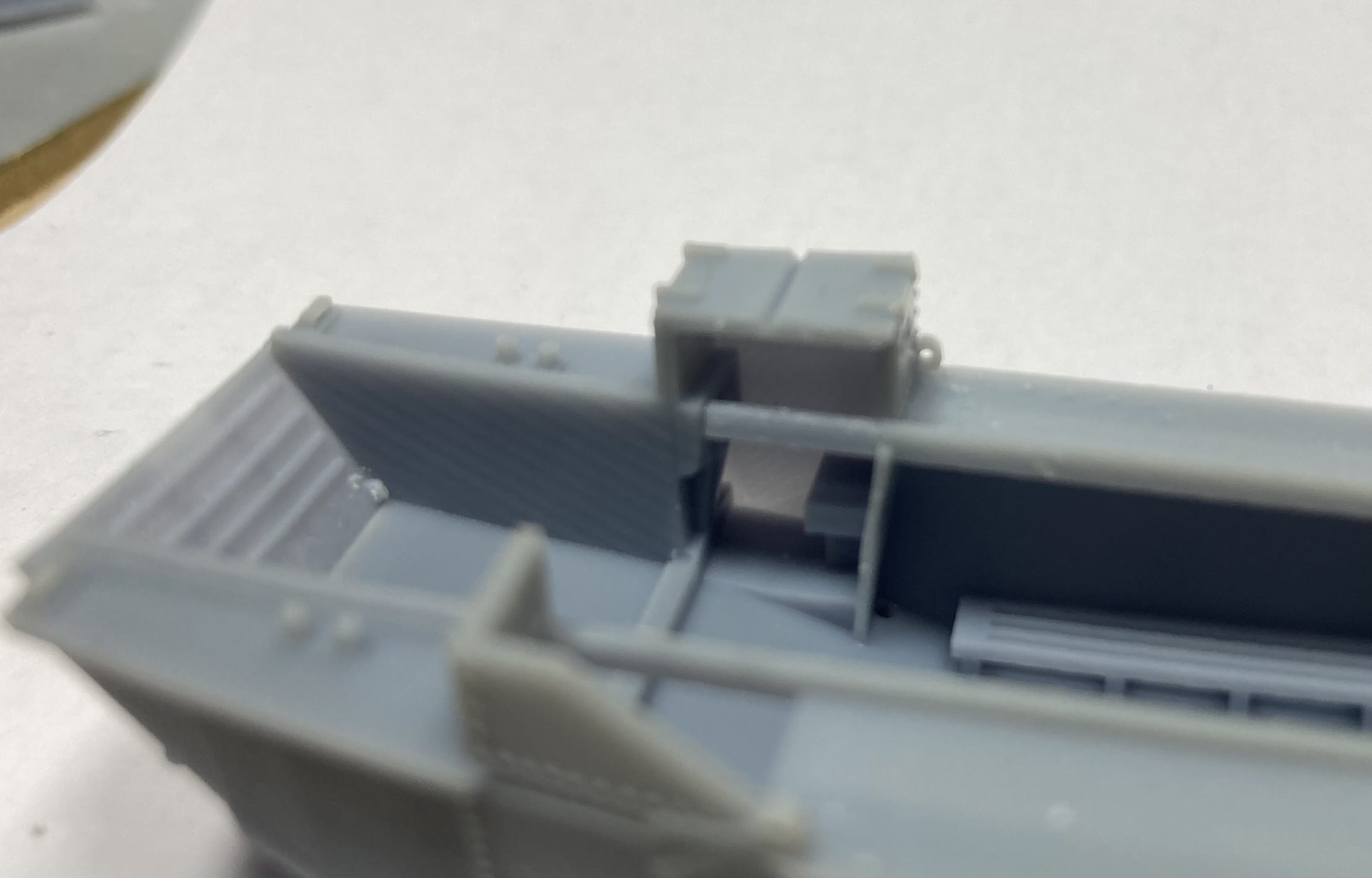

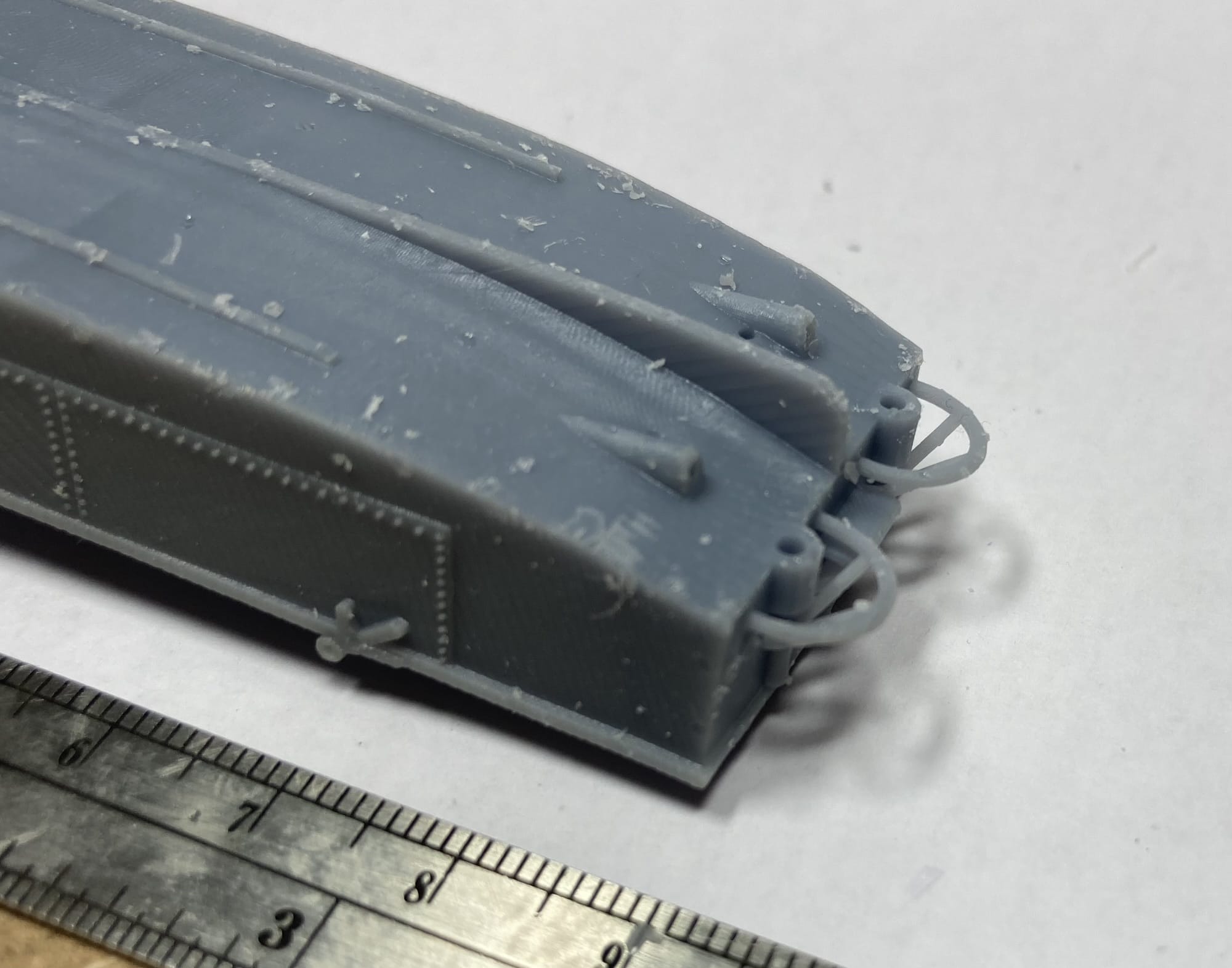

The 1/100 models are Resin print only.

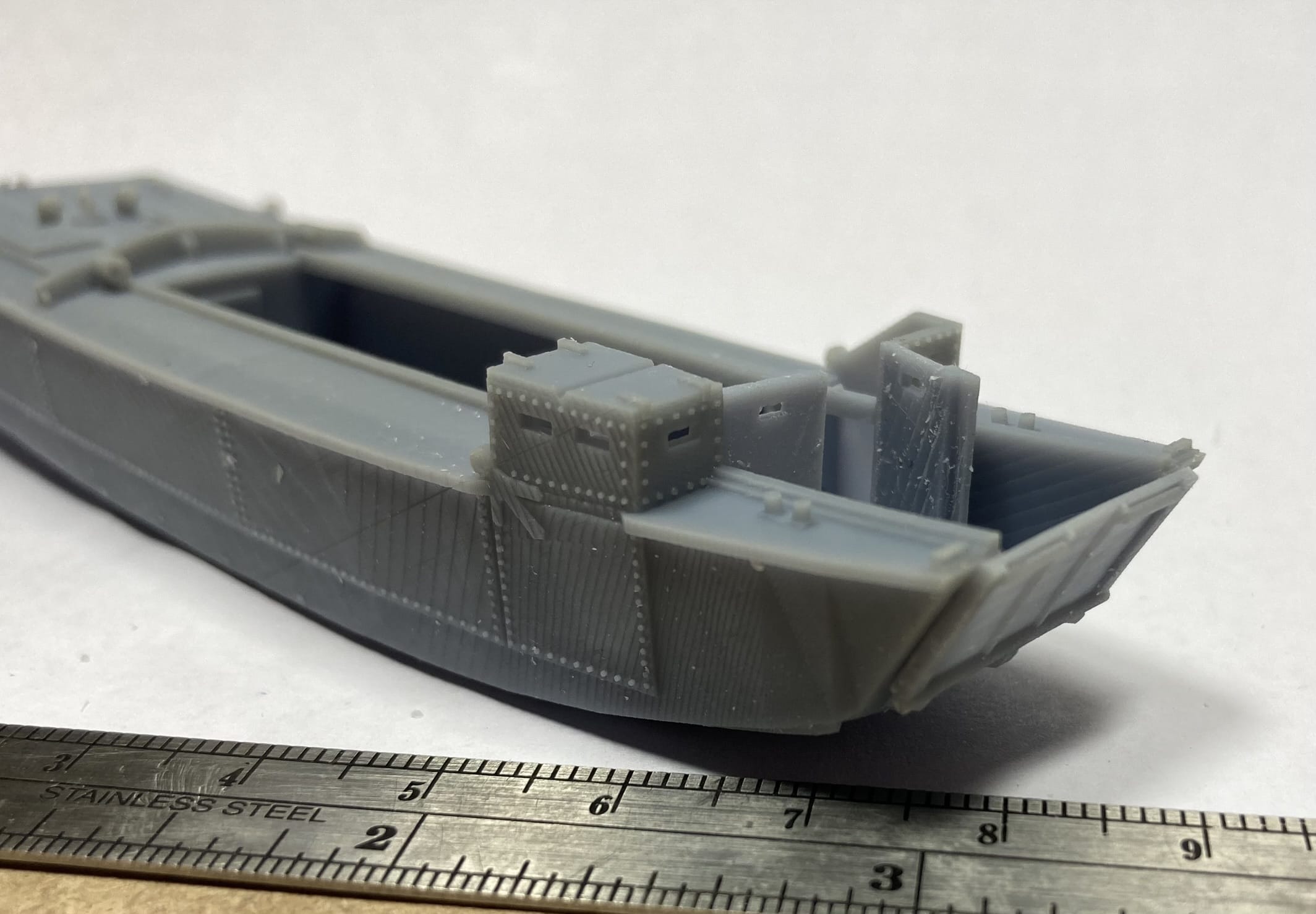

The set includes both wargaming models (waterline cut models) but also full versions of the model. So you could create a nice show-model of a complete LCA. The models have enough details to be scaled to 1/56 (28mm), but I only did the test-print in 1/100. When scaled to 1/56 (28mm) you should also be able to print it on an FDM printer, including the smaller parts, like the screws, etc.
All files are provided in 1/100 scale, do not forget to resize the models in your slicer for different scales (do not us the PRE-supported files for re-size, create new support);
For most of the Models I have included Support files for Resin printing (1/100 scale), those worked fine for me. No guarantee they will work on your printer settings. So feel free to use, but might be best you create your own supported files.
About 2000 have been build and 371 were lost.
The LCA can transport 36 troops or 360 kilogram cargo. It had a crew of 4. Armament one Bren light Machine gun or 2 Lewis guns, and later models also carried 2 x 2-inch mortars. Weapons are not included.

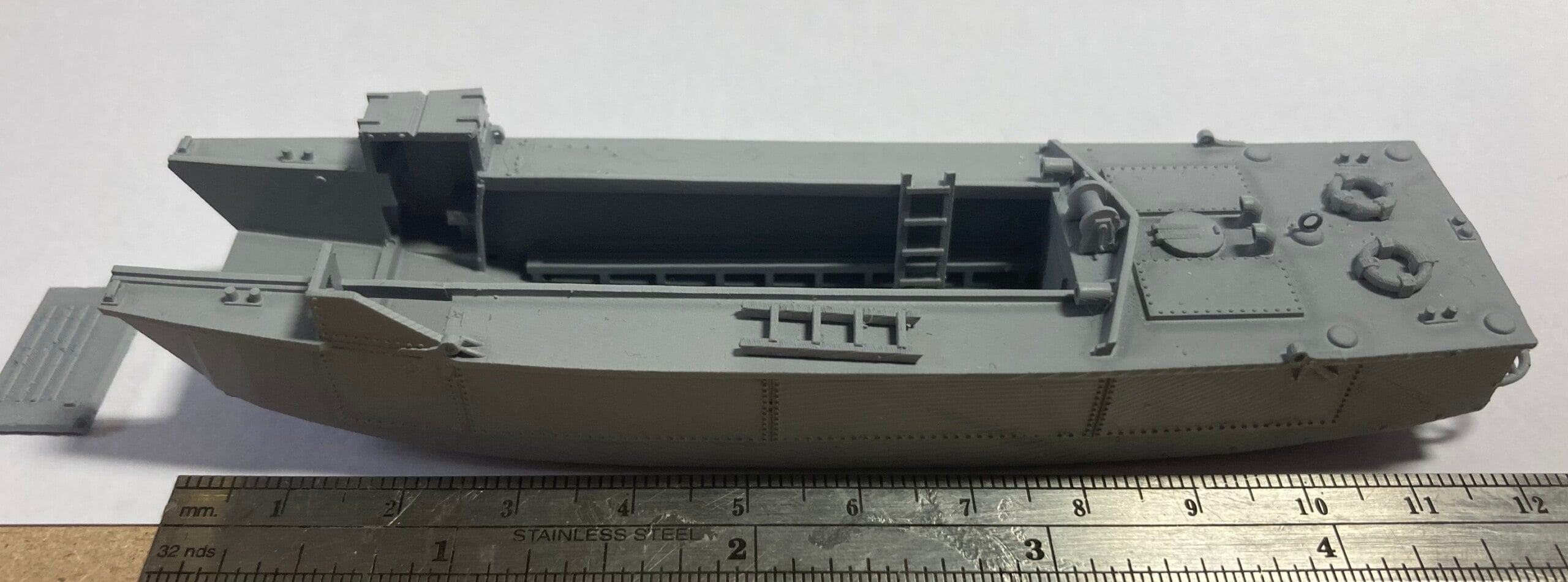

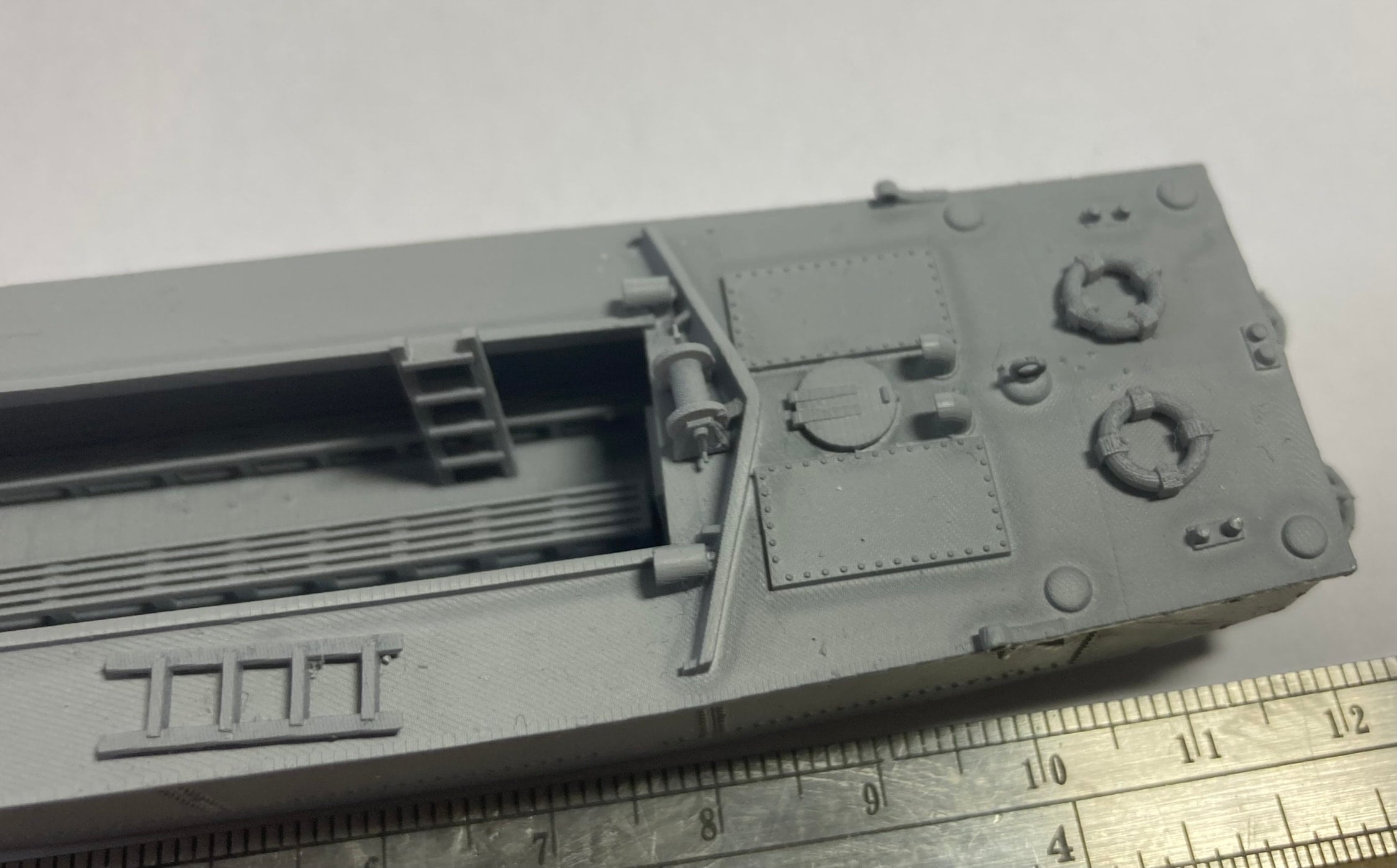

Version - 1
- Full-hull (Including supported file)
- Water-line model (including supported file)

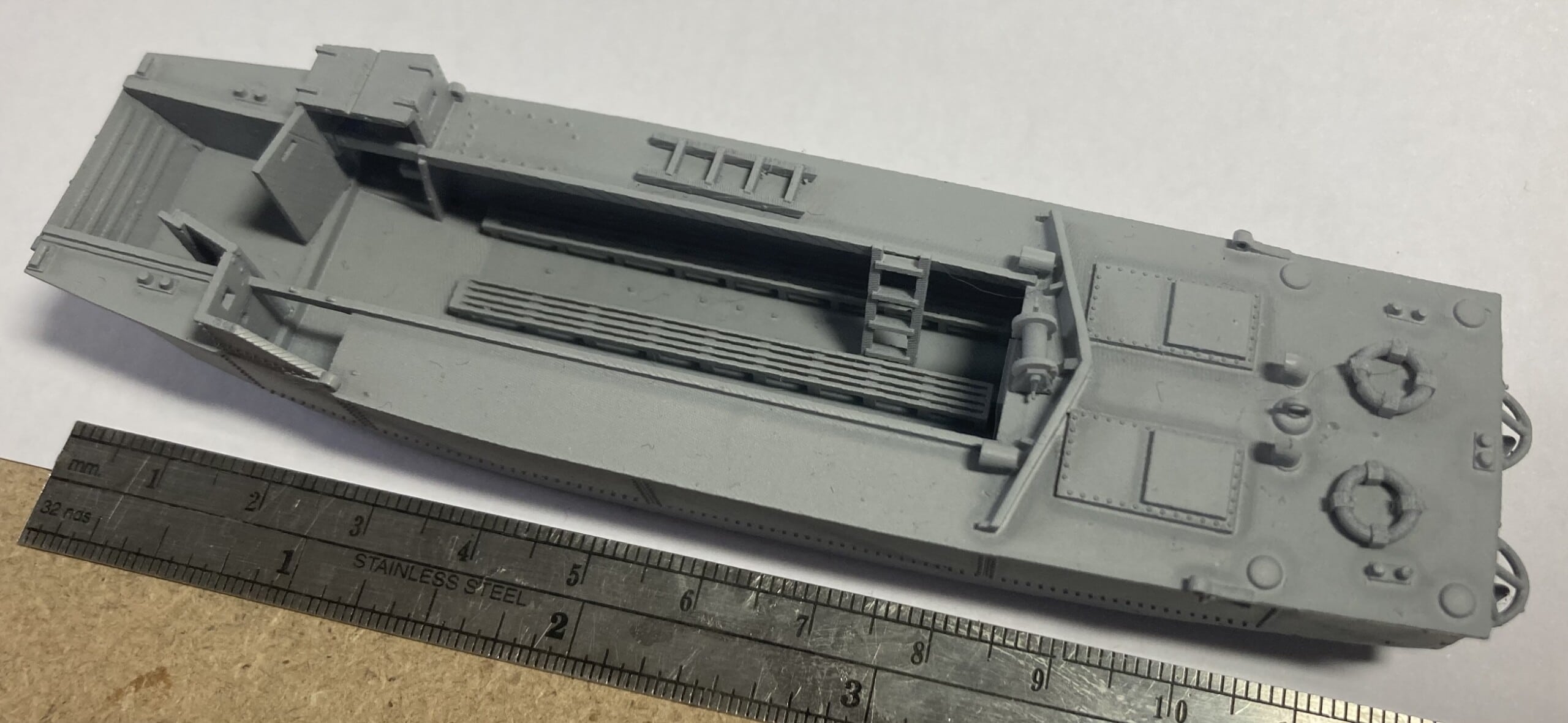

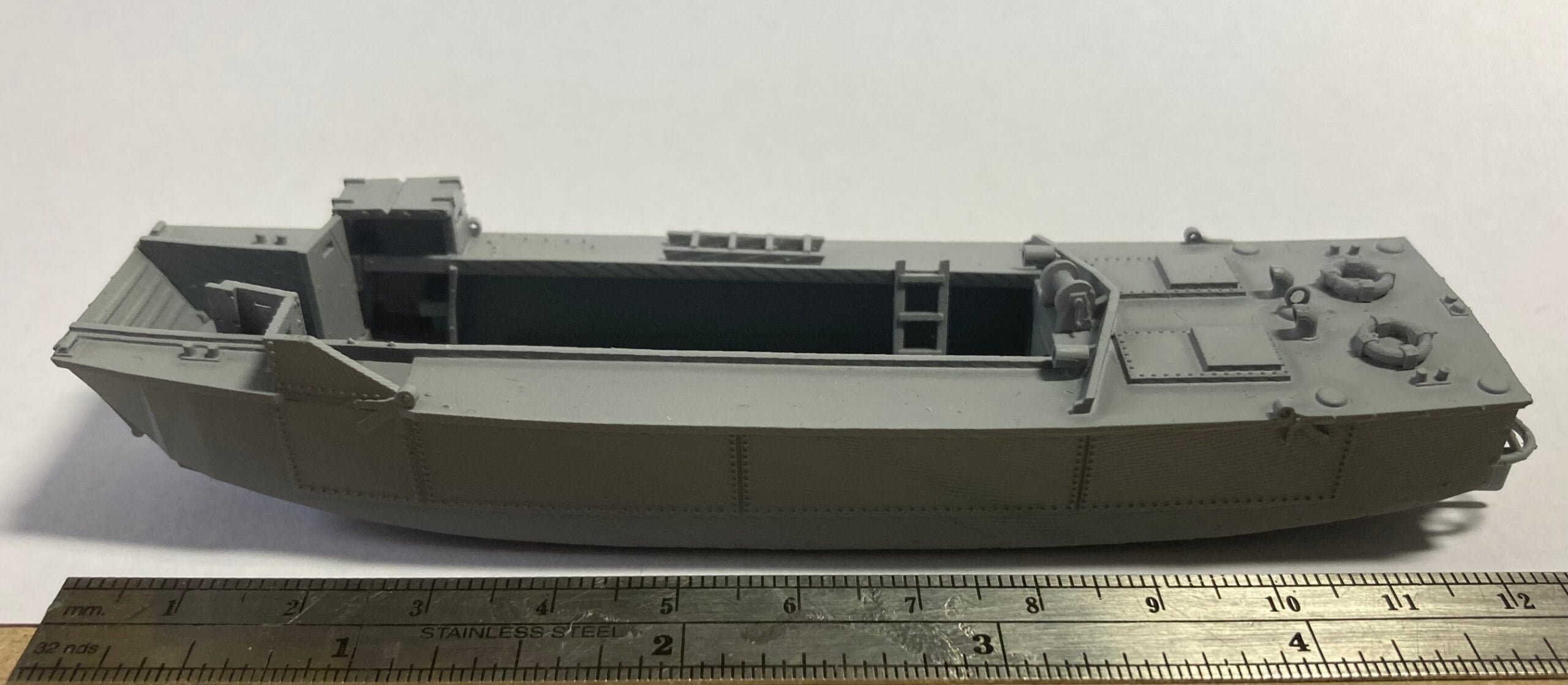

Version - 2
- Full-hull (including supported file)
- Water-line model (NO supported file provided)
The model includes all the doors, ladders, winch, lifebuoy, screws and rudders. (Screws and rudders not needed for the wargaming waterline model)
Copyright Allan Smit 2024
Non Commercial and personal use only. May not be shared, uploaded or otherwise distributed.
The 1/100 models are Resin print only.
The set includes both wargaming models (waterline cut models) but also full versions of the model. So you could create a nice show-model of a complete LCA. The models have enough details to be scaled to 1/56 (28mm), but I only did the test-print in 1/100. When scaled to 1/56 (28mm) you should also be able to print it on an FDM printer, including the smaller parts, like the screws, etc.
All files are provided in 1/100 scale, do not forget to resize the models in your slicer for different scales (do not us the PRE-supported files for re-size, create new support);
- 1/56 - 178,57%
- 1/72 - 138,89%
- 1/76 - 131,58%
For most of the Models I have included Support files for Resin printing (1/100 scale), those worked fine for me. No guarantee they will work on your printer settings. So feel free to use, but might be best you create your own supported files.
| Filename | Size | Last updated |
|---|---|---|
| Landing-Craft-Assault.zip | 171.9 MiB | 2024-02-28 |
