Ship built names were: HMS Barfleur, HMS Prince George, HMS Princess Royal, HMS Formidable
For more information see: https://en.wikipedia.org/wiki/Barfleur-class_ship_of_the_line

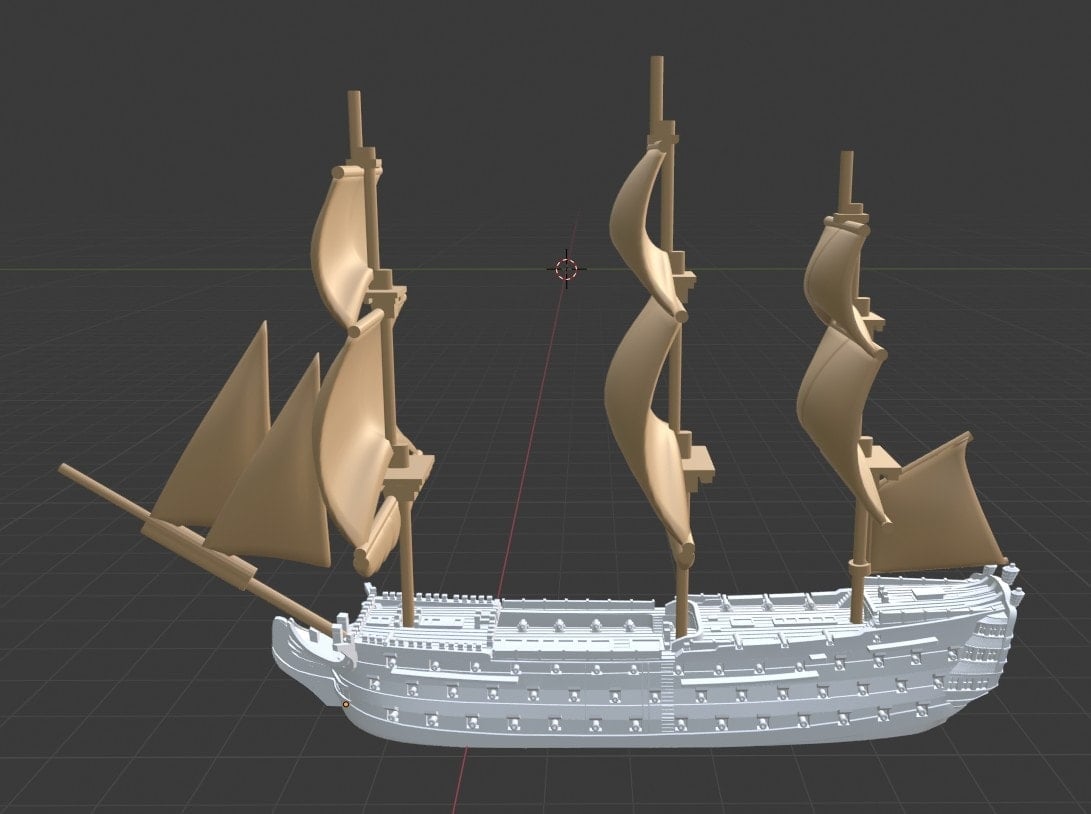

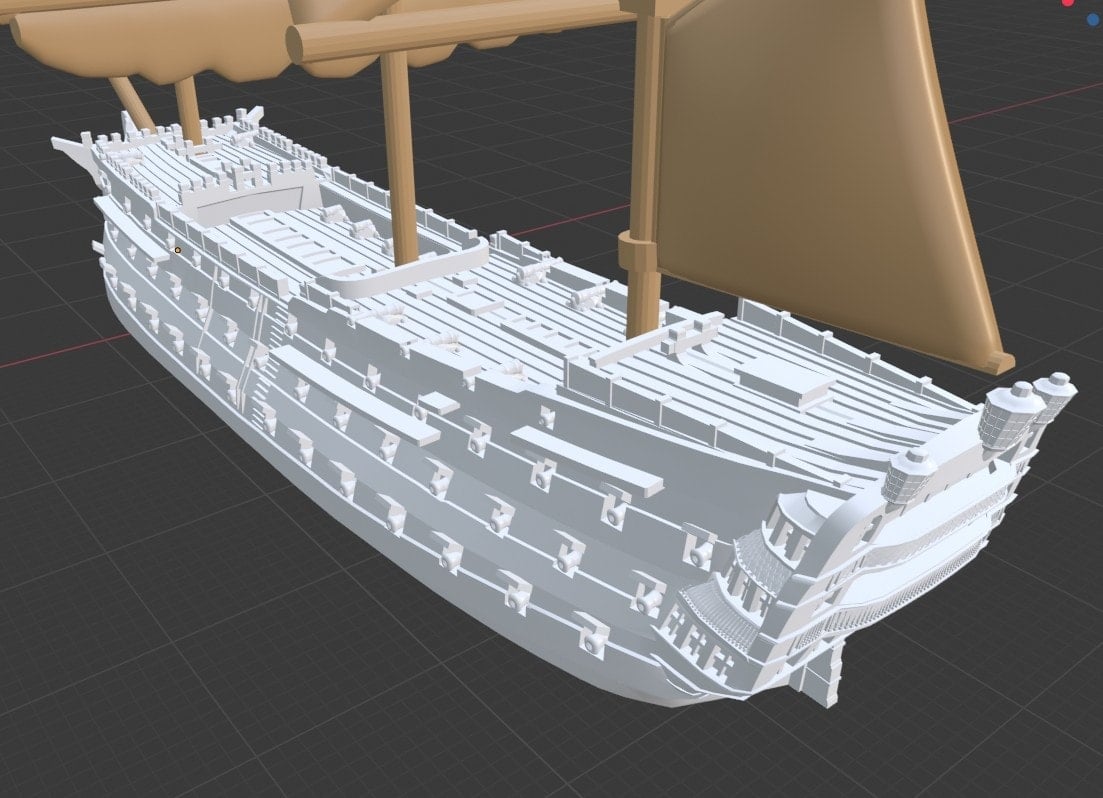

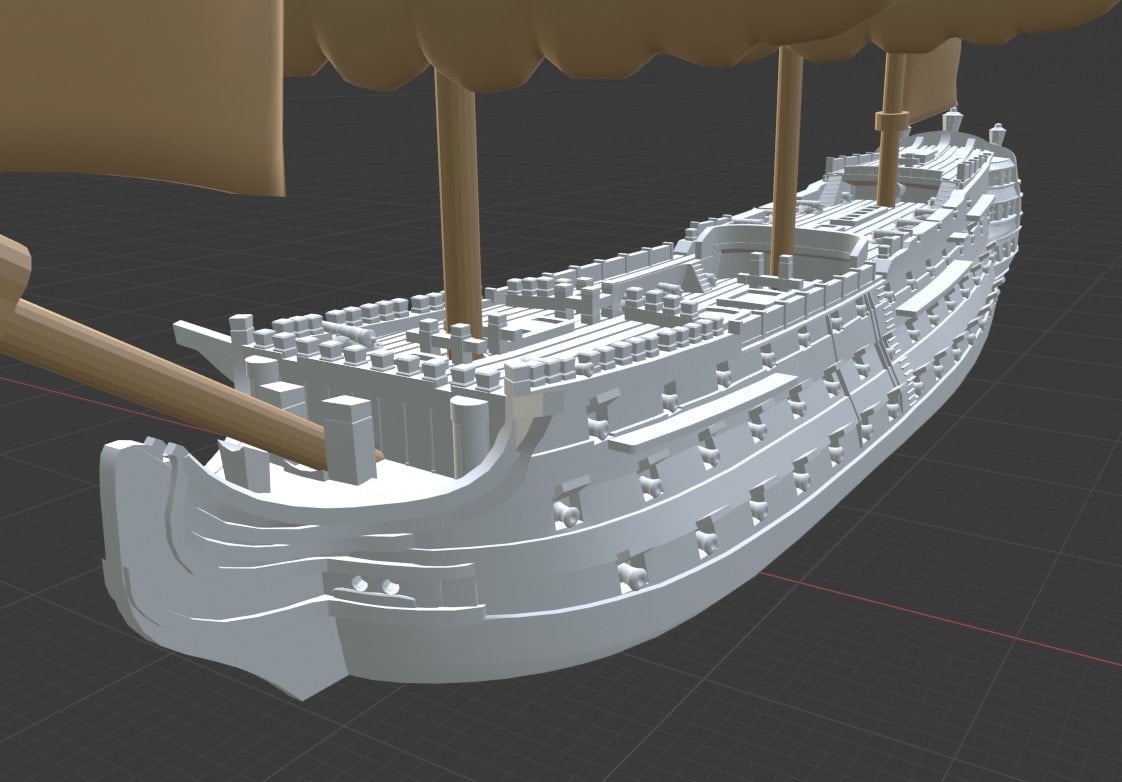

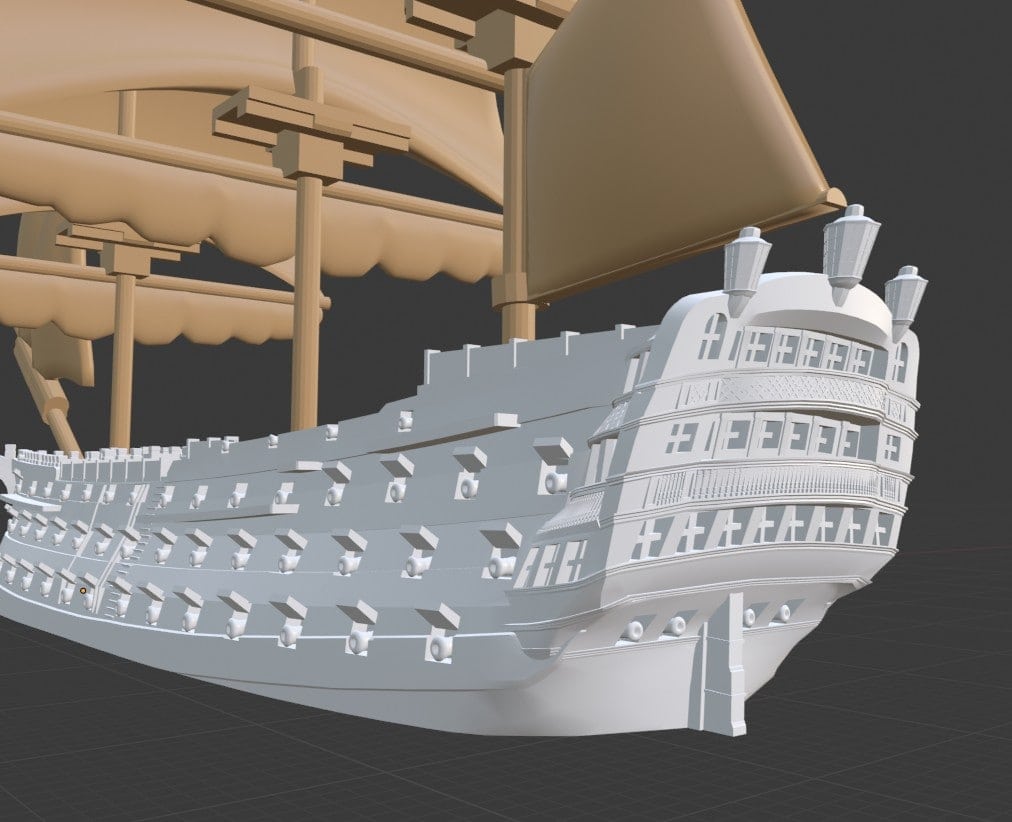

The ship hull and shape was built as accurately as possible to admiralty plans. The hull under the waterline was then removed and the upper parts were simplified in detail at the bow, thickened in the stern, windows exaggerated, and deck detail exaggerated. All this to be able to print out at 1:700 (and larger) scales. Smaller scales are possible but would likely require a resin printer for the best results.

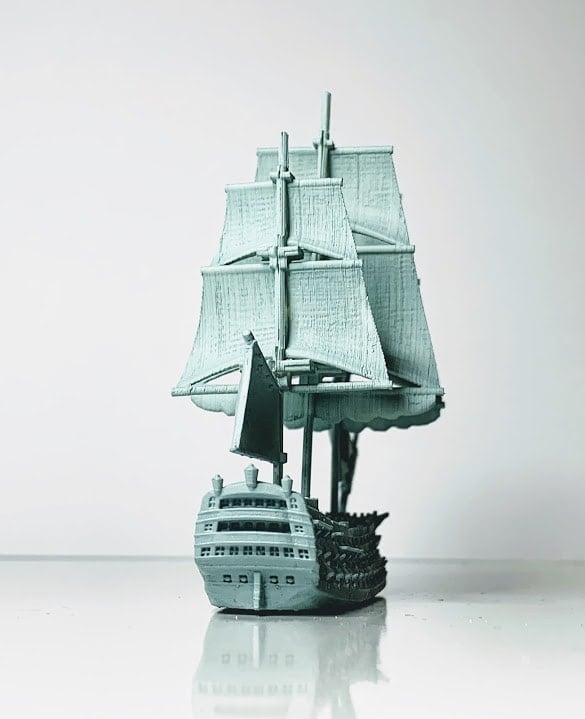

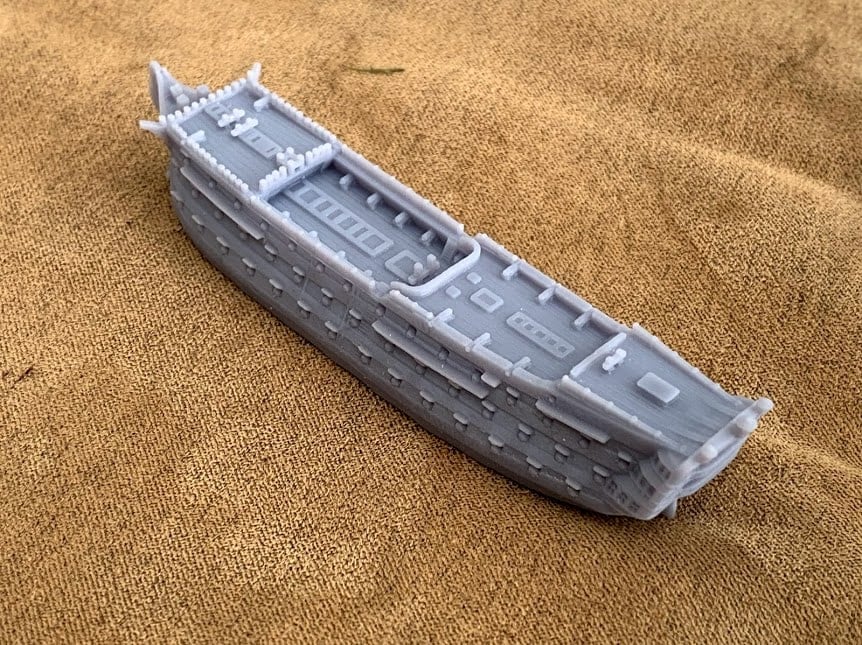

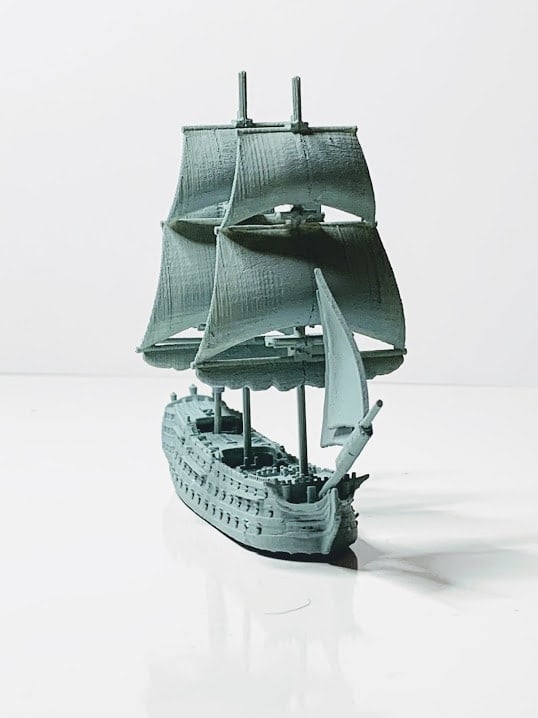

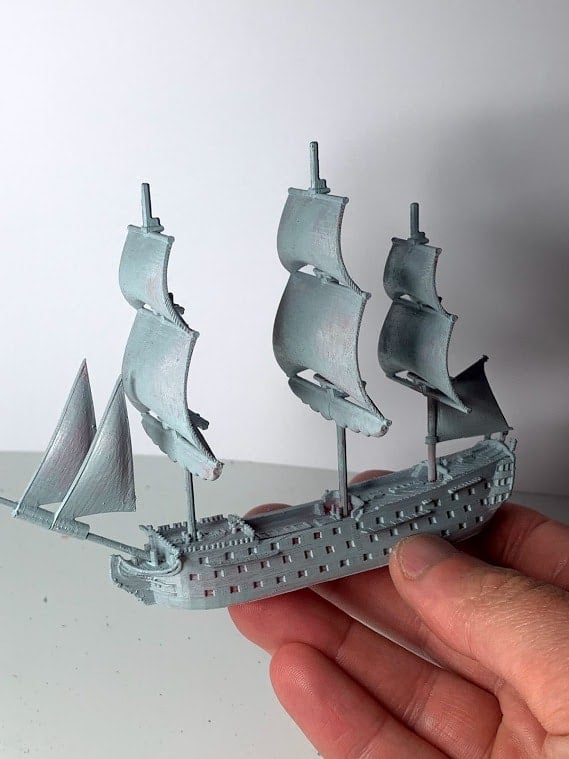

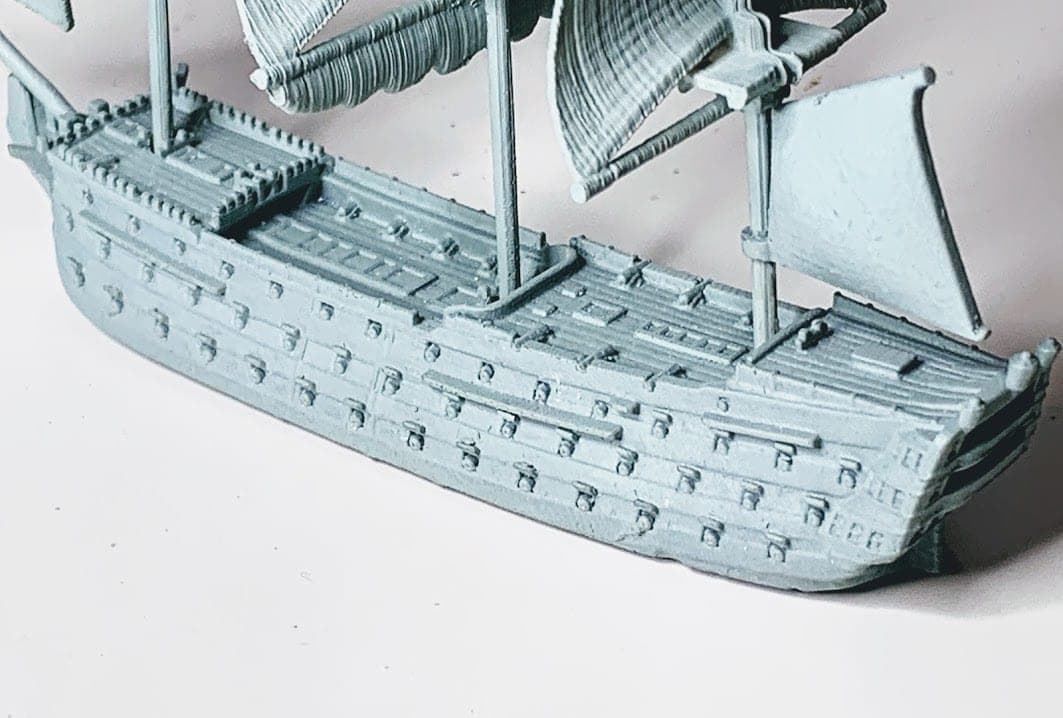

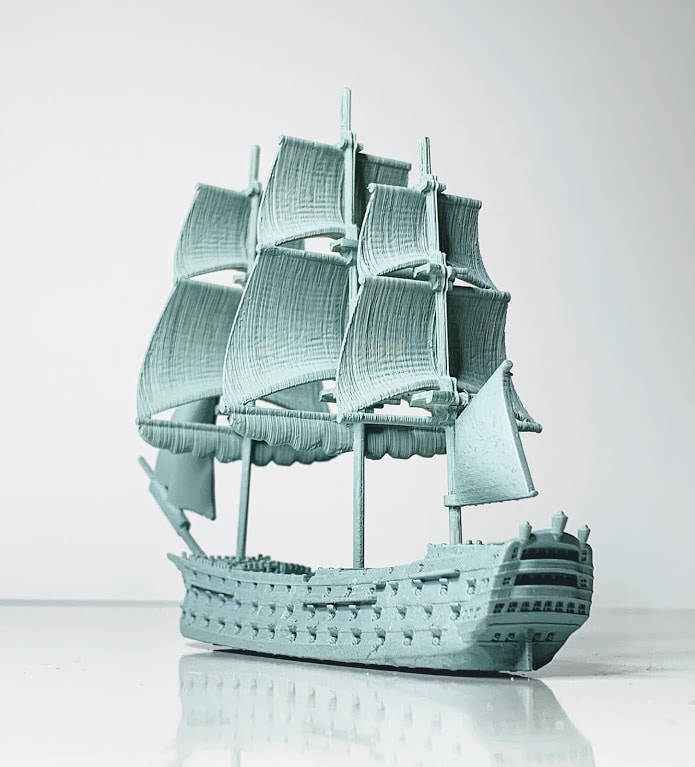

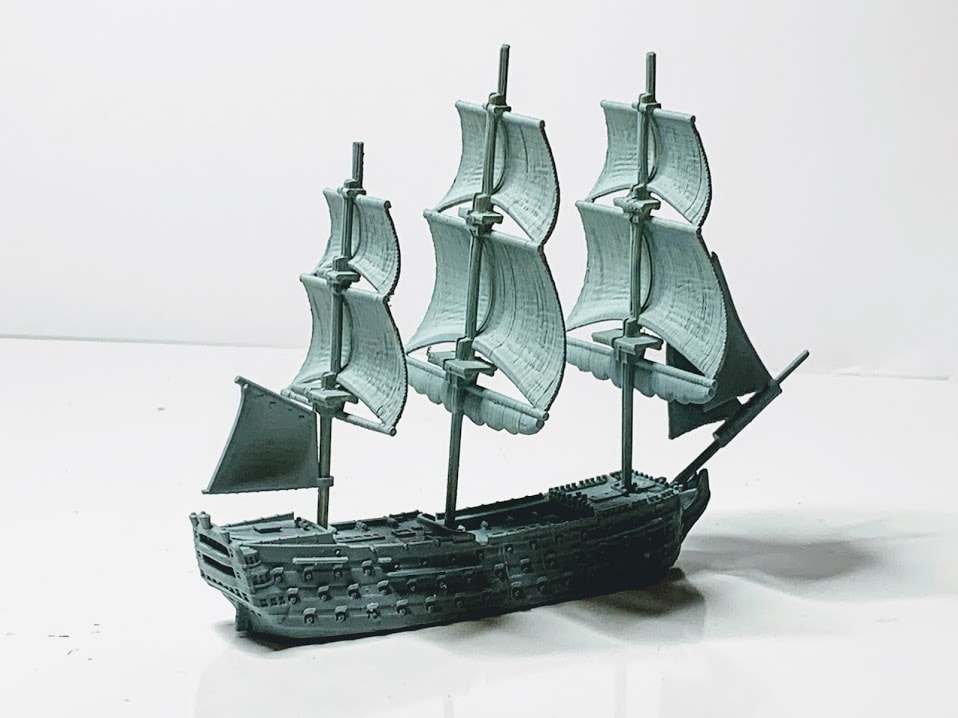

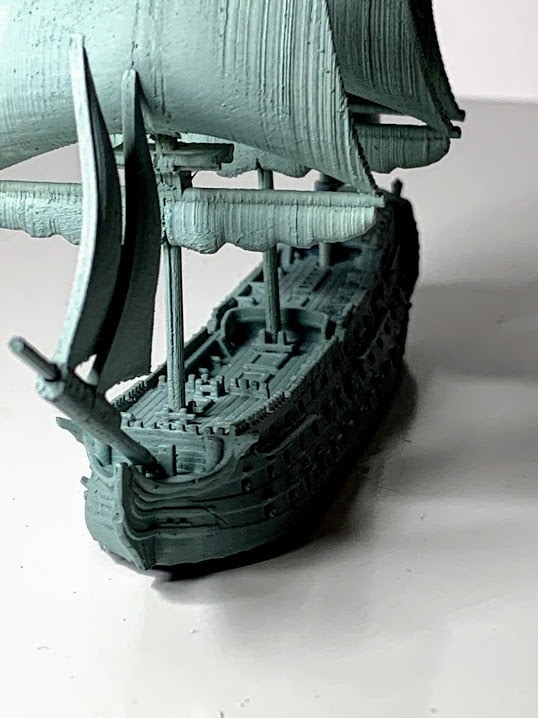

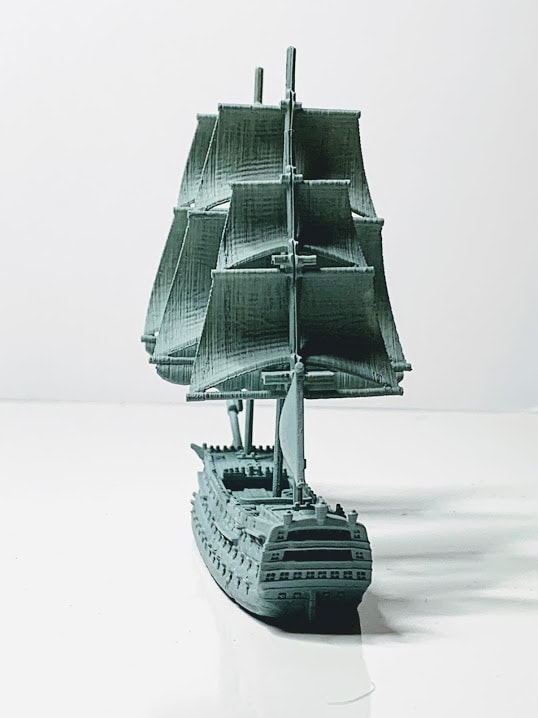

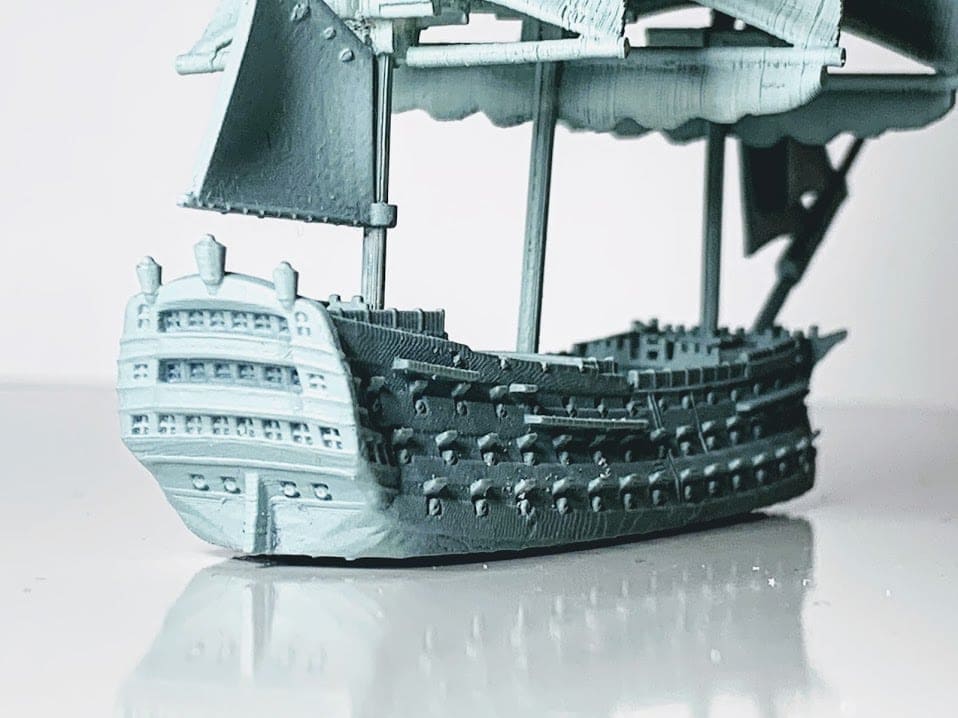

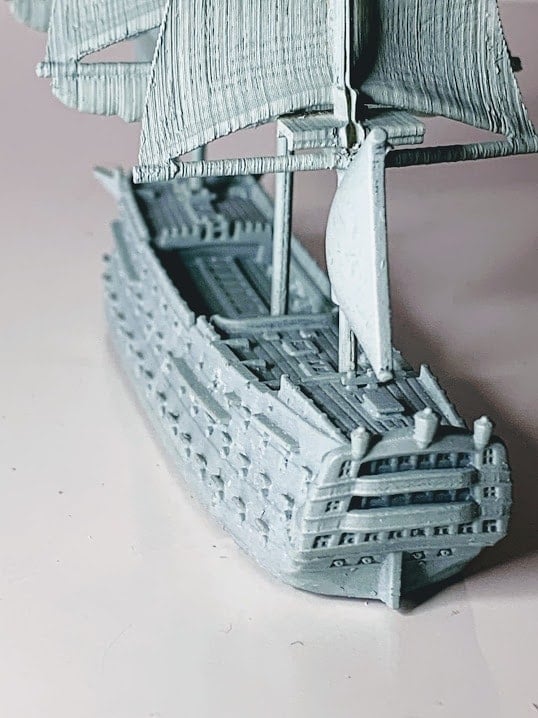

Photos are of the model printed on an FDM printer and base coated in grey. The last two pictures show the Barfleur next to the Temeraire-class model.

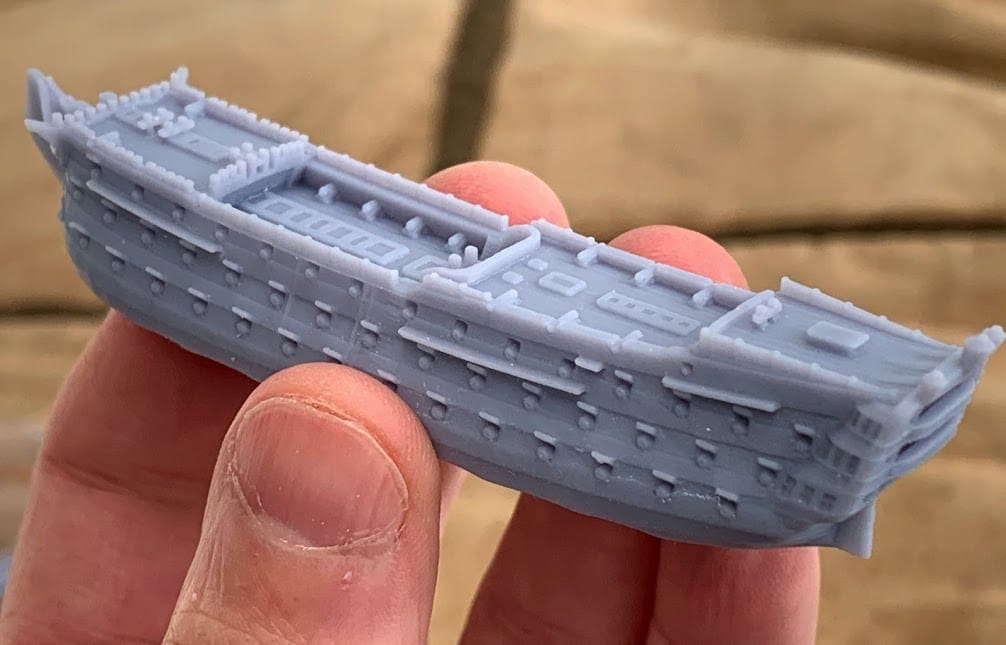

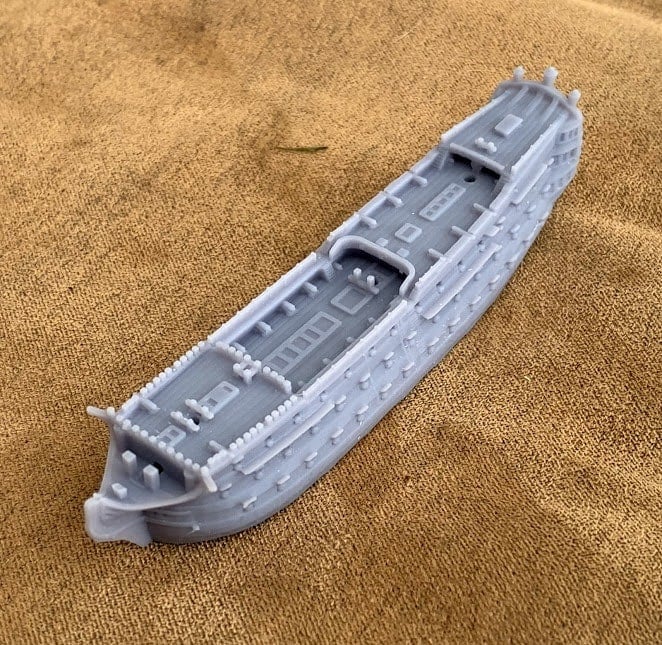

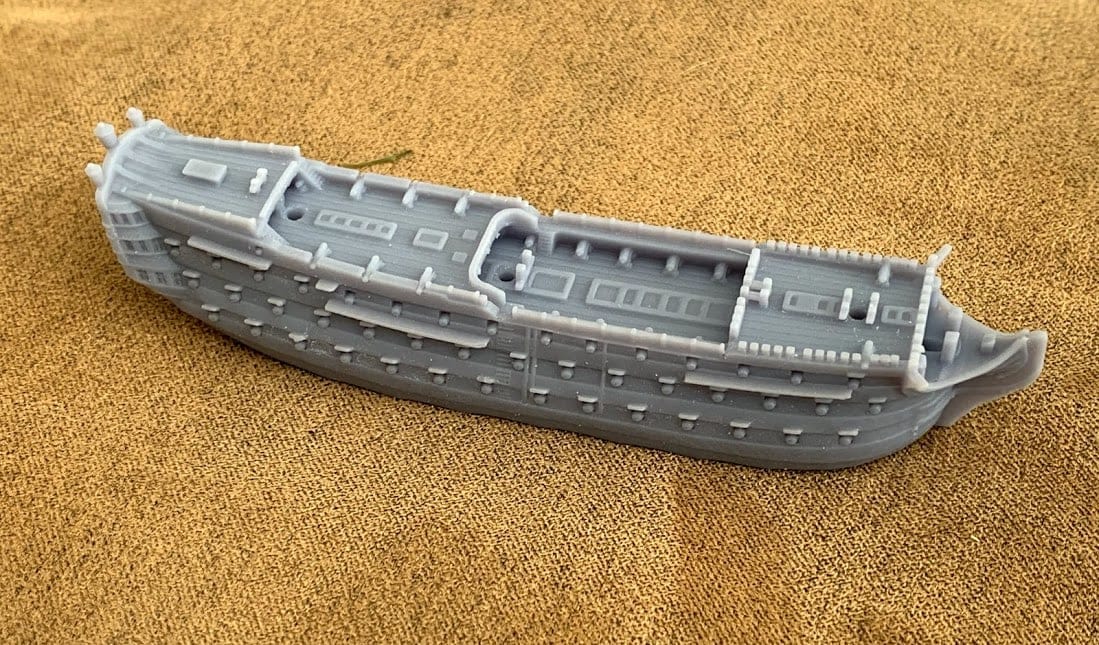

- 1 x 1:700 resin optimized printable hull (98 gun) with the latest version 2 detailing
- 1 x 1:700 fdm optimized printable hull (98 gun) with the latest version 2 detailing
- 1 x 1:700 generic hull (90 gun) without planking and side netting. Printable for both fdm and resin
- Split sails with lower mast section – for fdm printing
- Split sails without lower mast section and with a hole for a rod/wire – for fdm printing
- Combined sails with lower mast section – for resin printing
- Combined sails without lower mast section and with a hole for a rod/wire – for resin printing
- Bowsprit mast and sails
- Mizzen gaff/spanker sail
The sails are of a generic 2nd rate size and will be usable with other published 2nd rate ships. Does not include the ratlines, flags or rigging string. No supports are usually required on any part of an fdm print. Supports will be required for the sails when resin printing. For assembly, please see the photos on the Intrepid-class 64 gun model (on this site) showing the bowsprit parts and mizzen (rear sail parts) being assembled.
Note, due to the modular way I am building the masts/sails then you may need to enable ‘Union overlapping volumes’ in Cura or the equivalent setting in your slicer when printing them.
