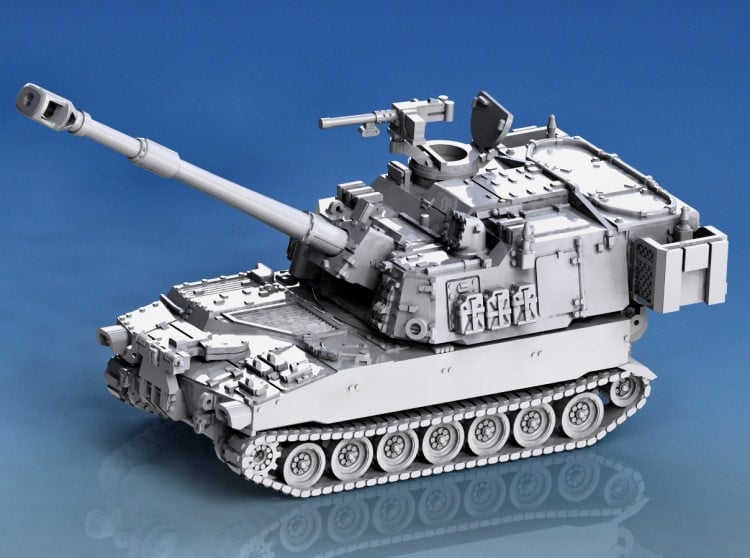

1-100 M109A6 Paladin 155mm howitzer
Please remember: CC BY-SA-NC license.
Revised set with missing cuppola files included.
M109A6 Paladin is the current standard US version of the M109. (There is a new M109A7 with a revised hull based on Bradley components, but due to a total lack of decent plans, I’m not even going to try.)
Paladins are rebuilt from earlier versions. I have called M109A6 Paladin rebuilt from M109A2 version “newbuild”. Rebuilt M109A2 vehicles have no flotation air-ducts and mounts.
All hull models have an optional version labeled “no spades”. This is used in conjunction with the 3 seperate rear-spade files to allow the spades to be glued in firing or resting-on-the-ground positions, plus a folded set for purists. I will leave assembly of these items to the SLA user, because frankly I’m bored of this set now.
M109A6 Paladin newbuild: Optional cuppola with shield, mg with shield. (open & closed hatch)
M109A6 Paladin: Optional cuppola with shield, mg with shield. (open & closed hatch)
Turret baskets are separate pieces, glue in folded or unfolded position as required. There are assembled turret versions folded and unfolded for the SLA brigade.

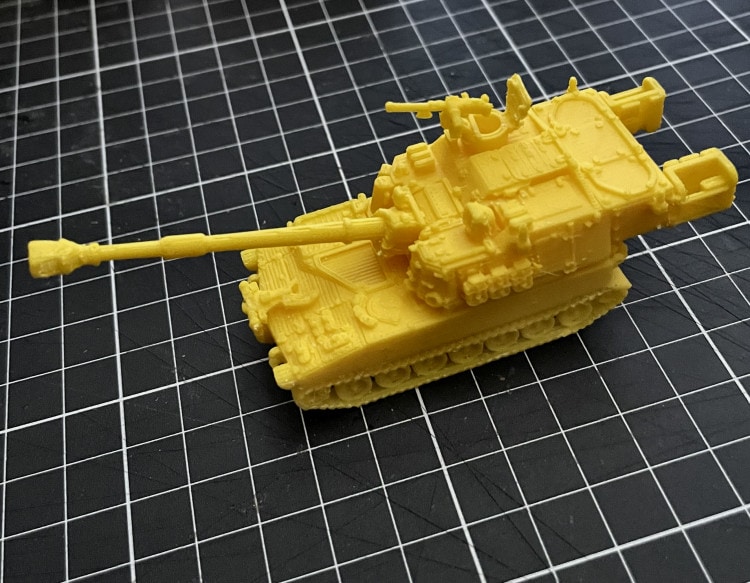

All vehicles printed sitting on their tracks.
Turrets printed in correct orientation.
Remove raft then clear out between tracks first.
Watch out for the protruding lifting hooks on the rear and front.
Gun should click into place and be elevatable.
